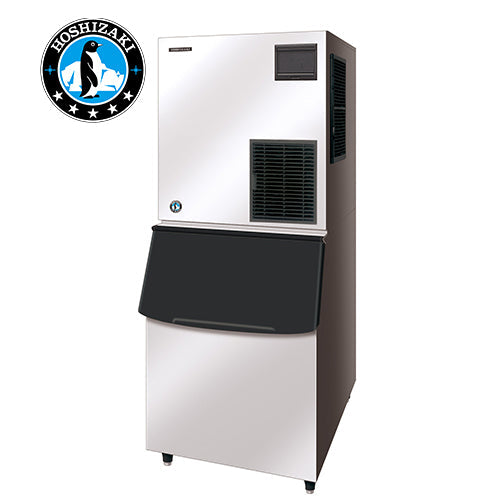

PURE & COOL COMMERCIAL ICE MAKER

The FM-750AKE Series Commercial Ice machines produce up to 530kg of flaked ice a day which is often used for produce display of fish, fresh food and bottled beverages. In the medical field, flake ice is also used for organ transportation. Utilizing the most efficient ice making process due to the unique auger system, water consumption is equal to ice production.

“Freeze Burn” is no longer an issue when displaying fresh fish or produce.
Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
Automatic flush function helps keep the ice making system clean.
Controller board with Operational Status display assists in troubleshooting.
Due to the auger system, water consumption is equal to ice production.
Can be converted to Nugget ice by changing the extruding head and cutter (parts at an additional cost).
2 year parts & labour on entire unit, 5 year (parts only) on compressor & air-cooled condenser coil.

Production Capacity per 24hours	Approx. 750kg @10°C Air temp; 10°C Water Approx. 650kg @ 21°C Air temp; 15°C Water Approx. 530kg @ 32°C Air temp; 21°C Water
Max Storage Capacity	Select bin and top kit
Dimensions	762mm (W) x 700mm (D) x 780mm (H)
Cooling	Air
Weight Net/Gross (kg)	133 / 143
AC Supply Voltage	1 PHASE 220-240V 50Hz / 15 AMP Plug
Amperage	Running: 9.2A Starting: 43A
Refrigerant Charge	R404A
Operating Conditions	Ambient Temp.: 5-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.05-0.8MPa (0.5-8bar) Voltage Range: Rated Voltage ±10%

Product Dimensions: 762(W) x 700(D) x 780(H)mm

Brand	Hoshizaki
MPN	FM-750AKE
Product-Dimensions	762(W) x 700(D) x 780(H)mm
