HIGHEST QUALITY ICE

This ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavor of the drink. This model is configured with our storage bins, and can be stacked to multiply the ice production.

New intelligent control circuit dedicated to saving power and water consumption.
Micro computer controller controls ice making process to work at peak performance in any conditions.
Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
New 7 segment operational display panel for ease of use.
Unique closed cell water circuit for ultimate contamination protection.
Durable stainless steel exterior.
Easily accessible and cleanable air filters reduce costly callouts.
Exceptionally hard crystal clear cubes that melt slowly.
Auto rinse and flush cycle.
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.

Production Capacity per 24hours	Approx. 90kg @10°C Air temp; 10°C Water Approx. 85kg @21°C Air temp; 15°C Water Approx. 62kg @32°C Air temp; 21°C Water
Max Storage Capacity	Approx. 38kg ( Bin Control Setting Approx. 23Kg)
Freeze Cycle Time	Approx. 17 Min
Ice Production Per cycle	Approx. 1.15kg/190pcs
Dimensions	1004mm (W) x 600mm (D) x 800mm (H) (Units include adjustable legs 90-125mm)
Cooling	Air
Weight Net/Gross (kg)	77 / 88
AC Supply Voltage	1 PHASE 220-240V 50Hz/ 10 AMP Plug
Amperage	Running: 4.1A Rated: 4.1A Starting: 19A
Refrigerant Charge	R134a / 280g
Operating Conditions	Ambient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage Range: Rated Voltage ±6%

Product Dimensions: 1004(W) x 600(D) x 800(H)mm

Brand	Hoshizaki
MPN	IM-100CNE-21
Product-Dimensions	1004(W) x 600(D) x 800(H)mm
Power
Warranty

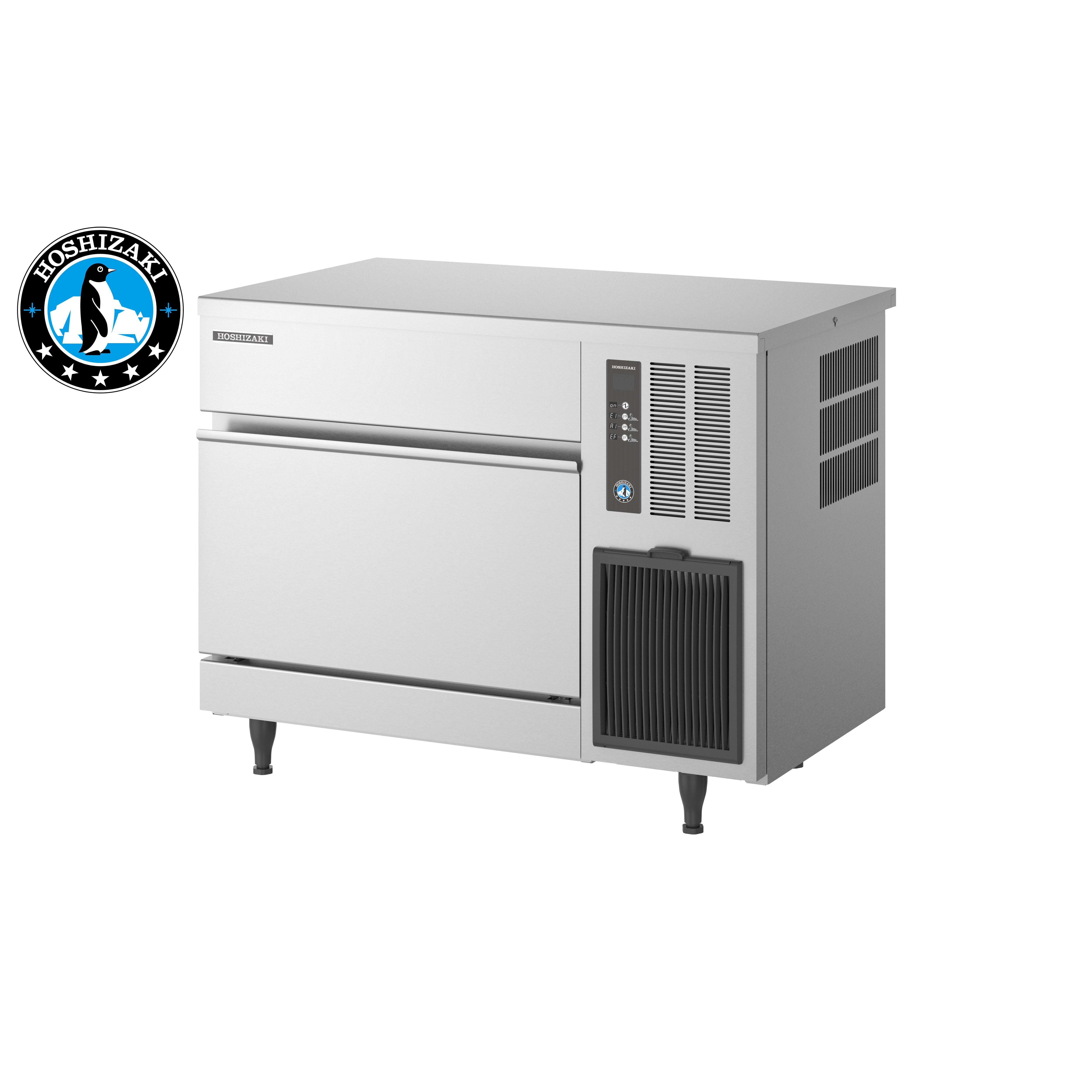

Hoshizaki Self Contained Half Cube Ice Machine
