LEADING THE FUTURE OF ICE PRODUCTION

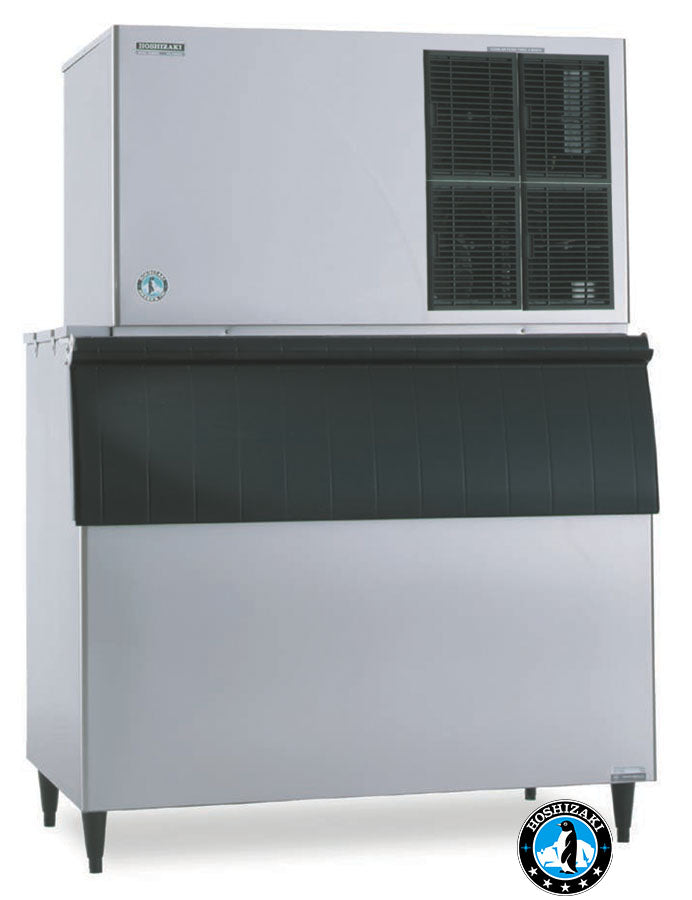

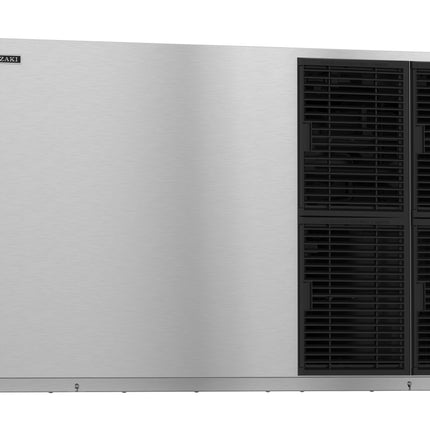

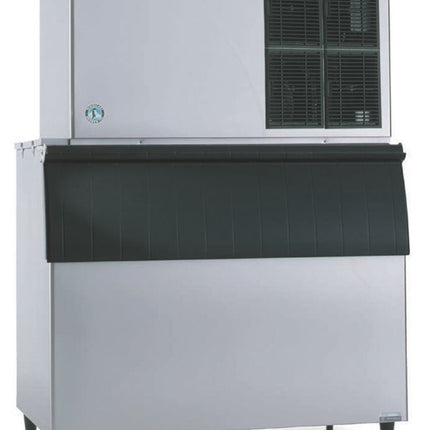

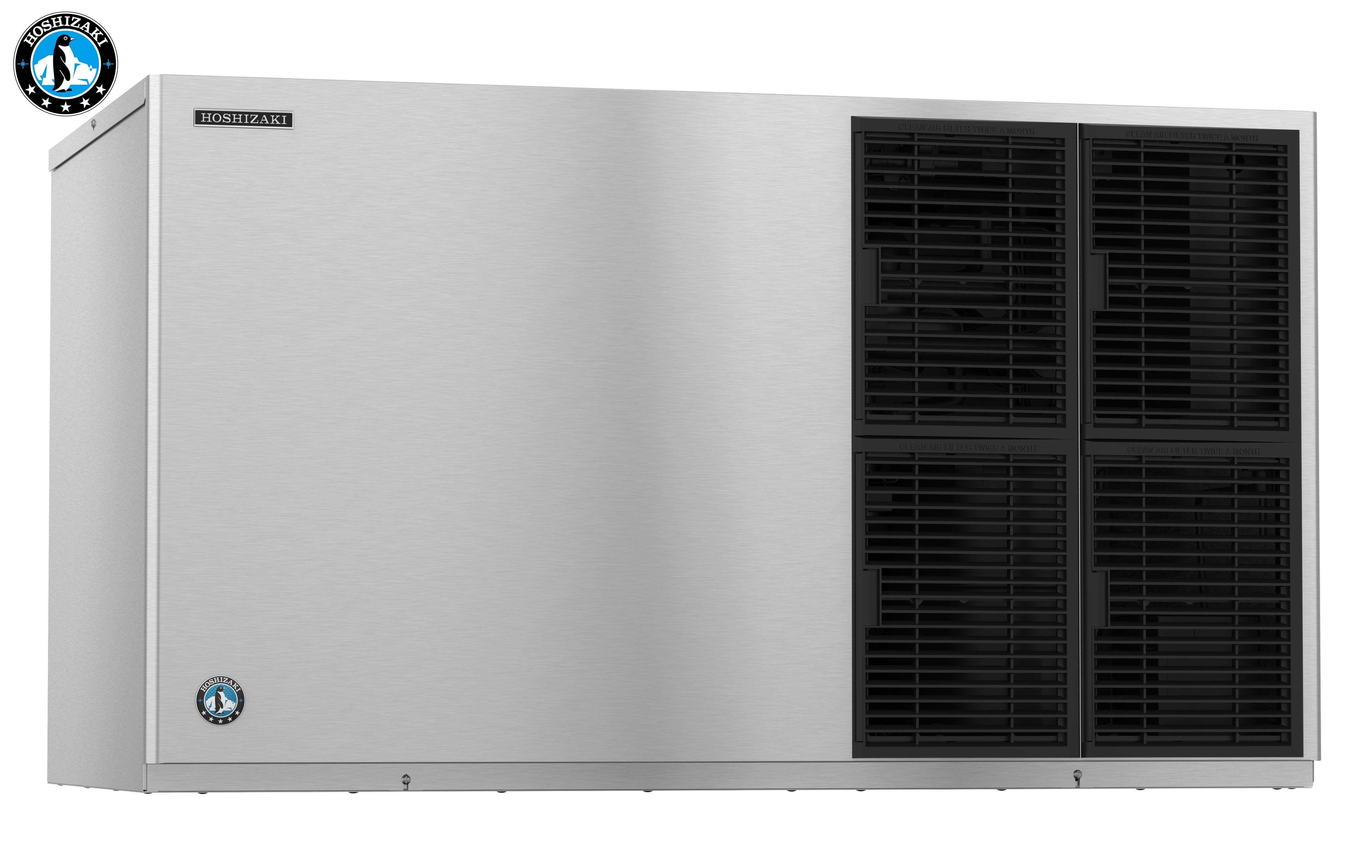

The Hoshizaki KM-590DJ-S ice machine produces up to 590kg of clear hard crescent ice a day and has a range of ice storage bins to suit your needs.

Individually shaped crescent ice.
Protected by HoshiGuard Antimicrobial Agent.
CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time.
EverCheck Control board with audible alarm and diagnostic features, designed to assist services technicians in diagnosing problems.
Durable stainless steel exterior.
Easily removable & cleanable air filters on front panel.
Ice storage bin, top kit and water filter sold separately.

FFFFFF

Product Dimensions: 1219(W) x 695(D) x 695(H)mm

Production Capacity per 24hours	Approx. 630kg @ 10°C Air temp; 10°C Water Approx. 590kg @ 21°C Air temp; 15°C Water Approx. 500kg @ 32°C Air temp; 21°C Water
Freeze Cycle Time	Approx. 28min
Ice Production Per cycle	Approx. 12.9kg / 1,440pcs
Width	1219mm
Depth	695mm
Height	695mm
Weight Net	136kg
Packed Weight	160kg
Cooling	Air
AC Supply Voltage	1 PHASE 220-240V 50Hz/ 15 Amp Plug
Amperage	Running: 11.35A Starting: 58A
Refrigerant Charge	R404A/1,900g
Operating Conditions	Ambient Temp.: 7-38°C Water Supply Temp.: 7-32°C Water Supply Pressure: 0.07-0.78MPa (0.7-7.8bar) Voltage Range: 198 – 254V
Electrical consumption	2,080W (AT. 32°C; WT 21°C)
Water Consumption	Approx. 1.15m3/d (AT. 21°C; WT 15°C)

Brand	Hoshizaki
MPN	KM-590DJ-S
Product-Dimensions	1219(W) x 695(D) x 695(H)mm
Power
Warranty

Hoshizaki 590Kg Crescent Ice Maker
