Description
Sometimes, in order to really learn to do something well, you have to pay attention to the best. And the best, in this case, is our new Concept range of flight-type dishwashers. The result of a complete process re-engineering, the machines that make up this range feature the newest technological innovations and are perfect example of sturdiness, reliability and flexibility. In addition, they have a great output capacity and off-the-charts energy performance data both in terms of water and electricity consumption. And if that wasn't enough, this new range offers the best price-quality relationship on the market. That really is a professional wash. That’s how you get things done.
The perfect result: perfect drying
The air inside is drawn off and sent to turbines which, through heating elements, increase their
temperature up to 50/60 ºC.To achieve perfect drying, even in complicated cases, we offer the possibility of adding consecutive drying modules.
Don’t waste energy
The energy recovery system draws off steam generated in the tunnel. This heat generated
through steam is recovered since it is redirected towards the energy recovery system. Thanks to the heat exchanger, the heat generated through steam can be used to increase the temperature of the water that is then sent to the boiler.
We adapt to your rhythm
The adaptive rinse system results in low and homogeneous consumption. The quantity of water used in the rinse adapts to each speed: the lower the speed, the lower the quantity of water needed, since the time the dishes are in contact with the water is increased.
Your comfort is our goal
The steam extraction system 0-STEAM prevents steam from escaping the machine, guaranteeing an ideal climate in the work environment. During the entire activity, the washing tunnel recovers heat generated as steam saving unnecessary expenses.
Ready, set, go!
The photocell located at the machine entrance detects dishes and starts up the machine. At the machine exit, there is also a detector to stop the belt from continuing when it reaches the end.
Because we believe in a sustainable world
In accordance with the energy saving philosophy of Fagor Professional, we offer a solution which is unique among European manufacturers: gas dishwashers. In the case of rack type dishwashers, by using a gas generator in the ECO models and, in the case of flight type dishwashers, with gas models with an integrated generator.
- All AISI-304 Stainless steel
- Upwards-opening double panel door
- Easy access for cleaning
- Safety filter for pump suction
- Rinsing boiler with heat insulation
- Easy access for installation
- Electrical panel designed for easy connection of dosers for liquid and solid detergents, rinse aid, limit switches,
- Washing arms easily removable as a set, for cleaning
- Rinse jets easily dismountable and removable.

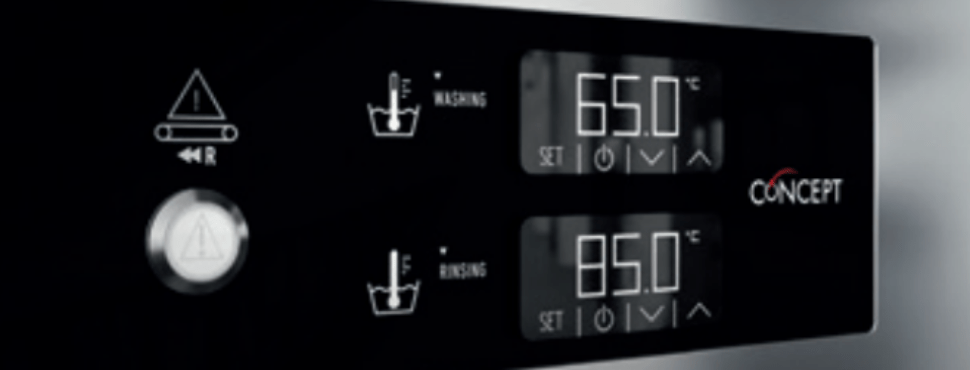

- Wash (50 - 65 °C)
- Rinse (70 - 85 °C)
- Emergency stop button incorporated.
- Open door blocking system
- IPX4 protection system
- System for detection of blockage of conveyor carriage and automatic reverse function.
- High-power washing system with 4 upper and 4 lower washing branches
- 3 washing programs: deep, medium and high capacity
- Double effect rinse.
- Energy-saving systems
- Included: 2 base baskets; 2 baskets for plates; 1 basket for glasses; 1 basket for cutlery
- Watermark approved
Dimensions (WxDxH mm): 1180x790x1550
1 Year Parts and Labour Warranty
Power: 415/50 V/Hz;28.45/3~N kW/A
