Description

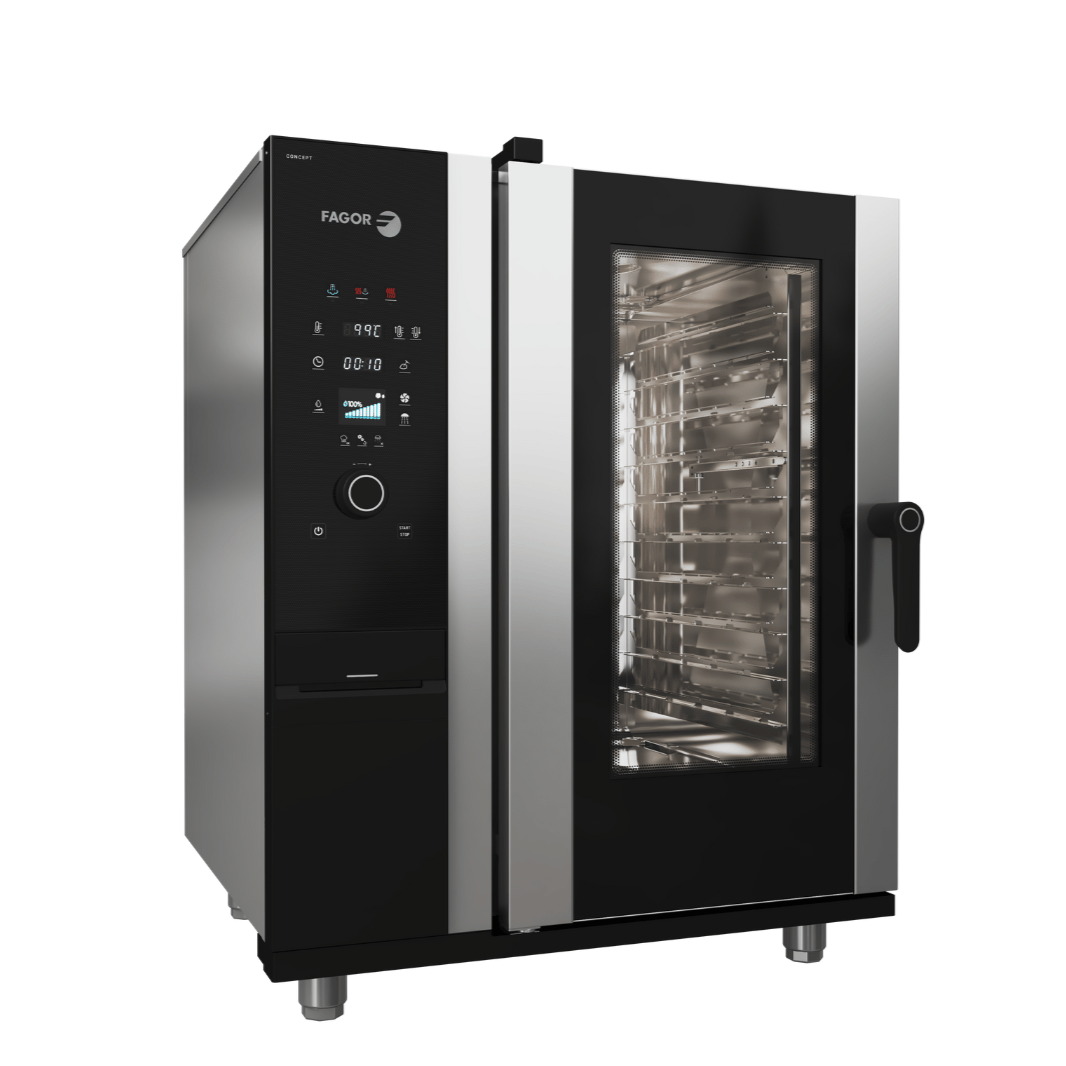

The Fagor iKORE Concept CW-101ELLWS is a 10-tray electric combi oven built for high-output professional kitchens that need precise, repeatable steam and convection cooking. It runs on 18.6kW of three-phase 415V power, holds 10 GN 1/1 trays, and combines a steam-saturation system with active climate management for even results across low-temperature steam, super steam, mixed and convection modes. The iKORE generation adds intelligent recipe storage, remote control and an auto liquid wash cycle, setting it apart from basic combi units.
Why operators choose the CW-101ELLWS
-
10 GN 1/1 tray capacity — batch-cooks proteins, vegetables and bakery items in volume for cafes, restaurants and catering kitchens.
-
18.6kW three-phase power (415V/50Hz, 3N) — rapid heat-up and recovery to hold service pace through peak periods.
-
Clima humidity management — direct humidity measurement with 10% regulation steps for consistent moisture control and reliable results.
-
Five cooking modes — low-temperature steam, steam, super steam, mixed and convection cover roasting, baking, steaming and regeneration in one unit.
-
100+ stored recipes — ships with 100 pre-set programs and stores 9-stage recipes so staff cook to the same standard every time.
-
Auto liquid wash — automated cleaning cycle reduces labour and keeps the cavity hygienic between services.
-
Air and water cooldown — rapid cabinet cooling lets the kitchen switch between hot and delicate tasks quickly.
-
Remote control and 2.8" display — rotary-knob interface plus remote access for setup and monitoring away from the unit.
Specifications
| Brand |
Fagor |
| Model / MPN |
CW-101ELLWS |
| SKU |
CW-101ELLWS |
| Type |
Electric combi oven (iKORE Concept) |
| Tray capacity |
10 trays (GN 1/1) |
| Power |
415V / 50Hz, 18.6kW, 3N (three-phase) |
| Cooking modes |
Low-temperature steam, steam, super steam, mixed, convection |
| Humidity control |
Clima direct measurement, 10% regulation |
| Cleaning |
Auto liquid wash |
| Door |
Left opening |
| Dimensions (W x D x H) |
898 x 817 x 1117 mm |
| Packed dimensions (W x D x H) |
953 x 980 x 1340 mm |
| Weight |
313 kg |
| Warranty |
2 Years Parts and Labour |
Venue suitability
The CW-101ELLWS suits busy restaurants, hotels, catering operations, aged-care and function kitchens that run high covers and need consistent steam and convection output. The 10-tray capacity and five cooking modes make it a strong fit where one unit must roast, bake, steam and regenerate across a varied menu. It is less suited to small cafes or low-volume sites where a compact bench-top convection oven would be more economical on space and power.
Explore the full range of combi steam ovens or browse the complete Fagor line-up to compare capacities and configurations.
Installation & delivery
This is a three-phase 415V appliance and must be hardwired by a licensed electrician. Allow clearance for the left-opening door and around the cabinet for ventilation and servicing. Dispatched Australia-wide from our Sydney HQ and partner warehouses in Melbourne, Brisbane, Adelaide and Perth. Backed by a 2 Years Parts and Labour warranty.
Frequently asked questions
How many trays does the Fagor CW-101ELLWS hold?
It holds 10 GN 1/1 trays, giving high batch capacity for proteins, vegetables and bakery items in restaurants, hotels and catering kitchens running high covers.
What power supply does this combi oven need?
It runs on 415V/50Hz three-phase power and draws 18.6kW (3N). It must be hardwired by a licensed electrician; it cannot be run from a standard 10A single-phase outlet.
What cooking modes does it offer?
Five modes: low-temperature steam, steam, super steam, mixed and convection. Combined with Clima humidity control, this covers roasting, baking, steaming and regeneration. See our guide to combi oven modes, probes and auto-clean for when to use each.
Does it have a self-cleaning function?
Yes. The auto liquid wash cycle cleans the cavity automatically, cutting manual labour. For best results between cycles, follow our complete guide to cleaning a combi oven.
How many recipes can it store?
It ships with 100 pre-set programs and stores 9-stage recipes, so kitchen staff can reproduce the same result across every shift without manual setup.
What are the dimensions and weight?
The unit measures 898mm wide, 817mm deep and 1117mm high, and weighs 313kg. Packed dimensions are 953 x 980 x 1340mm; allow access and clearance when planning delivery and placement.
What warranty is included?
The CW-101ELLWS is covered by a 2 Years Parts and Labour warranty. Contact our team for warranty registration and service support details.
SKU: CW-101ELLWS
