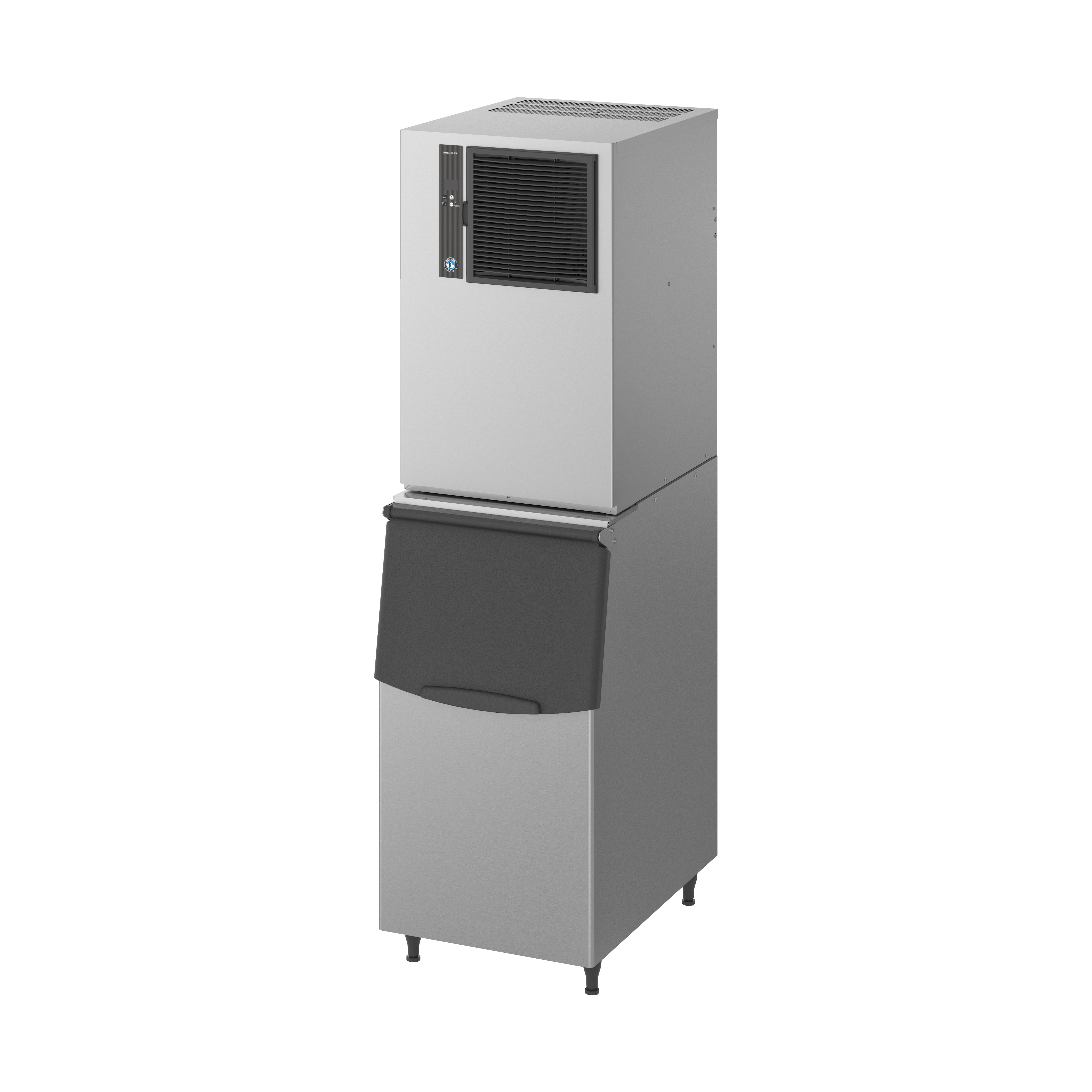

Hoshizaki Modular Cube Ice Machine

    Description

    HIGHEST QUALITY ICE

    This stack-able modular ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavor of the drink. This model is configured with our storage bins, and can be stacked to multiply the ice production


    • New intelligent control circuit dedicated to saving power and water consumption.
    • Micro computer controller controls ice making process to work at peak performance in any conditions.
    • Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
    • New 7 segment operational display panel for ease of use.
    • Unique closed cell water circuit for ultimate contamination protection.
    • Durable stainless steel exterior.
    • Easily accessible and cleanable air filters reduce costly callouts.
    • Exceptionally hard crystal clear cubes that melt slowly.
    • Auto rinse and flush cycle.
    • 3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.
    • Large Ice Cube Makers are specifically designed for bars, to be used in cocktails and not for general ice and especially blending purposes. Large Ice Cubes (above 22mm) cannot be blended for juices, smoothies etc

    Production Capacity per 24hours Approx. 220kg @10°C Air temp; 10°C Water
    Approx. 205kg @21°C Air temp; 15°C Water
    Approx. 160kg @32°C Air temp; 21°C Water
    Max Storage Capacity Select Bin & Kit
    Freeze Cycle Time Approx. 20 Min
    Ice Production Per cycle Approx. 3.2kg/140pcs
    Dimensions 560mm (W) x 700mm (D) x 880mm (H)
    Cooling Air
    Weight Net/Gross (kg) 80 / 95
    AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMP Plug
    Amperage Running: 6.6A Rated: 6.6A Starting: 35A
    Refrigerant R404A / 480g
    Refrigerant Charge Ambient Temp.: 1-40°C
    Operating Conditions Water Supply Temp.: 5-35°C
    Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
    Voltage Range: Rated Voltage ±6%
    Double Production Capacity Achieved by stacking 2 units side by side. For
    pricing please contact your Hoshizaki Sales Rep.

    Product Dimensions: 560(W) x 700(D) x 880(H)mm

    Hoshizaki Modular Cube Ice Machine

      Product form

      Hoshizaki SKU: IM-240ANE-28 In Stock

      $8,670.00 Excl. GST

      Free pickup in our shop(s)

      From $110.04/week for 12 months

      Get approval in under 5 minutes Apply Now

      • Visa
      • Mastercard
      • American Express
      • PayPal
      • Apple Pay
      • Shop Pay
      • Google Pay

      Check Delivery:

        Download PDF
        Icon for delivery_box_1Specifications
        Brand Hoshizaki
        MPN IM-240ANE-28
        Product-Dimensions 560(W) x 700(D) x 880(H)mm
        Power
        Warranty
        Icon for verifiedWarranty & Service

        Manufacturer's Warranty Months Months

        Please see Warranty Information for more details.

        Description

        HIGHEST QUALITY ICE

        This stack-able modular ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavor of the drink. This model is configured with our storage bins, and can be stacked to multiply the ice production


        • New intelligent control circuit dedicated to saving power and water consumption.
        • Micro computer controller controls ice making process to work at peak performance in any conditions.
        • Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
        • New 7 segment operational display panel for ease of use.
        • Unique closed cell water circuit for ultimate contamination protection.
        • Durable stainless steel exterior.
        • Easily accessible and cleanable air filters reduce costly callouts.
        • Exceptionally hard crystal clear cubes that melt slowly.
        • Auto rinse and flush cycle.
        • 3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.
        • Large Ice Cube Makers are specifically designed for bars, to be used in cocktails and not for general ice and especially blending purposes. Large Ice Cubes (above 22mm) cannot be blended for juices, smoothies etc

        Production Capacity per 24hours Approx. 220kg @10°C Air temp; 10°C Water
        Approx. 205kg @21°C Air temp; 15°C Water
        Approx. 160kg @32°C Air temp; 21°C Water
        Max Storage Capacity Select Bin & Kit
        Freeze Cycle Time Approx. 20 Min
        Ice Production Per cycle Approx. 3.2kg/140pcs
        Dimensions 560mm (W) x 700mm (D) x 880mm (H)
        Cooling Air
        Weight Net/Gross (kg) 80 / 95
        AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMP Plug
        Amperage Running: 6.6A Rated: 6.6A Starting: 35A
        Refrigerant R404A / 480g
        Refrigerant Charge Ambient Temp.: 1-40°C
        Operating Conditions Water Supply Temp.: 5-35°C
        Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
        Voltage Range: Rated Voltage ±6%
        Double Production Capacity Achieved by stacking 2 units side by side. For
        pricing please contact your Hoshizaki Sales Rep.

        Product Dimensions: 560(W) x 700(D) x 880(H)mm
