Description

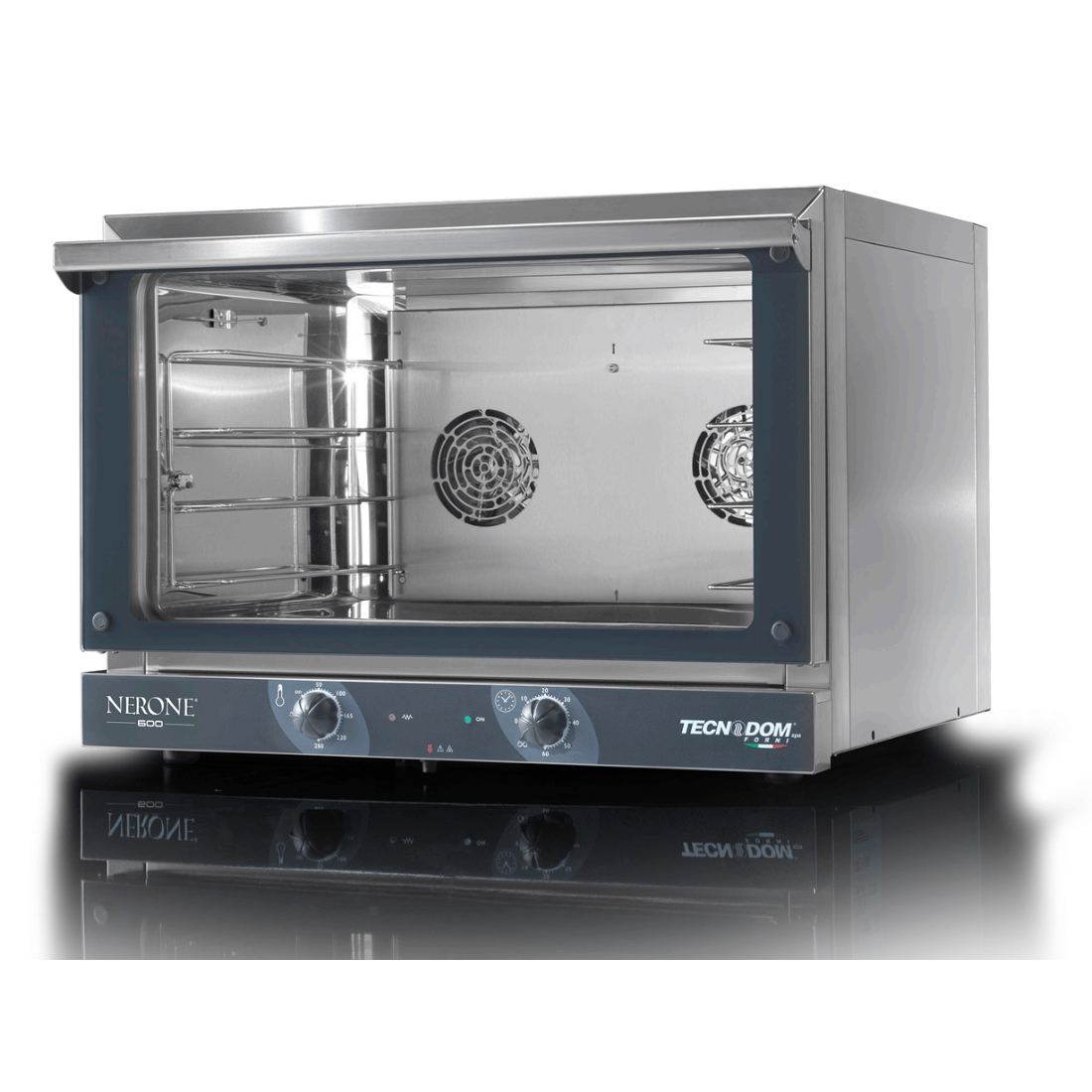

The TECNODOM TDE-4B is a 4-tray electric bench-top convection oven from the Nerone EKO range, built to fan-bake consistently across 600 x 400mm trays in a stainless steel cooking chamber.
Why operators choose the TDE-4B
-
Four 600 x 400mm trays — batch-bake pastries, bread and trays of food in one cycle with 80mm spacing between shelves.
-
50–280°C range — covers gentle proving through to high-heat browning, with a 60-minute or infinite timer.
-
Stainless steel chamber with rounded corners — wipes down fast and stands up to daily service.
-
Tempered low-e glass folding door — the Overture folding door clears the opening for easy loading and unloading.
-
Single-phase 240V, 15A — runs on a standard 15A outlet at 3.15kW, no three-phase required.
Specifications
| Brand |
TECNODOM |
| Model / MPN |
TDE-4B |
| Type |
Convection Oven |
| Power Type |
Electric |
| Capacity |
4 x 600 x 400mm trays |
| Temperature Range |
50–280°C |
| Power |
240V, 3.15kW, 15A |
| Controls |
2 knobs, 60-minute / infinite timer |
| External Dimensions |
775W x 720D x 560H mm |
| Internal Dimensions |
650 x 459 x 350mm |
| Packing Dimensions |
750 x 800 x 730mm |
| Net Weight |
40kg |
| Material |
Stainless Steel |
| Ingress Protection |
IPX3 |
| Warranty |
1 Year Parts & Labour |
Venue suitability: The compact 775mm-wide footprint and 15A single-phase supply suit cafes, bakeries, delis and small commercial kitchens that need genuine convection capacity without a three-phase install. It sits among the other Convection Ovens in our range, making it easy to compare tray counts and footprints for your bench space.
Installation & delivery: Requires a 15A power socket for operation. Dispatched Australia-wide.
Frequently asked questions
How many trays does the TECNODOM TDE-4B hold? It holds four 600 x 400mm trays, with 80mm of spacing between each shelf.
What power supply does the TDE-4B need? It runs on single-phase 240V and draws 3.15kW at 15A, so it requires a 15A power socket rather than a standard 10A outlet.
What temperature range does the TDE-4B reach? The oven operates from 50°C up to 280°C, with a 60-minute or infinite timer setting.
What are the external dimensions of the TDE-4B? The unit measures 775mm wide, 720mm deep and 560mm high, and weighs 40kg net.
Is the TDE-4B covered by warranty? Yes, it comes with a 1 Year Parts & Labour warranty.
SKU: TDE-4B
In Stock
