Description

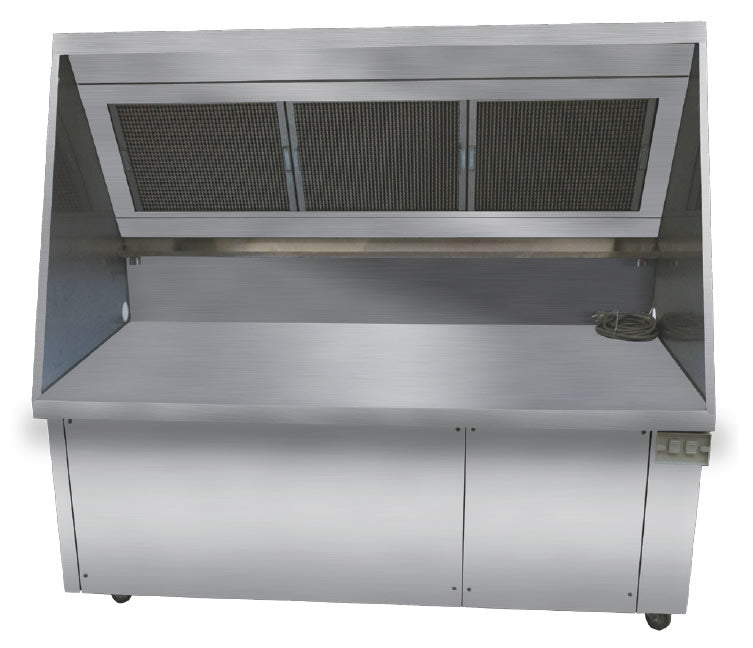

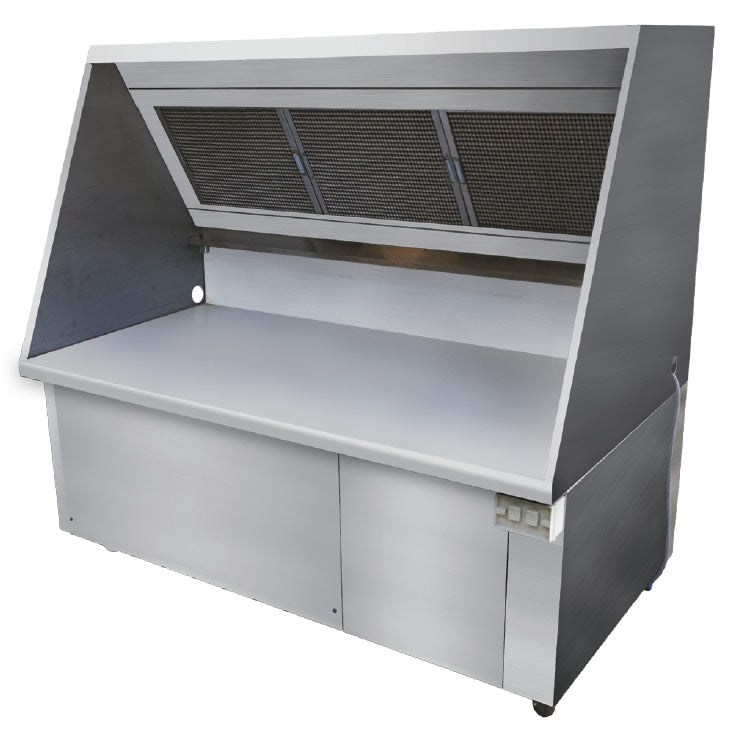

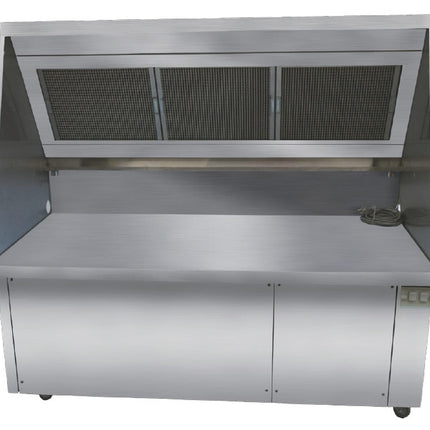

The Simco DH1800-850D is a ductless exhaust hood system that captures, filters and recirculates cooking air without any external ductwork, letting operators add extraction where a ducted canopy cannot be installed. At 1800mm wide and 850mm deep, it is the largest-depth unit in the DH1800 range and is built to sit over a bank of bench-top cooking equipment.
Why operators choose the DH1800-850D
- No ductwork required — a self-contained recirculating canopy that suits tenancies and venues where through-roof venting is not possible.
- Handles electrical appliances up to 8kW each and fits 3–4 appliances beneath the hood.
- Quiet 334W motor draws just 1.4A while delivering 400–500 litres per second of suction.

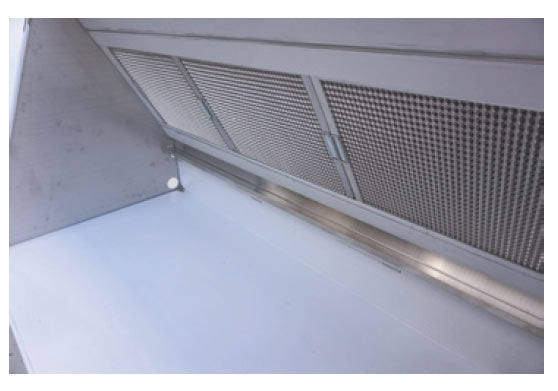

- Triple-stage filtration — removable honeycomb grease filters plus polyester and carbon filters for odour control.
- Built from 304 stainless steel with LED task lighting, heavy-duty legs and castors included.
Specifications
| Brand |
Simco |
| Model / MPN |
DH1800-850D |
| Type |
Ductless Exhaust Hood System (recirculating canopy) |
| Width |
1800 mm |
| Depth |
850 mm |
| Height |
1400 mm |
| Motor Power |
334 W |
| Electrical Draw |
1.4 A |
| Airflow / Suction |
400–500 L/s |
| Power Supply |
3-phase capable |
| Appliance Compatibility |
Up to 8kW each; fits 3–4 appliances |
| Filtration |
Removable honeycomb grease filters + polyester filter + carbon filter |
| Construction |
304 stainless steel |
| Lighting |
LED |
| Base |
Heavy-duty legs + castors included |
| Packaging (W x D x H) |
1850 x 800 x 1500 mm |
| Packed Weight |
270 kg |
| Warranty |
12 months parts & labour, Australia-wide |
Venue suitability: Ideal for restaurants, cafes, clubs, pubs and bars, quick-service restaurants, convenience and petrol-station food bars, hospitality venues and bakeries — anywhere a ducted canopy is impractical but extraction over bench cooking is still required.
Browse the full range of ductless exhaust canopies or compare against ducted options across our hoods & canopies to match the right extraction to your kitchen layout.
Installation & delivery: Ships as a self-contained unit on heavy-duty castors — no ductwork or roof penetration needed; position it over your cookline and connect power. Dispatched Australia-wide.
Frequently asked questions
Does the DH1800-850D need ductwork or a roof vent? No. It is a ductless recirculating hood that filters cooking air and returns it to the room, so no external ducting or roof penetration is required.
How many appliances can it cover? It is rated for electrical appliances up to 8kW each and fits 3–4 appliances beneath the 1800mm-wide canopy.
What filters does it use and how often are they changed? It uses removable honeycomb grease filters plus a polyester filter (changed roughly every 8–12 weeks) and a carbon filter (changed about every 12 months).
What is the power draw? The 334W motor draws only 1.4A and the unit is 3-phase capable, delivering 400–500 litres per second of suction.
What warranty does it come with? It is covered by a 12-month parts and labour warranty, Australia-wide, with full certification included.
