Description

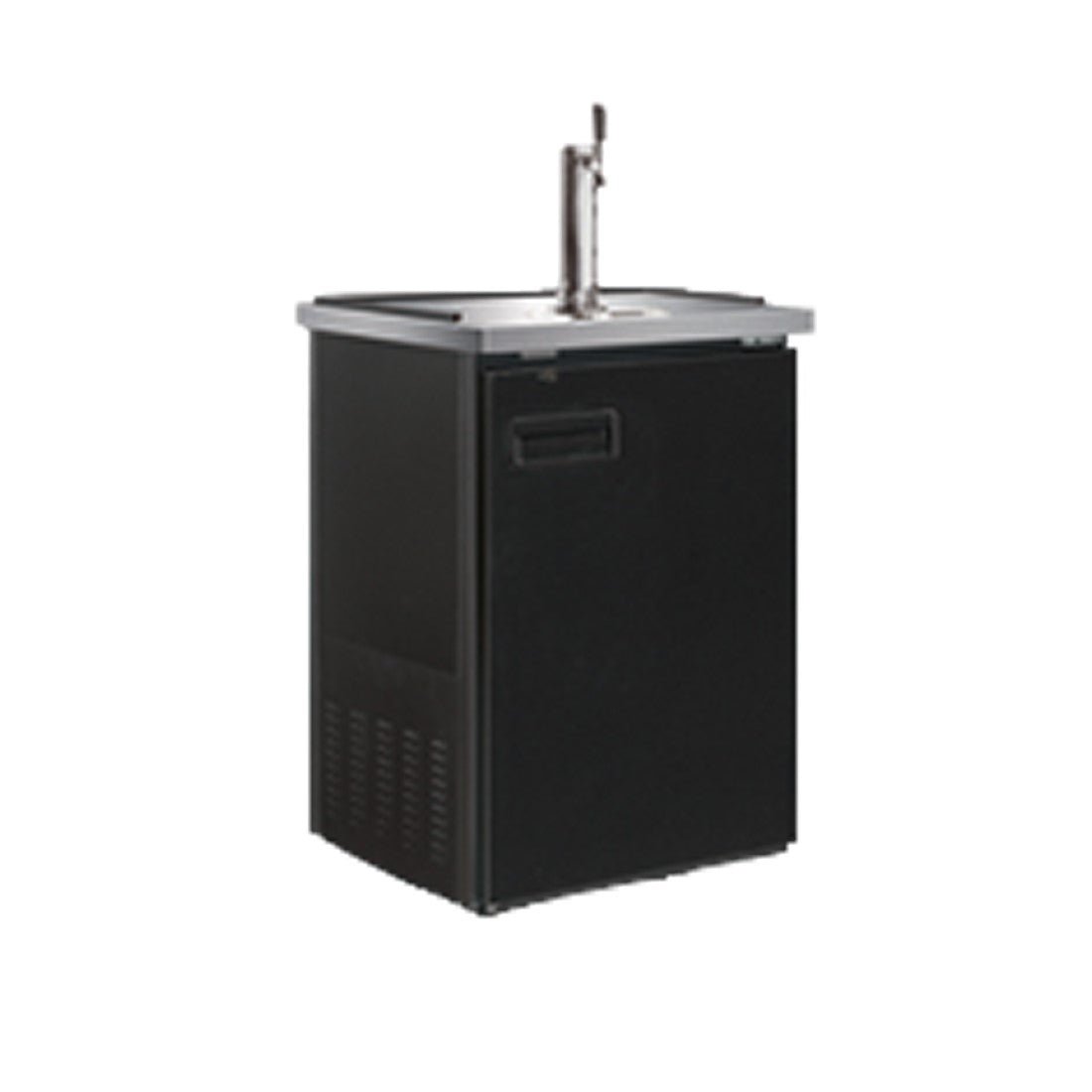

The Thermaster UBD-1 is a single-door under-bar direct draw beer keg dispenser designed to chill and serve a 1x50L keg at a constant 2–8°C. Built for permanent bar installations, alfresco areas, and hospitality venues that need a compact, self-contained draft beer solution without a remote cellar system.
Why operators choose the UBD-1
-
Cold-column delivery — a 3" (77mm) diameter stainless steel insulated beer column channels cold air directly to the tap, minimising foam and maximising yield per keg.
-
Single-keg simplicity — accommodates one standard 50L keg; no complex multi-line plumbing required for lower-volume venues.
-
Stainless steel top with drain line & drip tray — included as standard; keeps the bar surface clean and compliant.
-
Compact footprint — 612mm wide, designed to fit under a standard bar counter without structural modification.
-
Commercial-grade refrigeration — maintains 2–8°C to keep draft beer at serving temperature throughout service.
Specifications
| Brand |
Thermaster |
| Model / MPN |
UBD-1 |
| Type |
Under-Bar Beer Keg Dispenser |
| Keg Capacity |
1 x 50L |
| Temperature Range |
2–8°C |
| Beer Column |
3" (77mm) diameter stainless steel insulated |
| Door Count |
1 |
| Exterior Material |
Powder-coated steel (black) |
| Interior Material |
Stainless steel (304 S/S bottom) |
| Power |
240V; 10A outlet required |
| Product Dimensions |
612(W) x 759(D) x 919(H)mm |
| Packed Dimensions |
680(W) x 850(D) x 1160(H)mm |
| Packed Weight |
168 kg |
| Warranty |
1 Year Parts & Labour |
| Kegs Included |
No — kegs not included |
Venue suitability: Ideal for pubs, bars, clubs, alfresco dining venues, function rooms, and hospitality operators who serve draft beer on tap. Explore our full range of Commercial Beer Keg Dispensers and browse all Thermaster refrigeration equipment.
Installation & delivery: Designed for under-bar installation with standard 240V/10A power. Stainless steel top, drain line, and drip tray included. CO2 gas supply and kegs sold separately. Dispatched Australia-wide.
Frequently asked questions
What size keg does the UBD-1 hold?
The UBD-1 accommodates one standard 50L keg. Beer kegs are not included and must be sourced separately through your beverage supplier.
Does the UBD-1 include a CO2 system?
The unit includes the refrigerated cabinet and beer column; a CO2 gas cylinder, regulator, and gas lines are required and sold separately. Your beverage supplier can advise on the appropriate CO2 setup.
What is the operating temperature range?
The UBD-1 maintains a temperature between 2°C and 8°C — the ideal serving range for draft beer to minimise foam and maximise flavour.
Is the UBD-1 suitable for outdoor or alfresco installations?
Yes — the unit is well-suited to covered alfresco areas and permanent outdoor bar setups with access to a standard 240V/10A power outlet.
What is included with the UBD-1?
The unit ships with the refrigerated cabinet, stainless steel insulated beer column, stainless steel top with drain line, and drip tray. Beer kegs and CO2 systems are not included.
SKU: UBD-1
Out of Stock
