Dimensions
W: 300 mm D: 812 mm H: 485 mmVolume: 0.2 m3Packed Weight: 55 kg
Product Features

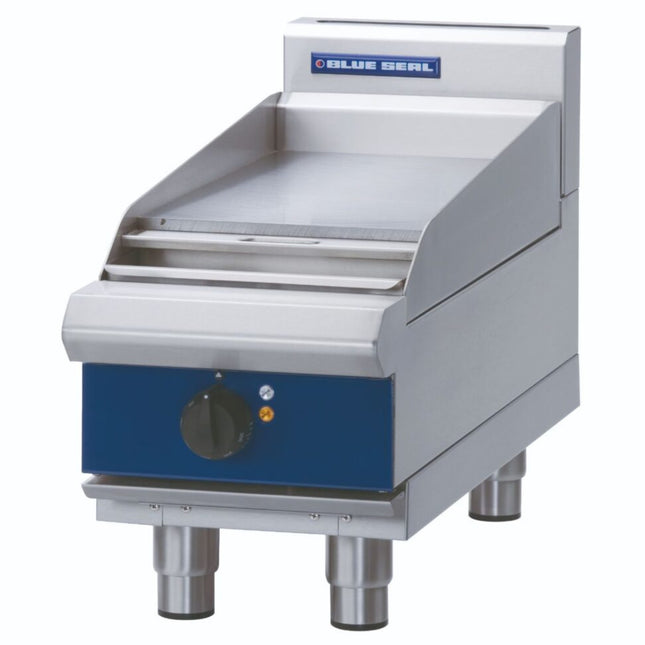

Cooktop with 300mm griddle plate bench model
1 x 3.4kW griddle element
Radiant elements with energy regulator controls
Heavy-duty stainless steel finish
Heavy-duty reinforced control knobs
Four stainless steel bench legs with adjustable feet
Easy clean, installation and service
Optional hot plate elements
Dimensions
W: 900 mm D: 812 mm H: 1085 mmVolume: 1.03 m3Packed Weight: 260 kg
Product Features
6 radiant element cooktop on electric range static oven
2/1 GN electric static oven
6 x 2.4kW open radiant elements
6.5kW oven heating elements
Six temperature setting simmer setting
GN 2/1 capacity with 4 position racking
Heavy-duty stainless steel finish
Heavy-duty reinforced control knobs
Drop down door with welded frame
Fully welded and vitreous enamelled oven liner
Cool touch stainless steel door handle
Adjustable feet and 2 additional rollers
Easy clean, installation and service
Optional hot plate elements
Dimensions
W: 900 mm D: 812 mm H: 1085 mmVolume: 1.03 m3Packed Weight: 260 kg
Product Features
4 radiant element cooktop with 300mm griddle on electric range static oven
2/1 GN electric static oven
4 x 2.4kW open radiant elements
1 x 3.4kW griddle element
6.5kW oven heating elements
Six temperature setting simmer setting
GN 2/1 capacity with 4 position racking
Heavy-duty stainless steel finish
Heavy-duty reinforced control knobs
Drop down door with welded frame
Fully welded and vitreous enamelled oven liner
Cool touch stainless steel door handle
Adjustable feet and 2 additional rollers
Easy clean, installation and service
Optional hot plate elements
Griddle on RH as standard
Dimensions
W: 900 mm D: 812 mm H: 1085 mmVolume: 1.03 m3Packed Weight: 260 kg
Product Features
2 radiant element cooktop with 600mm griddle on electric range static oven
2/1 GN electric static oven
2 x 2.4kW open radiant elements
2 x 3.4kW griddle elements
6.5kW oven heating elements
Six temperature setting simmer setting
GN 2/1 capacity with 4 position racking
Heavy-duty stainless steel finish
Heavy-duty reinforced control knobs
Drop down door with welded frame
Fully welded and vitreous enamelled oven liner
Cool touch stainless steel door handle
Adjustable feet and 2 additional rollers
Easy clean, installation and service
Optional hot plate elements
Griddle on RH as standard
Dimensions
W: 900 mm D: 812 mm H: 1085 mmVolume: 1.03 m3Packed Weight: 260 kg
Product Features
900mm griddle cooktop on electric range static oven
2/1 GN electric static oven
3 x 3.4kW griddle elements
6.5kW oven heating elements
Six temperature setting simmer setting
GN 2/1 capacity with 4 position racking
Heavy-duty stainless steel finish
Heavy-duty reinforced control knobs
Drop down door with welded frame
Fully welded and vitreous enamelled oven liner
Cool touch stainless steel door handle
Adjustable feet and 2 additional rollers
Easy clean, installation and service
Optional hot plate elements
Downloads
Dimensions
W: 450mm D: 812mm H: 1085mmVolume: 0.54m3Packed Weight: 120kg
Product Features

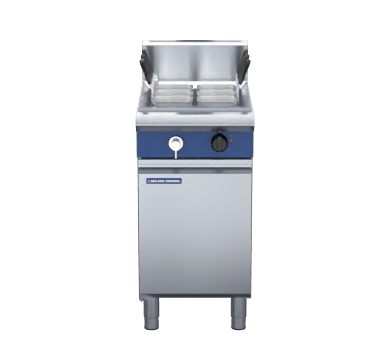

450mm high performance single pan pasta cooker
40 litre water capacity
7kW incology 825 heating element
Thermostat control range 30C - 110C
Single phase connection with unique pan design
Easy clean 316 grade stainless steel open pan
Integrated water fill and starch skimming water faucet
Safety cut out thermostat for empty pan/water boil out
Fine adjustment water faucet for pan filling
Incorporated basket drain stand
Adjustable feel and additional rear rollers
Supplied with 6 stainless steel pasta baskets
(image shown E47)
Dimensions
W: 450mm D: 812mm H: 1085mmVolume: 0.54m3Packed Weight: 120kg
Product Features
450mm high performance single pan pasta cooker
40 litre water capacity
10.5kW incology 825 heating element
Thermostat control range 30C - 110C
3 phase connection with unique pan design
Easy clean 316 grade stainless steel open pan
Integrated water fill and starch skimming water faucet
Safety cut out thermostat for empty pan/water boil out
Fine adjustment water faucet for pan filling
Incorporated basket drain stand
Adjustable feel and additional rear rollers
Supplied with 6 stainless steel pasta baskets
Dimensions
W: 450mm D: 812mm H: 1085mmVolume: 0.54m3Packed Weight: 116kg
Product Features

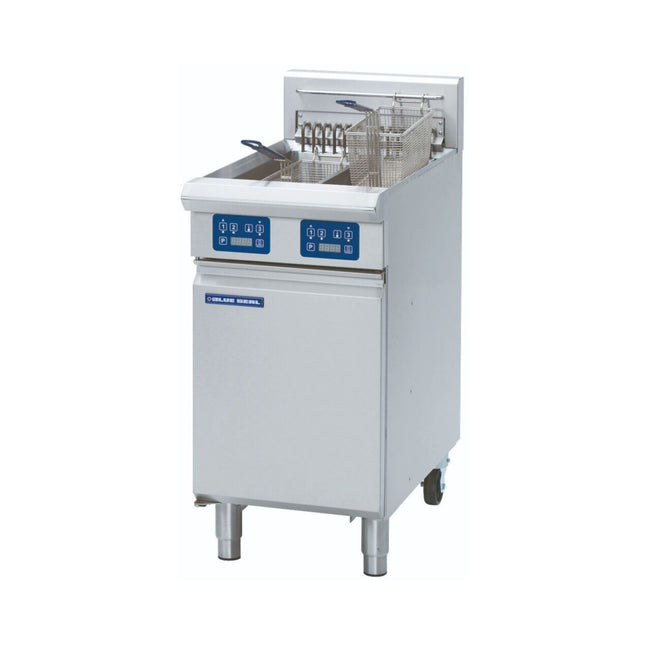

450mm twin pan electric fryer
12 litre per pan oil capacity
31kg/hr production rate
3 x 2.83kW stainless steel heating elements
Thermostat control range 88-193C
Digital display electronic controls
Easy clean, installation and service
Supplied with 2 standard baskets
Dimensions
W: 450mm D: 812mm H: 1085mmVolume: 0.54m3Packed Weight: 116kg
Product Features
450mm twin pan electric fryer
12 litre per pan oil capacity
31kg/hr production rate
3 x 2.83kW stainless steel heating elements
Thermostat control range 60-200C
Mechanical controls
Easy clean, installation and service
Supplied with 2 standard baskets
Dimensions
W: 450mm D: 812mm H: 1085mmVolume: 0.54m3Packed Weight: 105kg
Product Features

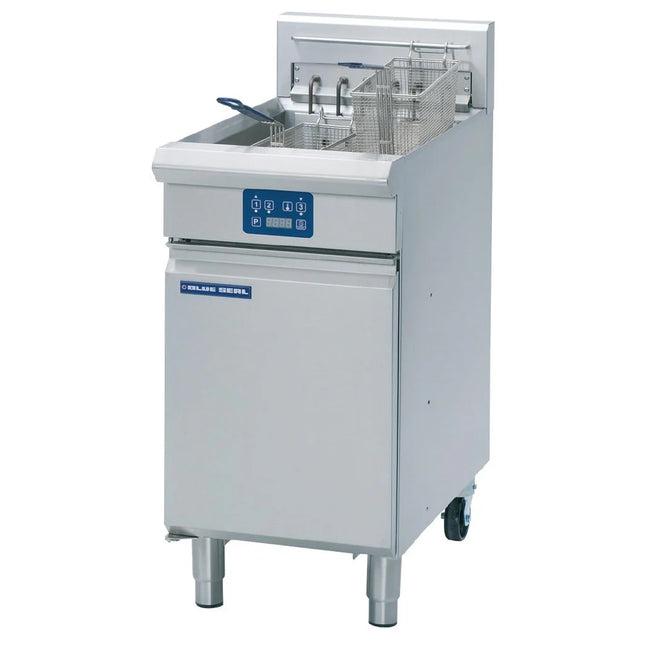

450mm single pan electric fryer
27 litre oil capacity
31kg/hr production rate
3 x 5.66kW stainless steel heating elements
Thermostat control range 88-193C
Digital display electronic controls
Easy clean, installation and service
Supplied with 2 standard baskets
Dimensions
W: 450mm D: 812mm H: 1085mmVolume: 0.54m3Packed Weight: 105kg
Product Features

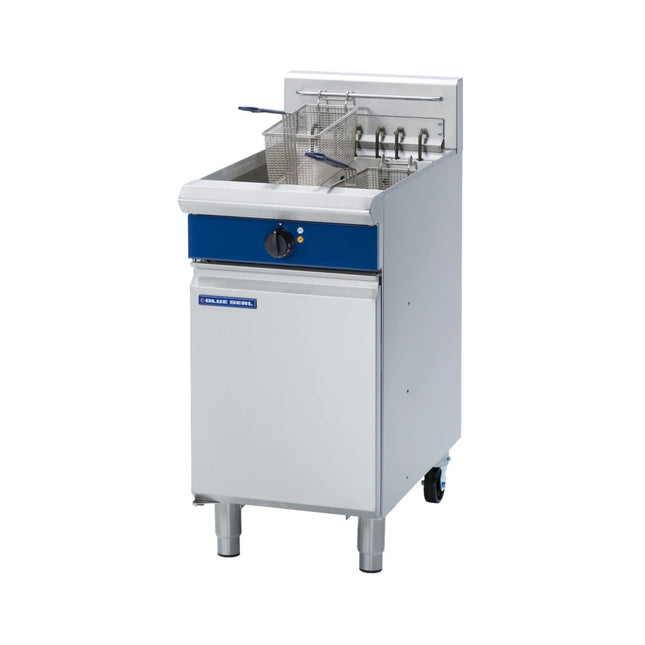

450mm single pan electric fryer
27 litre oil capacity
31kg/hr production rate
3 x 5.66kW stainless steel heating elements
Thermostat control range 60-200C
Mechanical controls
Easy clean, installation and service
Supplied with 2 standard baskets
Dimensions
W: 450mm D: 805mm H: 1224mmVolume: 0.58m3Packed Weight: 95kg
Product Features

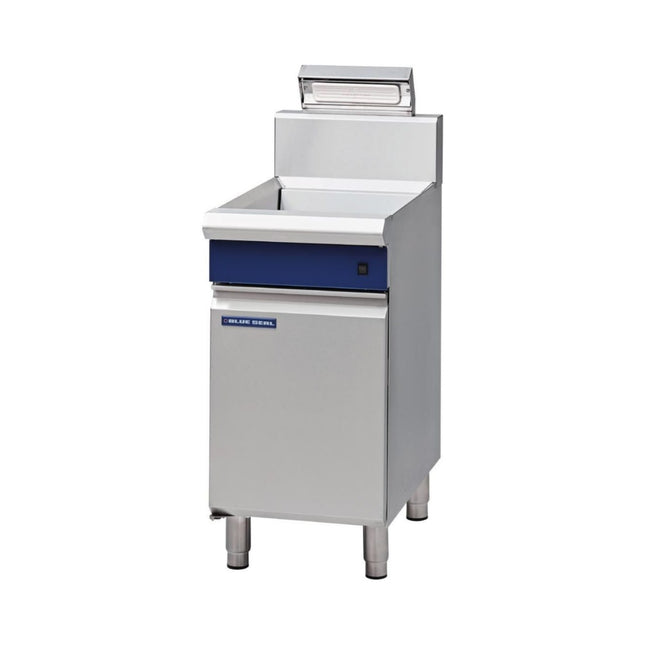

450mm Electric Chip Scuttle
1.0kW infrared ceramic heater
Lift out drain screen
Stainless steel pan
Ceramic heater
Used in conjunction with a deep fryer to hold and continue to warm the chips
Recommended for use next to a deep fryer
Dimensions
W: 450mm D: 805mm H: 1085mm
Product Features

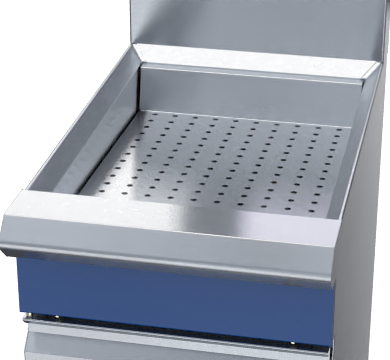

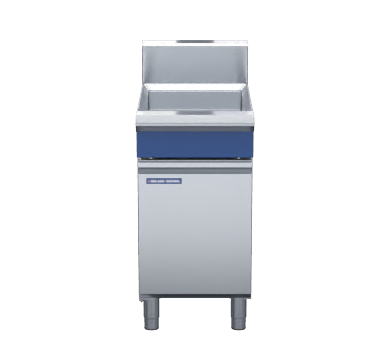

450mm Chip Scuttle
Lift out drain screen
Stainless steel pan
Used in conjunction with a deep fryer to hold the chips
Recommended for use next to a deep fryer
*Heating element not included, if required the heating on top, please refer to Model CS45E
Dimensions
W: 900mm D: 812mm H: 1085mmVolume: 1.02m3Packed Weight: 186kg
Product Features

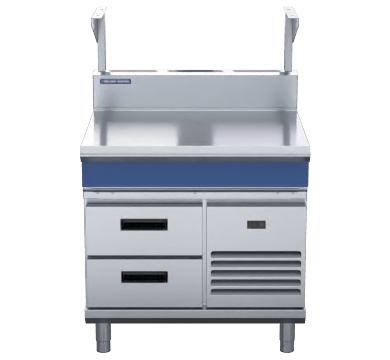

900mm bench top with salamander support on refrigerated base
-2 to + 8C temperature (Tropical Climate rated)
Two GN 1/1 drawers with 100mm deep pan capacity
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
Dimensions
W: 900mm D: 812mm H: 1085mmVolume: 0.54m3Packed Weight: 120kg
Product Features

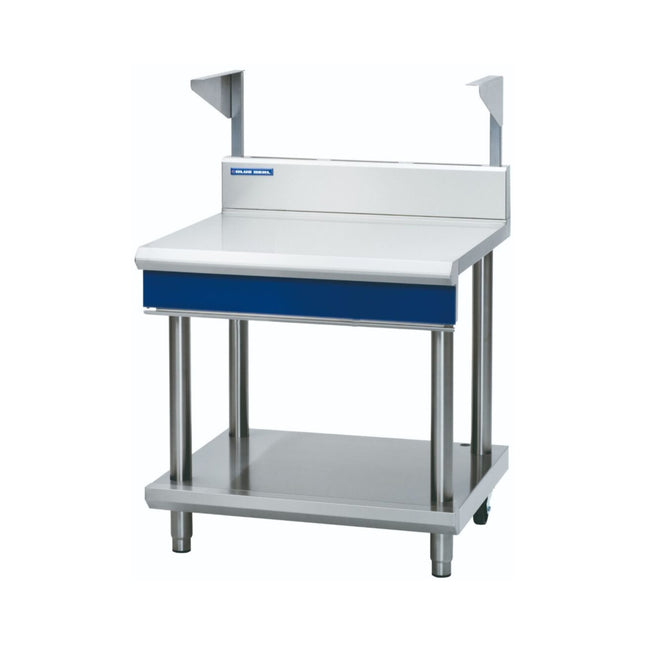

900mm bench top with salamander support on leg stand
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
Dimensions
W: 900mm D: 812mm H: 1085mmVolume: 1.02m3Packed Weight: 153kg
Product Features

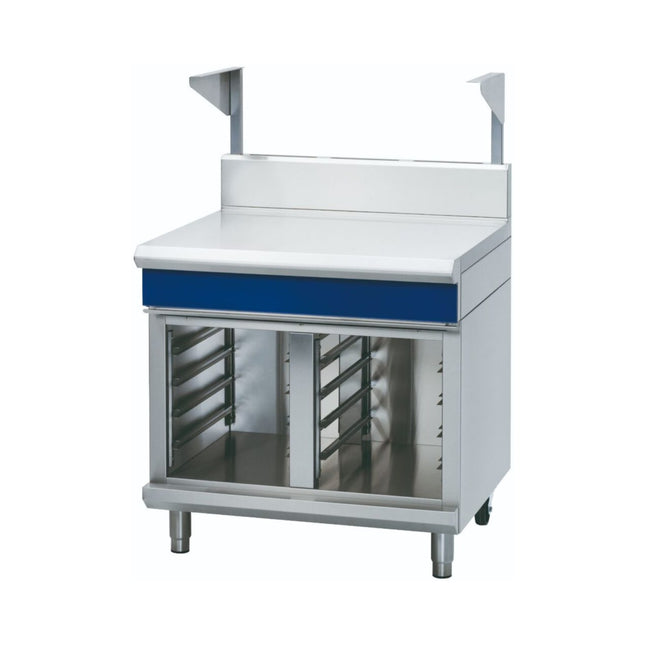

900mm bench top with salamander support on cabinet base
GN 1/1 4 position racking kit
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
Dimensions
W: 900mm D: 812mm H: 1085mmVolume: 1.02m3Packed Weight: 181kg
Product Features

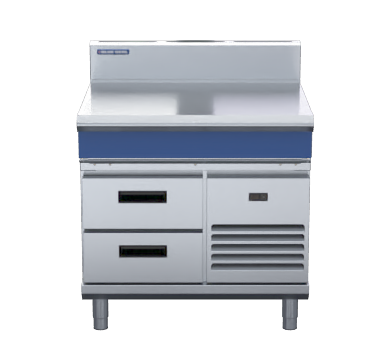

900mm bench top on refrigerated base
-2 to + 8C temperature (Tropical Climate rated)
Two GN 1/1 drawers with 100mm deep pan capacity
Self contained suite matched modular base
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
Dimensions

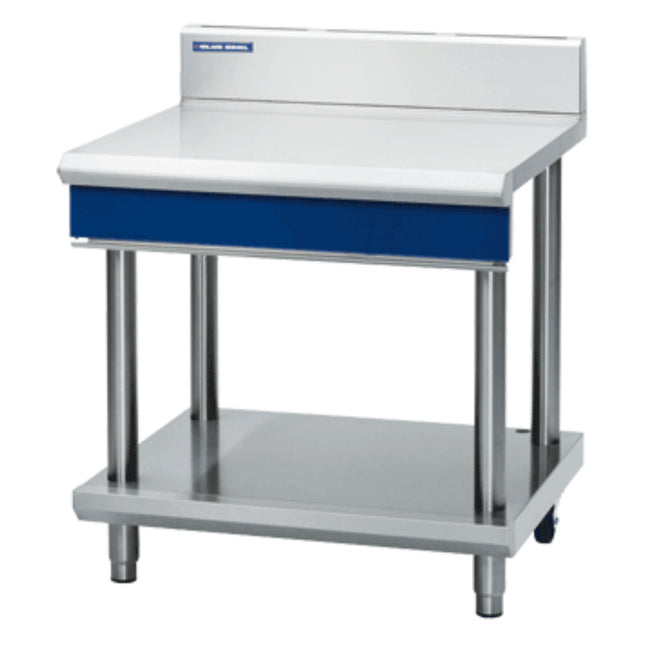

W: 900mm D: 812mm H: 1085mmVolume: 0.54m3Packed Weight: 120kg
Product Features
900mm bench top on leg stand
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
Dimensions
W: 900mm D: 812mm H: 1085mmVolume: 1.02m3Packed Weight: 153kg
Product Features

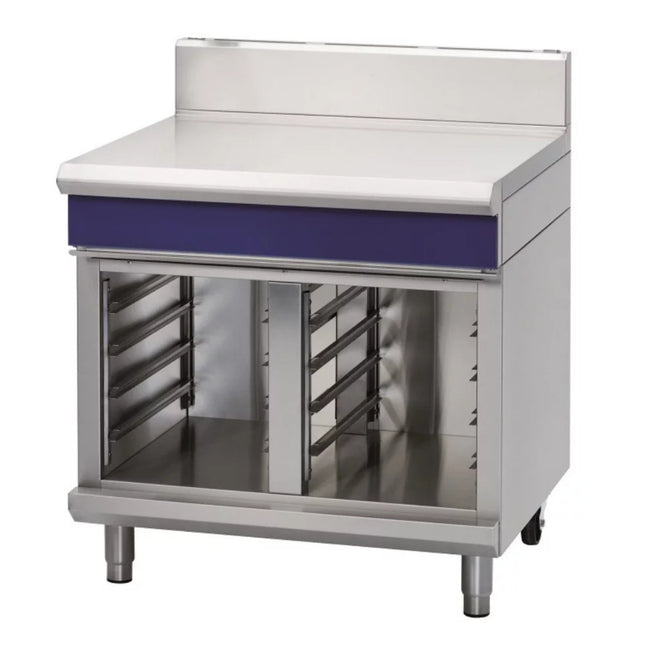

900mm bench top on cabinet base
GN 1/1 4 position racking kit
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
Dimensions
W: 600mm D: 812mm H: 1085mmVolume: 0.29m3Packed Weight: 83kg
Product Features

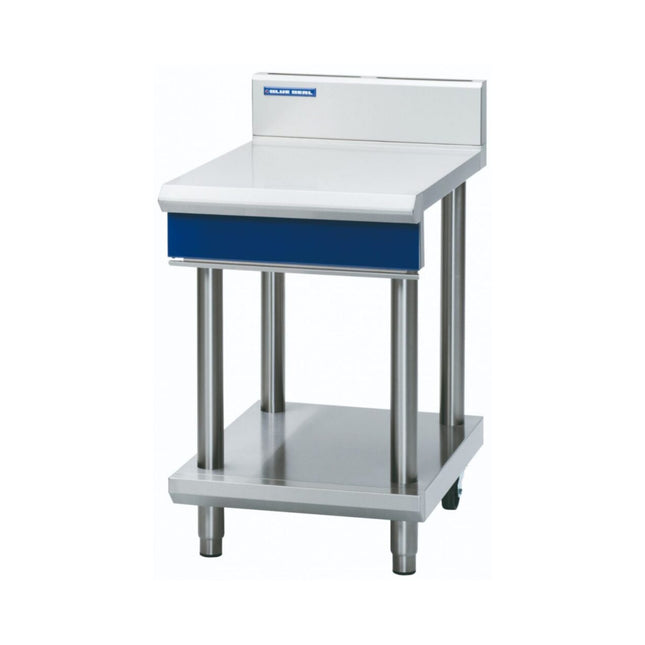

600mm bench top on leg stand
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
Dimensions
W: 600mm D: 812mm H: 1085mmVolume: 0.55m3Packed Weight: 111kg
Product Features

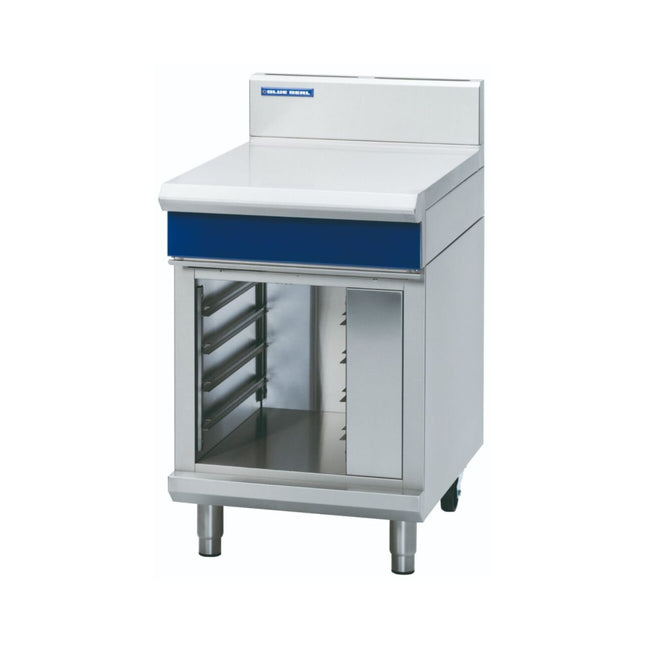

600mm bench top on cabinet base
GN 1/1 4 position racking kit
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
Dimensions
W: 450mm D: 812mm H: 1085mmVolume: 0.29m3Packed Weight: 74kg
Product Features
450mm bench top on leg stand
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service

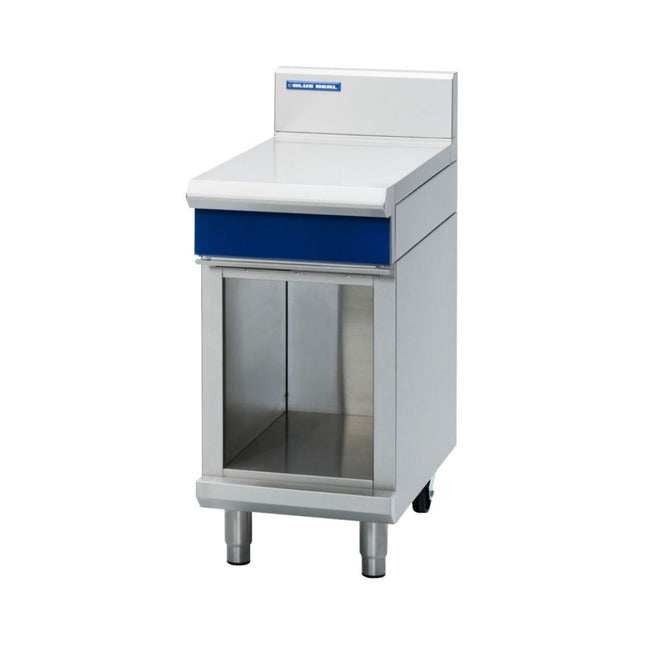

Model Number
B45-CB
Dimensions
W: 450mm D: 812mm H: 1085mmVolume: 0.55m3Packed Weight: 93kg
Product Features
450mm bench top on cabinet base
GN 1/1 4 position racking kit
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
Dimensions
W: 300mm D: 812mm H: 1085mm
Product Features

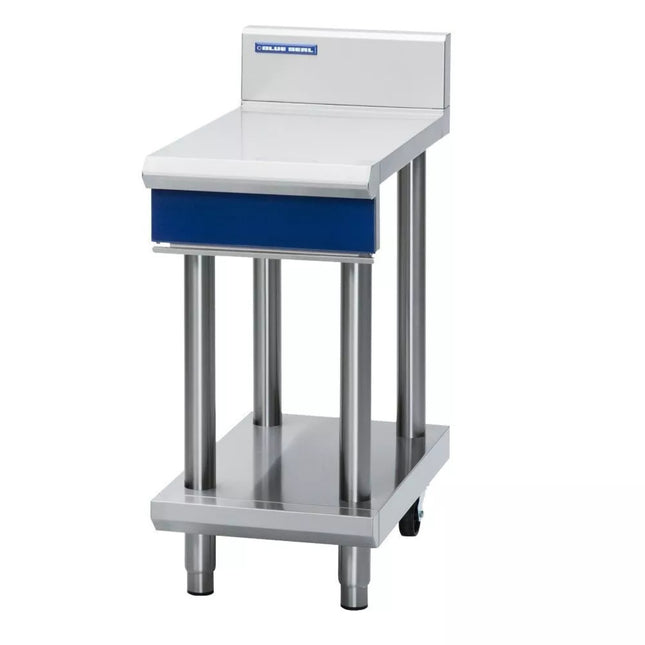

300mm bench top on leg stand
3.5mm thick compound work surface
Adjustable feet at front with rear rollers
Easy clean, installation and service
