Dimensions
W: 900mm D: 805mm H: 570mmVolume: 0.7m3Packed Weight: 138kg
Product Features

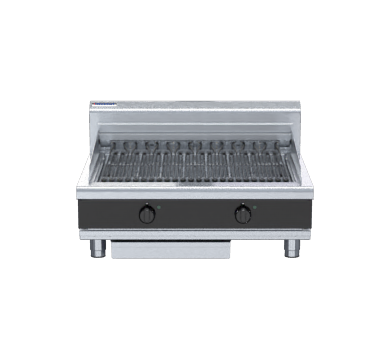

900mm electric chargrill bench model
13.4kW heating power
730mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel bench legs
Black vitreous enamel finish to front panels with stainless steel exterior
Fully modular, easy to clean and service
Low back models (CHL) available
Dimensions
W: 600mm D: 805mm H: 1130mmVolume: 0.48m3Packed Weight: 171kg
Product Features

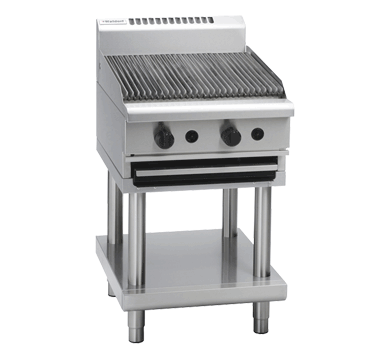

600mm gas chargrill on leg stand
2 x 33 MJ/hr 304 stainless steel U-burners
Reversible heavy-duty top grates
Inclined position to reduce flare and enhance grease run
Flame failure protection with continuous pilot burner
Lift out grates, radiants and baffles for cleaning
Heavy-duty reinforced control knobs
Easy clean, installation and service
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8600G-LS (low back version of the same model)
Dimensions
W: 600mm D: 805mm H: 1130mmVolume: 0.7m3Packed Weight: 189kg
Product Features

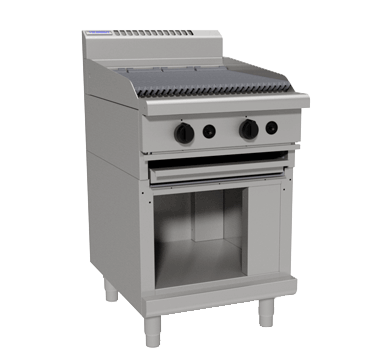

600mm gas chargrill on cabinet base
2 x 33MJ/hr stainless steel burners
Reversible heavy-duty top grates
Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel
Full pilot and flame failure protection per burner
Lift out radiants, burners and grease tray baffles
Heavy-duty, heat resistant reinforced control knobs
Easy clean, installation and service
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8600G-CD (low back version of the same model)
Dimensions
W: 600mm D: 805mm H: 630mmVolume: 0.48m3Packed Weight: 171kg
Product Features
600mm gas chargrill bench model
2 x 33 MJ/hr 304 stainless steel U-burners
Reversible heavy-duty top grates
Inclined position to reduce flare and enhance grease run
Flame failure protection with continuous pilot burner
Lift out grates, radiants and baffles for cleaning
Heavy-duty reinforced control knobs
Easy clean, installation and service
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8600G-B (low back version of the same model)
Dimensions
W: 600mm D: 805mm H: 1130mmVolume: 0.37m3Packed Weight: 99kg
Product Features
600mm electric chargrill on leg stand
8.4kW heating power
450mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel legs with adjustable feet
Heavy-duty stainless steel finish
Black vitreous enamel finish to front panels with stainless steel exterior
Fully modular, easy to clean and service
Low back models (CHL) available
Dimensions
W: 600mm D: 805mm H: 1130mmVolume: 0.7m3Packed Weight: 127kg
Product Features
600mm electric chargrill with cabinet base
8.4kW heating power
450mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel legs with adjustable feet at the front and two rollers at rear
Black vitreous enamel finish to front panels with stainless steel exterior
Fully modular, easy to clean and service
Optional GN 1/1 4 position racking kit
Low back models (CHL) available
Dimensions
W: 600mm D: 805mm H: 570mmVolume: 0.37m3Packed Weight: 99kg
Product Features
600mm electric chargrill bench model
8.4kW heating power
450mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel bench legs
Black vitreous enamel finish to front panels with stainless steel exterior
Fully modular, easy to clean and service
Low back models (CHL) available

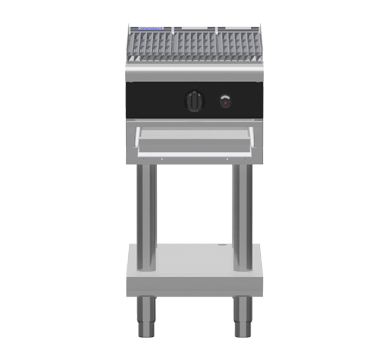

Dimensions
W: 450mm D: 805mm H: 1130mmVolume: 0.29m3Packed Weight: 133kg
Product Features
450mm gas chargrill on leg stand
48MJ/hr stainless steel burner
Reversible heavy-duty top grates
Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel
Full pilot and flame failure protection per burner
Lift out radiants, burners and grease tray baffles
Heavy-duty, heat resistant reinforced control knobs
Easy clean, installation and service
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8450G-LS (low back version of the same model)
Dimensions
W: 450mm D: 805mm H: 1130mmVolume: 0.54m3Packed Weight: 139kg
Product Features

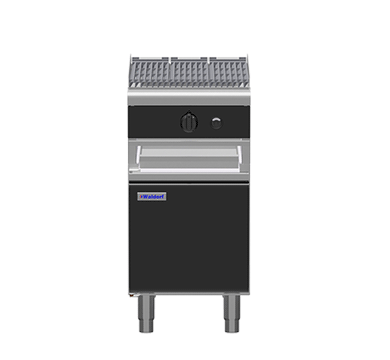

450mm gas chargrill on cabinet base
48MJ/hr stainless steel burners
Reversible heavy-duty top grates
Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel
Full pilot and flame failure protection per burner
Lift out radiants, burners and grease tray baffles
Heavy-duty, heat resistant reinforced control knobs
Easy clean, installation and service
Front fixed panel
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8450G-CD (low back version of the same model)

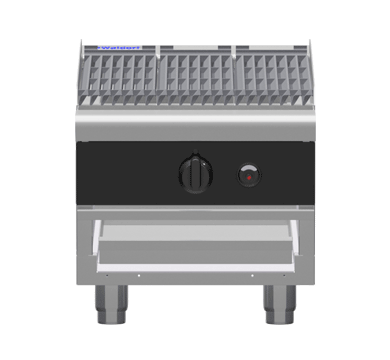

Dimensions
W: 450mm D: 805mm H: 630mmVolume: 0.29m3Packed Weight: 133kg
Product Features
450mm gas chargrill on bench model
48MJ/hr stainless steel burner
Reversible heavy-duty top grates
Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel
Full pilot and flame failure protection per burner
Lift out radiants, burners and grease tray baffles
Heavy-duty, heat resistant reinforced control knobs
Easy clean, installation and service
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8450G-B (low back version of the same model)
Dimensions
W: 300mm D: 805mm H: 530mmVolume: 0.2m3Packed Weight: 86kg
Product Features

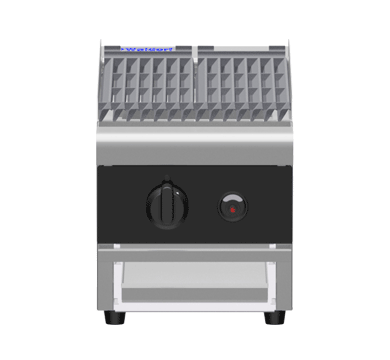

300mm gas chargrill bench model
33 MJ/hr 304 stainless steel U-burner
Reversible heavy-duty top grates
Inclined position to reduce flare and enhance grease run
Flame failure protection with continuous pilot burner
Lift out grates, radiants and baffles for cleaning
Heavy-duty reinforced control knobs
Easy clean, installation and service
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8300G-B (low back version of the same model)
Dimensions
W: 1200mm D: 805mm H: 1130mmVolume: 0.93m3Packed Weight: 295kg
Product Features

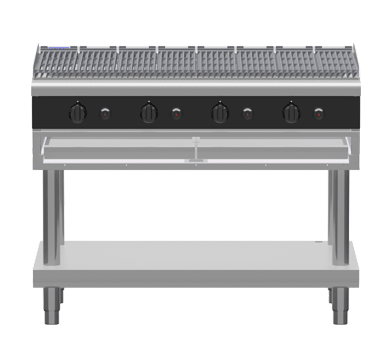

1200mm gas chargrill on leg stand
4 x 33MJ/hr stainless steel burners
Reversible heavy-duty top grates
Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel
Full pilot and flame failure protection per burner
Lift out radiants, burners and grease tray baffles
Heavy-duty, heat resistant reinforced control knobs
Easy clean, installation and service
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8120G-LS (low back version of the same model)

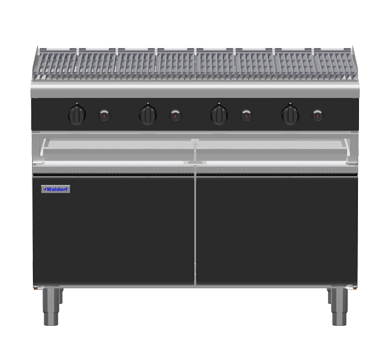

Dimensions
W: 1200mm D: 805mm H: 1130mmVolume: 1.36m3Packed Weight: 322kg
Product Features
1200mm gas chargrill on cabinet base
4 x 33MJ/hr stainless steel burners
Reversible heavy-duty top grates
Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel
Full pilot and flame failure protection per burner
Lift out radiants, burners and grease tray baffles
Heavy-duty, heat resistant reinforced control knobs
Easy clean, installation and service
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8120G-CD (low back version of the same model)
Dimensions
W: 1200mm D: 805mm H: 630mmVolume: 0.93m3Packed Weight: 295kg
Product Features

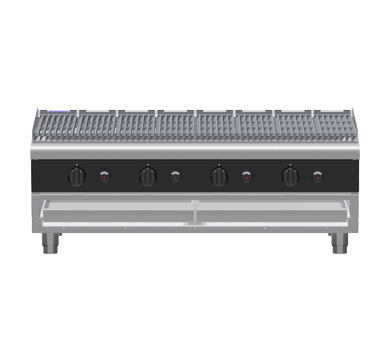

1200mm gas chargrill bench model
4 x 33 MJ/hr 304 stainless steel U-burners
Reversible heavy-duty top grates
Inclined position to reduce flare and enhance grease run
Flame failure protection with continuous pilot burner
Lift out grates, radiants and baffles for cleaning
Heavy-duty reinforced control knobs
Easy clean, installation and service
Waldorf Bold option
Default colour is black and other colour options are available
Image shown as CHLB8120G-B (low back version of the same model)
Dimensions
W: 900mm D: 805mm H: 1130mmVolume: 1.03m3Packed Weight: 253kg
Product Features

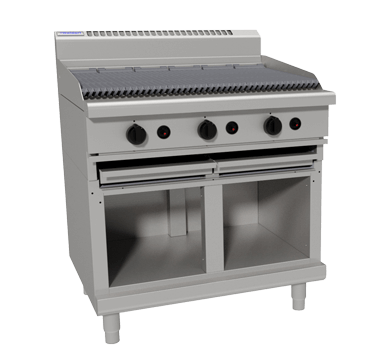

900mm gas chargrill on cabinet base
3 x 33MJ/hr stainless steel burners
Reversible heavy-duty top grates
Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel
Full pilot and flame failure protection per burner
Lift out radiants, burners and grease tray baffles
Heavy-duty, heat resistant reinforced control knobs
Easy clean, installation and service
Waldorf Bold option available
Dimensions
W: 900mm D: 805mm H: 630mmVolume: 0.7m3Packed Weight: 232kg
Product Features

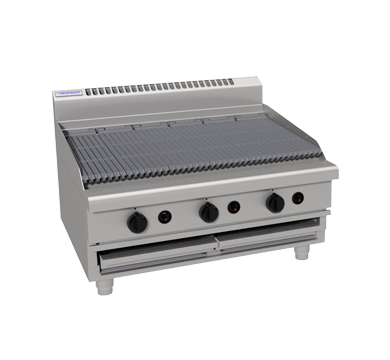

900mm gas chargrill bench model
3 x 33 MJ/hr 304 stainless steel U-burners
Reversible heavy-duty top grates
Inclined position to reduce flare and enhance grease run
Flame failure protection with continuous pilot burner
Lift out grates, radiants and baffles for cleaning
Heavy-duty reinforced control knobs
Easy clean, installation and service
Dimensions
W: 900mm D: 805mm H: 1130mmVolume: 0.55m3Packed Weight: 138kg
Product Features

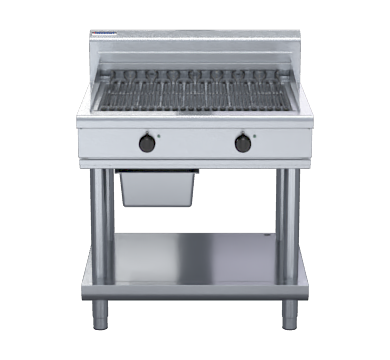

900mm electric chargrill on leg stand
13.4kW heating power
730mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel legs with adjustable feet
Heavy-duty stainless steel finish
Fully modular framed stand shelf, quick assembly, easy to clean and service
Low back models (CHL) available
Dimensions
W: 900mm D: 805mm H: 1130mmVolume: 1.03m3Packed Weight: 193kg
Product Features

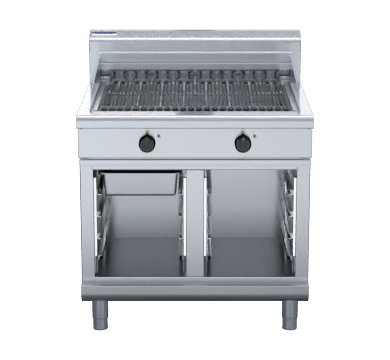

900mm electric chargrill with cabinet base
13.4kW heating power
730mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel legs with adjustable feet at the front and two rollers at rear
Heavy-duty stainless steel finish
Fully modular, easy to clean and service
Optional GN 1/1 4 position racking kit
Low back models (CHL) available

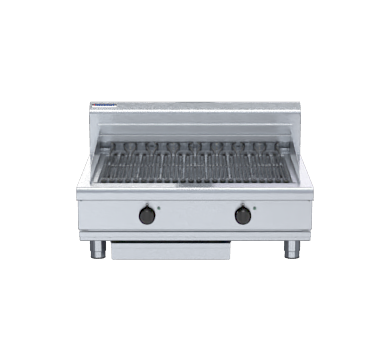

Dimensions
W: 900mm D: 805mm H: 570mmVolume: 0.55m3Packed Weight: 138kg
Product Features
900mm electric chargrill bench model
13.4kW heating power
730mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel bench legs
Heavy-duty stainless steel finish
Fully modular, easy to clean and service
Low back models (CHL) available
Dimensions
W: 600mm D: 805mm H: 1130mmVolume: 0.7m3Packed Weight: 189kg
Product Features
600mm gas chargrill on cabinet base
2 x 33MJ/hr stainless steel burners
Reversible heavy-duty top grates
Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel
Full pilot and flame failure protection per burner
Lift out radiants, burners and grease tray baffles
Heavy-duty, heat resistant reinforced control knobs
Easy clean, installation and service
Model Number
CH8600G-B
Dimensions
W: 600mm D: 805mm H: 630mmVolume: 0.48m3Packed Weight: 171kg
Product Features
600mm gas chargrill bench model
2 x 33 MJ/hr 304 stainless steel U-burners
Reversible heavy-duty top grates
Inclined position to reduce flare and enhance grease run
Flame failure protection with continuous pilot burner
Lift out grates, radiants and baffles for cleaning
Heavy-duty reinforced control knobs
Easy clean, installation and service
(Image shown as CH8900G-LS)
Dimensions
W: 600mm D: 805mm H: 1130mmVolume: 0.37m3Packed Weight: 99kg
Product Features
600mm electric chargrill on leg stand
8.4kW heating power
450mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel legs with adjustable feet
Heavy-duty stainless steel finish
Fully modular framed stand shelf, quick assembly, easy to clean and service
Low back models (CHL) available
Dimensions
W: 600mm D: 805mm H: 1130mmVolume: 0.7m3Packed Weight: 127kg
Product Features
600mm electric chargrill with cabinet base
8.4kW heating power
450mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel legs with adjustable feet at the front and two rollers at rear
Heavy-duty stainless steel finish
Fully modular, easy to clean and service
Optional GN 1/1 4 position racking kit
Low back models (CHL) available
Dimensions
W: 600mm D: 805mm H: 570mmVolume: 0.37m3Packed Weight: 99kg
Product Features
600mm electric chargrill bench model
8.4kW heating power
450mm x 590 mm cooking area
Direct contact cooking elements with fast response heat control
Up to 400C cooking temperature
No cooking grates required
Manual water filled cooking well with drain
Vitreous enamelled control panel
Four 63mm dia. Heavy-duty stainless steel bench legs
Heavy-duty stainless steel finish
Fully modular, easy to clean and service
Low back models (CHL) available
