Description

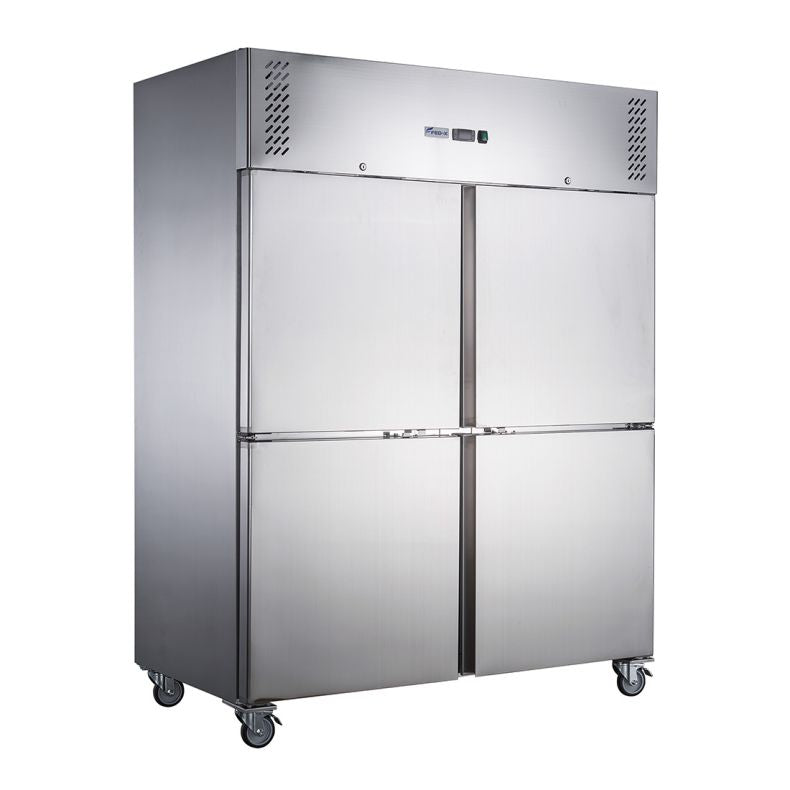

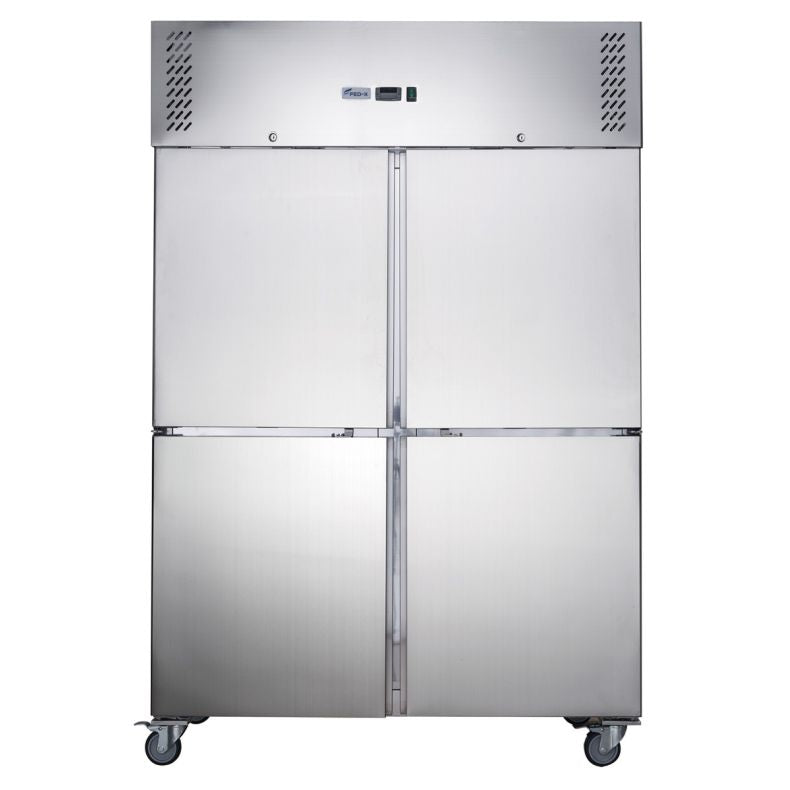

The FED-X XURF1410S2V is a four-door split upright storage freezer designed for high-volume commercial kitchen environments requiring large-capacity, reliable low-temperature storage. The 1/2 split door system divides each column into two independently operating doors, enabling rapid access while minimising temperature recovery time and reducing annual running costs by up to 30%.
Why operators choose the XURF1410S2V
-
945 L net capacity — stores large volumes of frozen product across three 2/1 GN-compatible shelf levels per section, each rated to 40 kg.
-
Split door energy saving — four independent hinged doors limit cold-air loss to the opened section only; ideal for high-traffic kitchens.
-
Tropicalised for Australian conditions — rated to 43°C ambient, 60% RH, handling the heat and humidity of AU commercial environments without performance drop.
-
R290 natural refrigerant — low global-warming-potential refrigerant with HFC/CFC-free 60mm foam insulation throughout the body.
-

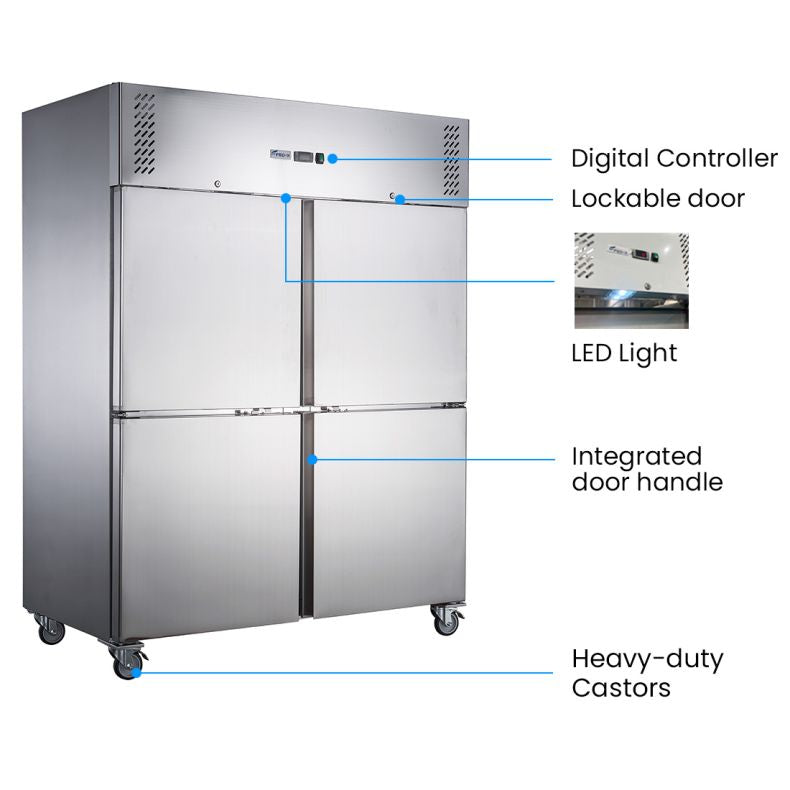

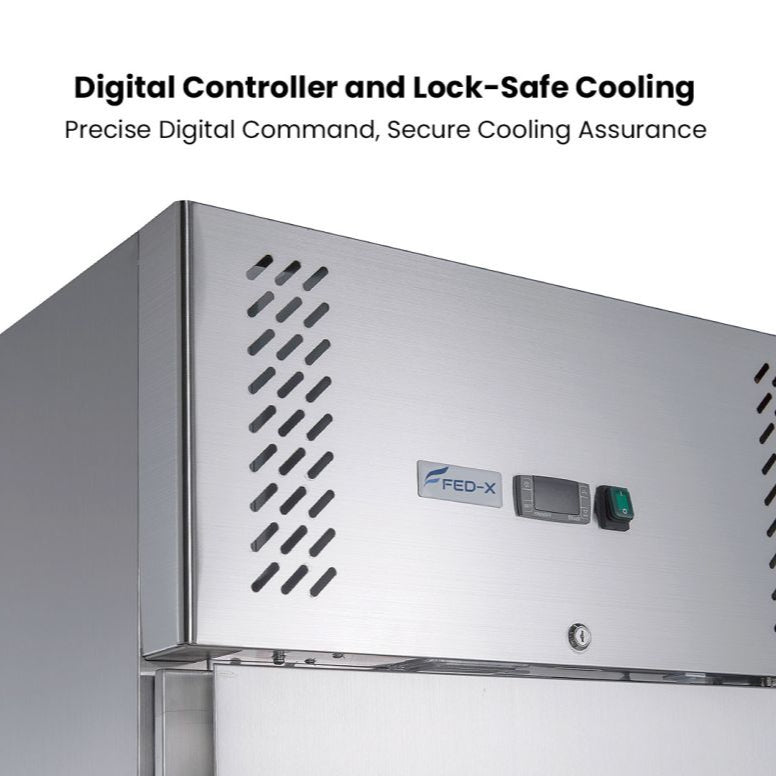

EBM-PAPST fans & Dixell controls — premium evaporator and condenser fans with user-friendly digital temperature controls; Embraco/Secop compressor.
Specifications
| Brand |
FED-X |
| Model / MPN |
XURF1410S2V |
| Type |
Upright Storage Freezer |
| Gross Volume |
1410 L |
| Net Volume |
945 L |
| Doors |
4 (split 1/2 — 2 upper + 2 lower) |
| Door Type |
Hinged, solid stainless steel |
| Temperature Range |
-18 to -22°C |
| Refrigerant |
R290 |
| Cooling System |
Fan-forced |
| Compressor |
Embraco / Secop |
| Controller |
Dixell |
| Ambient Temperature |
43°C, 60% RH |
| Total Energy Consumption |
10.33 kWh/24h |
| Construction |
Stainless steel interior & exterior, rounded corners, 60mm HFC/CFC-free foam insulation |
| Shelves |

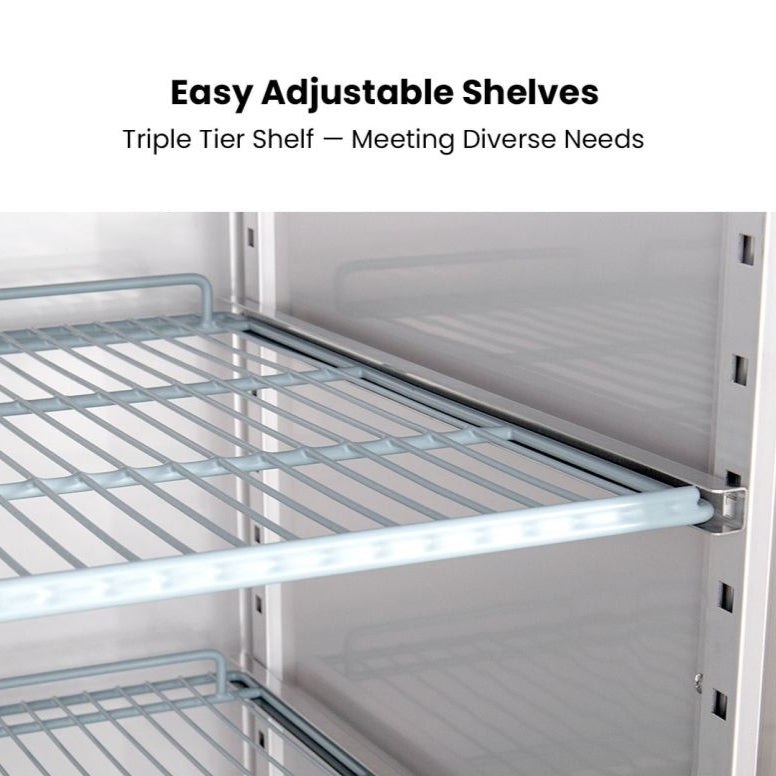

3 levels of 2/1 GN compatible shelves; each shelf rated 40 kg; accommodates 2 x 1/1 GN pans |
| Internal Dimensions |
1364 x 702 x 1401mm (W x D x H) |
| Product Dimensions |

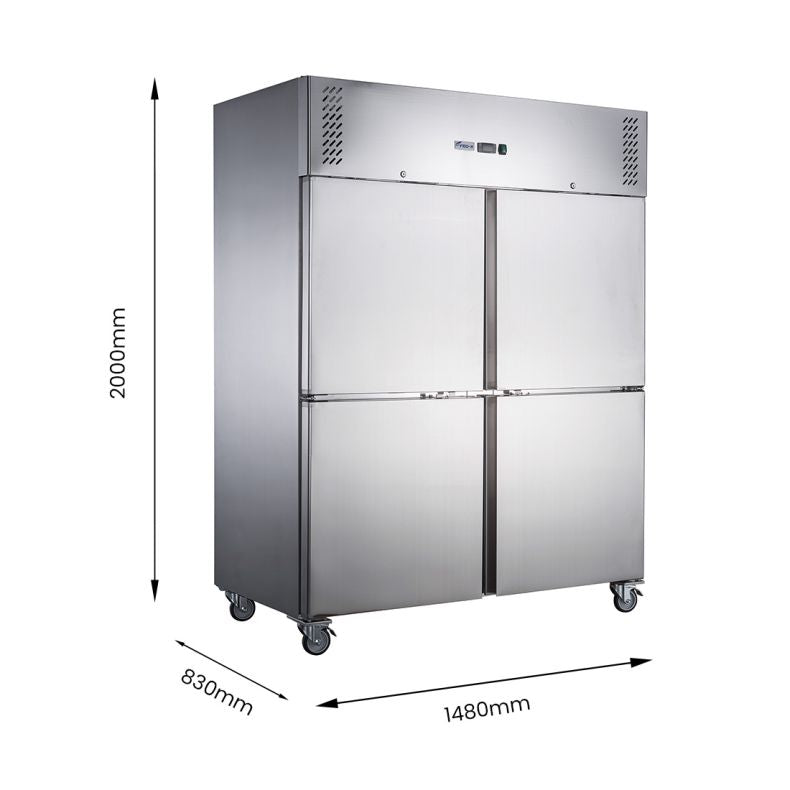

1480(W) x 830(D) x 2000(H)mm |
| Packed Dimensions |
1505(W) x 1480(D) x 2070(H)mm |
| Net Weight |
201 kg |
| Packed Weight |
260 kg |
| Power |
240V; 795W / 4.8A |
| Mobility |
Heavy-duty castors with front-wheel brakes |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: The XURF1410S2V suits large commercial kitchens, central production facilities, hotel banquet operations, aged-care facilities, and high-volume catering businesses that require continuous-access frozen storage for bulk product. Explore the full range of Commercial Upright Freezers or shop by brand in the FED-X collection.
Installation & delivery: Requires a 240V / 10A single-phase power outlet. Allow adequate clearance around condenser vents (top-mounted). Unit arrives on heavy-duty castors for easy positioning; front-wheel brakes lock it in place. Dispatched Australia-wide.
Frequently asked questions
What is the net storage capacity of the XURF1410S2V?
The net usable storage volume is 945 L across three 2/1 GN-compatible shelf levels per section. The gross cabinet volume is 1410 L.
What refrigerant does the XURF1410S2V use?
It uses R290, a natural hydrocarbon refrigerant with a very low global-warming potential. The 60mm body insulation is HFC- and CFC-free.
Is this freezer suitable for hot Australian kitchens?
Yes. The unit is tropicalised and rated to operate in ambient temperatures up to 43°C at 60% RH, making it suitable for Australian commercial kitchen conditions year-round.
How does the split door system save energy?
Each of the four doors opens independently so only the accessed section loses cold air. FED-X states this design can reduce yearly running costs by up to 30% compared to a full-width door.
What shelf configuration does this freezer use?
Each side of the cabinet has three shelf levels, each designed to hold 2 x 1/1 GN pans. Individual shelf weight rating is 40 kg.
SKU: XURF1410S2V
