Description

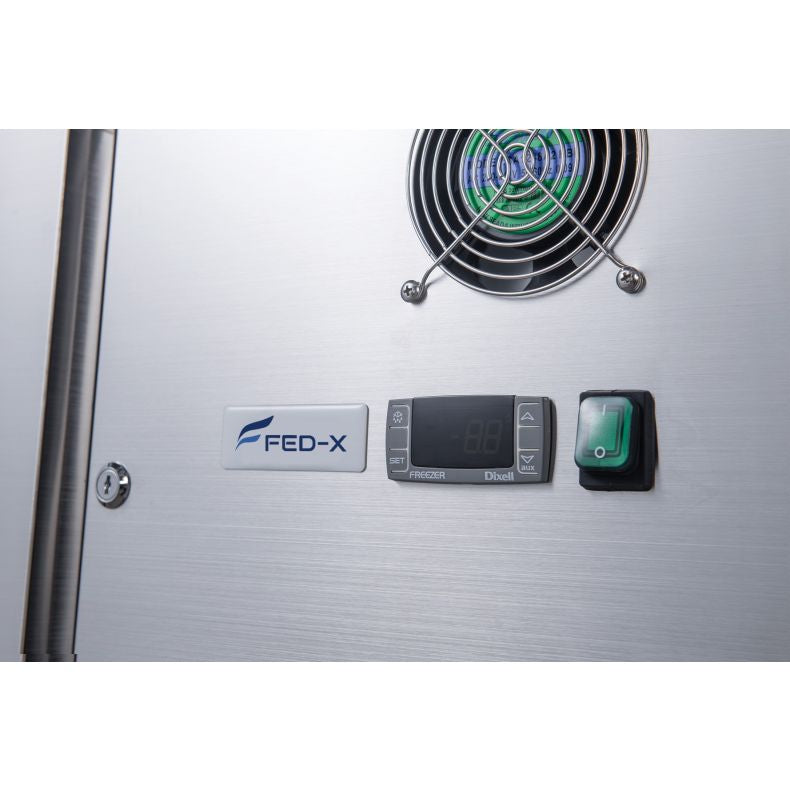

The FED-X XUB7C13S2V is a two-door underbench storage fridge designed for high-output commercial kitchens that need reliable cold storage beneath the prep bench. Built to the 700-series specification, it delivers consistent -2 to +8°C performance with fan-forced dry cooling, a Dixell digital controller, and an Embraco/Secop compressor — all in a full stainless steel cabinet that handles the heat of a tropicalised Australian kitchen environment.
Why operators choose the XUB7C13S2V
-
Tropicalised for AU conditions — rated to 43°C ambient temperature with 60% RH, engineered for the heat of an Australian commercial kitchen without performance drop.
-
GN1/1 pan compatible shelving — one removable shelf per section supports up to 40 kg and lines up directly with standard prep pans, cutting transfer time during service.
-

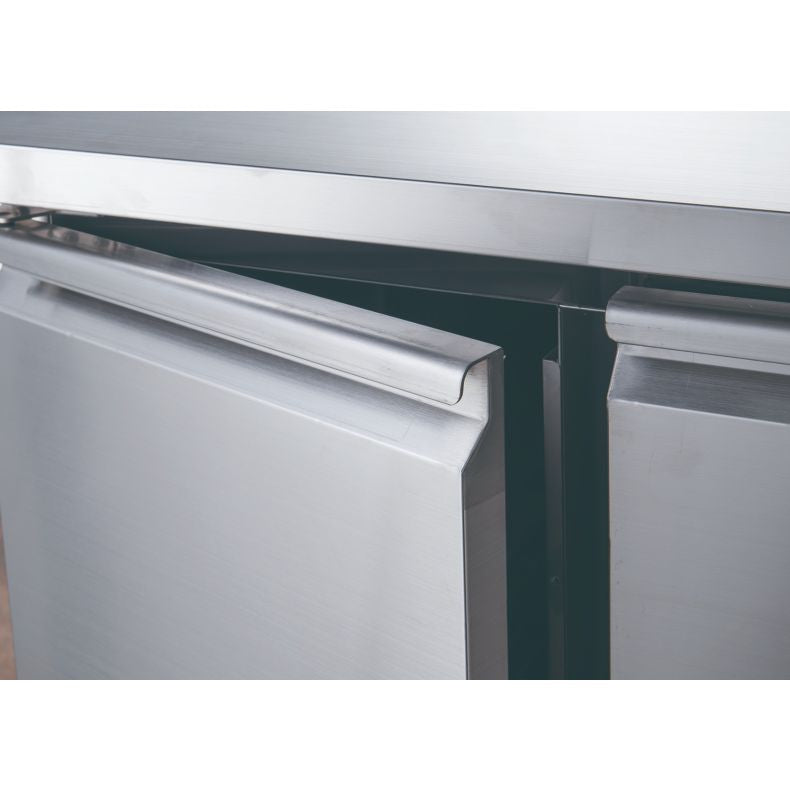

Self-closing doors with heavy-duty magnetic seals — minimises temperature fluctuation in busy service environments where doors are opened frequently.
-
R290 natural refrigerant — low global-warming-potential refrigerant, HFC and CFC free, with 60mm foam body insulation for efficient energy use (2.623 kWh/24h).
-
Heavy-duty castors with front-wheel brakes — unit can be positioned flush against the wall, with rear ventilation clearance built in for flexible kitchen layout.
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB7C13S2V |
| Type |
Undercounter Storage Fridge |
| Gross Volume |
282 L |
| Net Volume |
186 L |
| Temperature Range |
-2 to +8°C |
| Refrigerant |
R290 |
| Cooling System |
Fan-forced dry cooling |
| Compressor |
Embraco/Secop |
| Controller |
Dixell digital |
| Doors |
2 solid hinged doors |
| Shelving |
1 shelf per door, GN1/1 compatible, 40 kg load capacity |
| Ambient Temperature Rating |
43°C, 60% RH |
| Power |
240V; 215W / 1.3A |
| Energy Consumption |
2.623 kWh/24h |
| External Dimensions |
1360(W) x 700(D) x 850(H)mm |
| Internal Dimensions |
799(W) x 580(D) x 564(H)mm |
| Packed Dimensions |
1390(W) x 730(D) x 910(H)mm |
| Net Weight |
102 kg (supplier confirmed; store lists 119 kg — verify) |
| Construction |
Stainless steel interior and exterior, rounded corners |
| Insulation |
60mm HFC/CFC-free foam body insulation |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (registration within 14 days of invoice required) |
Venue suitability: Suited to cafes, restaurants, hotel kitchens, club canteens, and any venue requiring underbench refrigeration in a high-ambient-temperature environment. The 1360mm width accommodates two standard prep sections side by side. Explore the full Under Bench Fridges range for companion models, or browse all FED-X refrigeration to match across your cold-chain.
Installation & delivery: This unit ships on castors and can be placed against the wall. Allow standard electrical clearance (240V/10A single phase). Dispatched Australia-wide from FED warehouses in Sydney, Melbourne, Brisbane, Adelaide, and Perth.
Frequently asked questions
What is the difference between gross and net volume on this fridge?
The gross volume of 282 L is the total cabinet space. The net usable volume — the space available for food storage accounting for the cooling system components — is 186 L. Plan your storage around the 186 L net figure.
Is the XUB7C13S2V suitable for a hot kitchen environment?
Yes. The unit is tropicalised and rated to a maximum ambient temperature of 43°C at 60% relative humidity, making it appropriate for Australian commercial kitchens without performance degradation.
What size gastronorm pans fit in this unit?
Each section includes one shelf that is GN1/1 pan compatible. The shelf supports up to 40 kg, accommodating full-size hotel pans for ingredient or prep storage.
What refrigerant does the XUB7C13S2V use?
It uses R290 (propane), a natural refrigerant with a low global-warming potential. The cabinet insulation is 60mm HFC and CFC-free foam, contributing to efficient operation at 2.623 kWh per 24 hours.
What warranty does the XUB7C13S2V carry?
FED-X provides 2 Years Parts and Labour plus an additional 2 Years Parts Only, provided the unit is registered within 14 days of the invoice date. Total coverage is up to 4 years with registration.
