Description

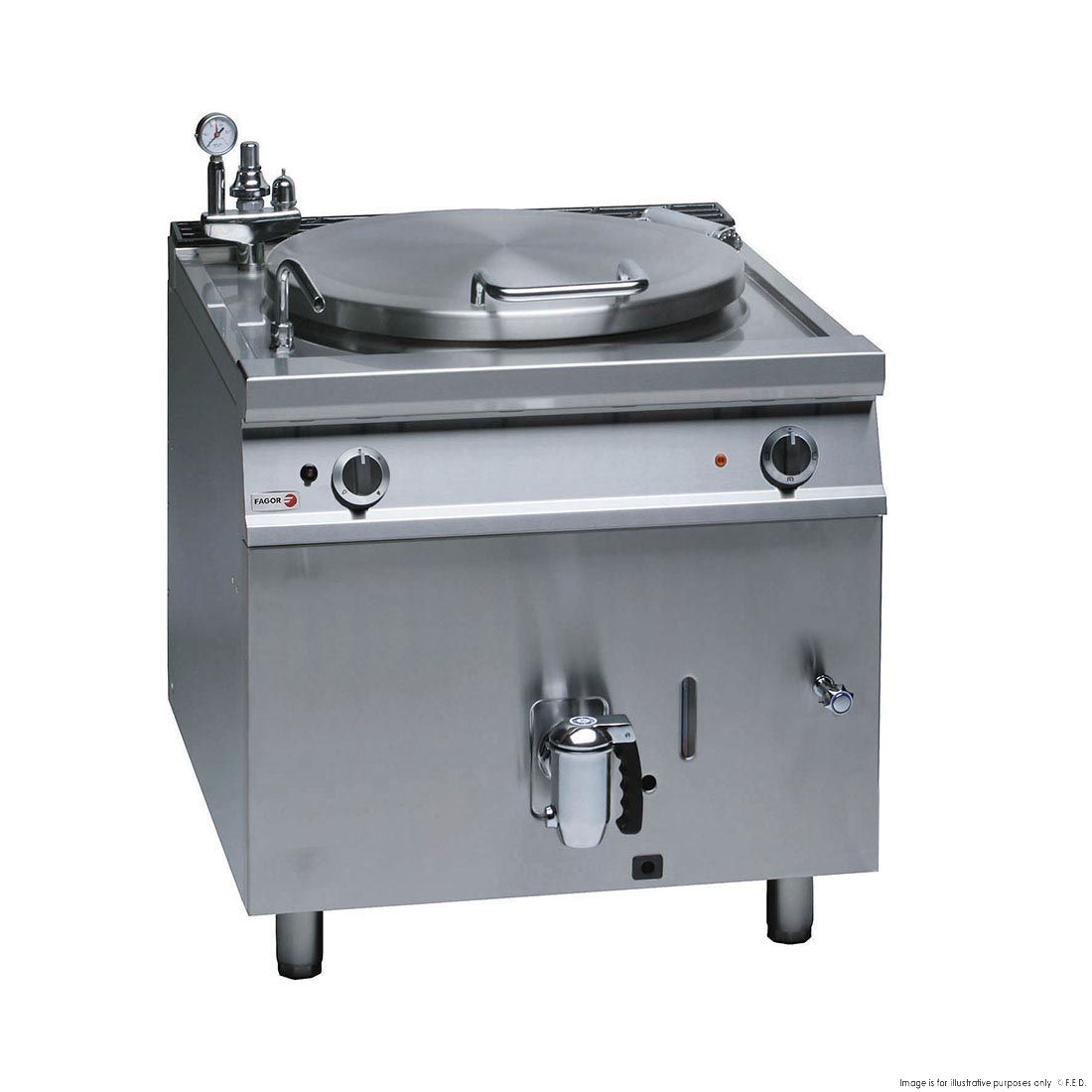

The Fagor Kore 900 commercial gas boiling pans are a must-have for any kitchen, making it easier to prepare large volumes of soups and stews with ease. These cooking appliances offer precise temperature control with their energy regulator, ensuring consistent and even heating every time. Whether you're cooking for a large crowd or simply looking to stock up on leftovers, the Fagor Boiling Pans are the perfect solution.
Quality and safety
The countertop of our boiling pans, as with the other products of our range, is made of 2 mm thick AISI-304 stainless steel. The tank is integrated into the countertop by means of robotic welding, manufactured in AISI-304 stainless steel. In addition the bottom of the tank is manufactured in AISI-316L stainless steel.
Cleaning
The embedded countertop, manufactured without grooves and with rounded edges, facilitates cleaning of the work space.
The construction of the tank with its satin walls facilitates its comprehensive and efficient cleaning.
The boiling pans have a filter in the drain pipe to retain food debris, easy to disassemble for cleaning. The drainage tap is also very easy to clean.
General Characteristics:
- LPG
- Group of optimised combustion stainless steel tubular burners, controlled by energy regulator and by pressure switch
- Control by energy regulator and by pressure switch, permitting lower water and energy consumption
- Ignition of group of burners by spark train
- Surface tops manufactured in 2 mm thick AISI-304 stainless steel.
- Laser-cut joints, automatic welding and polished.
- Double walled lid balanced by means of a hinge with front handle, with diagonal opening to 75° which allows the lid to be kept open in any position.

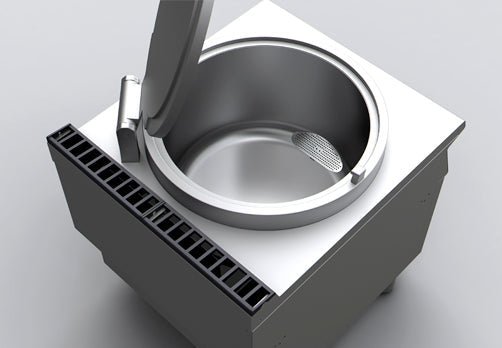

- Well stamped into the surface top by robotic welding, manufactured in AISI-304 stainless steel, with the bottom of the well in AISI-316L stainless steel.
- Well filling with hot or cold water by electrovalve, activated with a single switch located on the front panel as previous page.
- Well emptying by 2” safety valve with handle in athermic material and safe and effortless handling.
- Robust and reliable filter for draining the well manufactured in AISI-304 stainless steel. Easily extractable.
- Controls with protective base and system against water infiltration.
- High temperature enamelled cast iron flue protector.
- Access to the components from the front.
- Machines with IPX5 grade water protection.Indirectly heated models – bain marie
- Bain marie chamber around the well, with automatic filling system when the machine is connected.
- Automatic chamber level control with quadruple security: pressure switch to control the pressure in the chamber, overpressure security valve, thermostat to limit overheating in the chamber and pressure gauge incorporated into the surface top.
- Automatic flushing of the chamber.
- Heating at the bottom of the pan acts on the water in the surrounding chamber, meaning that the saturated steam generated at a temperature of 107 °C heats the bottom and sides of the well in a uniform manner. The temperature reached is lower than that obtained with direct heating.
- Stamped pan floor to avoid deformations.
- Indicator light to show when the machine is connected and when it is heating.
Gas Models
- Group of optimised combustion stainless steel tubular burners, controlled by energy regulator and by pressure switch.
- Control by energy regulator and by pressure switch, permitting lower water and energy consumption.
- Ignition of group of burners by spark train.
2 Year Parts and Labour + 2 Years Parts only Warranty with Product Registration
Power: 24KW
