Description

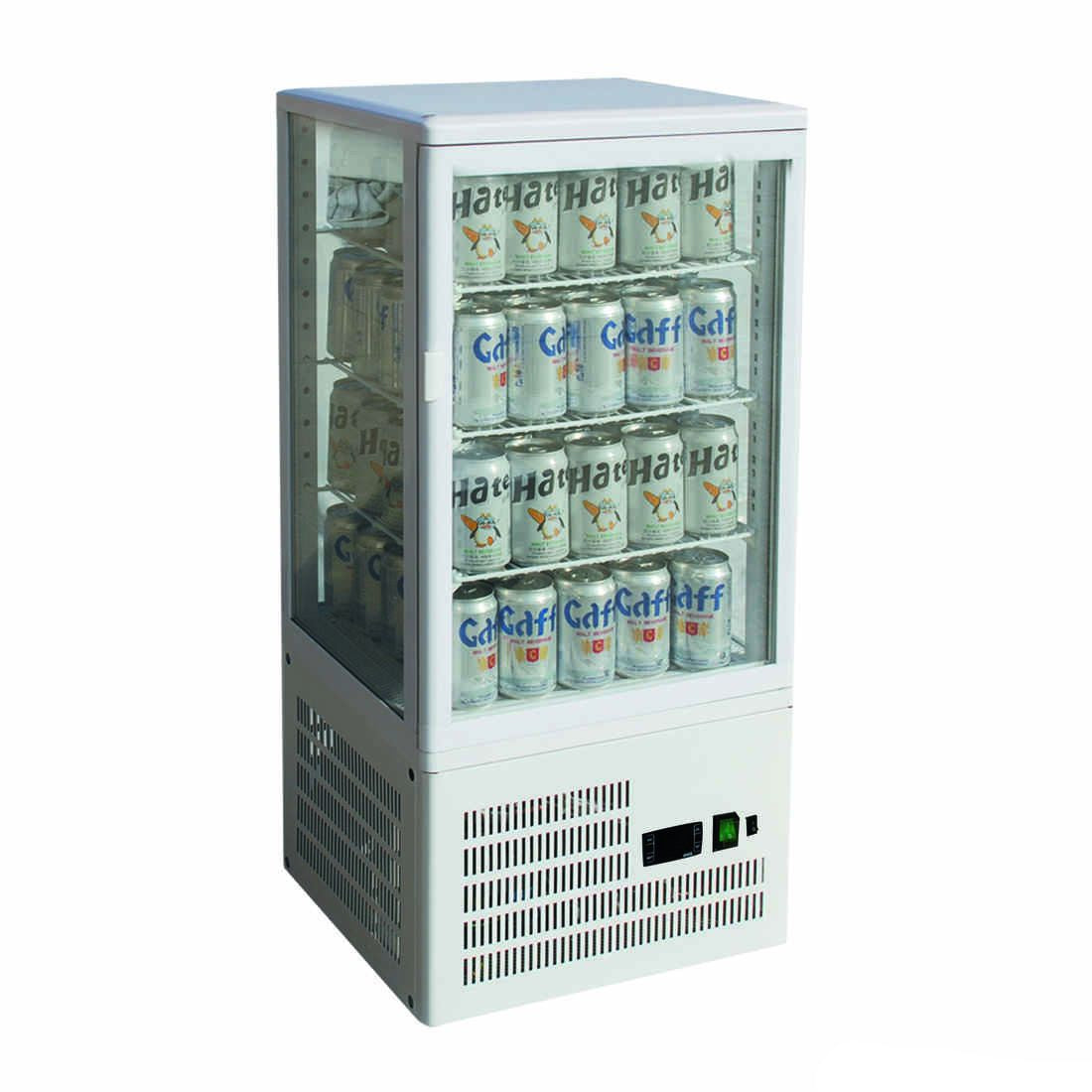

The Thermaster TCBD78W is a four-sided countertop beverage display fridge designed to merchandise chilled cans, bottles, and packaged food at point-of-sale. Four double-glazed glass panels — front, rear, and both sides — provide 360° product visibility while maintaining a +2 to +8°C operating range, making it equally suited to bar counters, café service areas, and convenience store checkouts.
Why operators choose the TCBD78W
-
360° four-sided glass display — double-glazed panels on all four sides give customers unobstructed visibility from every approach angle, driving impulse purchase of chilled beverages.
-
Fan-forced evaporator cooling with auto defrost — consistent temperature distribution throughout the 63 L net cabinet; automatic defrost eliminates manual maintenance and minimises downtime.
-
LED lighting — energy-efficient internal illumination highlights product presentation without generating excess heat inside the cabinet.
-
Digital temperature controller with read-out — precise +2 to +8°C operating range displayed in real time for straightforward food-safety compliance monitoring.
-
Compact 428 mm footprint — fits standard countertop positions in bars, cafés, and convenience stores without disrupting workflow; self-evaporating drainage eliminates the need for a condensate drain line.
Specifications
| Brand |
Thermaster |
| Model / MPN |
TCBD78W |
| Type |
Four-Sided Countertop Display Fridge |
| Colour |
White |
| Capacity (Net) |
63 L |
| Gross Volume |
78 L |
| Temperature Range |
+2 to +8°C |
| Max Ambient Temperature |
32°C |
| Doors |
1 |
| Door Type |
Hinged, Double-Glazed Glass |
| Shelves |
Adjustable wire shelves |
| Cooling |
Fan-forced evaporator with auto defrost |
| Lighting |
LED |
| Drainage |
Self-evaporating |
| Insulation |
CFC & HCFC Free |
| Power |
240 V |
| Energy Consumption |
3.75 kWh/24h |
| Power Type |
Electric |
| Body Material |
Colorbond (White) |
| Product Dimensions (W × D × H) |
428 × 386 × 1000 mm |
| Packed Dimensions (W × D × H) |
500 × 460 × 1050 mm |
| Net Weight |
39 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
| Country of Manufacture |
China |
Venue suitability: Ideal for bars, hotels, pubs, cafés, convenience stores, takeaway shops, and any front-of-house point-of-sale environment where chilled beverages or packaged grab-and-go items need prominent display. The white colorbond body blends cleanly into light-coloured interiors. Explore our full range of countertop display fridges or browse all Thermaster refrigeration equipment.
Installation & delivery: No specialist installation required — standard plug-in electric operation (240 V single phase). Allow adequate clearance around all four sides for ventilation. Dispatched Australia-wide.
Frequently asked questions
What is the difference between the 63 L and 78 L capacity figures?
The 78 L is the gross (total) cabinet volume; the 63 L is the usable net storage volume — the space available after accounting for the structure, shelving, and evaporator. The 63 L net figure is the relevant capacity for stocking purposes.
What temperature range does the TCBD78W maintain?
The TCBD78W operates at +2 to +8°C, covering chilled beverages, dairy products, and pre-packaged food items within standard food-safety requirements.
Is the TCBD78W suitable for outdoor or high-temperature environments?
The unit is rated for a maximum ambient temperature of 32°C. It is designed for indoor use only — do not operate in direct sunlight or in unventilated spaces where ambient temperatures exceed 32°C.
Does it require manual defrosting?
No. The TCBD78W features automatic defrost, so no manual intervention is required. Self-evaporating drainage also means no condensate drain connection is needed.
What warranty is included?
Thermaster provides 2 Years Parts & Labour warranty plus an additional 2 Years Parts Only warranty, provided the product is registered within 14 days of invoice. See our warranty information page for full terms.
