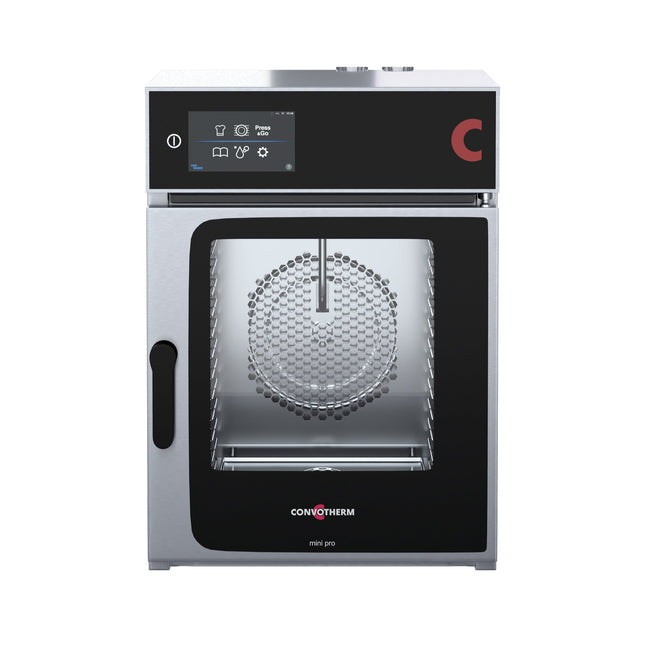

Convotherm mini pro easyTouch Combi Steamer CMINIPRO6.06 ELECTRIC DIRECT STEAM 6 X 2/3 GN
• Direct steam system
• Cooking methods: Steam, Combi-steam, Convection
• Extra functions:
– Crisp&Tasty - 5 moisture removal settings
– HumidiftyPro - 5 humidity settings
– BakePro - 5 levels of traditional baking
– Controllable fan - 5 speed settings
– AirFry mode

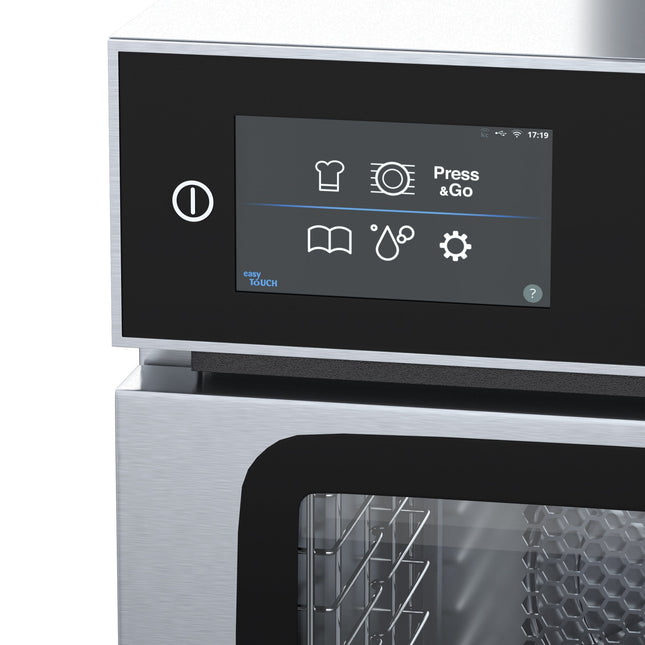

• easyTouch 7” TFT HiRes glass touch display (capacitive)
• ConvoClean S2L integrated cleaning system
• HygieniCare
• EasyStack - seamless stacking of two appliances
• MaxiCavity - best ratio for cooking chamber volume to appliance size
• Ethernet interface (LAN) and WiFi module (accessory)
• Multipoint core temperature probe
• LED lighting in oven cavity
• Triple glass appliance door and safety catch
• Integrated recoil hand shower
• Right-hinged appliance door
Standard Features
• Cooking methods:
– Steam (30-130°C) with guaranteed steam saturation
– Combi-steam (30-250 °C) with automatic moisture control
– Convection (30-250 °C) with optimised heat transfer
• Operation of easyTouch user interface:
– 7” TFT HiRes glass touch display (capacitive)
– Intuitive, image-based user guidance
– TriColor indicator ring - indicates the current operating status
– Smooth-action, quick reacting scrolling function
• Climate Management
– Intelligent Steam Management, HumidityPro, Crisp&Tasty, AirFlowPro
• Quality Management
– BakePro, AirFry Mode
– Preheat and cool down function
• Production Management
– Automatic cooking with Press&Go with up to 399 cooking profiles
– Integrated cookbook with 7 different categories
– TrayTimer – load management for different products at the same
time
– TrayView – load management for automatic cooking of different
products using Press&Go
– Favourites management
– HACCP data storage
– ecoCooking – energy-save function
– LT cooking (low temperature cooking) / Delta-T cooking
– Cook&Hold – cook and hold in one process
– Autostart – start time preselection
– Add steam
– Regenerate - flexible multi-mode rethermalisation function with
preselect
– Manager and crew mode with password protection
– Energy and water consumption display
DIMENSIONS
Width 498 mm
Depth 615 mm
Height 694 mm
Weight 64 kg
PACKED DIMENSIONS
Width 580 mm
Depth 730 mm
Height 890 mm
Weight 75 kg
Safety clearances*
Right 50 mm
Left 50 mm
Top (for ventilation)** 500 mm
*Heat sources must lie at a minimum distance of 500mm from the appliance.
** Depends on type of air ventilation system and nature of ceiling.
INSTALLATION REQUIREMENTS
For precise installation instructions please refer to the units installation manual
LOADING CAPACITY
Shelf distance 67mm
GN 2/3 flat 6
GN 2/3 (40-65mm deep) 5 Plates max. Ø26cm 5
Max. loading weight
Per combi steamer 15 kg
Per shelf 5 kg
ELECTRICAL SUPPLY
3N~400-415V ~50/60Hz (3P+N+E)
Connected load 6.1 kW
Rated current 8.4A
Fuse 16A
RCD (GFCI), frequency converter Type A
Special voltage options available on request. Connection to an energy optimisation system as standard
WATER CONNECTION
Water supply
G 3/4’’ permenent connection.
Flow pressure 150 - 600 kPa (1.5 - 6 bar)
Appliance drain
Drain version Permanent connection (recommended) or funnel waste trap
Type DN40 (Ø40mm)
Slope for waste-water pipe min. 5% (3°)
Water consumption
Ø Consumption for cooking 0-20l/h
Max. water flow rate 7 l/min
WATER QUALITY
Drinking water
(install water treatment system if necessary). Treated tap water for water injection. Untreated tap water for cleaning, recoil hand shower
Overall hardness 4 - 20 °dh / 70 - 360 ppm / 7 - 35 °TH /5 - 25 °e
Properties
pH 6.5 - 8.5
Cl- (chloride) max. 60 mg/l
Cl2 (free chlorine) max. 0.2 mg/l
SO4²- (sulphate) max. 150 mg/l
Fe (iron) max. 0.1 mg/l
Electrical conductivity min 20 μS/cm
SiO₂ (silicate) max. 13 mg/l
NH₂Cl (monochloramine) max. 0.2 mg/l
Temperature max. 40°C

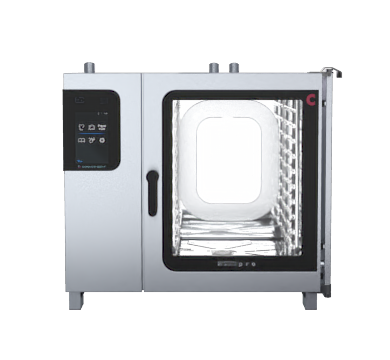

Dimensions
W: 1211mm D: 992mm H: 1058mmPacked Weight: 244kg
Product Features
22 x 1/1 or 11 x 2/1 GN tray capacity electric direct steam combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket

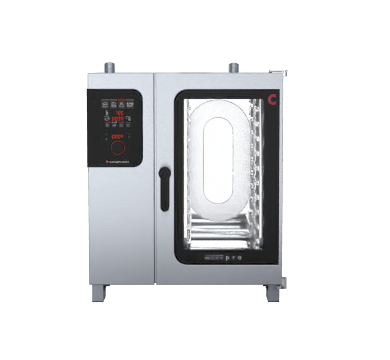

Dimensions
W: 966mm D: 792mm H: 1058mmPacked Weight: 167kg
Product Features
11 x 1/1 GN tray capacity electric direct steam combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket

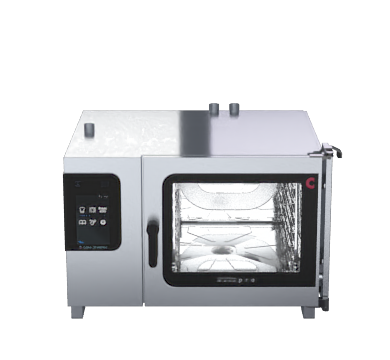

Dimensions
W: 1211mm D: 992mm H: 786mmPacked Weight: 194kg
Product Features
14 x 1/1 or 7 x 2/1 GN tray capacity electric boiler combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 966mm D: 792mm H: 786mmPacked Weight: 157kg
Product Features
7 x 1/1 GN tray capacity gas direct steam combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket

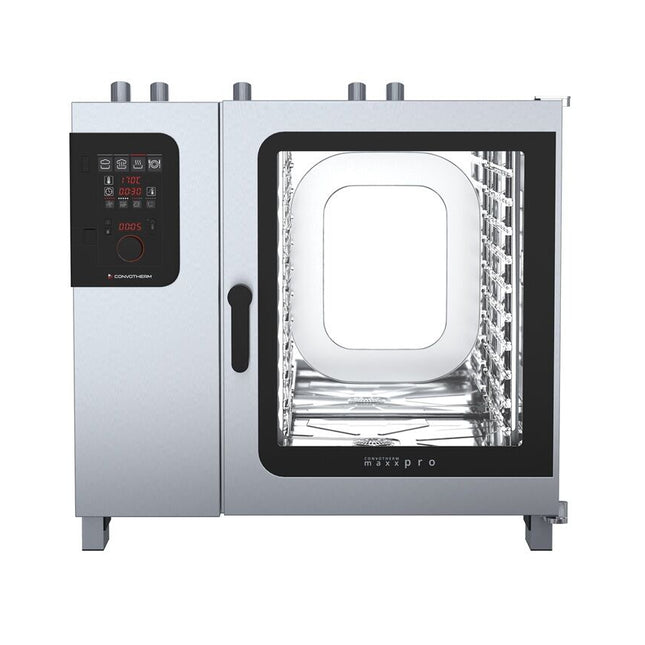

Dimensions
W: 1120mm D: 992mm H: 1058mmPacked Weight: 238kg
Product Features
22 x 1/1 or 11 x 2/1 GN tray capacity gas direct steam combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or core temperature sensor with external socket
Dimensions
W: 875mm D: 792mm H: 1058mmPacked Weight: 161kg
Product Features
11 x 1/1 GN tray capacity gas direct steam combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or core temperature sensor with external socket

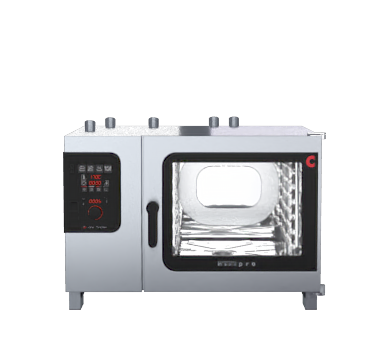

Dimensions
W: 1120mm D: 992mm H: 786mmPacked Weight: 188kg
Product Features
14 x 1/1 or 7 x 2/1 GN tray gas direct steam combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or core temperature sensor with external socket
Dimensions
W: 875mm D: 792mm H: 786mmPacked Weight: 151kg
Product Features
7 x 1/1 GN tray capacity gas direct steam combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or core temperature sensor with external socket
Dimensions
W: 1211mm D: 992mm H: 1058mmPacked Weight: 259kg
Product Features

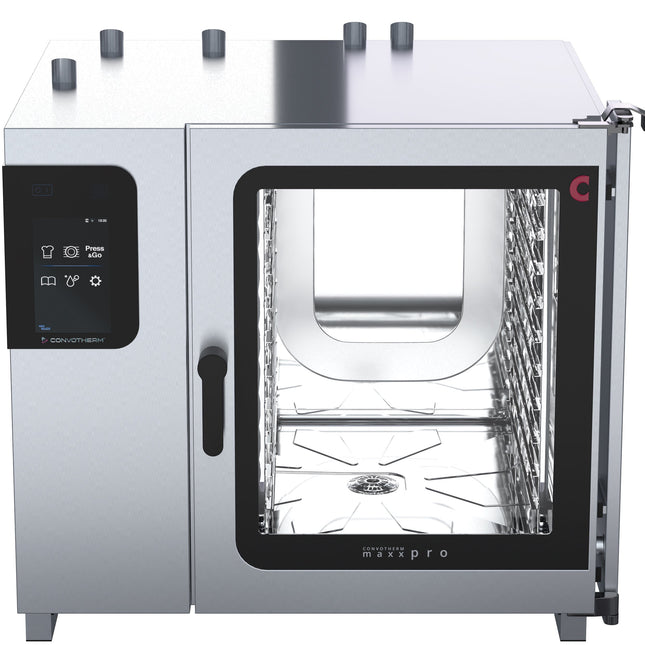

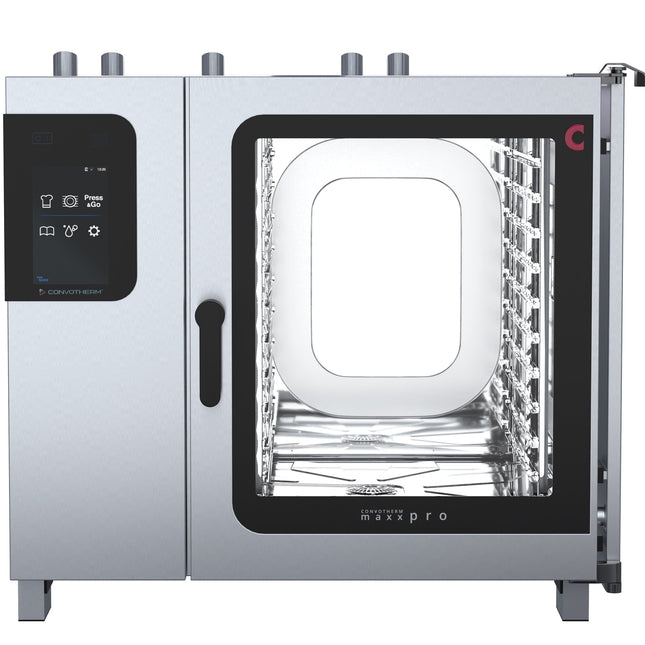

22 x 1/1 or 11 x 2/1 GN tray capacity gas boiler combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by high-performance boiler outside the cooking chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 966mm D: 792mm H: 1058mmPacked Weight: 181kg
Product Features

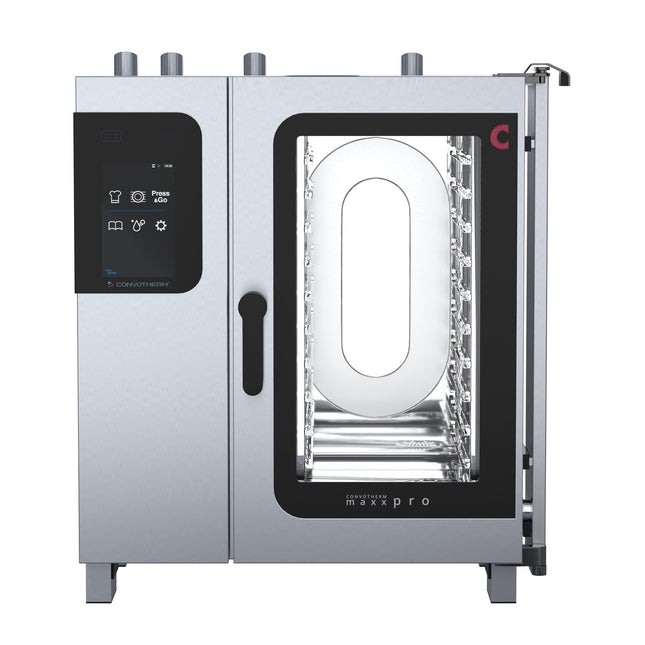

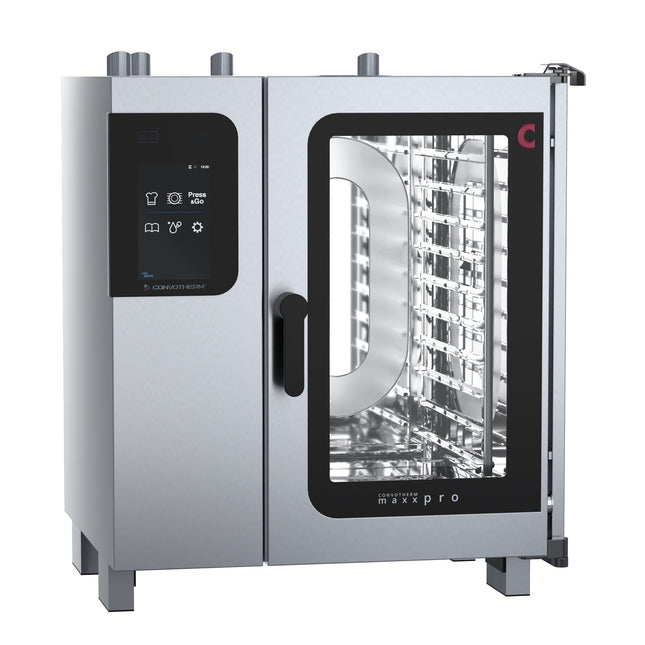

11 x 1/1 GN tray capacity gas boiler combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by high-performance boiler outside the cooking chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 1211mm D: 992mm H: 786mmPacked Weight: 209kg
Product Features

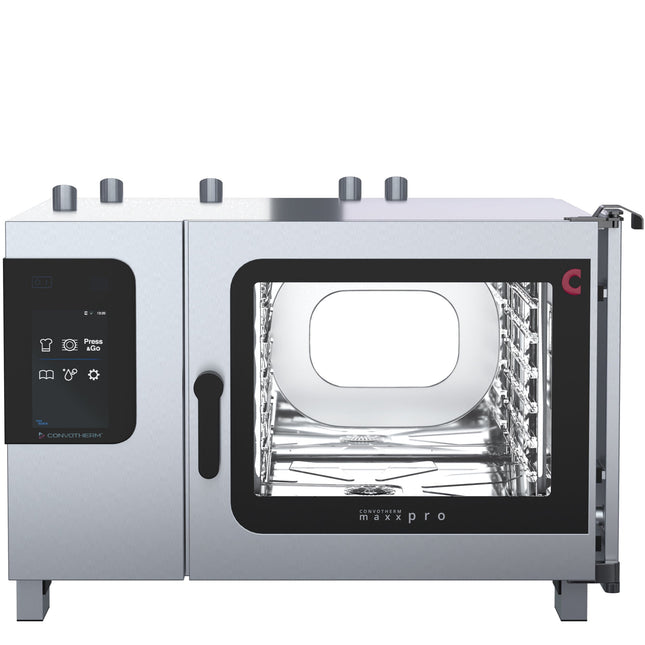

14 x 1/1 or 7 x 2/1 GN tray capacity gas boiler combi oven system
68mm shelf distance

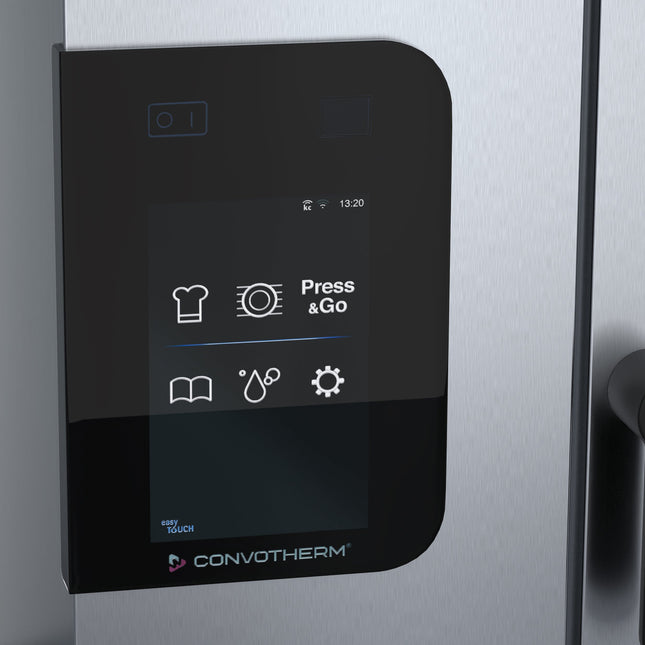

easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by high-performance boiler outside the cooking chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 966mm D: 792mm H: 786mmPacked Weight: 171kg
Product Features

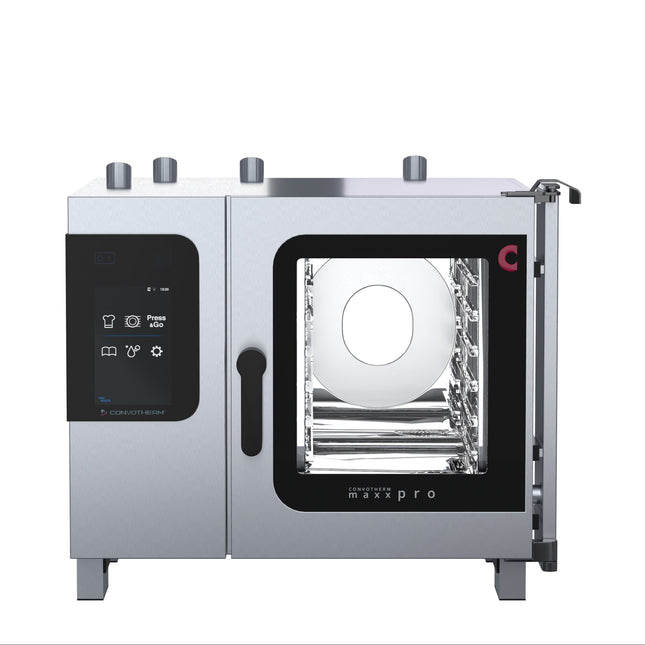

7 x 1/1 GN tray capacity gas boiler combi oven system
68mm shelf distance

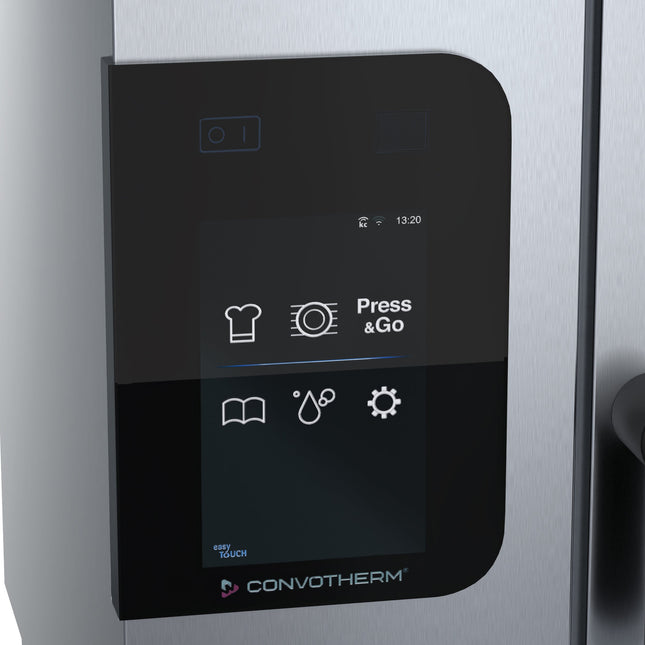

easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by high-performance boiler outside the cooking chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 1120mm D: 992mm H: 1058mmPacked Weight: 253kg
Product Features
22 x 1/1 or 11 x 2/1 GN tray capacity gas boiler combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by high-performance boiler outside the cooking chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 875mm D: 792mm H: 1058mmPacked Weight: 175kg
Product Features
11 x 1/1 GN tray capacity electric boiler combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by high-performance boiler outside the cooking chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 1120mm D: 992mm H: 786mmPacked Weight: 203kg
Product Features
14 x 1/1 or 7 x 2/1 GN tray gas boiler combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by high-performance boiler outside the cooking chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 875mm D: 792mm H: 786mmPacked Weight: 165kg
Product Features

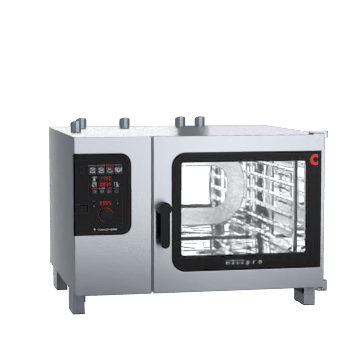

7 x 1/1 GN tray capacity gas boiler combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by high-performance boiler outside the cooking chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 1211mm D: 992mm H: 1058mmPacked Weight: 233kg
Product Features
22 x 1/1 or 11 x 2/1 GN tray capacity electric direct steam combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 966mm D: 792mm H: 1058mmPacked Weight: 163kg
Product Features
11 x 1/1 GN tray capacity electric direct steam combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 1211 mm D: 992 mm H: 786 mm
Packed Weight: 188 kg
Product Features
14 x 1/1 or 7 x 2/1 GN tray capacity electric boiler combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 966 mm D: 792 mm H: 786 mmPacked Weight: 154 kg
Product Features

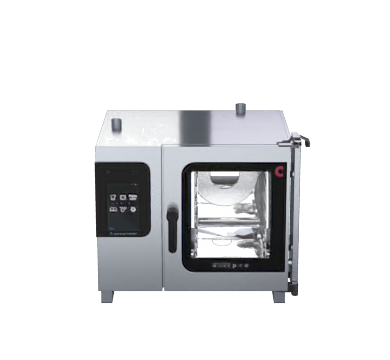

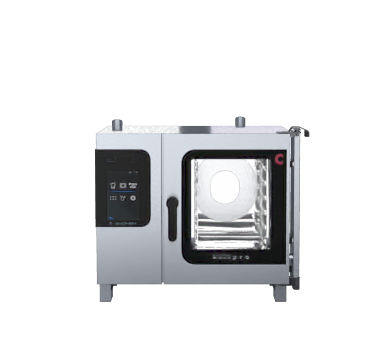

7 x 1/1 GN tray capacity electric direct steam combi oven system
68mm shelf distance
easyTouch 10" TFT HiRes glass touch display (capacitive)
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe, preheat and cool down function
Production Management: Press&Go automatic cooking with up to 399 cooking profiles, Integrated cookbook with 7 different categories, TrayTimer, TrayView, HACCP data storage, ecoCooking for energy-save function, Delta-T cooking, Cook&Hold, Regenerate+
Cleaning Management: ConvoClean+: fully automated cleaning system with eco, regular and express modes including optional single-dose dispensing, integrated recoil hand shower
HygieniCare
WiFi and Ethernet interface (LAN)
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Disappearing door
Optional Extras:
ConvoSmoke - built in food-smoking function (Hot Smoke), Steam and vapour removal (build-in condensation hood), Sous-vide sensor or Core temperature sensor with external socket
Dimensions
W: 1120mm D: 992mm H: 1058mmPacked Weight: 227kg
Product Features
22 x 1/1 or 11 x 2/1 GN tray capacity electric direct steam combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or core temperature sensor with external socket
Dimensions
W: 875mm D: 792mm H: 1058mmPacked Weight: 157kg
Product Features

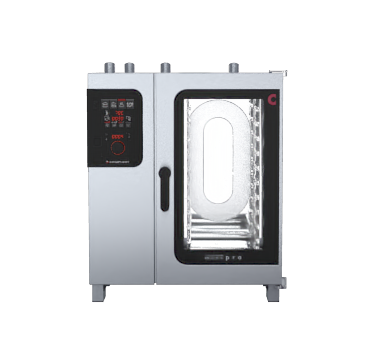

11 x 1/1 GN tray capacity electric direct steam combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or core temperature sensor with external socket
Dimensions
W: 1120 mm D: 992 mm H: 786 mmPacked Weight: 182 kg
Product Features

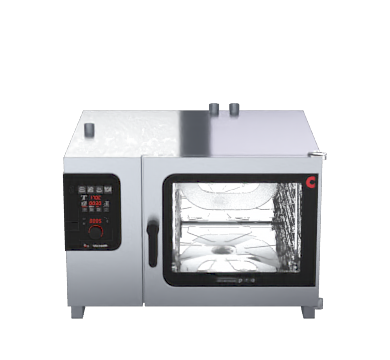

14 x 1/1 or 7 x 2/1 GN tray electric direct steam combi oven system
68mm shelf distance
easyDial: all functions can be set on one operating level with digital display control panel
TriColour indicator ring - indicates the current operating status
Steam generated by injecting water into the oven chamber
Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection:
Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer
Function management:
Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings
Quality Management: Airflow Management, BakePro, Multi-point core temperature probe
Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function
Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower
HygieniCare
USB port integrated in the control panel
LED lighting in oven cavity
Triple glass right-hinged appliance door
Door handle with safety latch and sure-shut function
Optional Extras:
Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or core temperature sensor with external socket
