Description

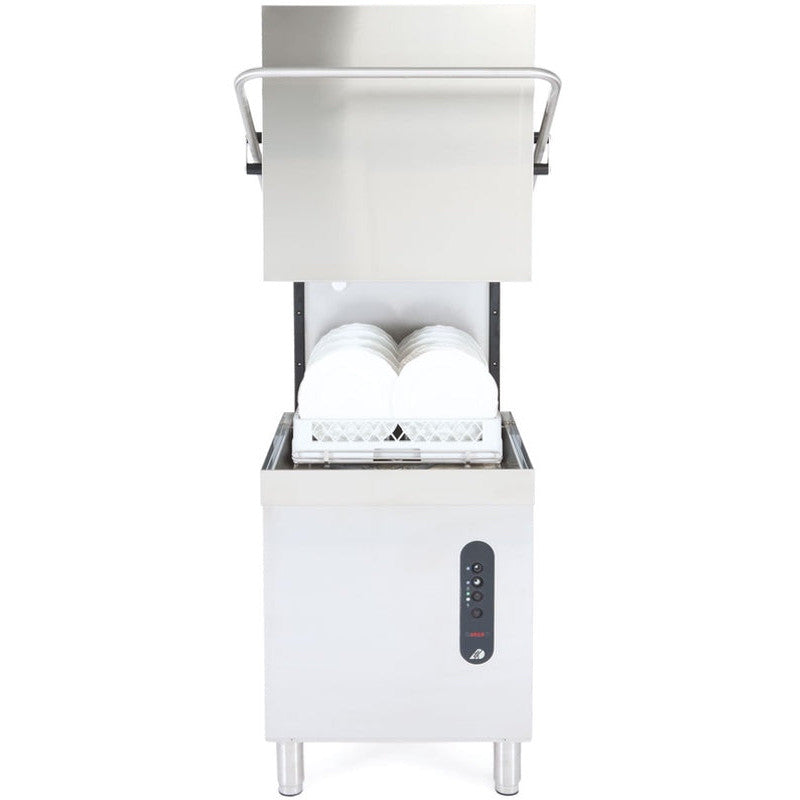

The Adler DWA2001 is the single-phase version of Adler’s Italian-made ECO-series pass-through dishwasher (manufacture code ECO1001), for sites without a three-phase supply. It washes standard 500 x 500 mm racks — two supplied — under a hood with 420 mm of internal clearance, runs a 4 kW boiler element suited to single-phase connection, and consumes only 1.7 L of water per cycle at 2 bar. Drain, rinse aid and detergent pumps are standard.
Why operators choose the DWA2001
- Single-phase unit — suits kitchens where a three-phase supply is not available
- Economical 1.7 L water consumption per cycle at 2 bar inlet pressure
- Drain pump, rinse aid pump and detergent pump all fitted as standard
- Three cycle choices: 1 minute, 3 minutes, or hold both for a 4-minute wash
- 1 HP wash pump with stainless steel wash arms and digital temperature display
Specifications
| Brand |
Adler |
| Model / MPN |
DWA2001 |
| Type |
Pass-Through (Hood-Type) Dishwasher |
| Manufacture code |
ECO1001 |
| Electrical |
Single phase; 4 kW boiler element |
| Internal clearance |
420 mm |
| Rack size |
500 x 500 mm (2 supplied) |
| Cycles |
3 — 1 min / 3 min, or hold both for 4 min |
| Tank |
20 L capacity; 4 kW element |
| Boiler |
10 L capacity |
| Wash pump |
1 HP |
| Water consumption |
1.7 L per cycle at 2 bar |
| Inlet pressure |
2–4 bar |
| Wash arms |
Stainless steel |
| Fittings |
Drain pump; rinse aid and detergent pump; rubber inlet hose; Caleffi pressure control / non-return valve |
| Controls |
Digital temperature display |
Venue suitability: A fit for cafes, smaller restaurants, bars and club kitchens that need pass-through rack throughput but only have single-phase power on site.
See more passthrough dishwashers, and pair the machine with inlet and outlet benching from dishwasher stands and accessories.
Installation & delivery: Connects to single-phase power; as with the rest of the range, final electrical connection should be carried out by a licensed electrician. Water inlet pressure of 2–4 bar is required. Dispatched Australia-wide.
Frequently asked questions
Does the Adler DWA2001 run on normal single-phase power?
Yes — it is the single-phase model in the range, fitted with a 4 kW boiler element to suit single-phase connection. Final connection should be made by a licensed electrician.
How is it different from the DWA2000?
The DWA2000 is the three-phase version with a 9 kW boiler element; the DWA2001 delivers the same rack size, clearance and features on a single-phase supply with a 4 kW boiler element.
What racks does it take?
Standard 500 x 500 mm dishwasher racks, with two racks supplied, passing under a hood with 420 mm internal clearance.
What are the running costs like?
Water use is 1.7 L per cycle at 2 bar, and adjustable rinse aid and detergent pumps meter chemicals automatically, keeping per-rack costs down.
What cycles does it offer?
A 1-minute and a 3-minute cycle, or hold both for a 4-minute heavy-soil wash, with the digital display showing operating temperature throughout.
