Description

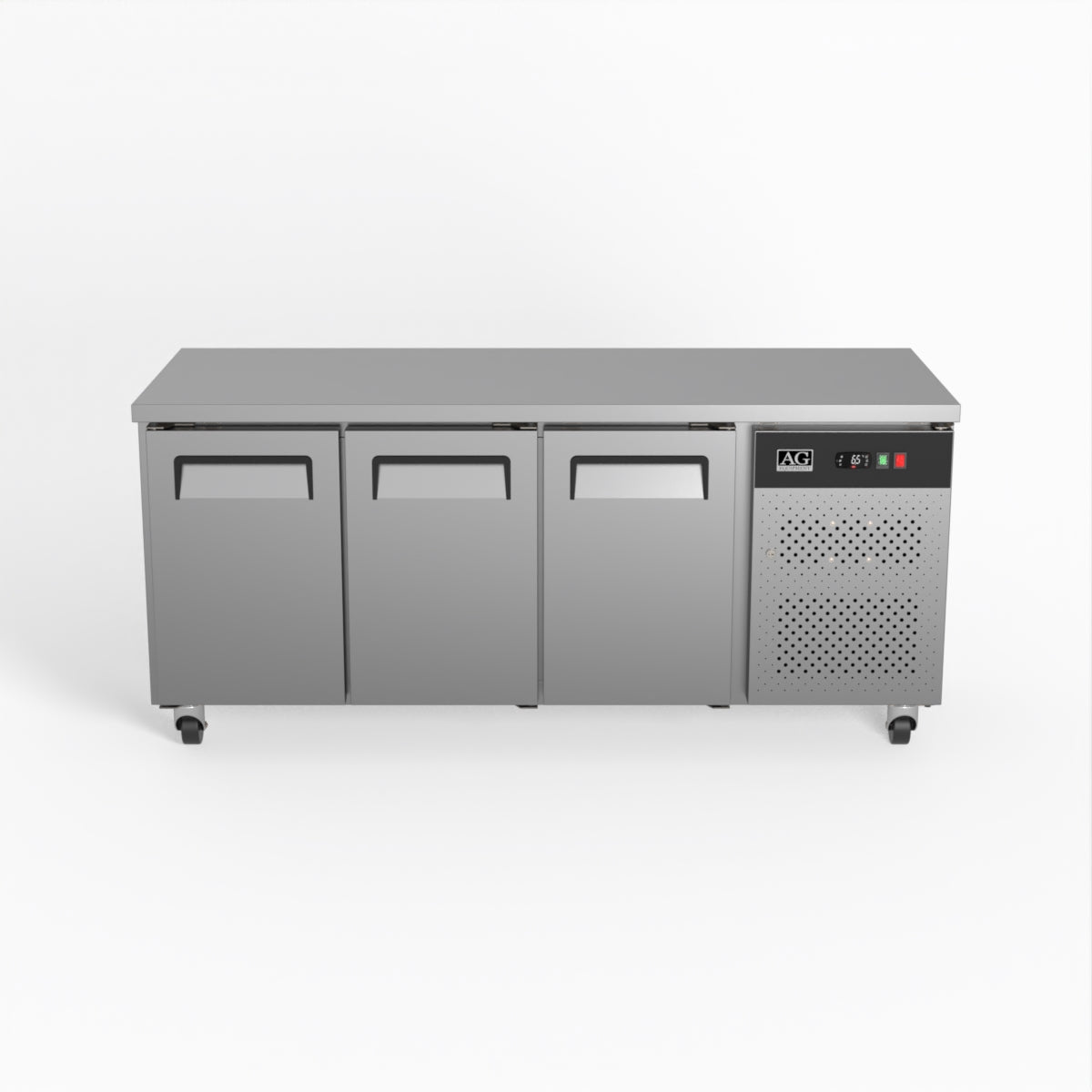

The AG Equipment GNX3100BT is a three-door under bench freezer that combines a stainless steel worktop with 417 litres of below-zero storage in a single 700mm-deep cabinet, sized for the busy commercial kitchen.
Why operators choose the GNX3100BT
-

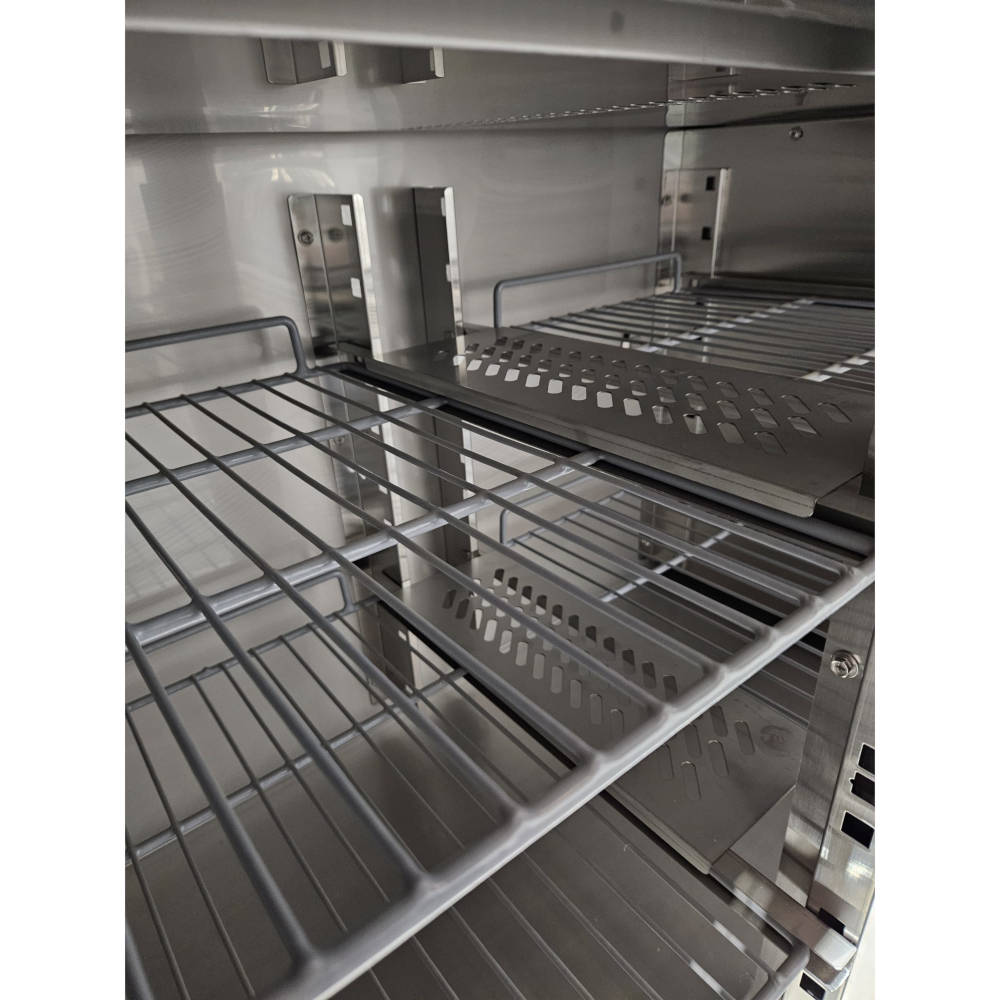

417 L across three doors — two adjustable shelves per door, each taking a 1/1 GN tray or rack, with centre shelf connectors so nothing falls between sections.
-
R290 natural refrigerant — non-toxic and ozone-friendly, running more efficiently to help cut energy costs.
-
Fan-forced ventilated cooling with auto defrost — even temperatures across the cabinet and less hands-on maintenance.
-

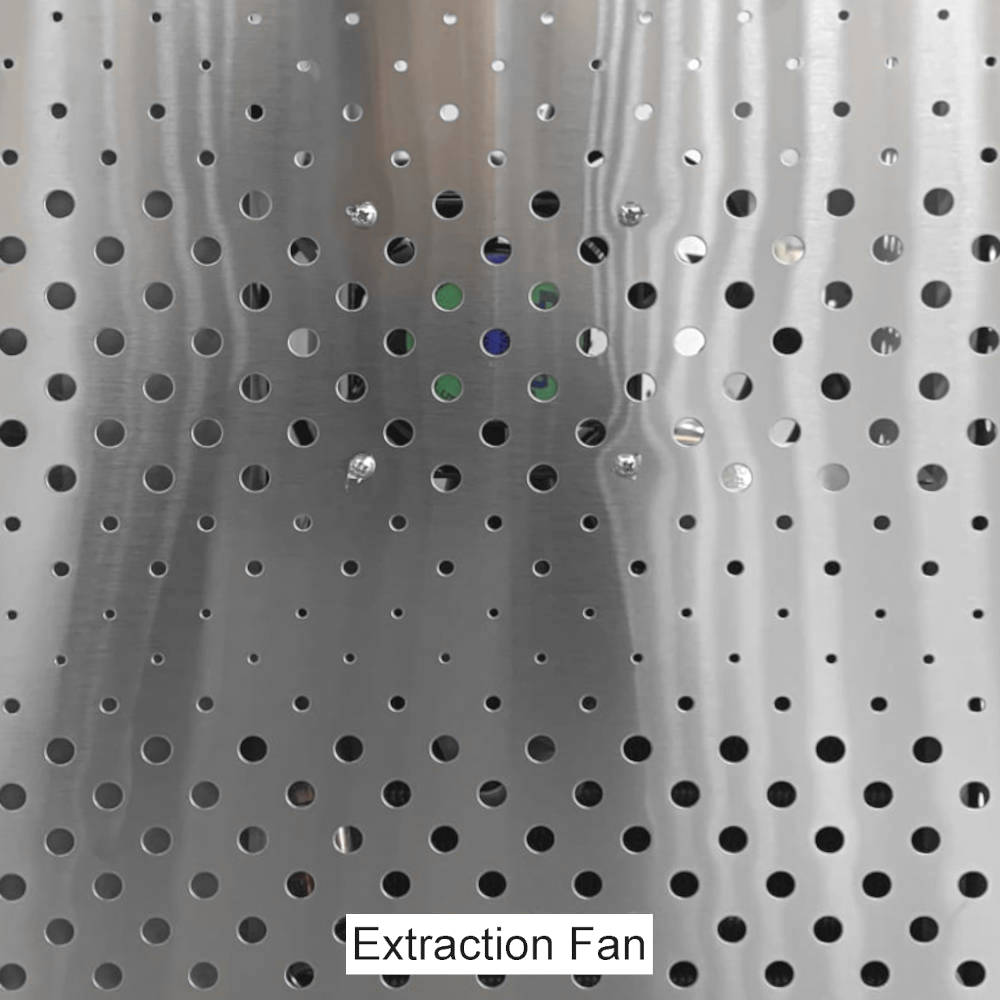

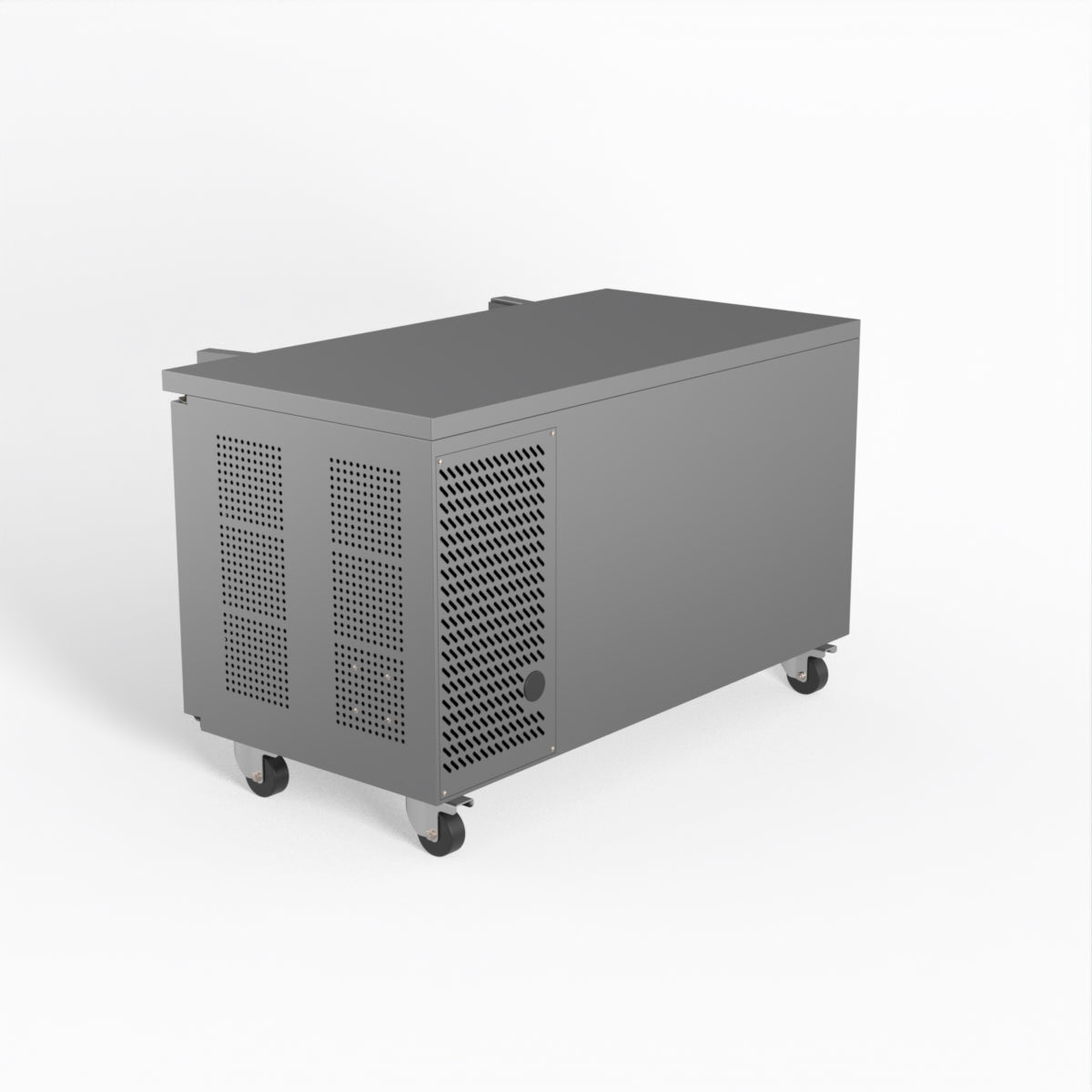

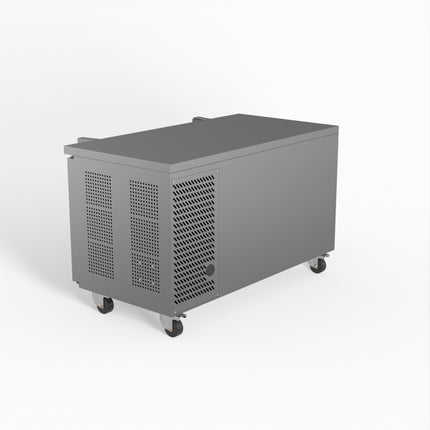

Front and side ventilation — the X-series layout frees the rear, so the unit can sit flush against the back wall.
-

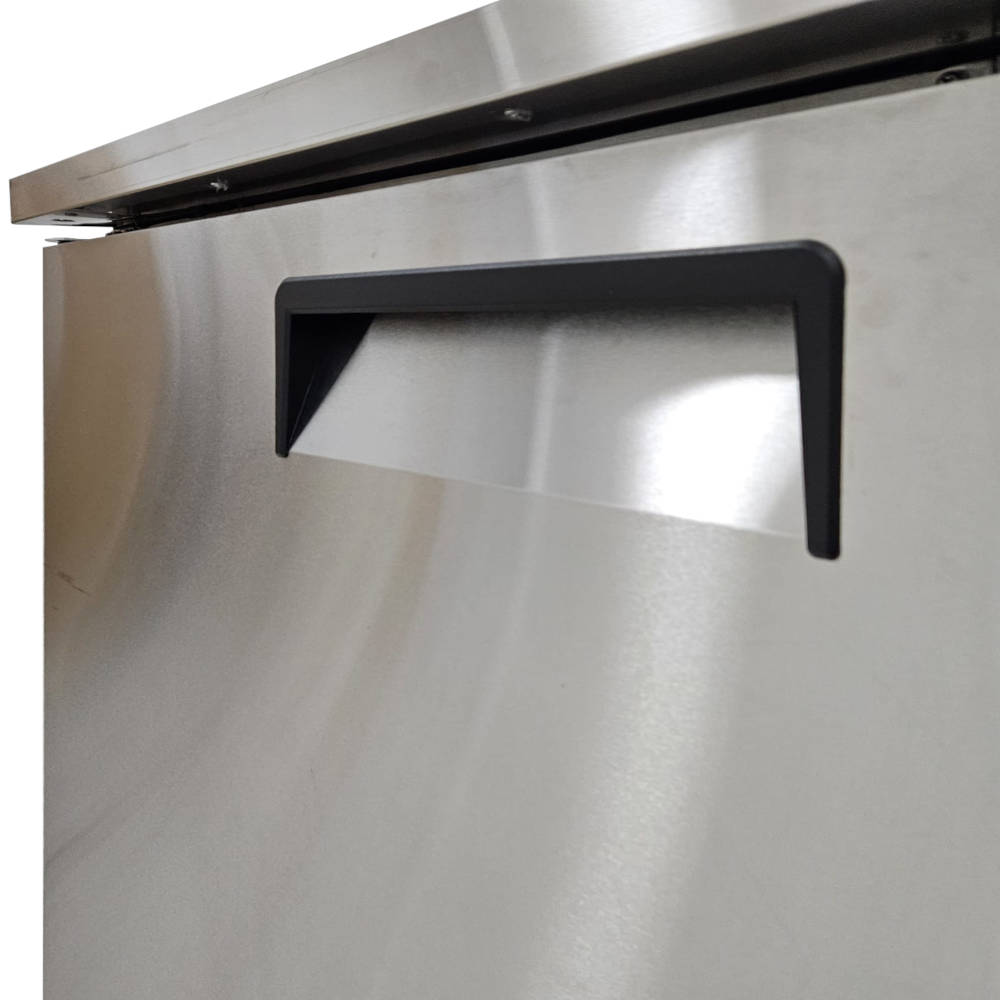

Self-closing stainless doors on castors — durable, easy to reposition and built for constant service.
Specifications
| Brand |
AG Equipment |
| Model / MPN |
GNX3100BT |
| Type |
Under Bench Freezer |
| Capacity |
417 L |
| Doors |
3 (solid, self-closing) |
| Temperature range |
-16°C to -22°C |
| Refrigerant |
R290 / 115g |
| Ambient rating |
43°C / 65% humidity |
| Power |

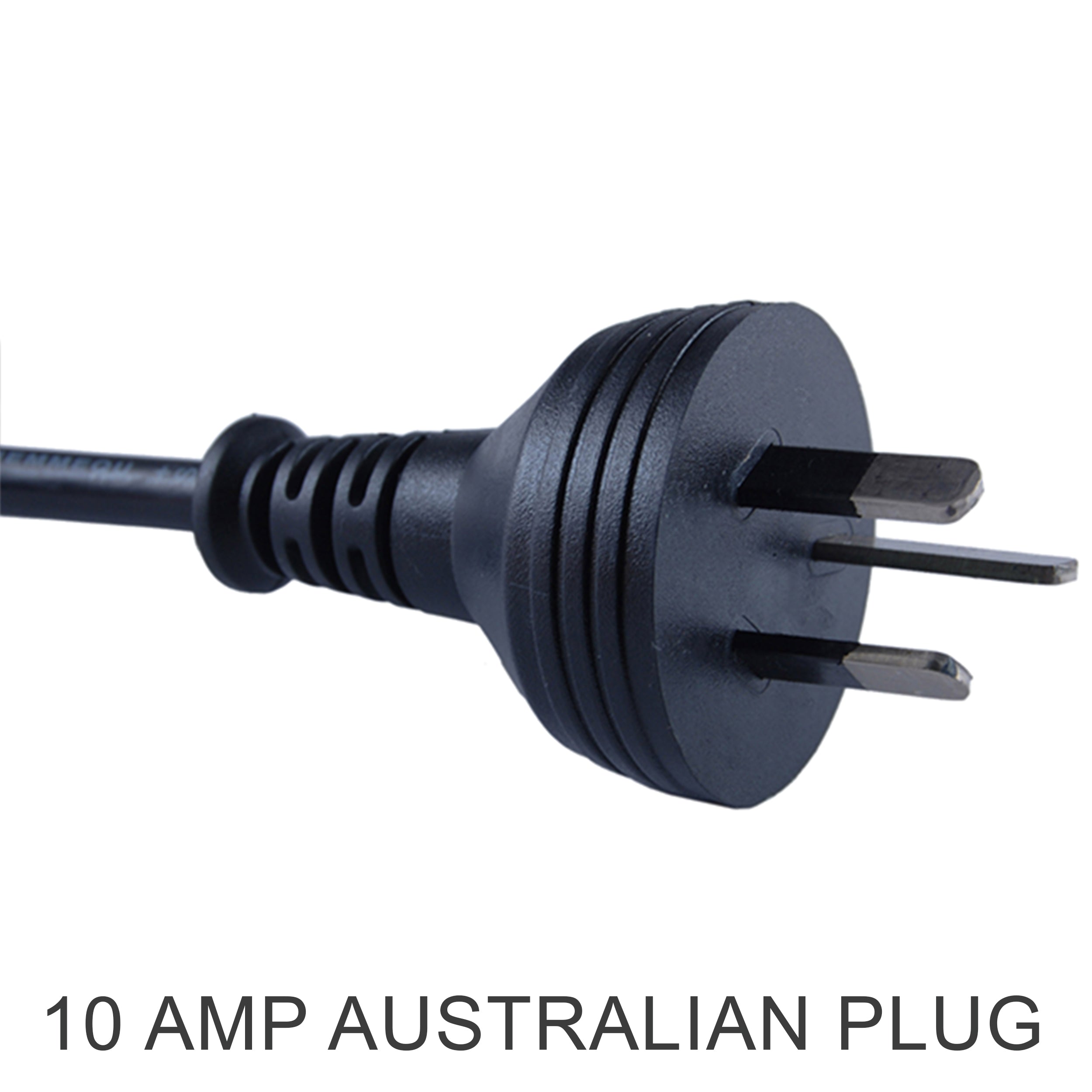

650 W; 220–240 V; 50 Hz; 4 A |
| Energy consumption |
7.2 kWh/24hr |
| Product dimensions |
1795(W) x 700(D) x 850(H)mm |
| Internal dimensions |
1230 x 580 x 560mm |
| Package dimensions |
1840(W) x 750(D) x 910(H)mm |
| Net weight |
113 kg |
| Construction |
Stainless Steel |
| Warranty |
24 months parts & labour |
Venue suitability: Suited to cafes, restaurants, bars and commercial kitchens that need frozen storage and usable bench space in one footprint, with 1/1 GN shelving for organised prep. Browse the full Under Bench Freezers range or see more from AG Equipment to compare sizes and door configurations.

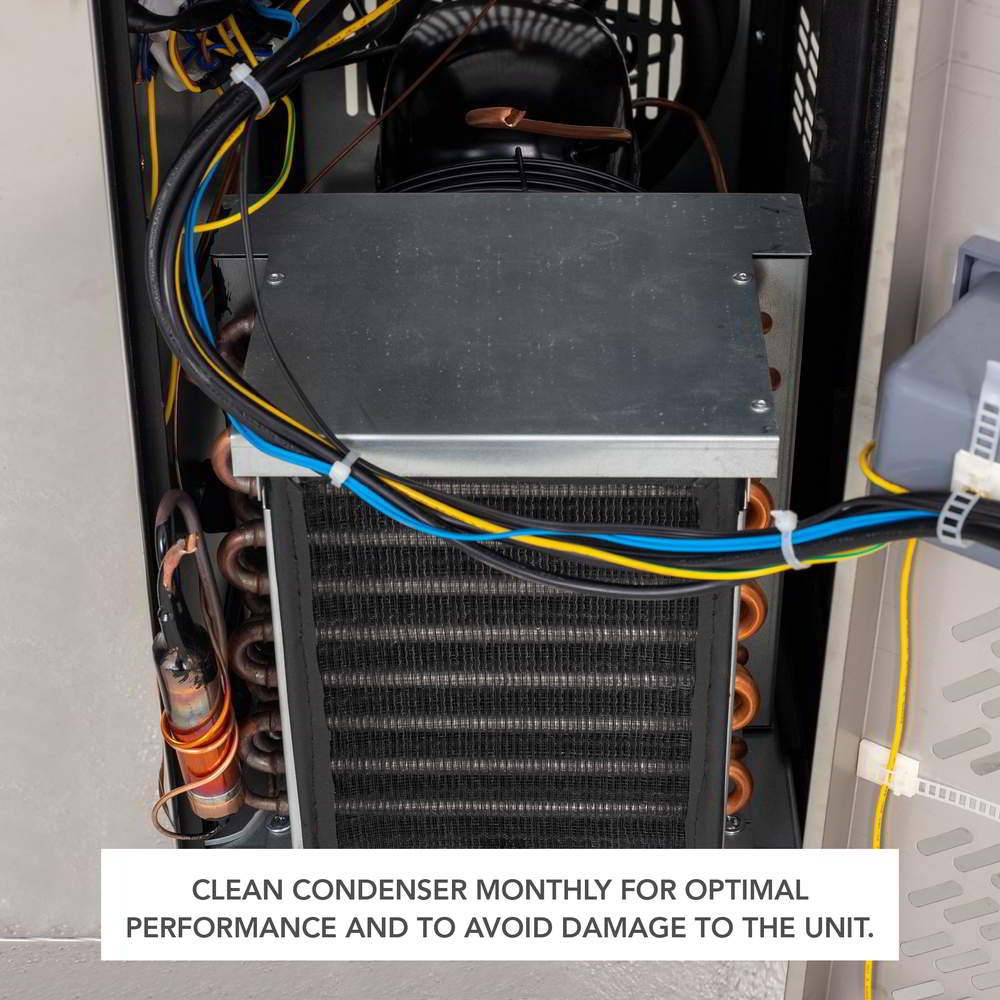

Installation & delivery: Requires 150mm clearance at the side and front for ventilation; the rear can sit flush to the wall. Clean the condenser filter monthly for best performance. Dispatched Australia-wide.
Frequently asked questions
How many doors and shelves does the GNX3100BT have? It has three solid, self-closing doors with two adjustable shelves per door, each able to hold a 1/1 GN tray or rack.
What temperature range does it hold? It operates between -16°C and -22°C, making it a true commercial freezer.
What refrigerant does it use? It uses R290, a natural, non-toxic and ozone-friendly refrigerant that runs efficiently.
Can it sit against a wall? Yes — ventilation is at the front and side, so the rear can sit flush to the wall with 150mm clearance kept at the side and front.
What warranty does it come with? It comes with a 24-month parts and labour warranty from AG Equipment, a trusted Australian supplier.
