Description

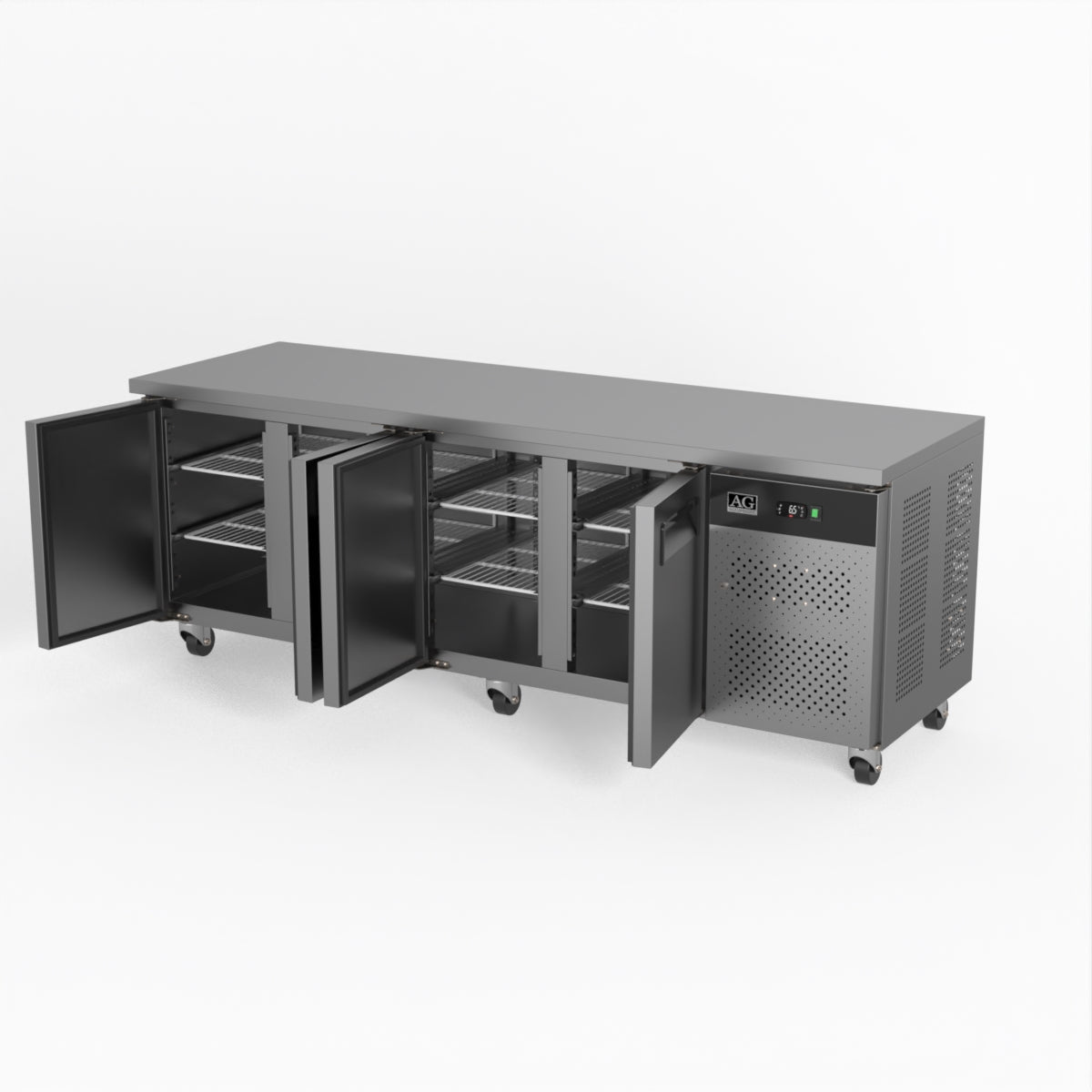

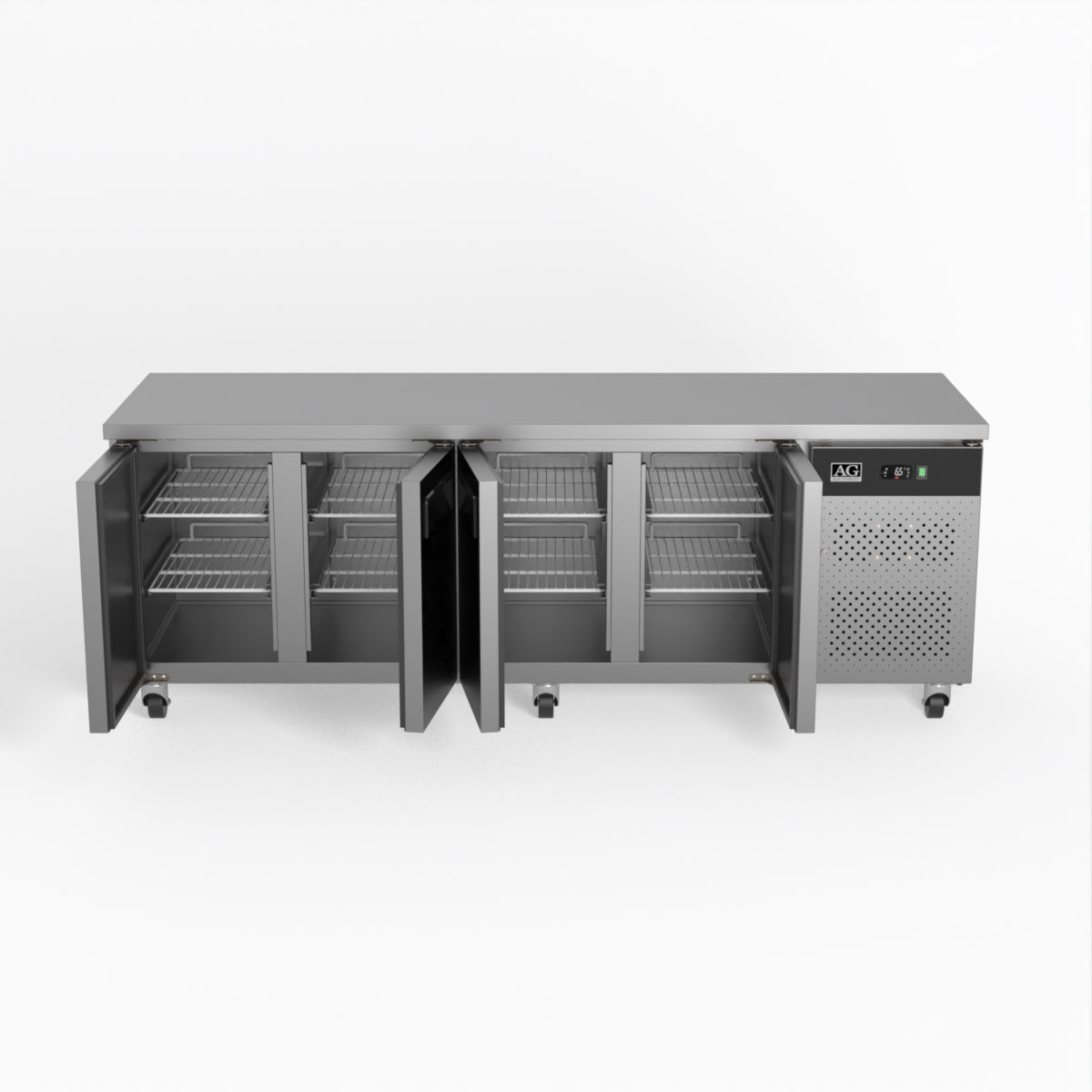

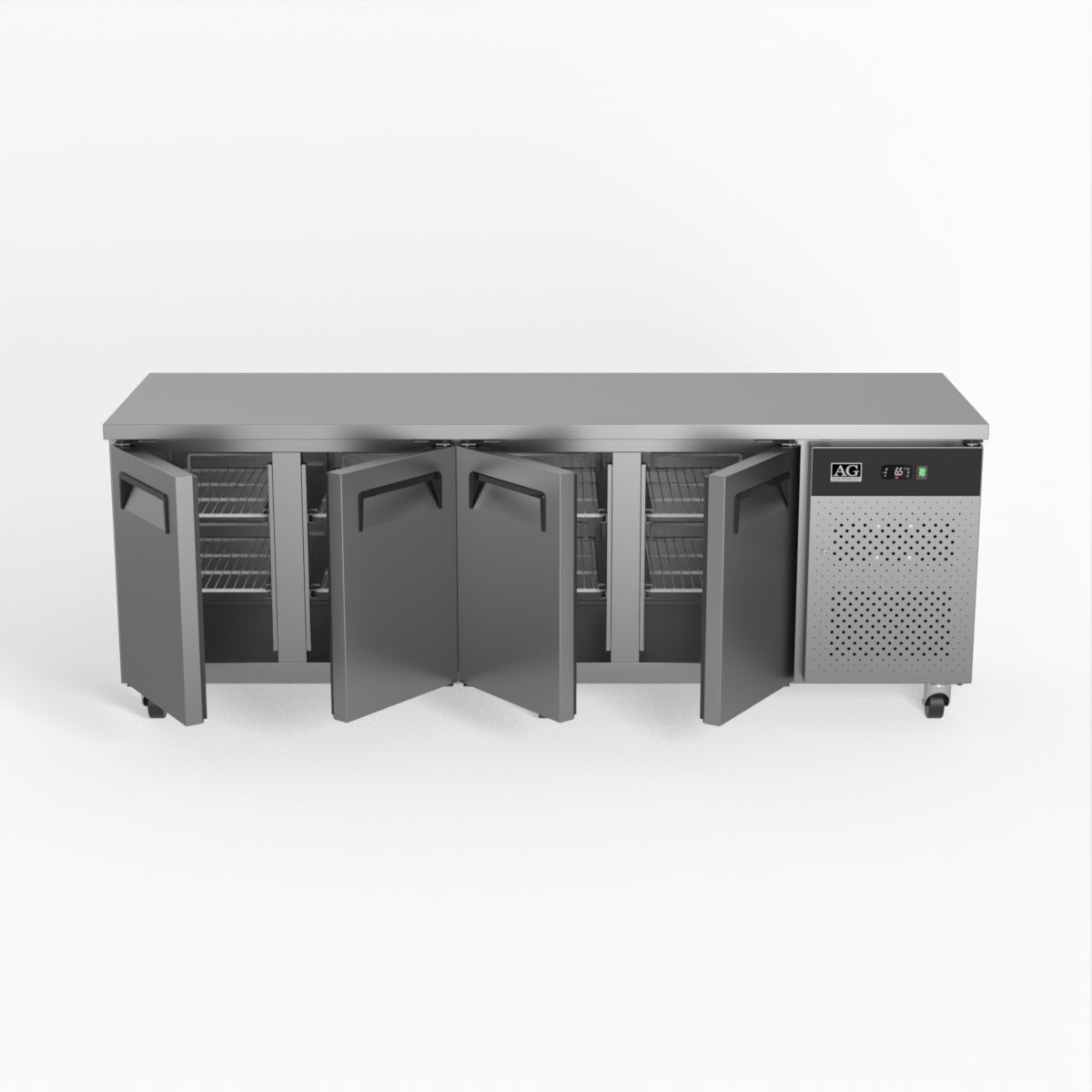

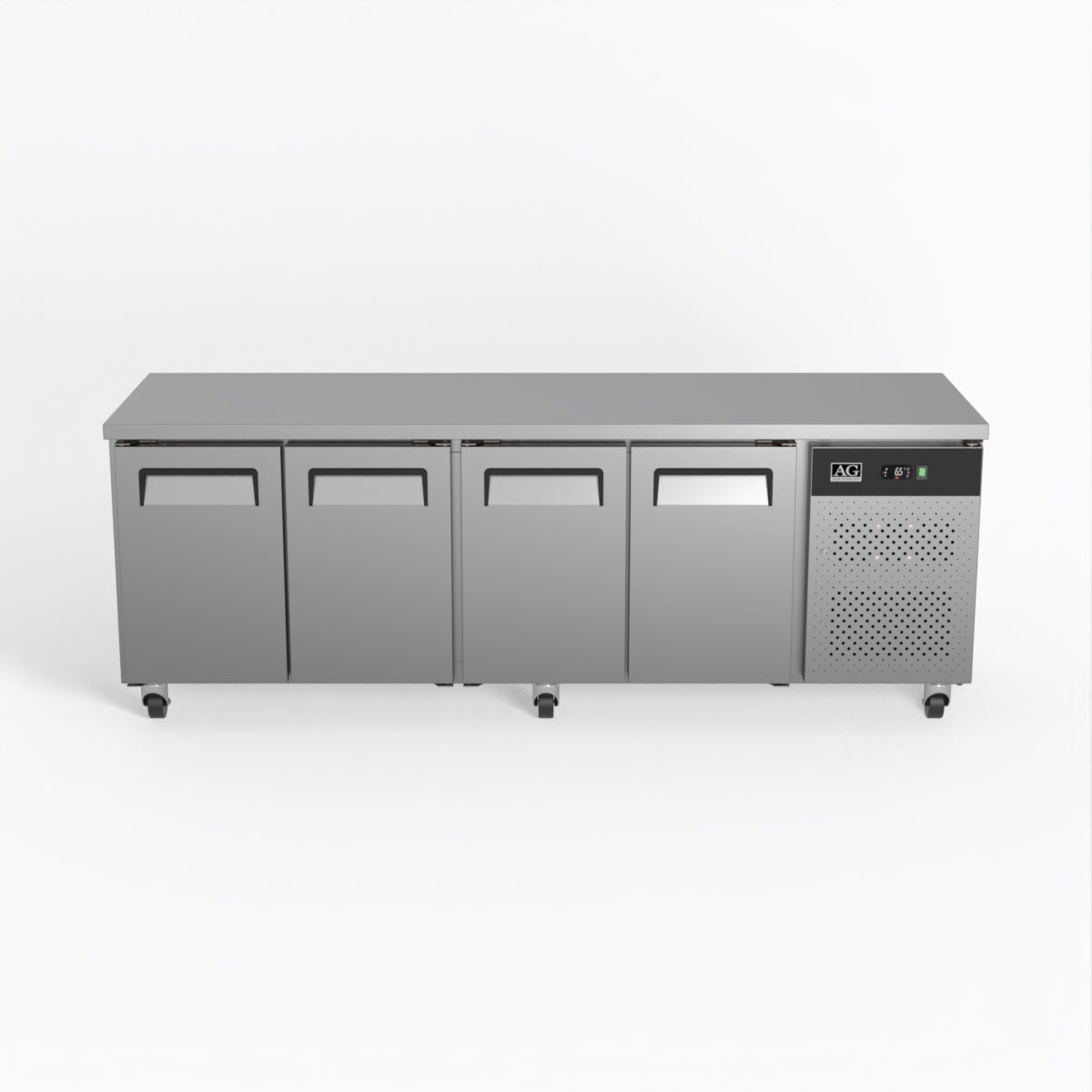

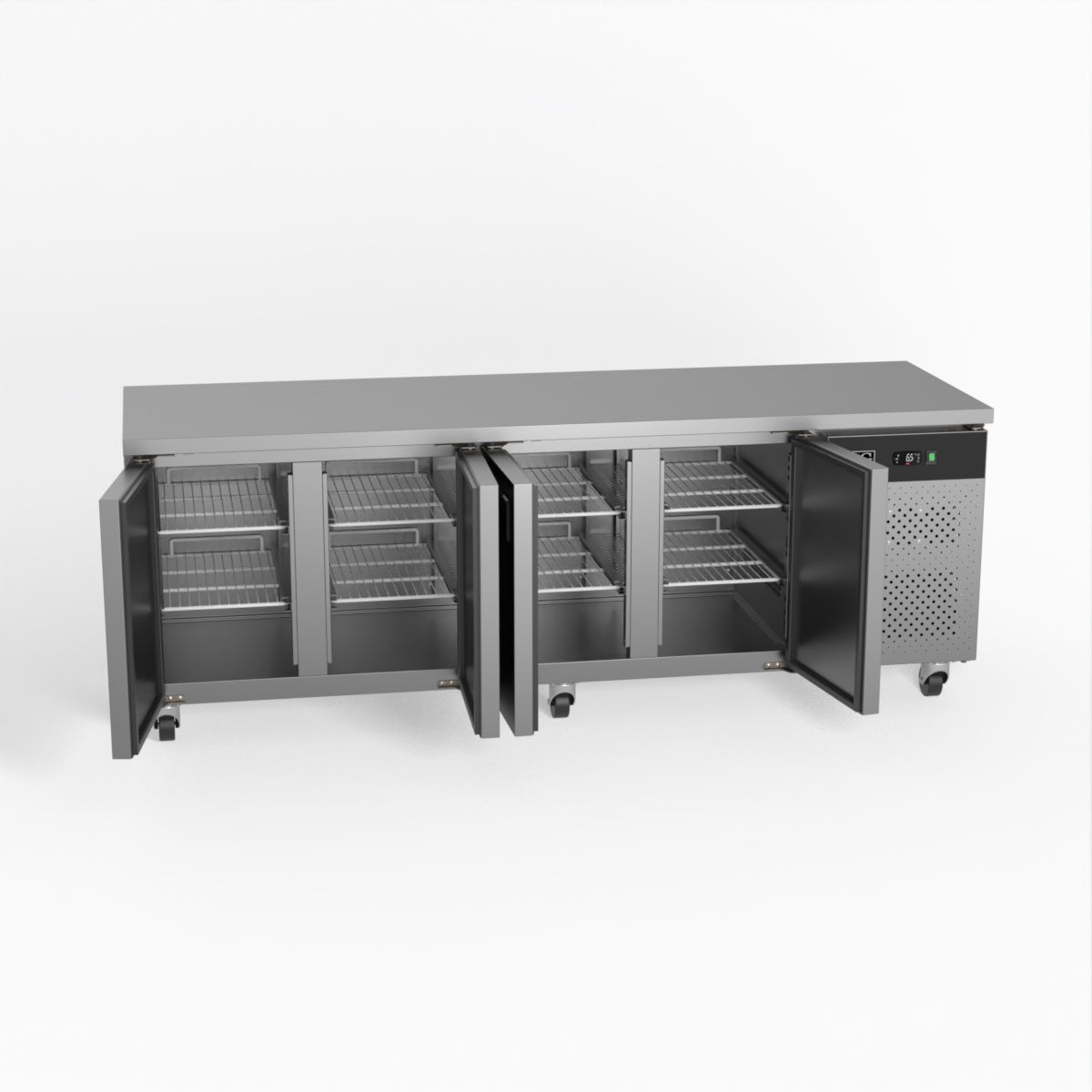

The AG Equipment GNX4100TN is a 4 door under bench storage fridge that puts 553 litres of refrigerated storage at worktop height for busy commercial kitchens, pubs and bars. Four solid stainless-steel doors open to two adjustable wire shelves each, holding a positive +2°C to +8°C across the whole cabinet.
Why operators choose the GNX4100TN
-

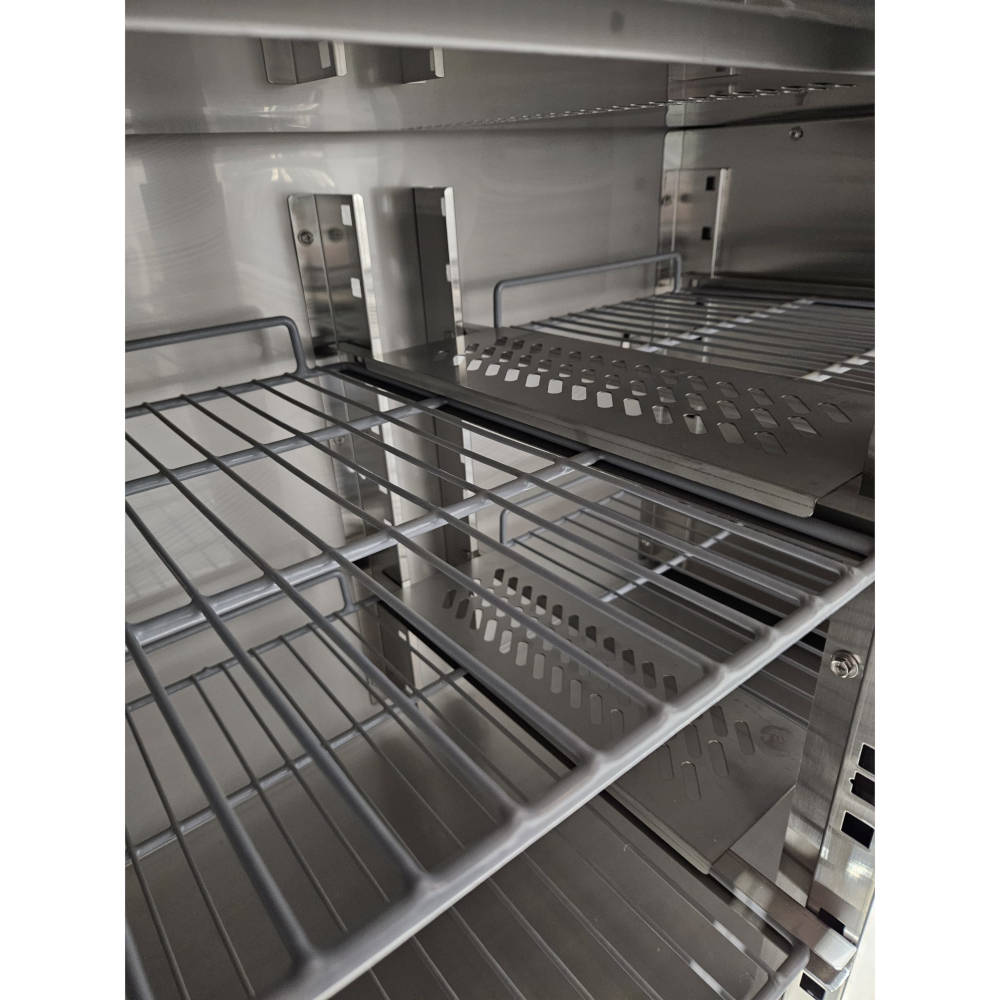

553 L across 4 doors — eight adjustable wire shelves (two per door) flex around trays, tubs and GN pans during service.
-

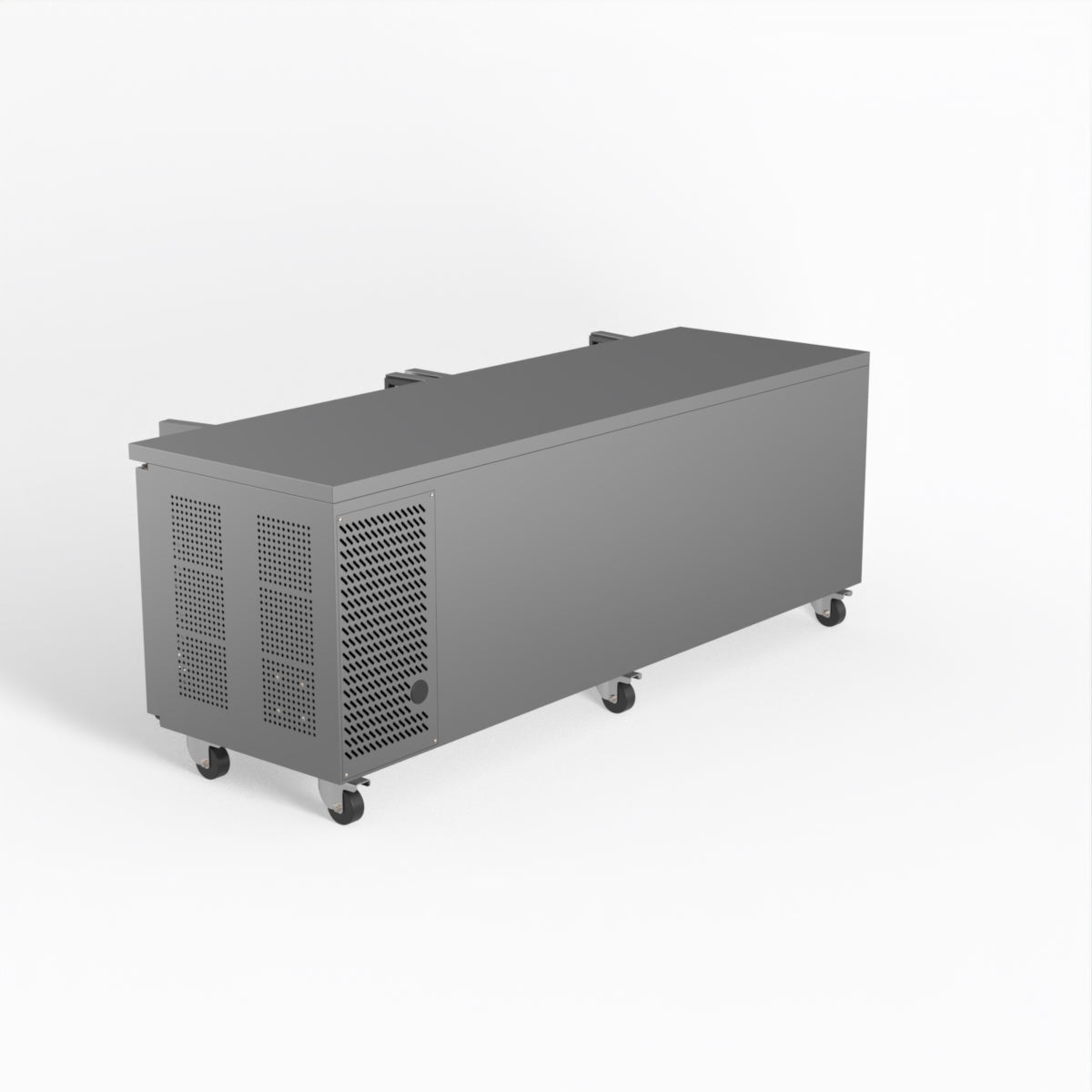

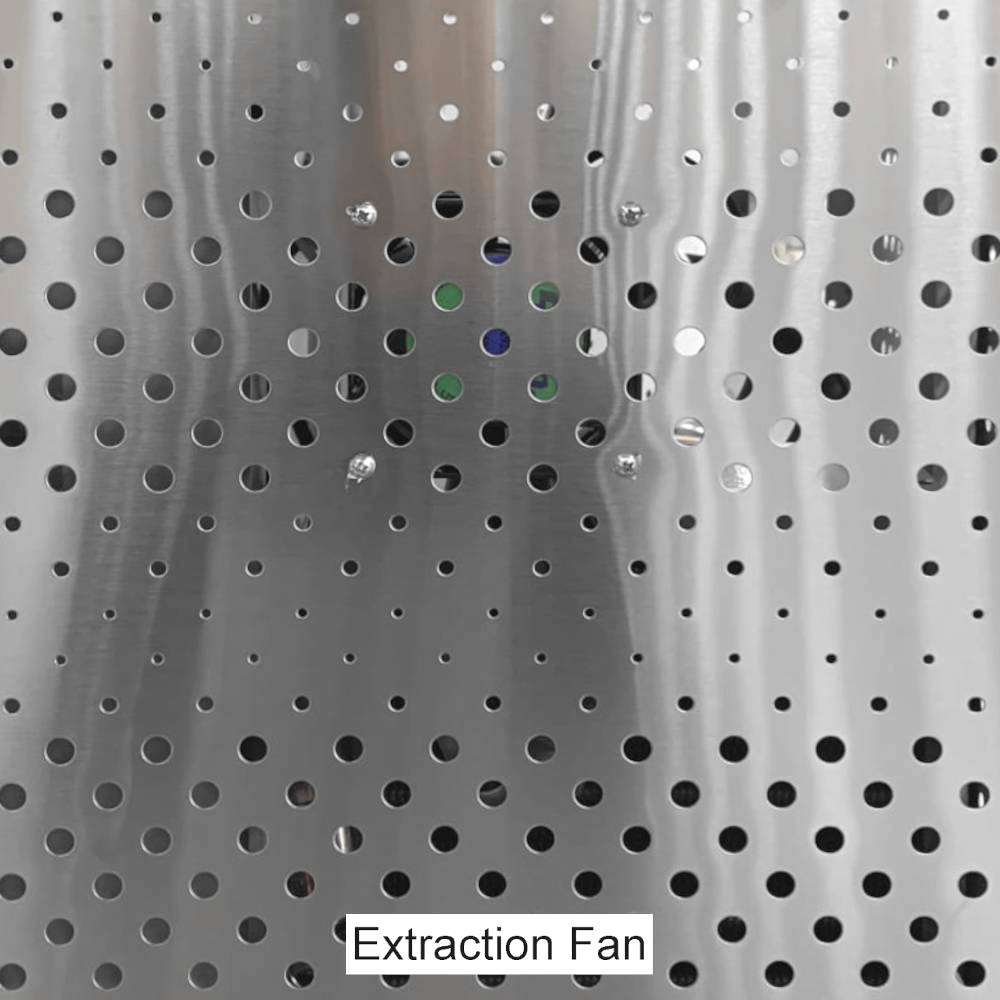

Front-and-side ventilation (X-series) — dual fans free the rear so the cabinet can sit flush to the wall; only 150mm clearance is needed at the side and front.
-
R290 natural refrigerant — non-toxic, ozone-friendly and efficient, helping cut running costs.
-
Built for hot kitchens — stainless body holds temperature in ambient conditions up to 43°C with fan-forced ventilated cooling.
-

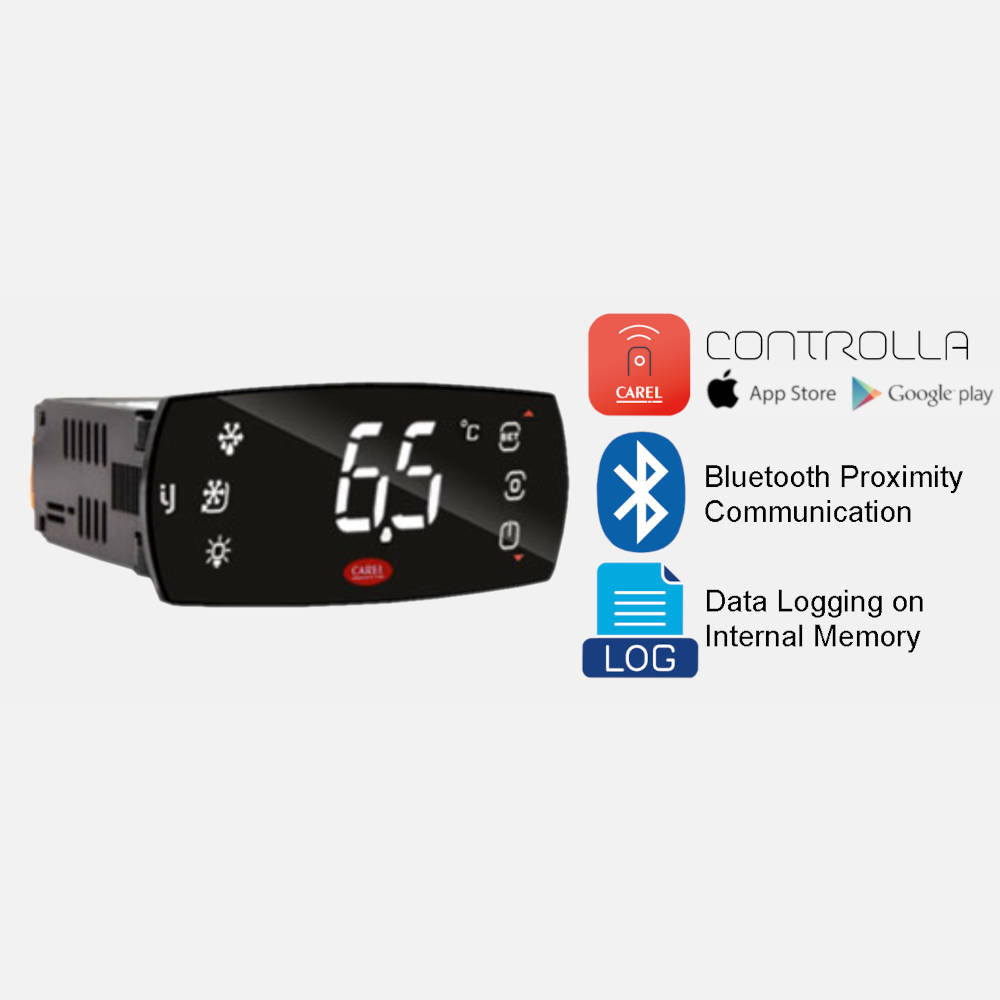

Mobile and serviceable — pre-fitted castor wheels, self-closing doors, internal LED lighting and a CAREL digital controller.
Specifications
| Brand |
AG Equipment |
| Model / MPN |
GNX4100TN |
| Type |
Under Bench Storage Fridge |
| Capacity |
553 L |
| Doors |
4 (solid stainless steel) |
| Shelves |
8 adjustable wire shelves (2 per door) |
| Temperature range |
+2°C to +8°C |
| Ambient rating |
43°C / 65% humidity |
| Cooling |
Fan-forced ventilated |
| Refrigerant |
R290 / 90g |
| Power |
490W; 220–240V; 50Hz; 3.2A |
| Energy consumption |
7.5 kWh/24h |

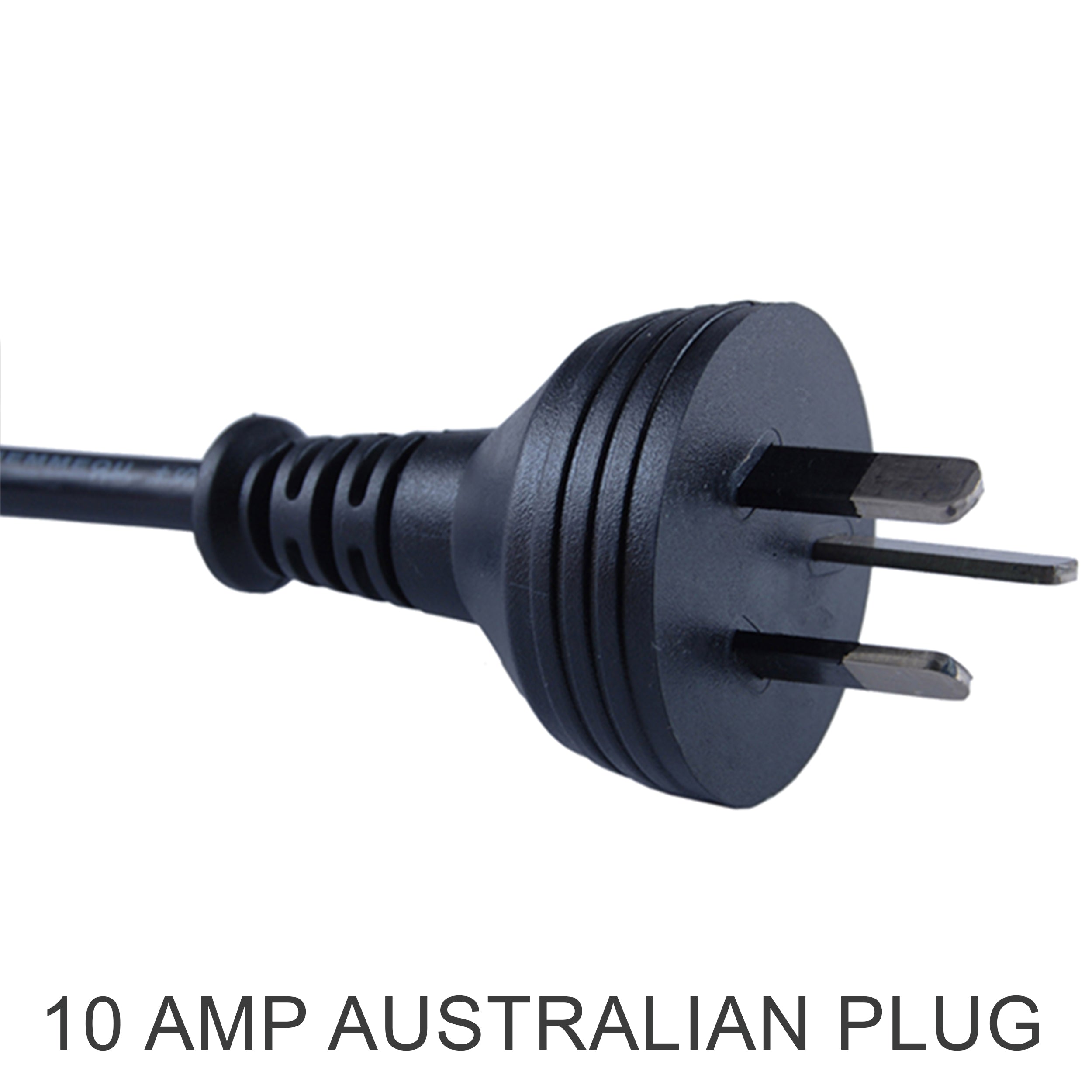

| Plug |
10A, single phase |
| Material |
Stainless steel |
| Product dimensions |
2230(W) x 700(D) x 850(H)mm |
| Internal dimensions |
1670 x 580 x 560mm |
| Packed dimensions |
2275(W) x 750(D) x 880(H)mm |
| Net weight |
137 kg |
| Shipping weight |
164 kg |
| Warranty |
24 months parts & labour |
Venue suitability: Ideal for pubs, restaurants, bars and cafe production lines that need high-volume cold storage built into the bench line, where the worktop doubles as prep space above and the 43°C ambient rating suits hot, busy service areas.
Browse the full range of Under Bench Storage Fridges or see more refrigeration from AG Equipment to compare door counts and footprints.

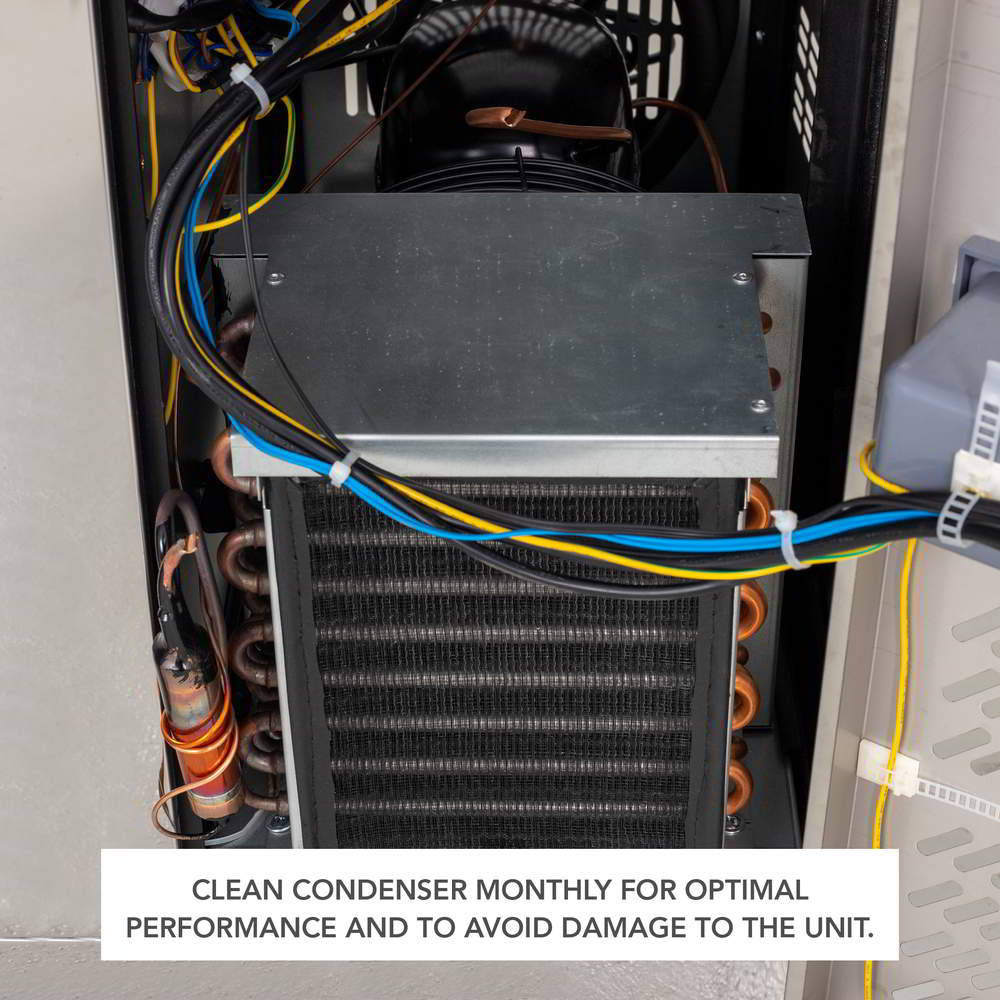

Installation & delivery: Allow 150mm clearance at the side and front for ventilation; the rear can sit flush to the wall. Clean the condenser filter monthly for best performance. Dispatched Australia-wide.
Frequently asked questions
How many litres is the GNX4100TN? It holds 553 litres across four solid doors, each with two adjustable wire shelves.
What temperature range does it hold? It runs as a positive fridge between +2°C and +8°C with electronic temperature control.
Can it sit against the wall? Yes - the X-series uses front-and-side ventilation, so the rear can sit flush while you leave 150mm clear at the side and front.
What refrigerant does it use? It uses R290, a natural, non-toxic and ozone-friendly hydrocarbon refrigerant with a 90g charge.
What warranty does it come with? It is backed by a 24-month parts and labour warranty.
SKU: AG-GNX4100TN
In Stock
