Description

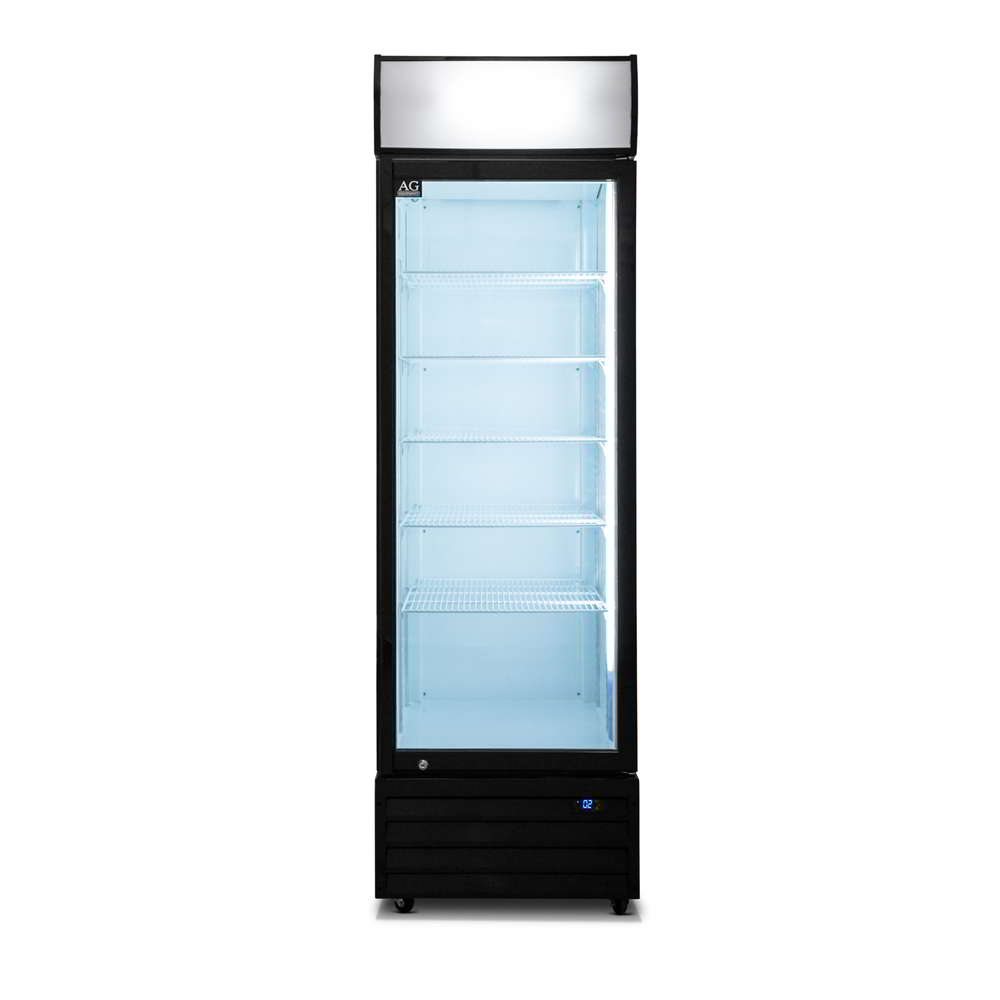

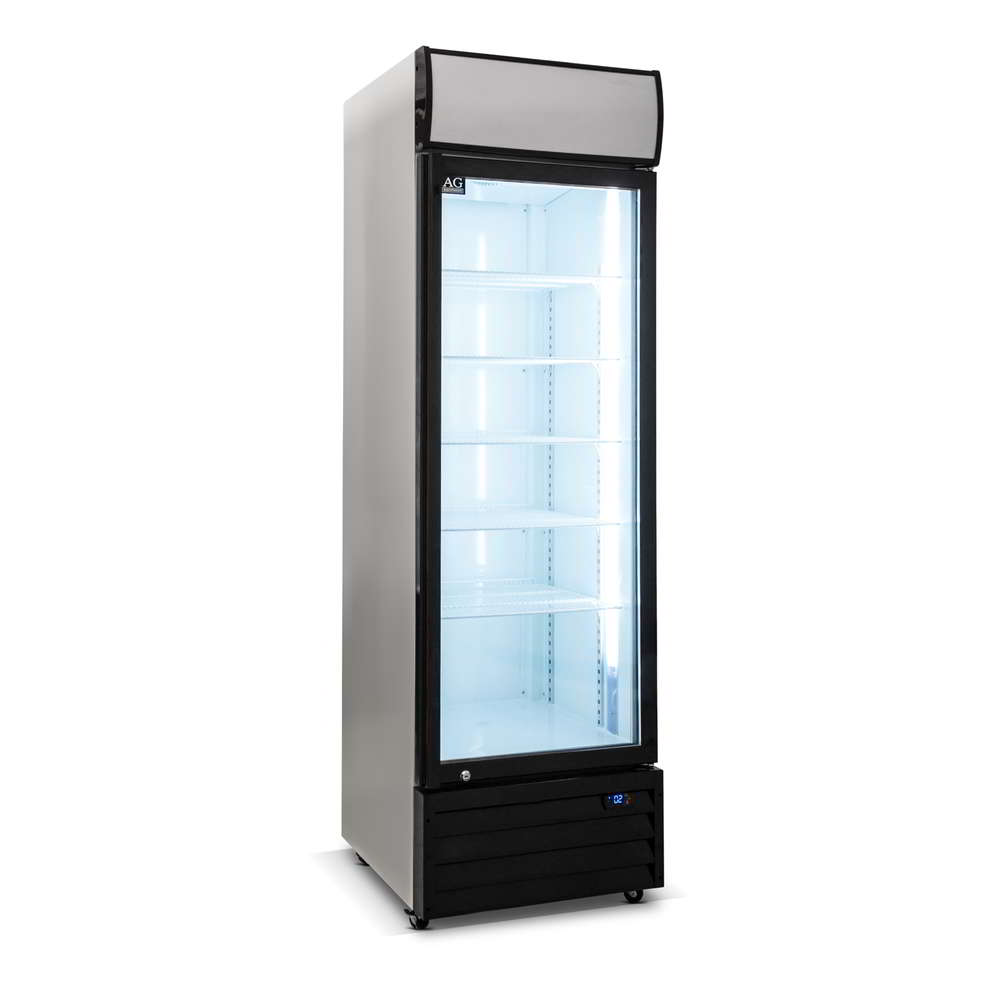

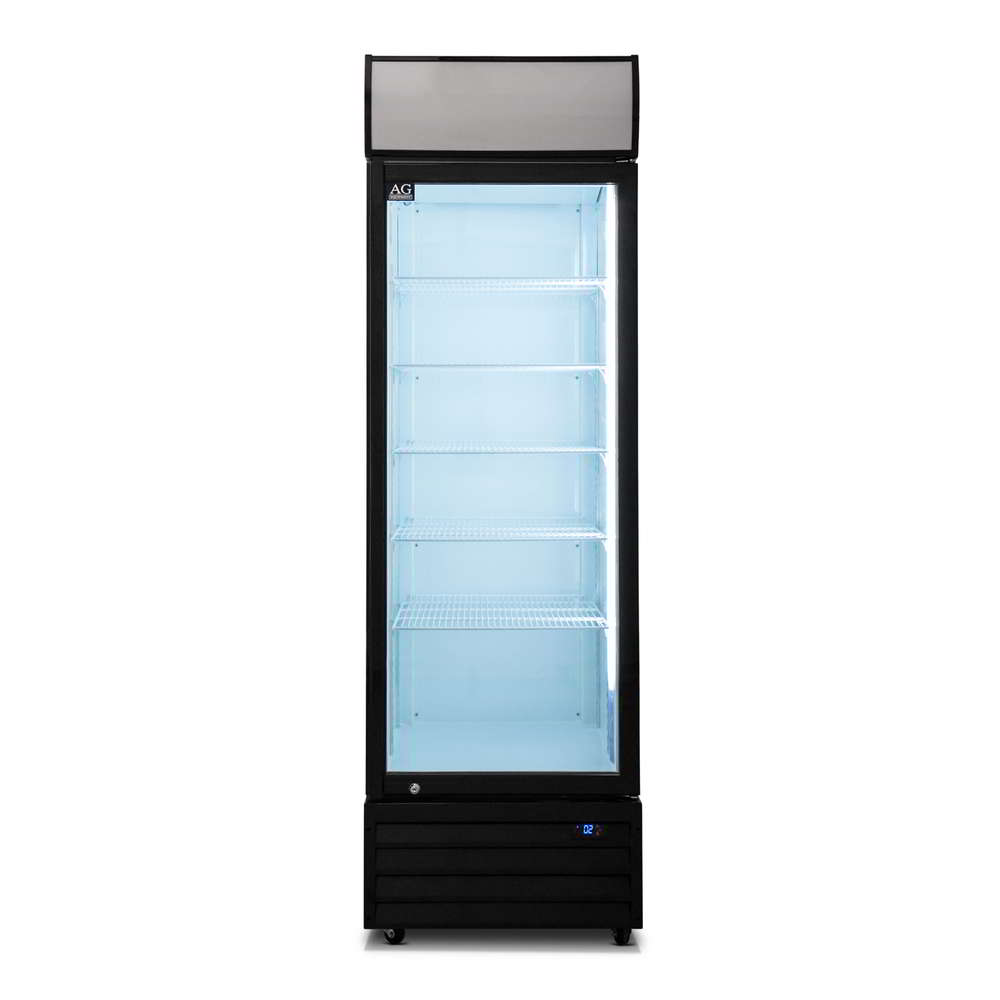

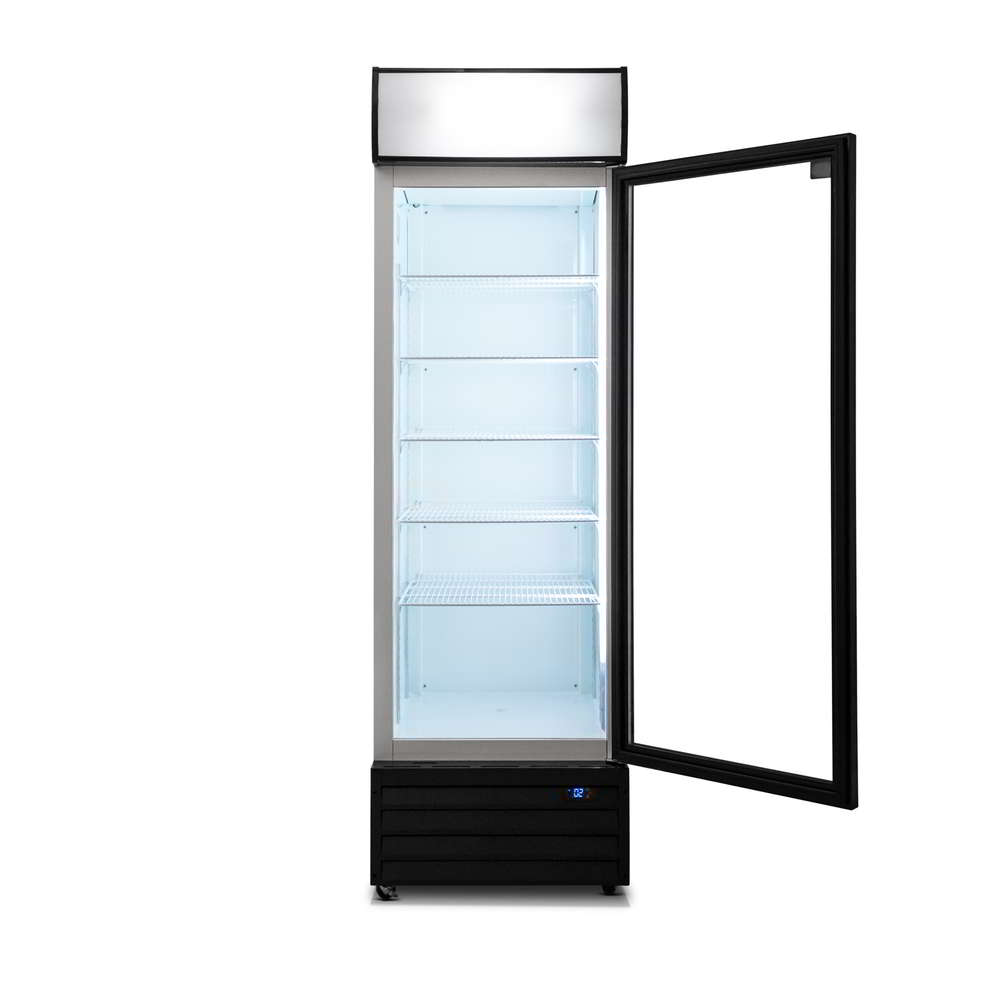

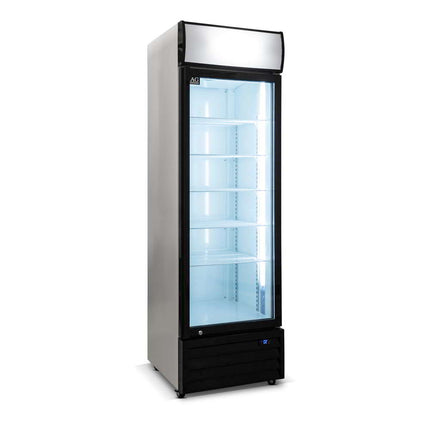

The AG Equipment CU420TNG is a single glass-door upright display fridge that keeps drinks and packaged product chilled and visible at the front of house. It offers 420 litres of usable capacity behind a lockable, double-glazed door, with fan-forced cooling holding +2°C to +8°C and an illuminated canopy to merchandise stock.
Why operators choose the CU420TNG
-
420 L single-door footprint — full-height merchandising in a slim 610 mm-wide cabinet that fits tight service areas.
-

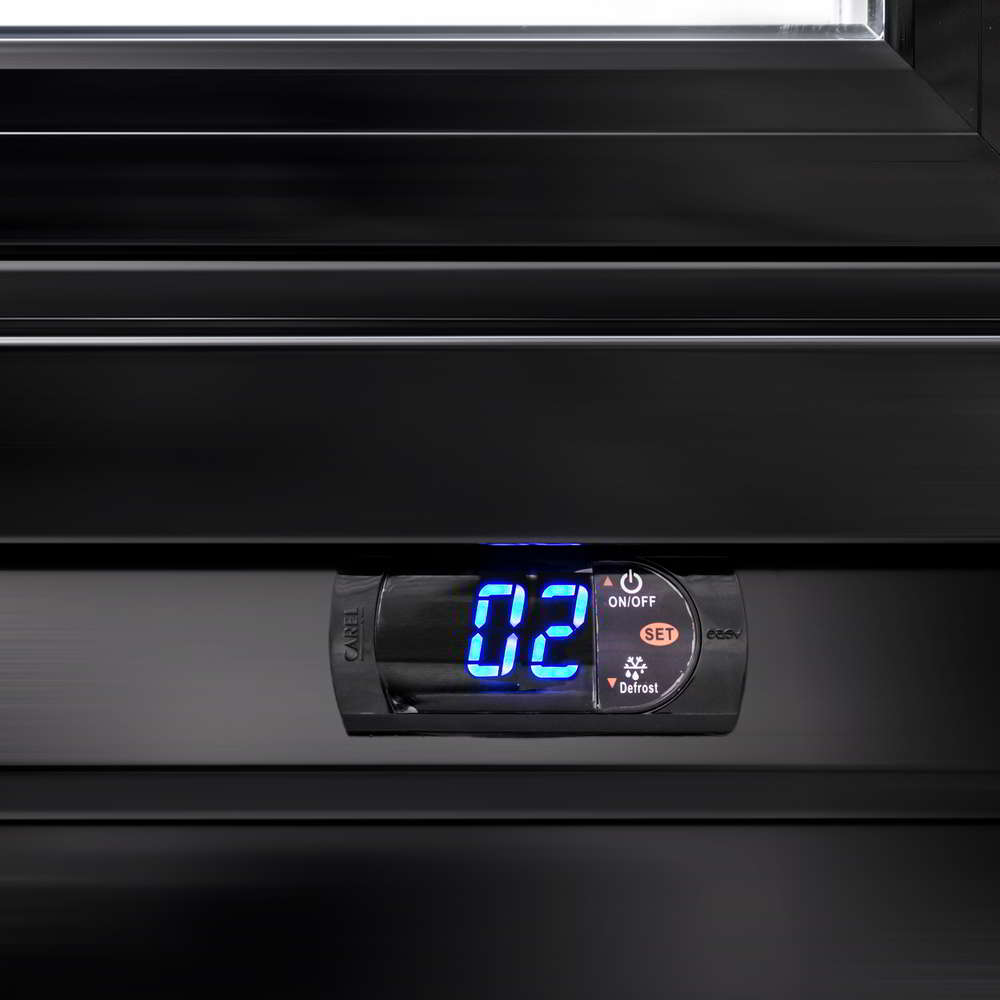

Fan-forced cooling, +2°C to +8°C — even temperature across all five shelves for fast pull-down after restocking.
-
R600a natural refrigerant — climate-friendly and energy-efficient at 2.2 kWh/24hr.
-

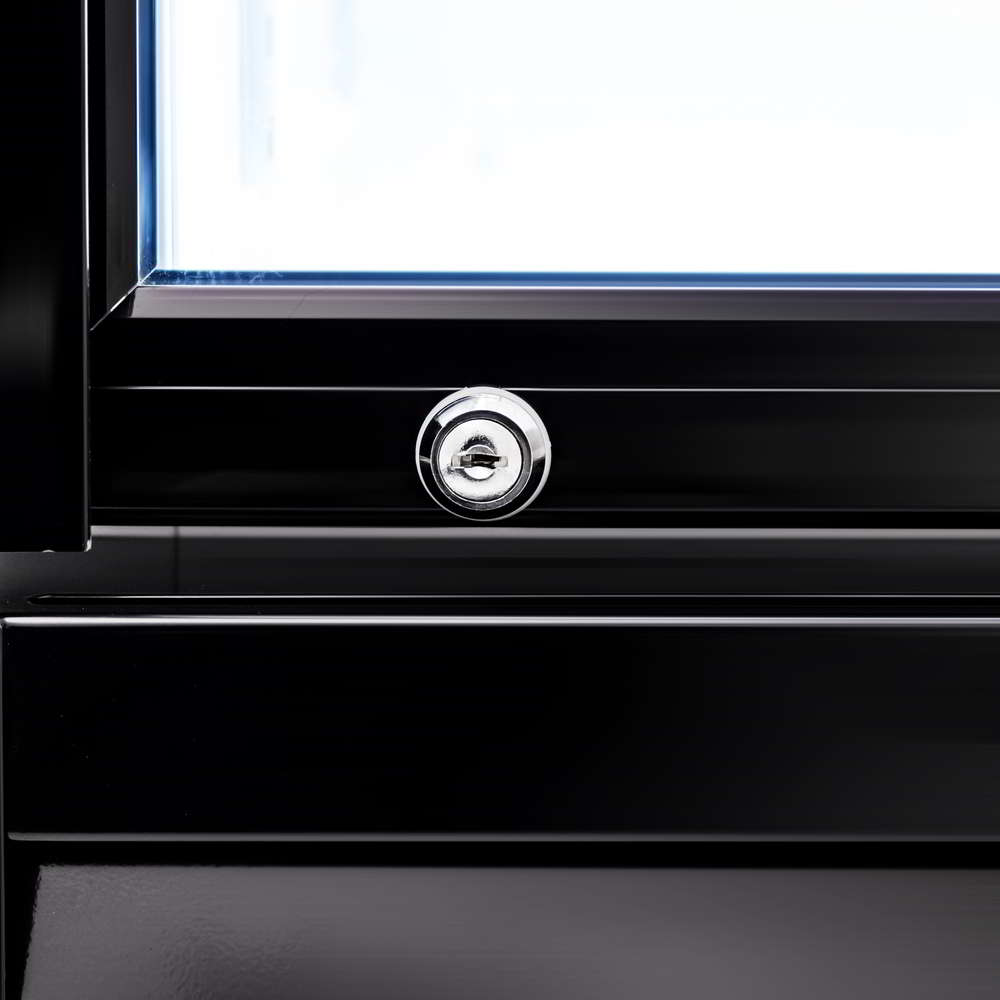

Lockable double-glazed glass door — secures stock and reduces condensation while keeping product on show.
-

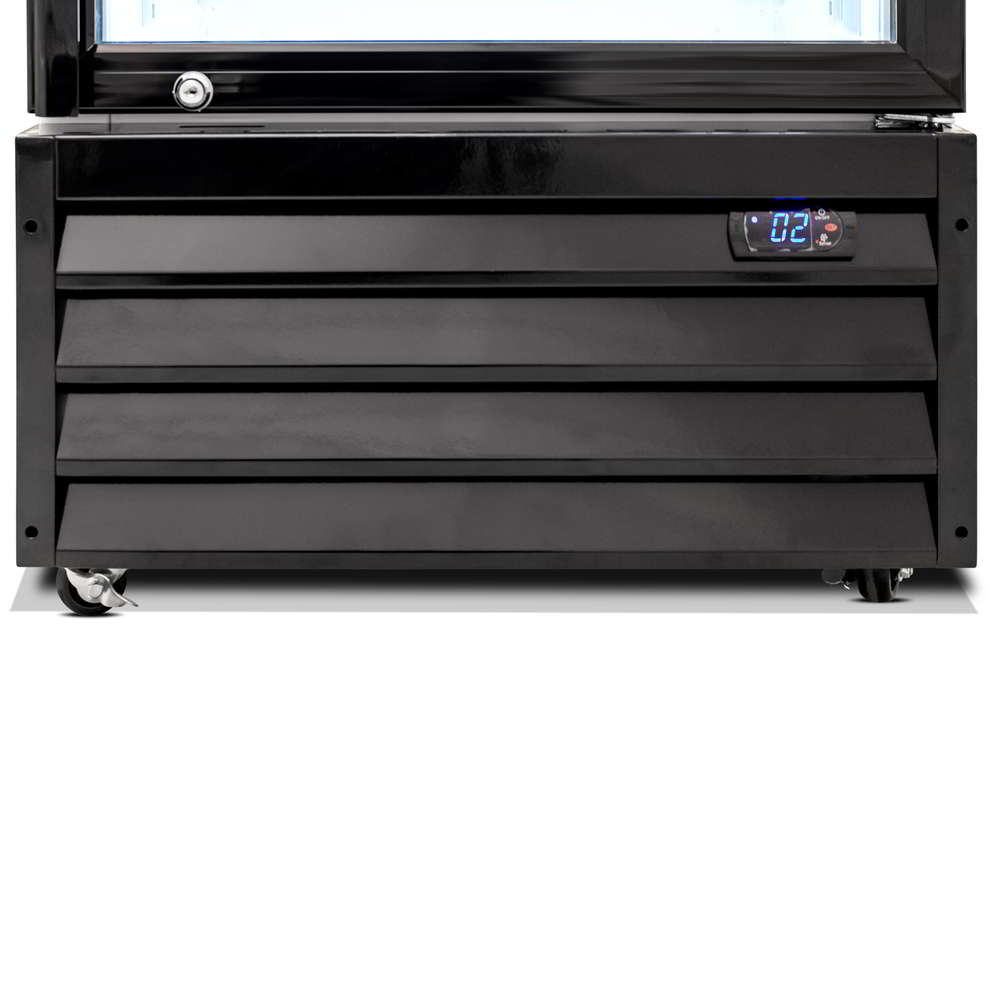

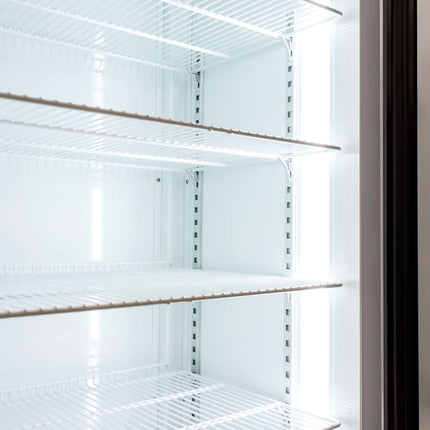

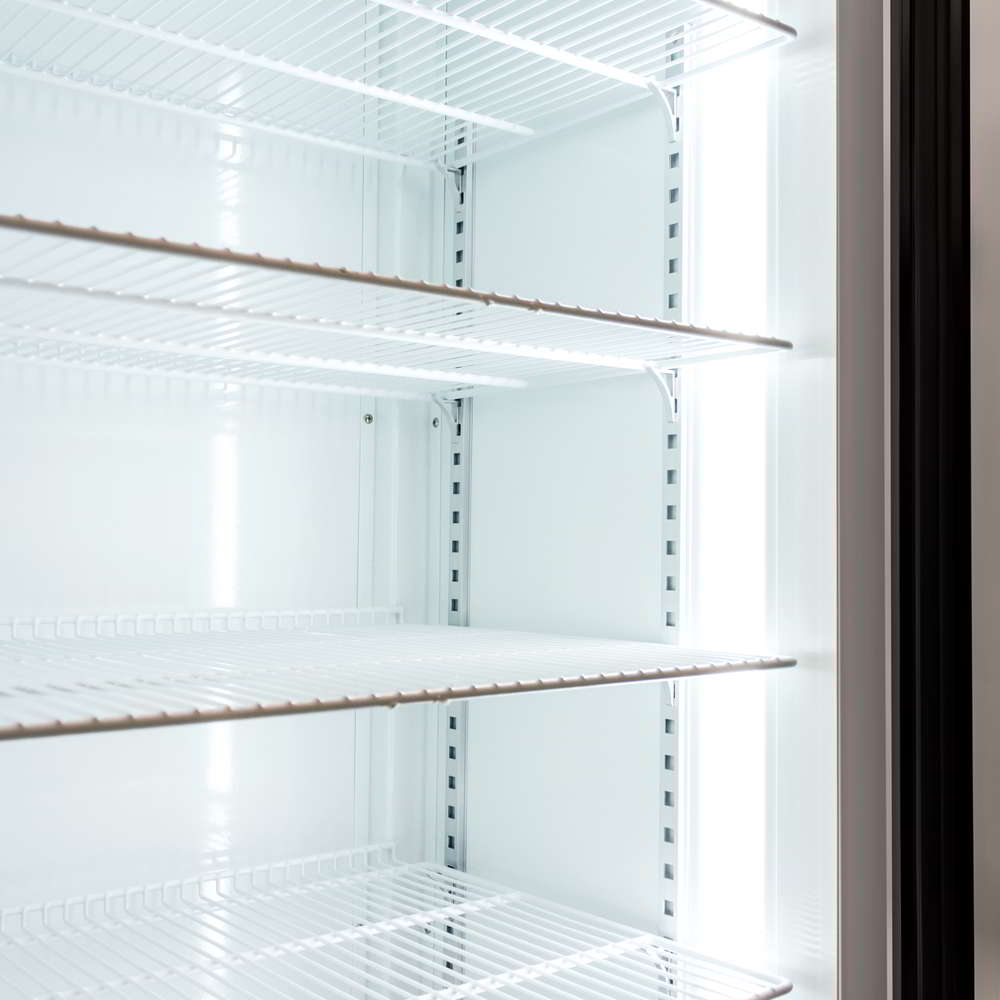

LED canopy and internal lighting on castors — bright display that rolls into place for cleaning and service.
Specifications
| Brand |
AG Equipment |
| Model / MPN |
CU420TNG |
| Type |
Upright Display Fridge |
| Capacity |
420 L |
| Doors |
1 (glass, lockable, double-glazed) |
| Shelves |

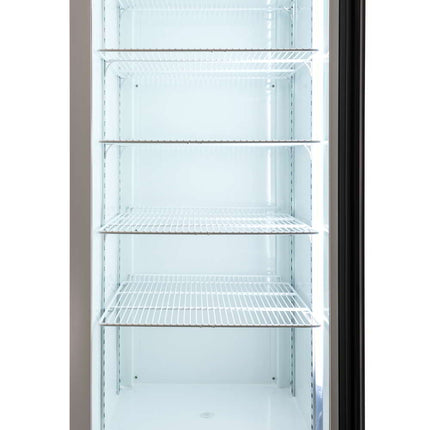

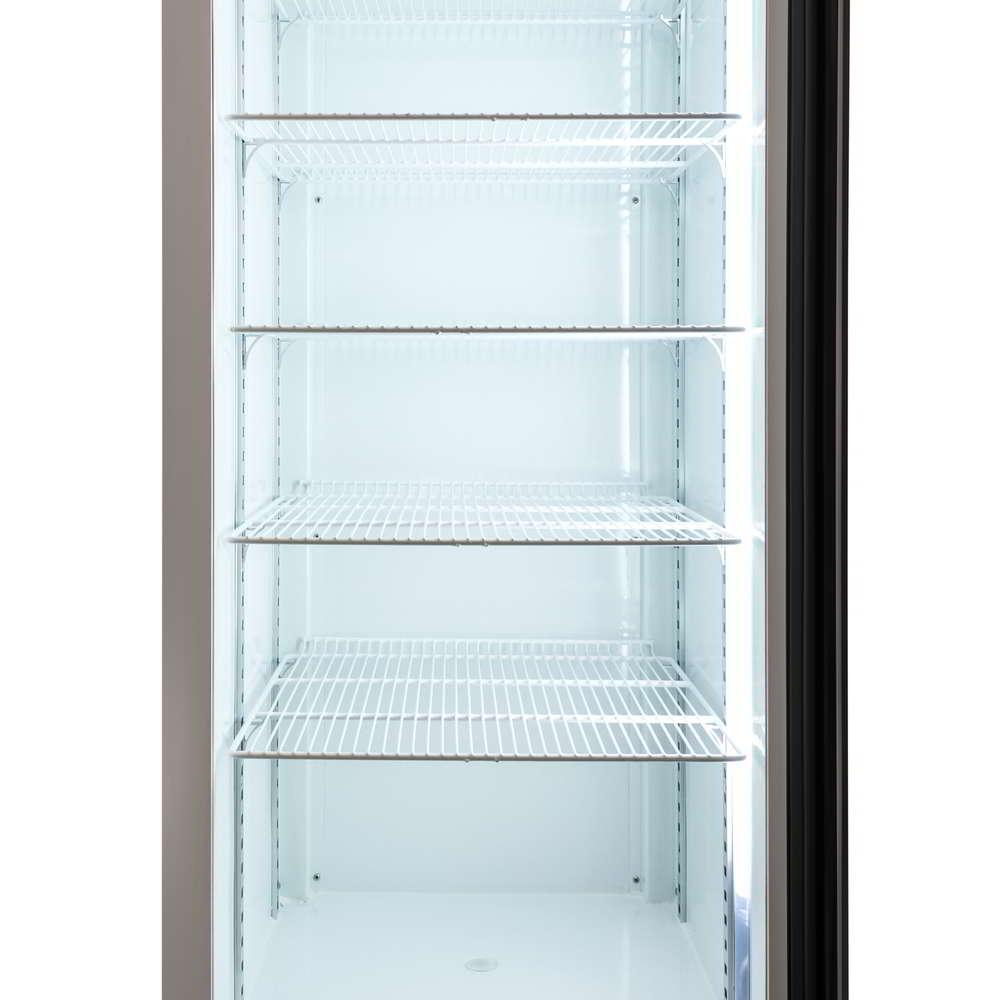

5 adjustable wire shelves |
| Temperature range |
+2°C to +8°C |
| Refrigerant |
R600a / 75g |
| Cooling |
Fan-forced ventilated |
| Ambient rating |
43°C / 60% humidity |
| Energy consumption |
2.2 kWh/24hr |
| Power |
250 W; 220–240 V; 50 Hz; 1.4 A |
| Product dimensions |
610(W) x 620(D) x 2000(H)mm |
| Internal dimensions |
513 x 495 x 1562mm |
| Package dimensions |
645(W) x 665(D) x 2030(H)mm |
| Net weight |
84 kg |
| Shipping weight |
91 kg |
| Material |
Stainless Steel (powder-coated body) |
| Warranty |
12 months parts & labour |
Venue suitability: Built for restaurants, cafes, bars, clubs, pubs and convenience retail that need to merchandise cold drinks and grab-and-go stock at eye level. The slim single-door cabinet suits front-of-house service lines and busy beverage stations where floor space is tight.
It sits in our range of Upright Display Fridges and across the full AG Equipment refrigeration line-up, so you can match capacity and door style to your venue.
Installation & delivery: Arrives pre-assembled on castors — position with ventilation clearance per the manual, plug into a standard 10 A outlet and allow to settle before loading. Dispatched Australia-wide.
Frequently asked questions
What capacity is the AG CU420TNG? It offers 420 litres of refrigerated storage behind a single glass door, with five adjustable wire shelves.
What temperature range does it hold? The cabinet operates between +2°C and +8°C using fan-forced ventilated cooling.
What refrigerant does it use? It runs on R600a (75 g), a natural, non-toxic refrigerant that is energy-efficient and free of ozone-depleting properties.
Can the door be locked? Yes — the double-glazed glass door is lockable to secure stock overnight or in public-facing areas.
What warranty is included? The CU420TNG comes with a 12-month parts and labour warranty from AG Equipment.
SKU: AG-CU420TNG
In Stock
