Description

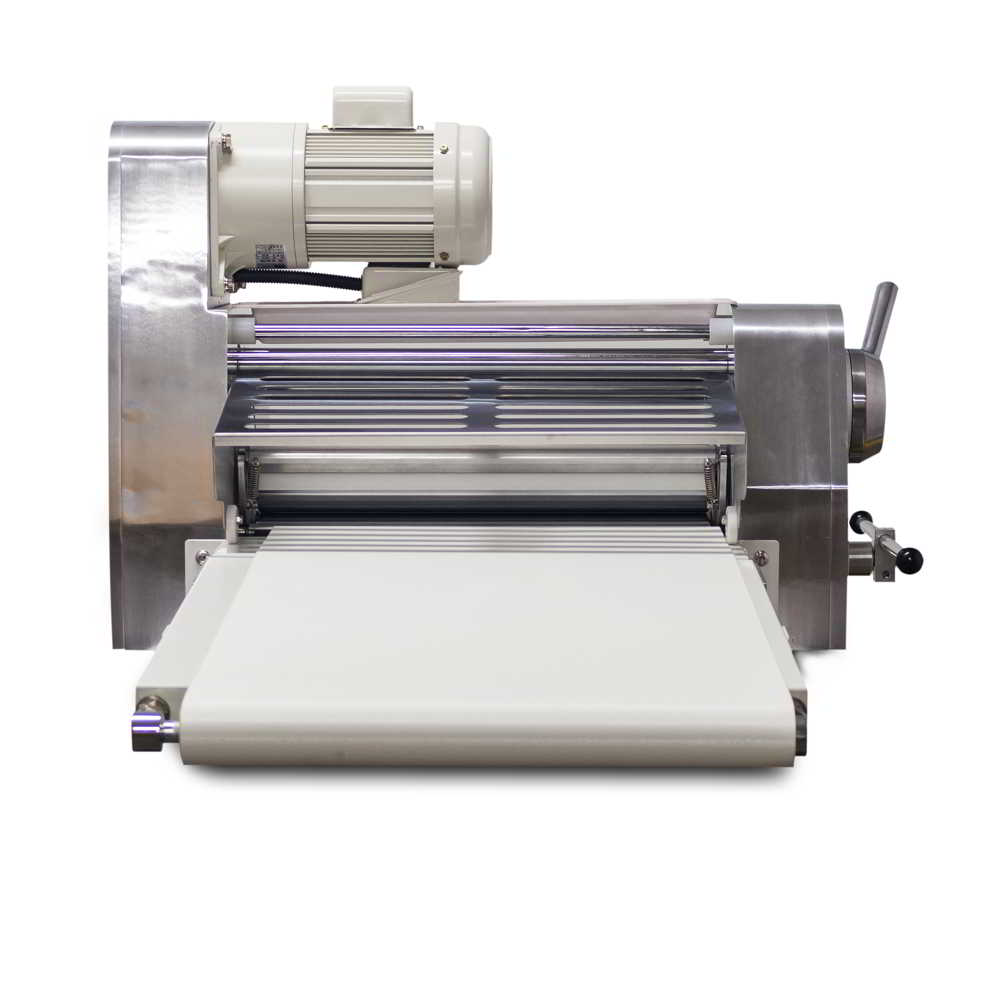

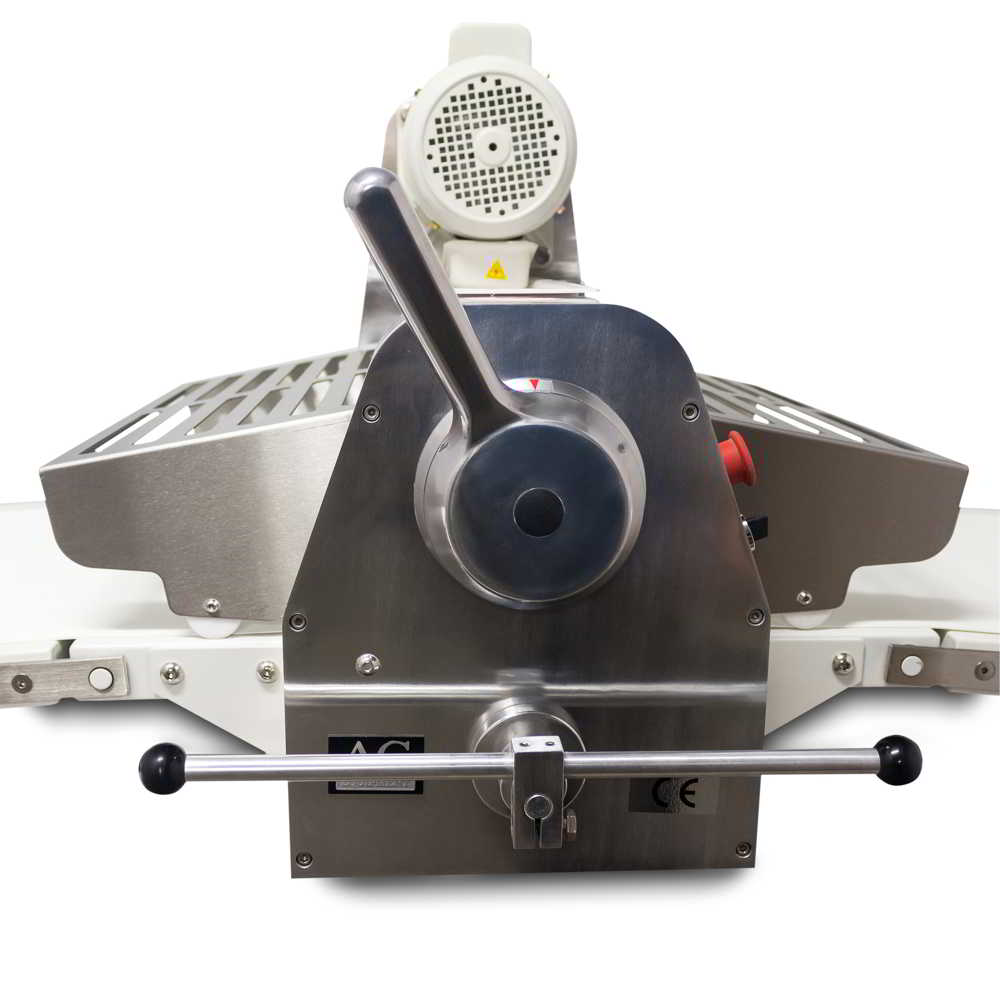

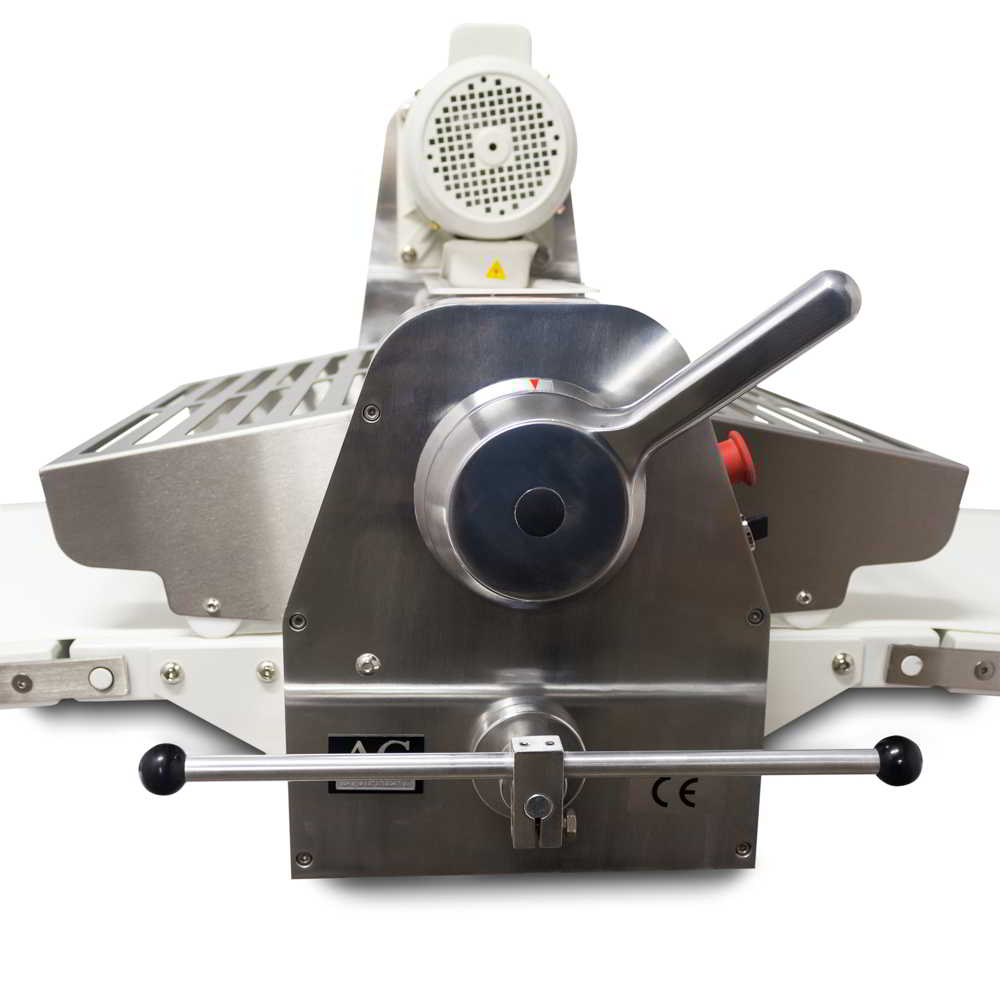

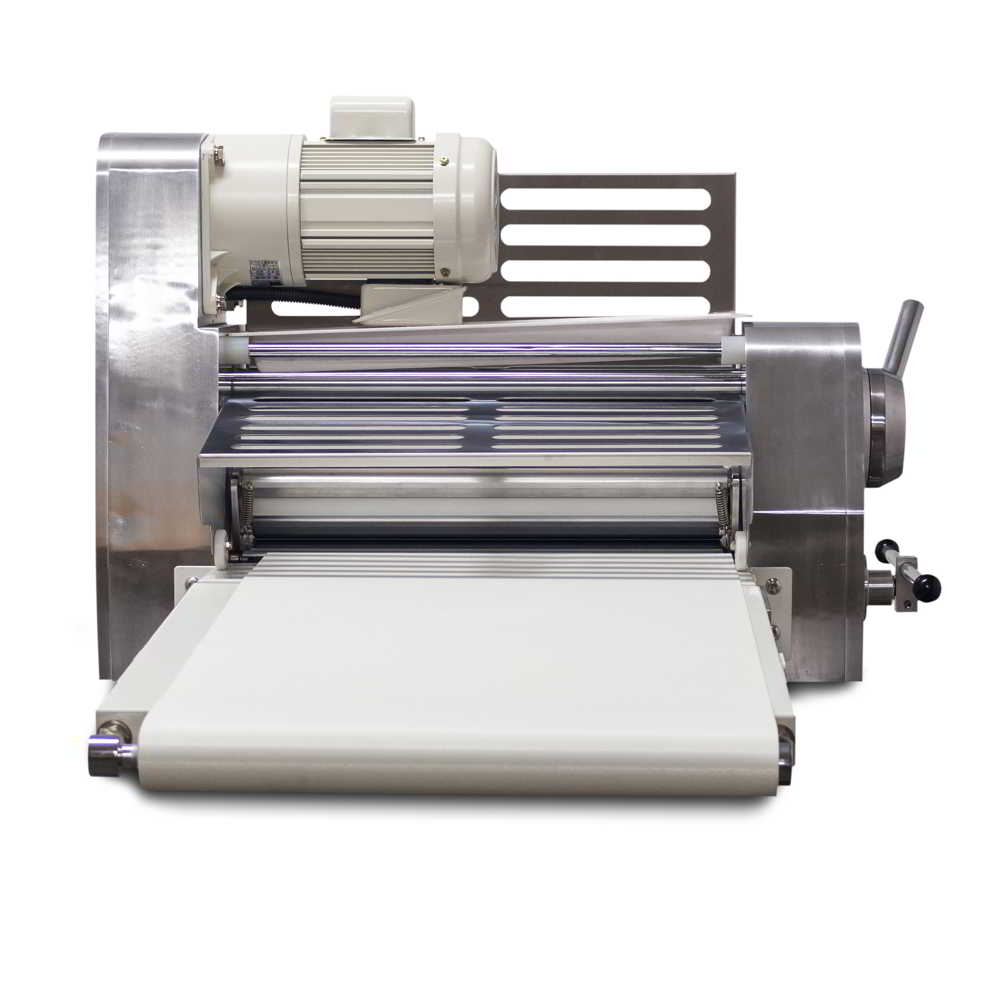

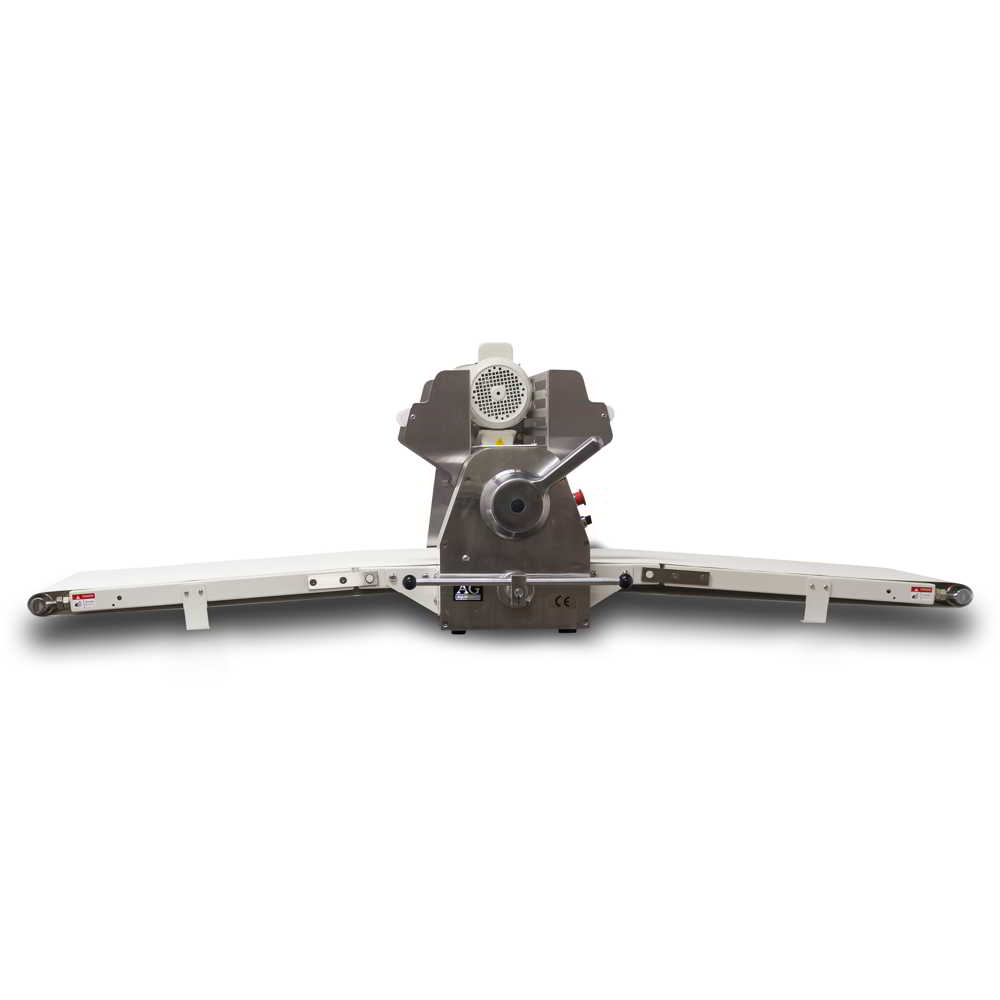

The AG Equipment JDR520B is a commercial benchtop dough sheeter that rolls and sheets pastry and dough through a 520mm wide food-grade belt with hard-chrome rollers, helping bakeries and kitchens produce consistent sheets quickly without a full-size floor machine.
Why operators choose the JDR520B
-
520mm belt width — sheets wide batches of pastry, pizza, croissant and biscuit dough in fewer passes.
-
1-40mm adjustable roller opening — dial in thickness from thin pastry to thicker bases on the same machine.
-

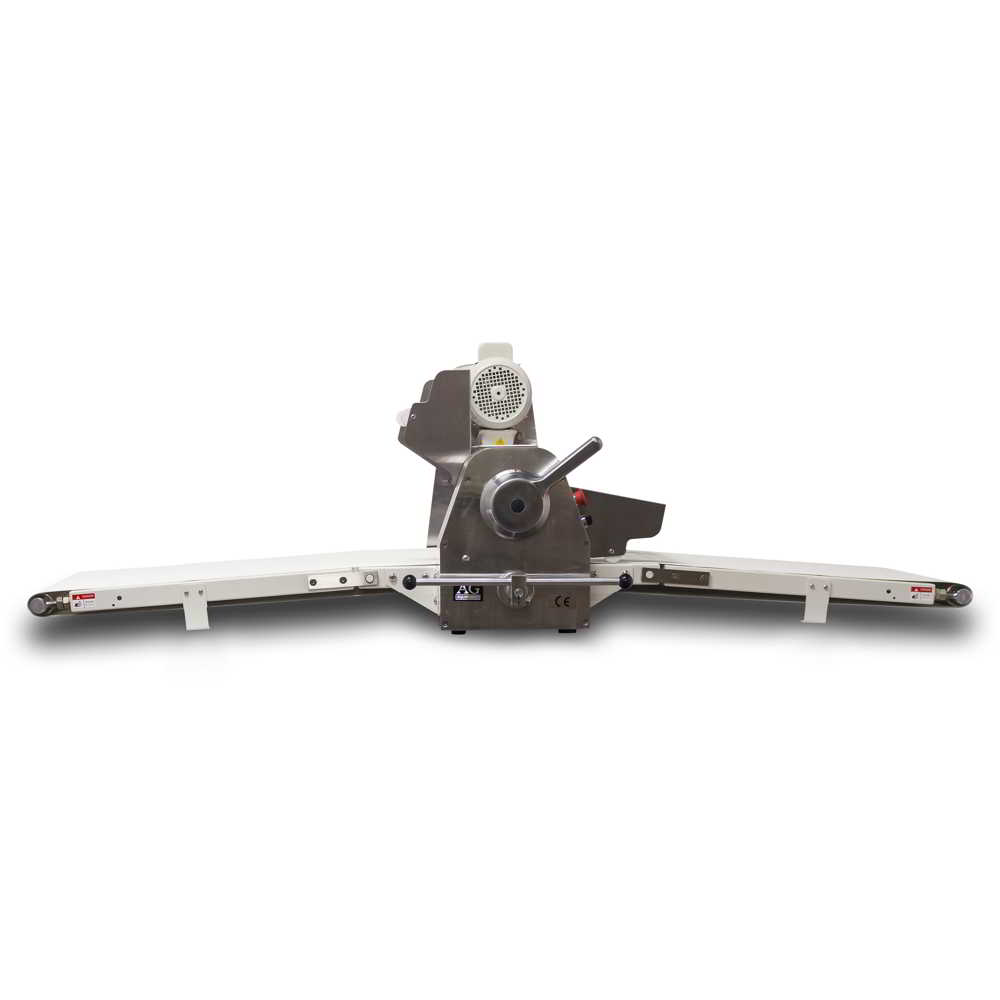

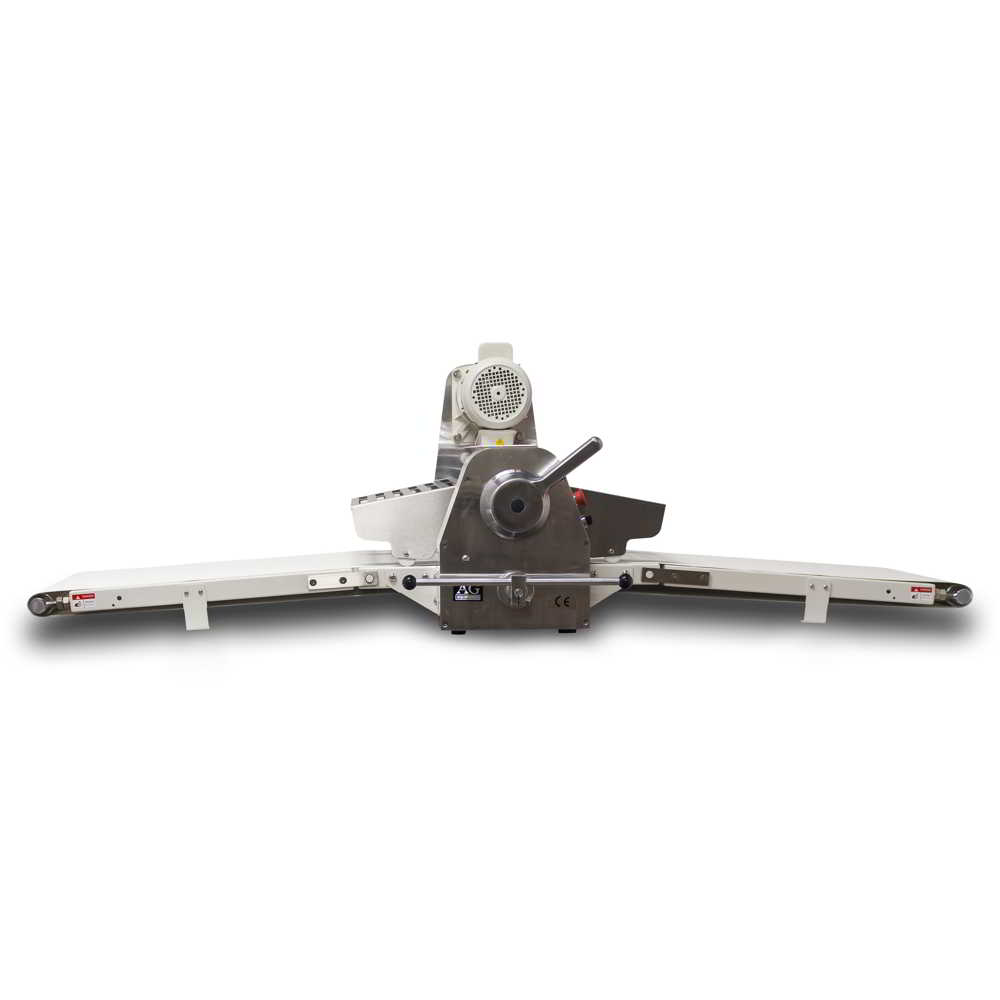

Collapsible side tables — fold away to reclaim bench space when the sheeter is not in use.
-
Hard-chrome rollers & food-grade belt — durable, easy-to-clean contact surfaces built for daily production.
-

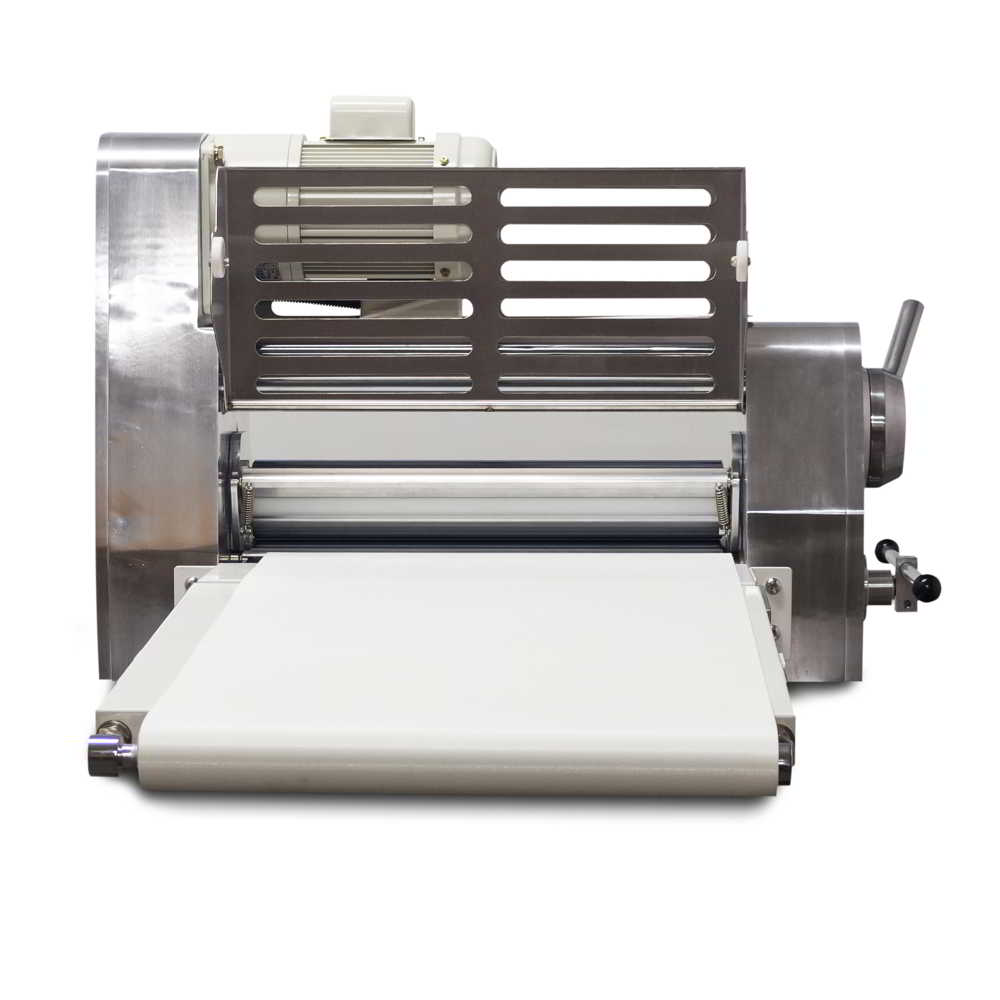

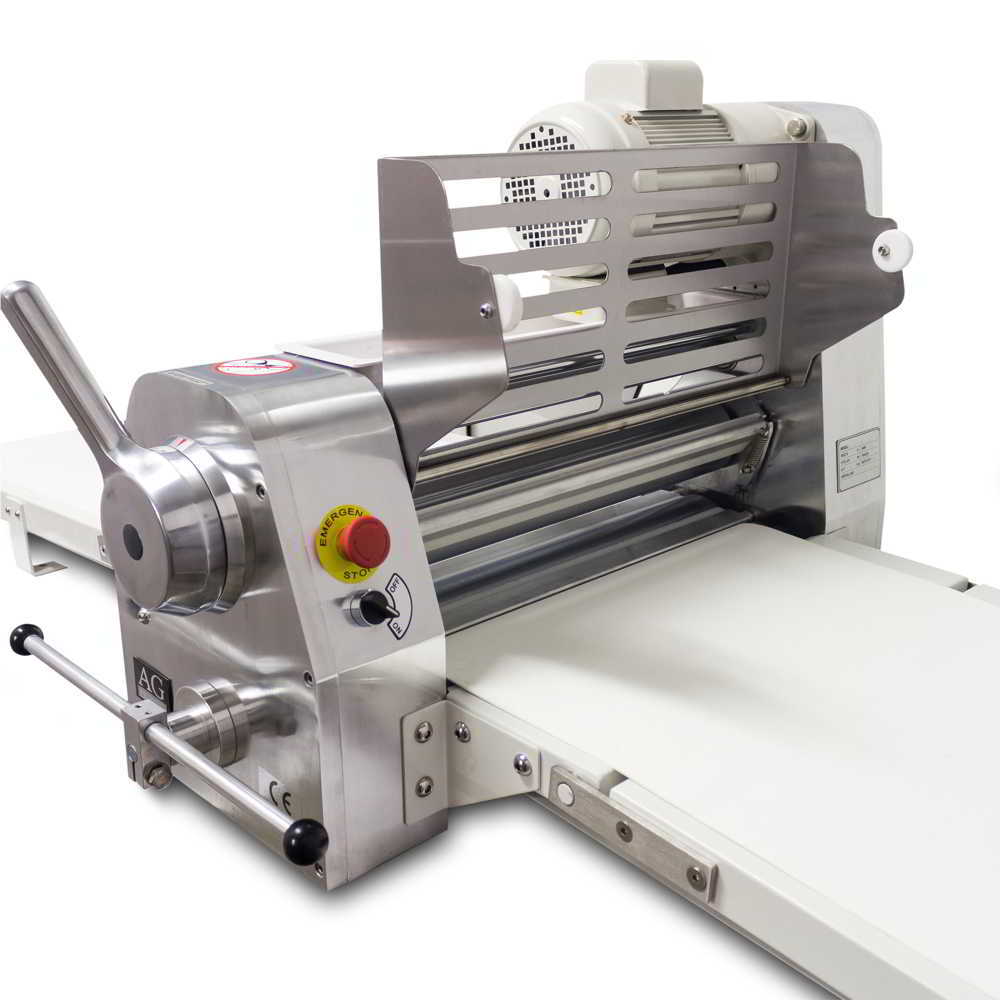

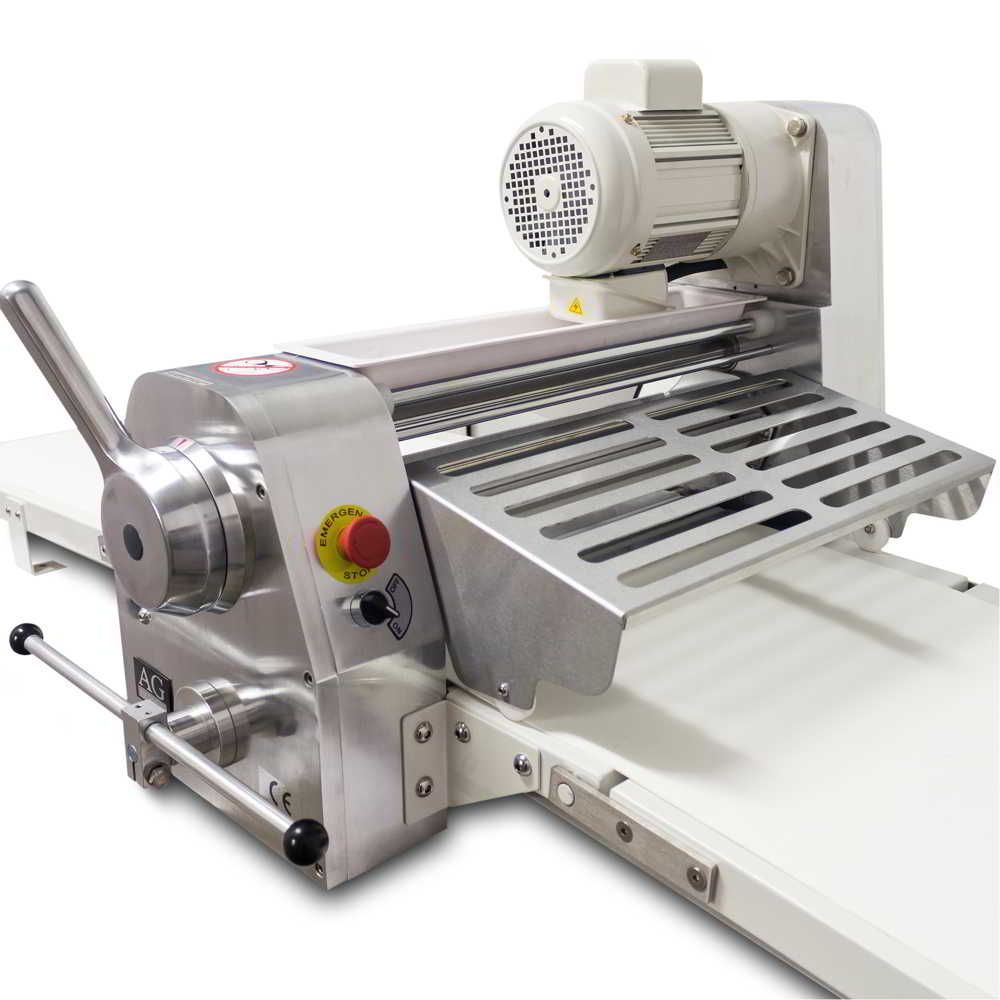

Safety guards & internal safety switch — emergency stop and guarding for safer continuous operation.
Specifications
| Brand |
AG Equipment |
| Model / MPN |
JDR520B |
| Type |
Benchtop Dough Sheeter |
| Belt Width |
520 mm |
| Roller Opening |
1-40 mm (adjustable) |
| Dough Capacity |
Max 5 kg |
| Rollers |
Hard chrome |
| Construction |
Stainless steel & aluminium |
| Power |
370 W |
| Voltage |
220-240 V, 50 Hz |
| Current |
4.2 A (10 A plug) |
| Product Dimensions |
2080(W) x 880(D) x 620(H) mm |
| Package Dimensions |
720(W) x 970(D) x 1000(H) mm |
| Net Weight |
123 kg |
| Shipping Weight |
146 kg |
| Certification |
CE Approved |
| Warranty |
12 months parts & labour |
Venue suitability: Suited to bakeries, patisseries, pizzerias, cafes and catering kitchens that sheet pastry, pizza bases and laminated dough regularly but want a benchtop footprint rather than a freestanding sheeter.
Browse more options in our Dough Rollers and Rounders range, or see the full AG Equipment line-up for matching bakery and food-prep equipment.
Installation & delivery: Supplied ready to plug into a standard 10 A power outlet; site the machine on a sturdy bench of at least 1500-1600mm (W) x 800mm (D), with 2000mm (W) recommended to support the belt overhang. Dispatched Australia-wide.
Frequently asked questions
Is the AG JDR520B a benchtop or freestanding dough sheeter? It is a benchtop model designed to sit on a sturdy bench; the related JDR520 (without the B suffix) is the freestanding version.
How wide is the belt and what thickness can it sheet? The belt is 520 mm wide and the roller opening adjusts from 1 mm to 40 mm, covering thin pastry through to thicker dough bases.
How much dough can it handle? The JDR520B is rated for up to 5 kg of dough per pass.
What power supply does it need? It runs on 220-240 V, 50 Hz, drawing 370 W (4.2 A) through a standard 10 A plug.
What warranty does it come with? It is backed by a 12-month parts and labour warranty from AG Equipment.
