Description

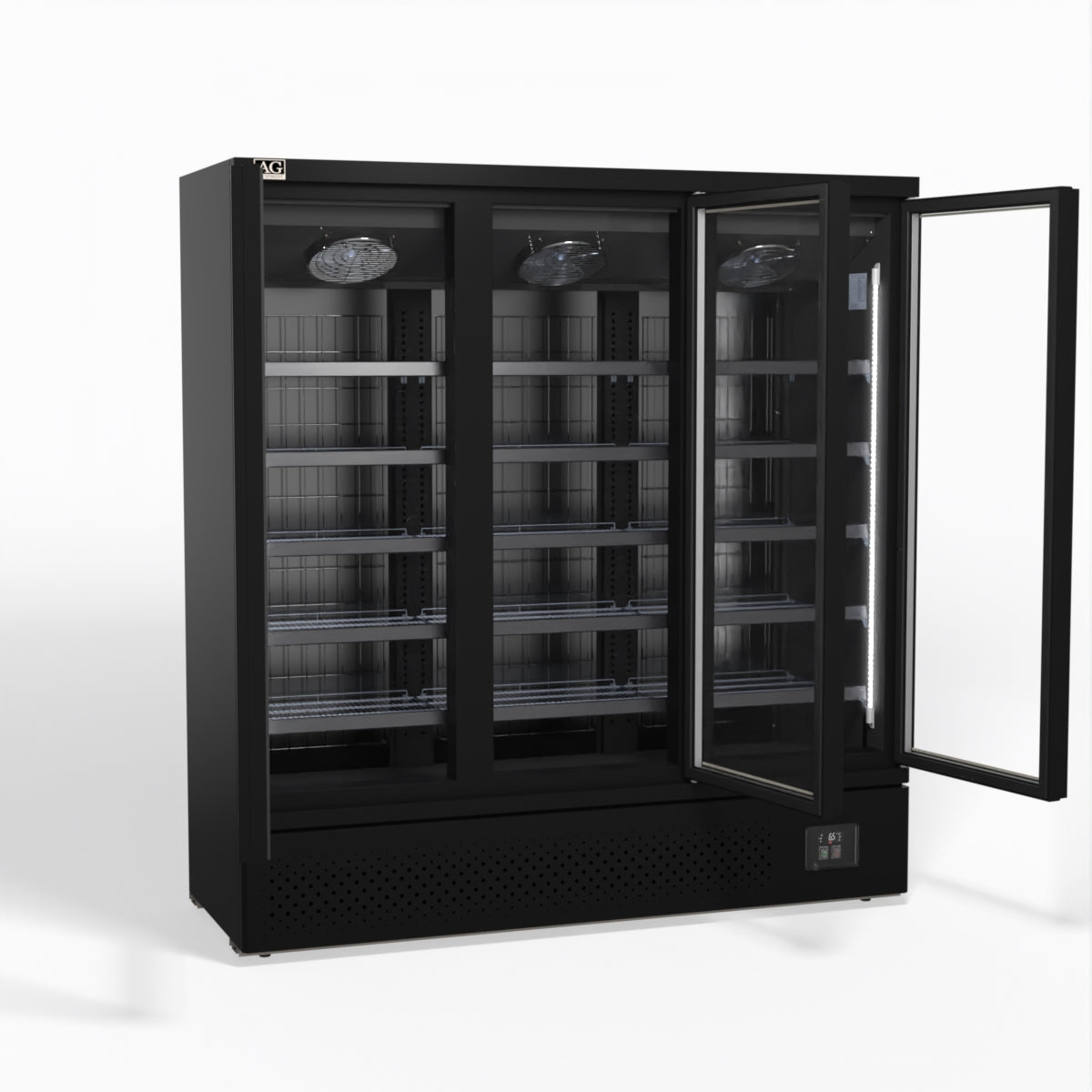

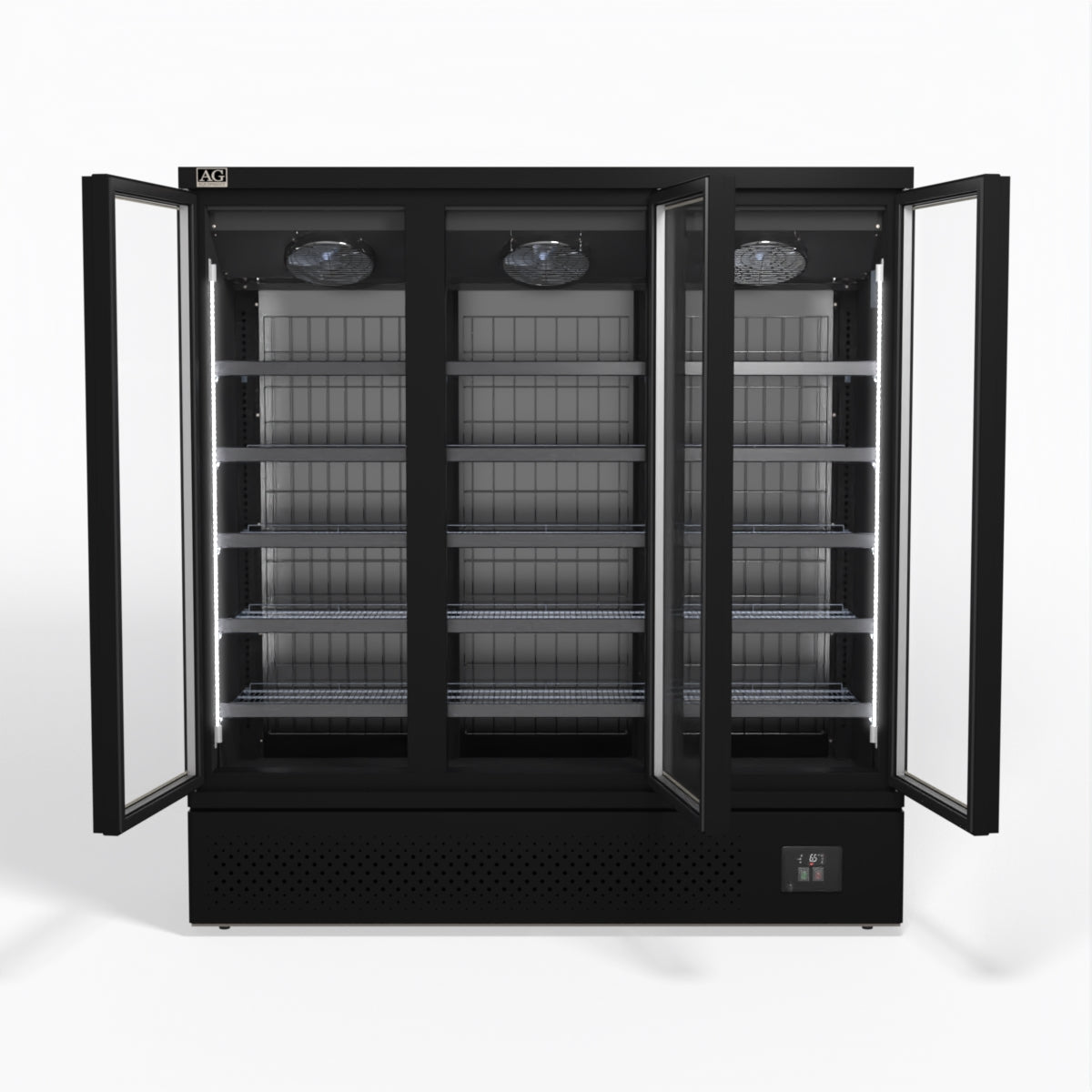

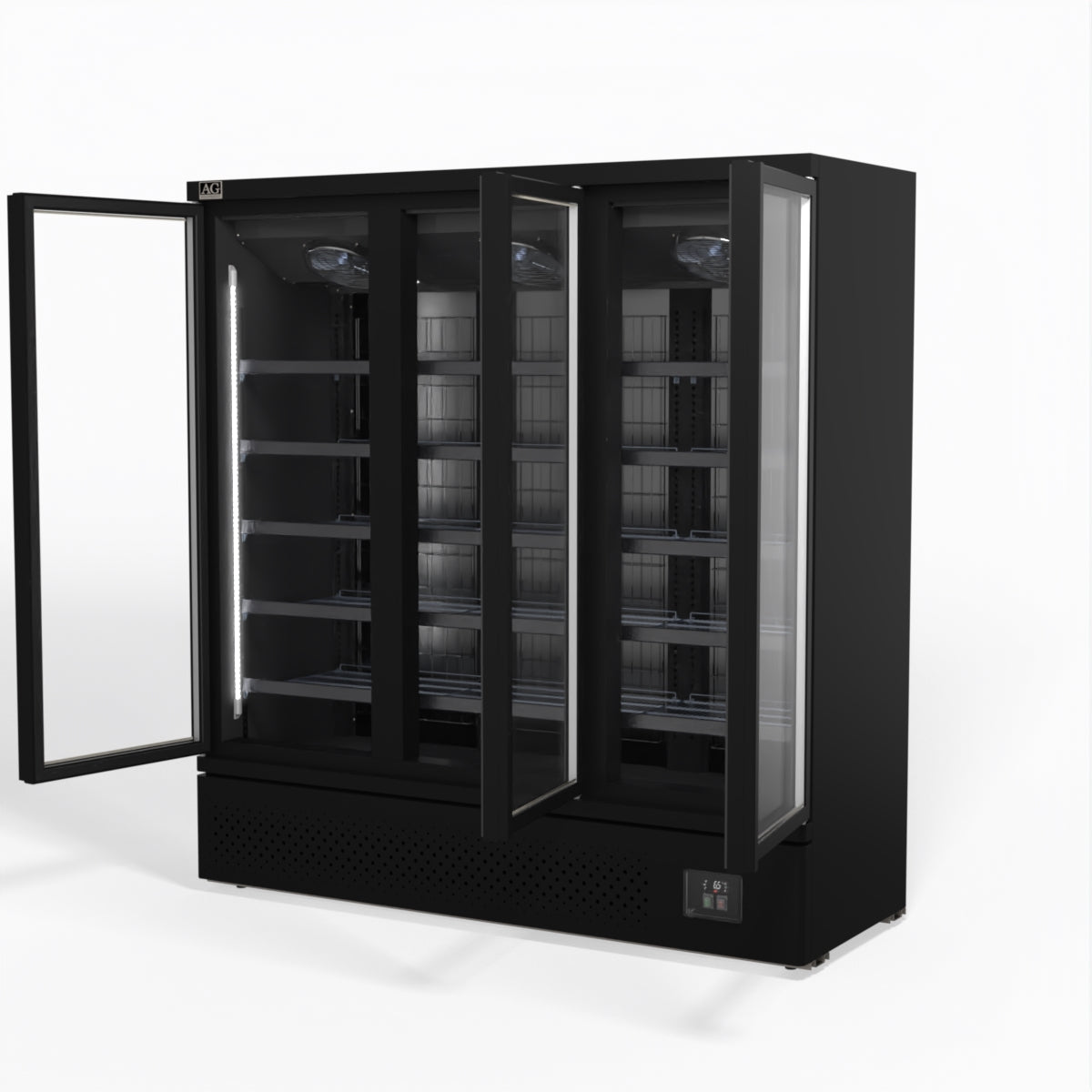

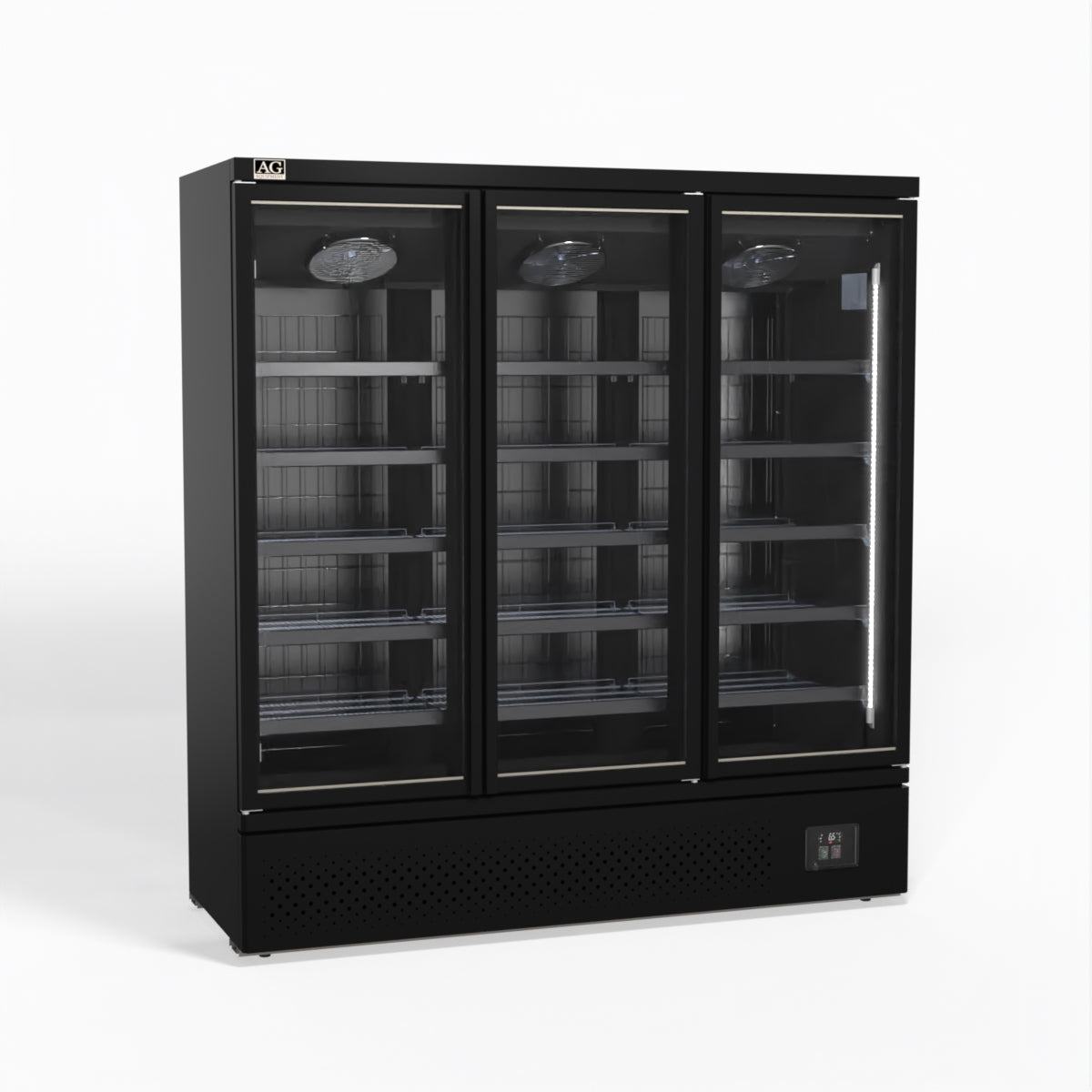

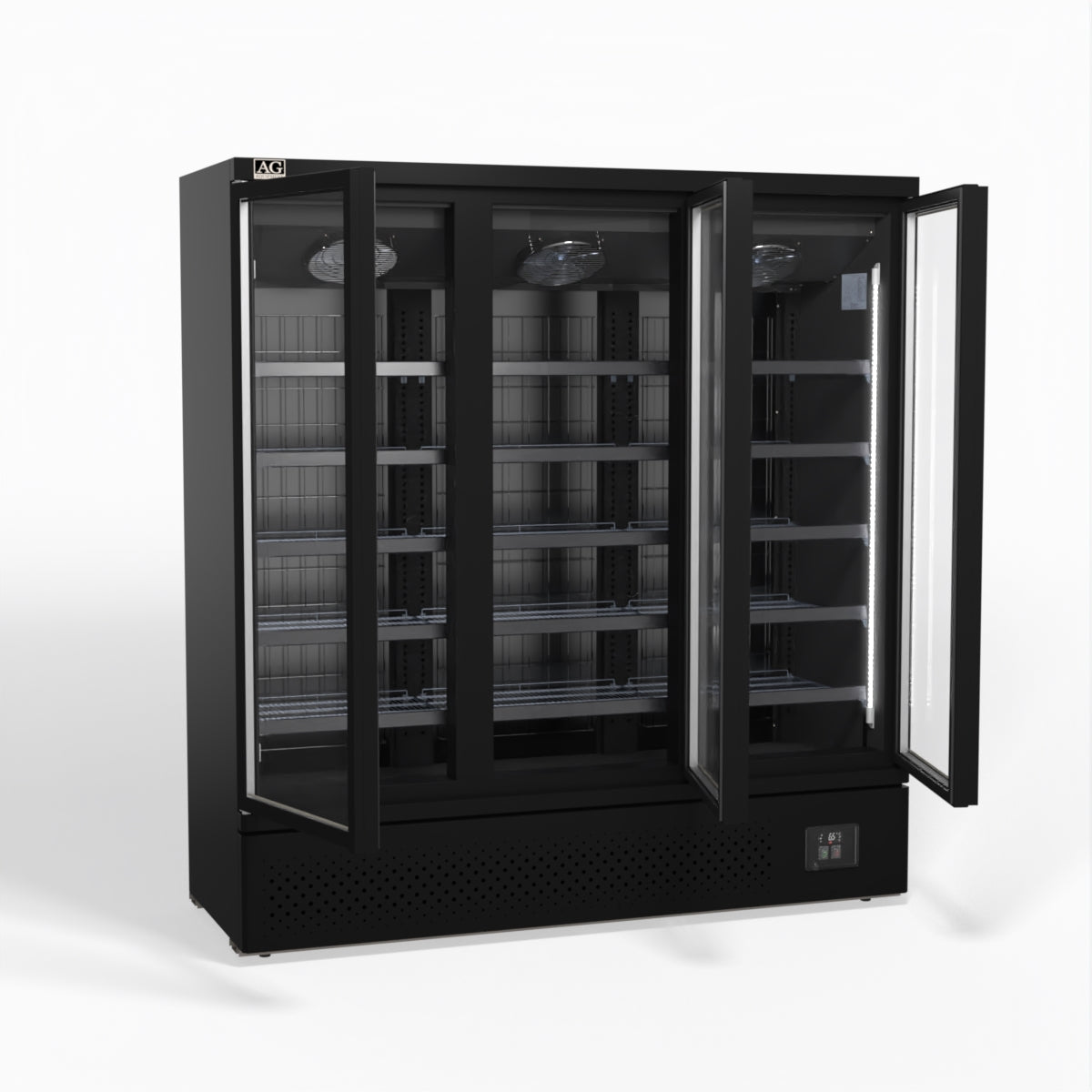

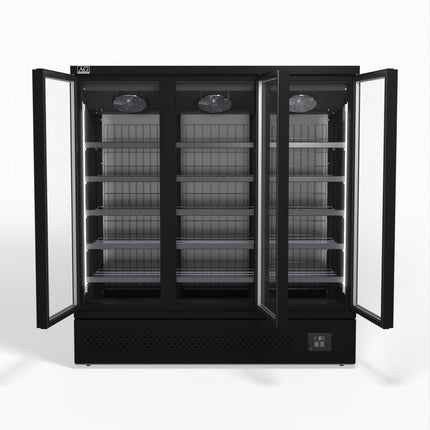

The AG Equipment FSB1500 is a three glass door upright display freezer that holds 1539 litres of frozen stock at retail-ready temperatures of -18°C to -22°C, built for high-traffic convenience stores, supermarkets and takeaways.
Why operators choose the FSB1500
-
1539 L across three glass doors — merchandises a large frozen range while keeping every product visible and selling.
-
R290 natural refrigerant — climate-friendly hydrocarbon refrigerant that runs efficiently and helps cut running costs.
-
Fan-forced ventilated cooling — even temperature distribution across all five shelf levels per door.
-
CAREL iJF electronic controller — precise temperature control with logging, fault alarms and Bluetooth app connectivity.
-
Castor wheels and internal LED lighting — easy to reposition and bright product presentation out of the box.
Specifications
| Brand |
AG Equipment |
| Model / MPN |
FSB1500 |
| Type |
Display Freezer |
| Capacity |
1539 L |
| Doors |
3 glass doors |
| Shelves |
5 adjustable wire shelves per door |
| Temperature Range |
-18°C to -22°C |
| Ambient Temperature |
32°C / 70% humidity |
| Refrigerant |
R290 (150g x2) |
| Cooling |
Fan-forced ventilated |
| Controller |
CAREL iJF electronic |
| Compressors |

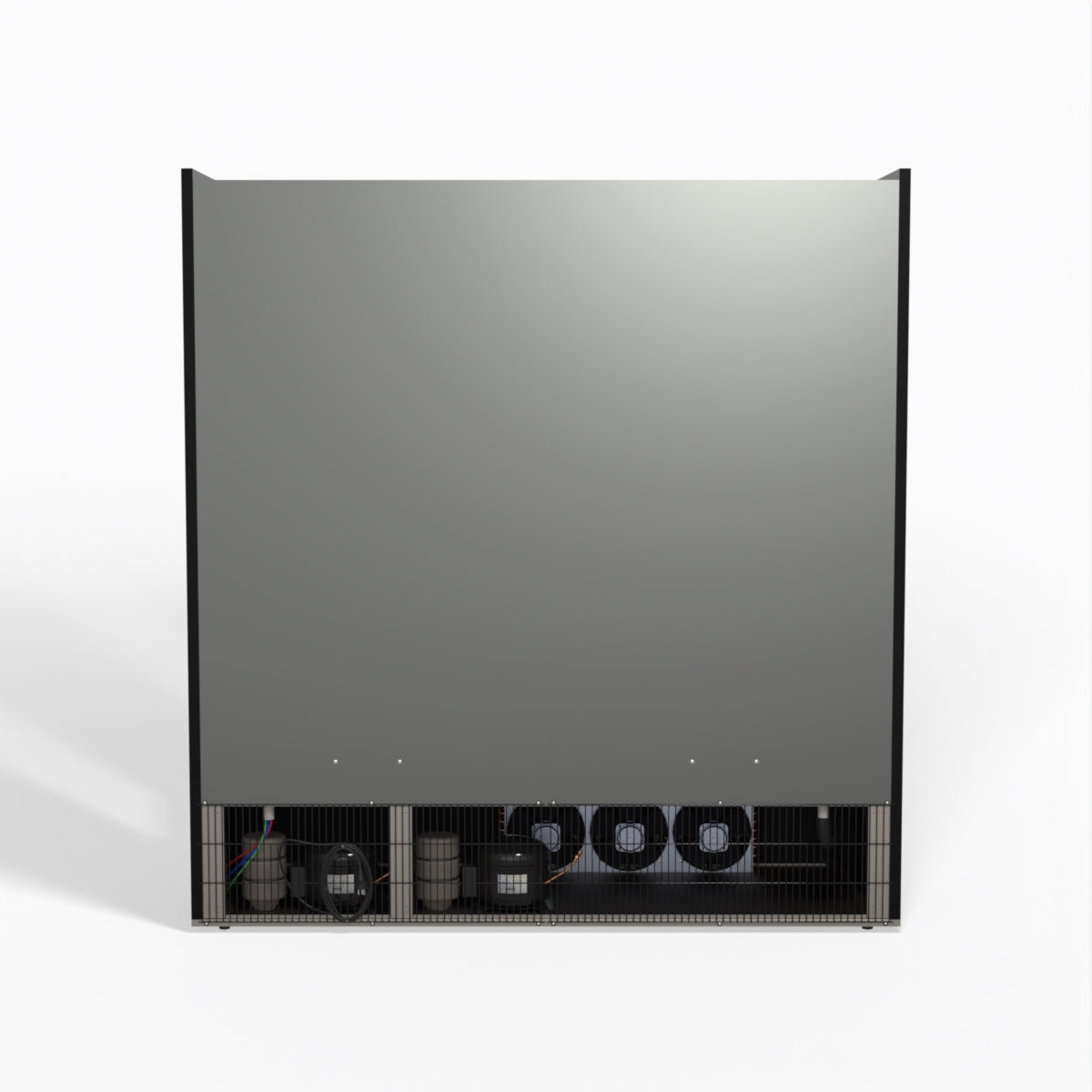

2 x Embraco NEX2180UB |
| Input Power |
1600 W |
| Voltage |
220–240V, 50Hz |
| Current |
8 A (15 Amp plug) |
| Energy Consumption |
32 kWh / 24hr |
| Product Dimensions |
1890(W) x 730(D) x 2010(H)mm |
| Internal Dimensions |
1770 x 530 x 1555mm |
| Package Dimensions |
1940(W) x 780(D) x 2160(H)mm |
| Net Weight |
380 kg |
| Colour |
Black |
| Material |
Powder-Coated Steel |
| Warranty |
24 months parts & labour |
Venue suitability: Suited to convenience stores, supermarkets, local marts, bars and takeaways that need to merchandise a large frozen range in a high-visibility, customer-facing freezer.
Browse the full range of Display Freezers or see more refrigeration from AG Equipment to compare door configurations and capacities.
Installation & delivery: Requires a 15 Amp plug, a level surface, 20cm wall clearance and no direct or radiated heat; clean the condenser monthly for best performance. Dispatched Australia-wide.
Frequently asked questions
How much can the FSB1500 hold? It offers 1539 litres of frozen storage across three glass doors with five adjustable wire shelves per door.
What temperature does it run at? The freezer operates between -18°C and -22°C with fan-forced ventilated cooling for even distribution.
What refrigerant does it use? It uses R290, a natural hydrocarbon refrigerant (150g x2 charge) that is energy-efficient and free of ozone-depleting properties.
What power supply does it need? It runs on a 220–240V 50Hz supply drawing around 8 amps and is installed with a 15 Amp plug.
What warranty is included? The FSB1500 comes with a 24-month parts and labour warranty from AG Equipment.
