Description

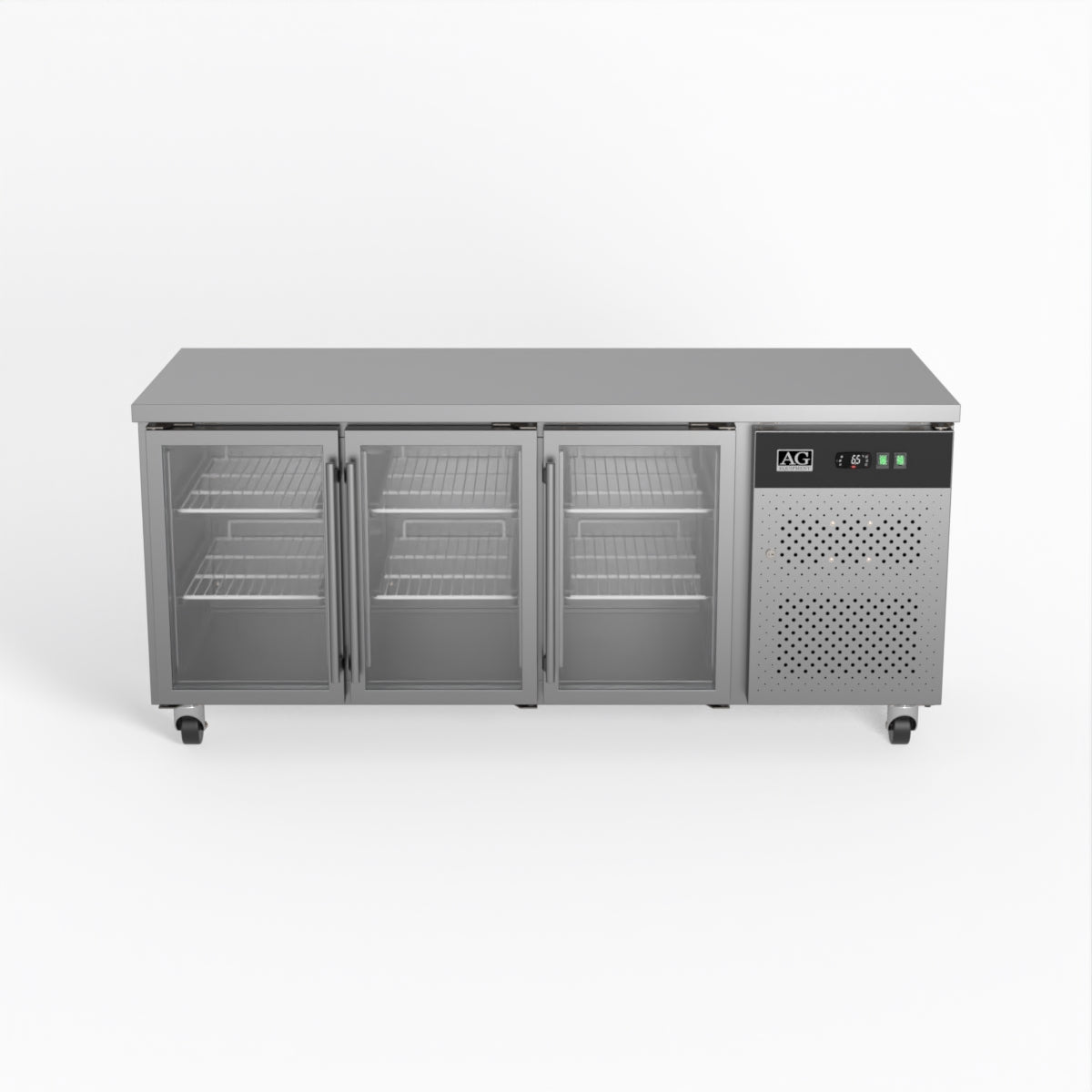

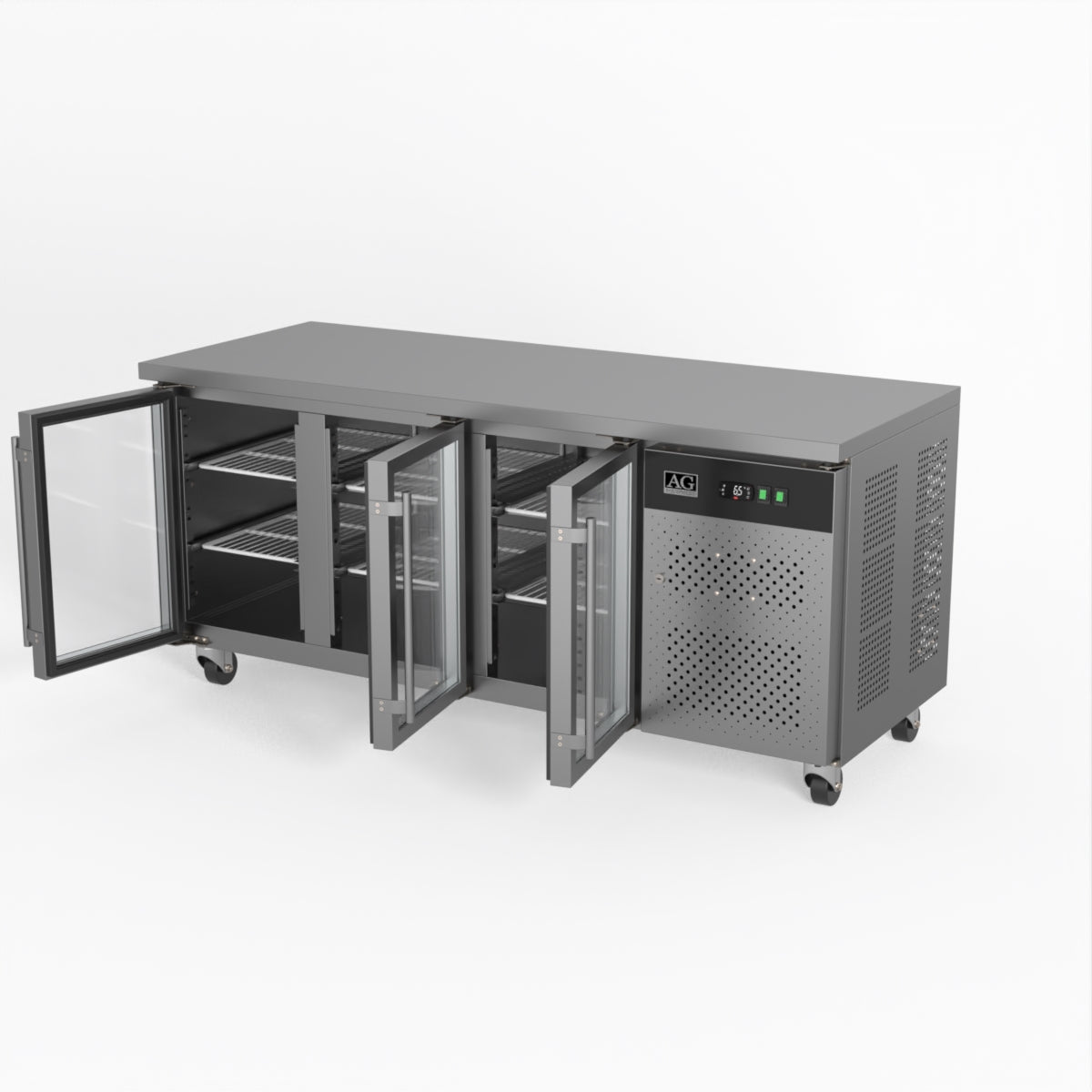

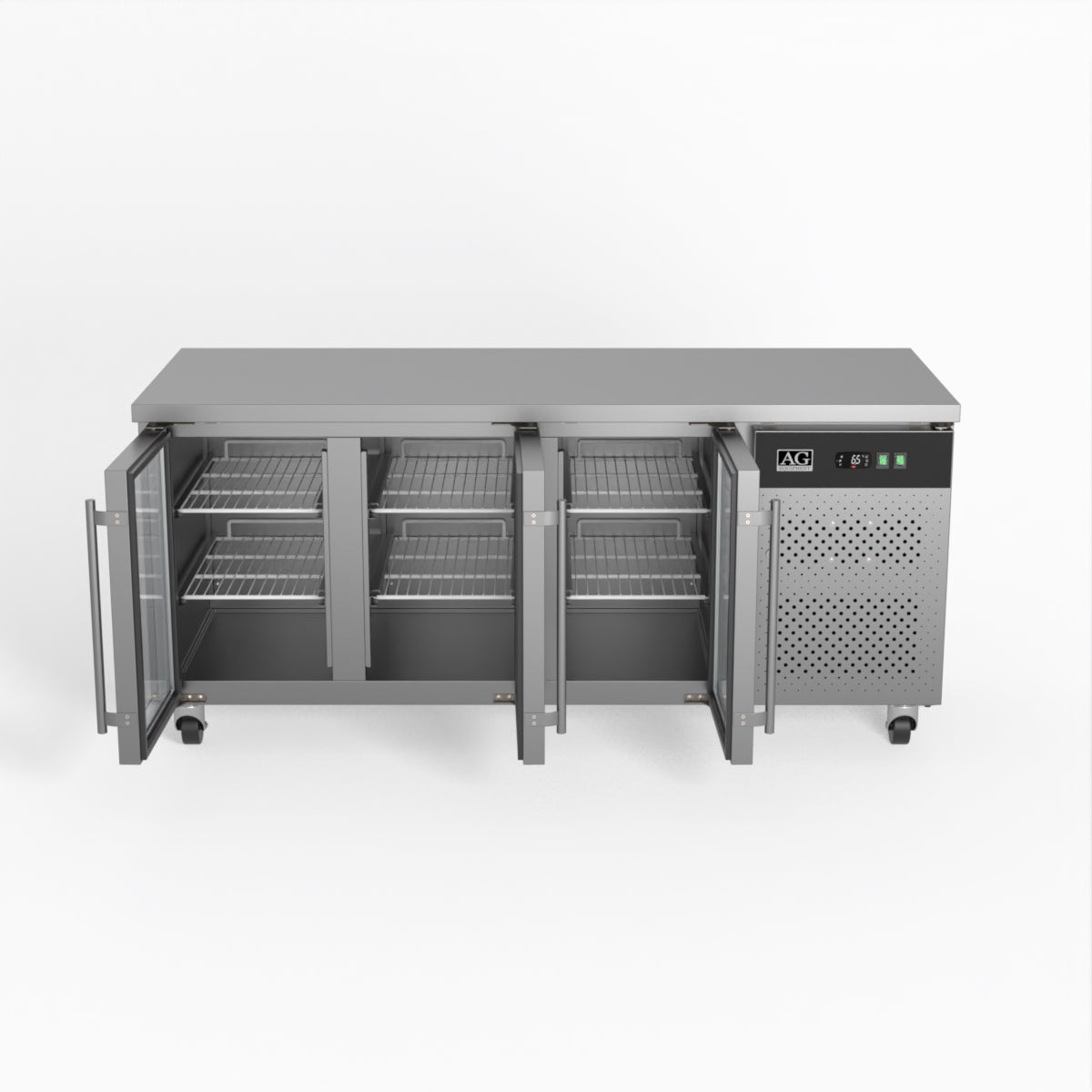

The AG Equipment GNX3100TNG is an undercounter glass door fridge that pairs a 417-litre triple glass-door cabinet with a stainless steel worktop, giving busy hospitality kitchens chilled display storage and usable bench space in a single 700mm-deep footprint.
Why operators choose the GNX3100TNG
-

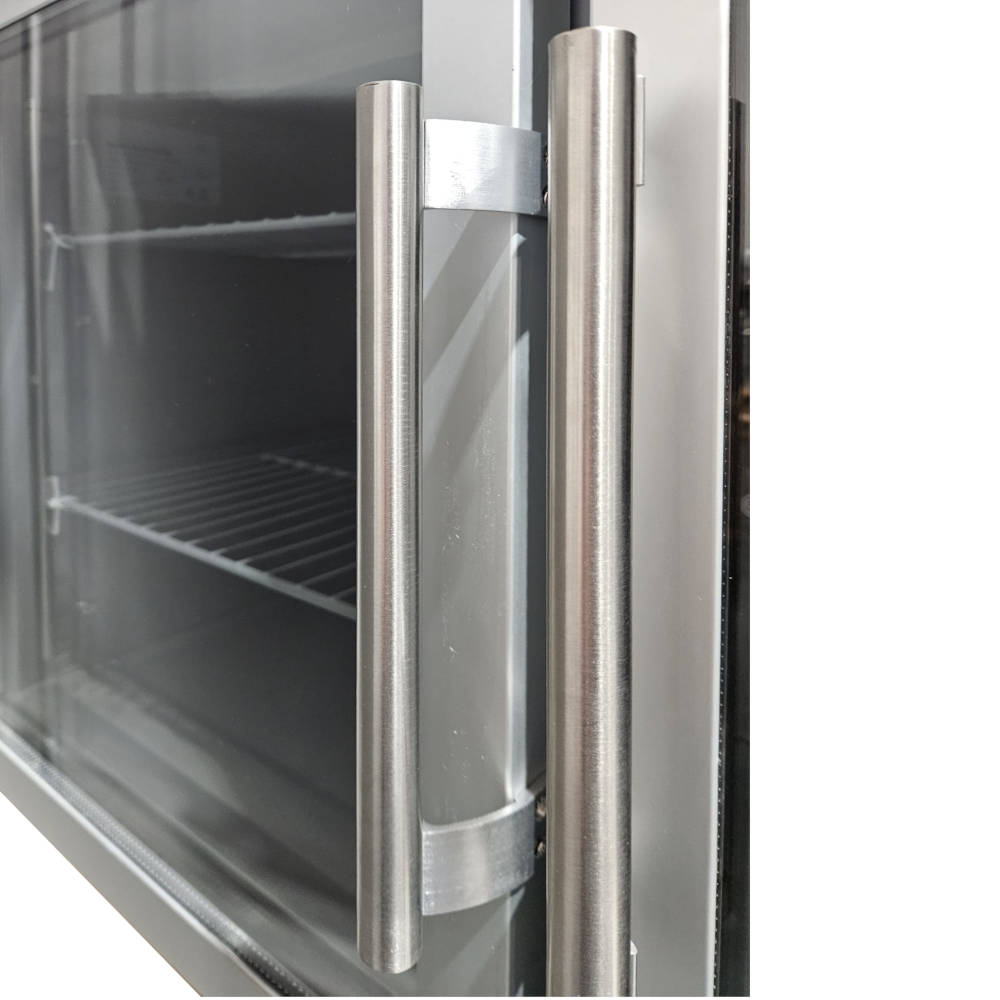

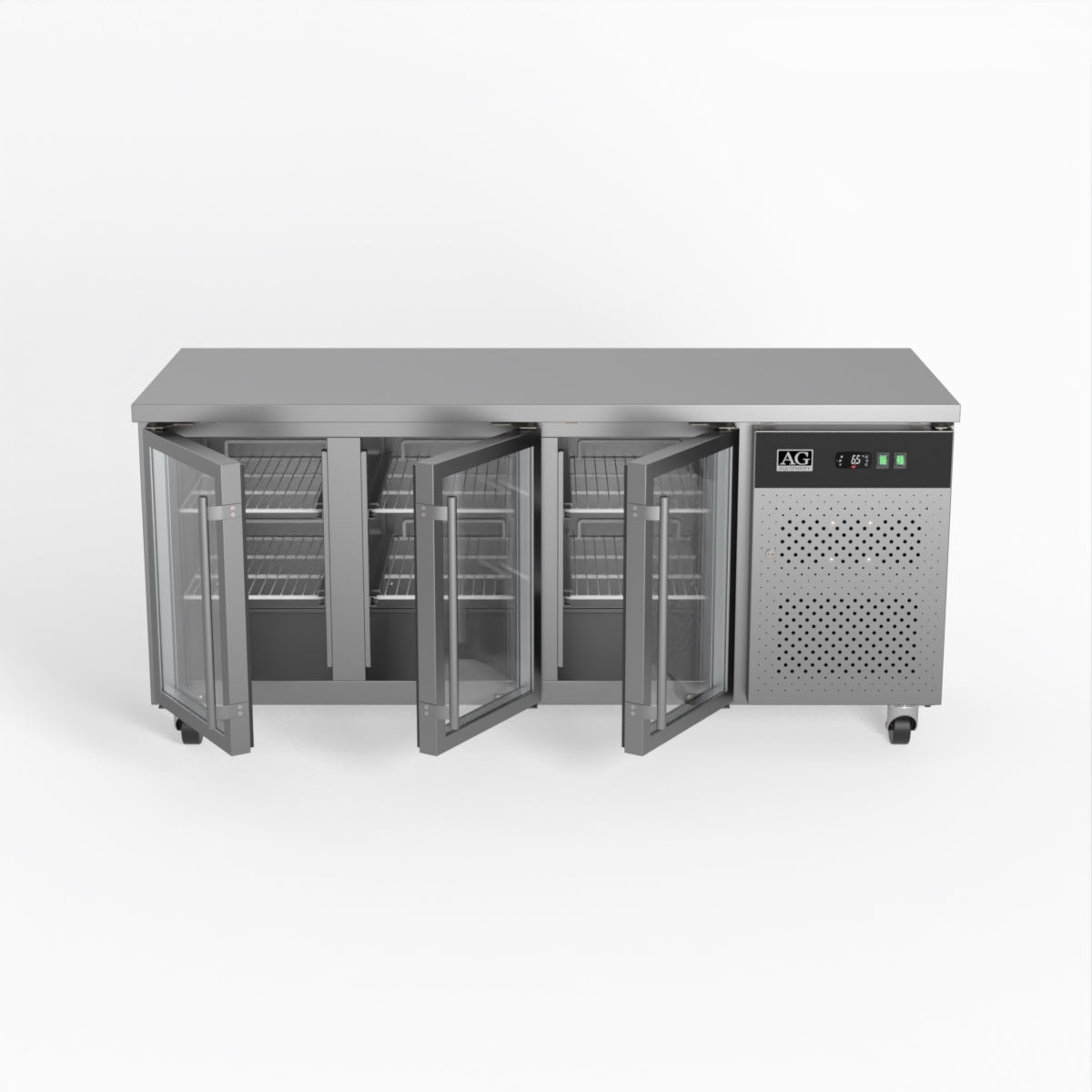

Triple double-glazed glass doors — staff and customers see stock at a glance, and self-closing doors help hold temperature.
-
Stainless steel worktop — turns the top of the fridge into extra prep or landing space in tight venues.
-
R290 natural refrigerant — a climate-friendly, energy-efficient gas charge for lower running costs.
-

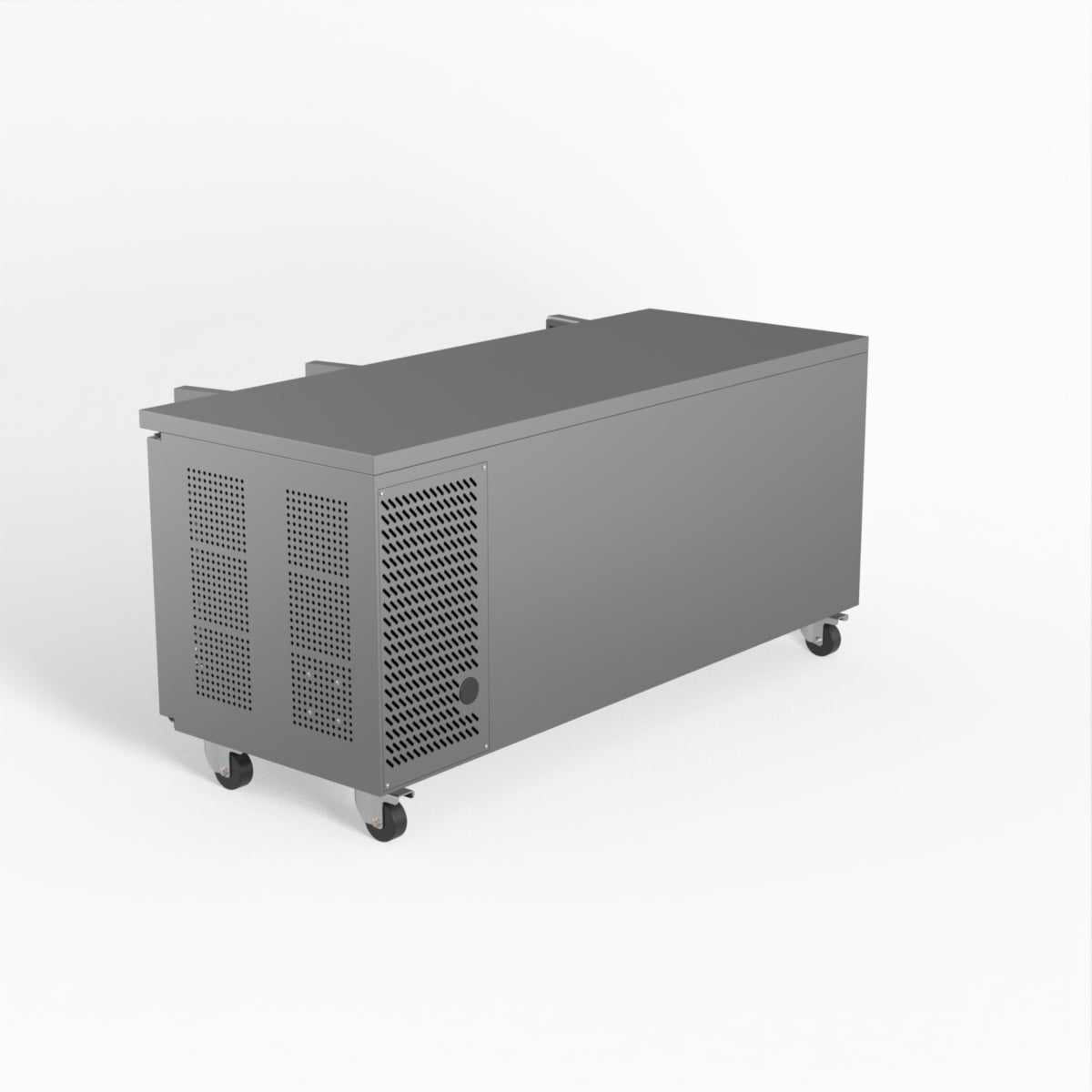

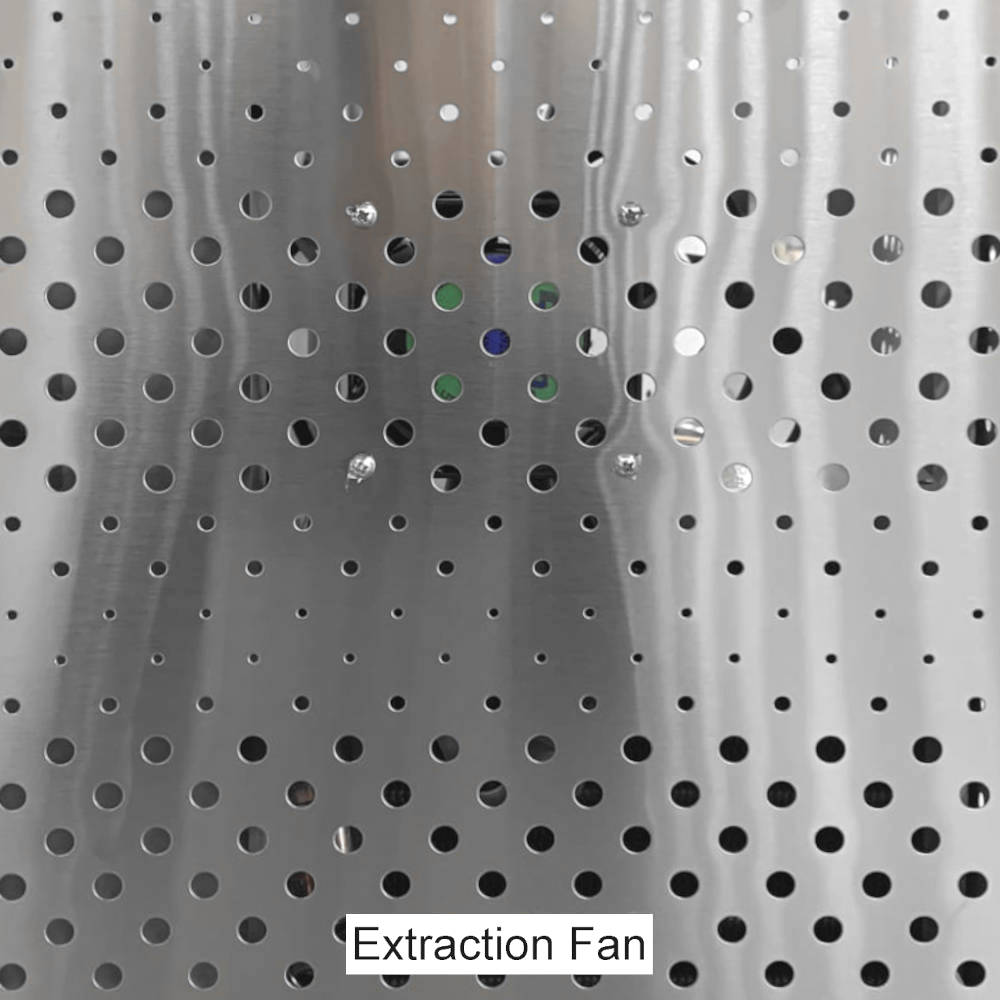

Front and side dual fans — the X-series ventilation frees the rear, so the cabinet can sit flush against the back wall.
-
DIXELL electronic control — holds a steady +2°C to +8°C with automatic defrost, even in 43°C ambient conditions.
-

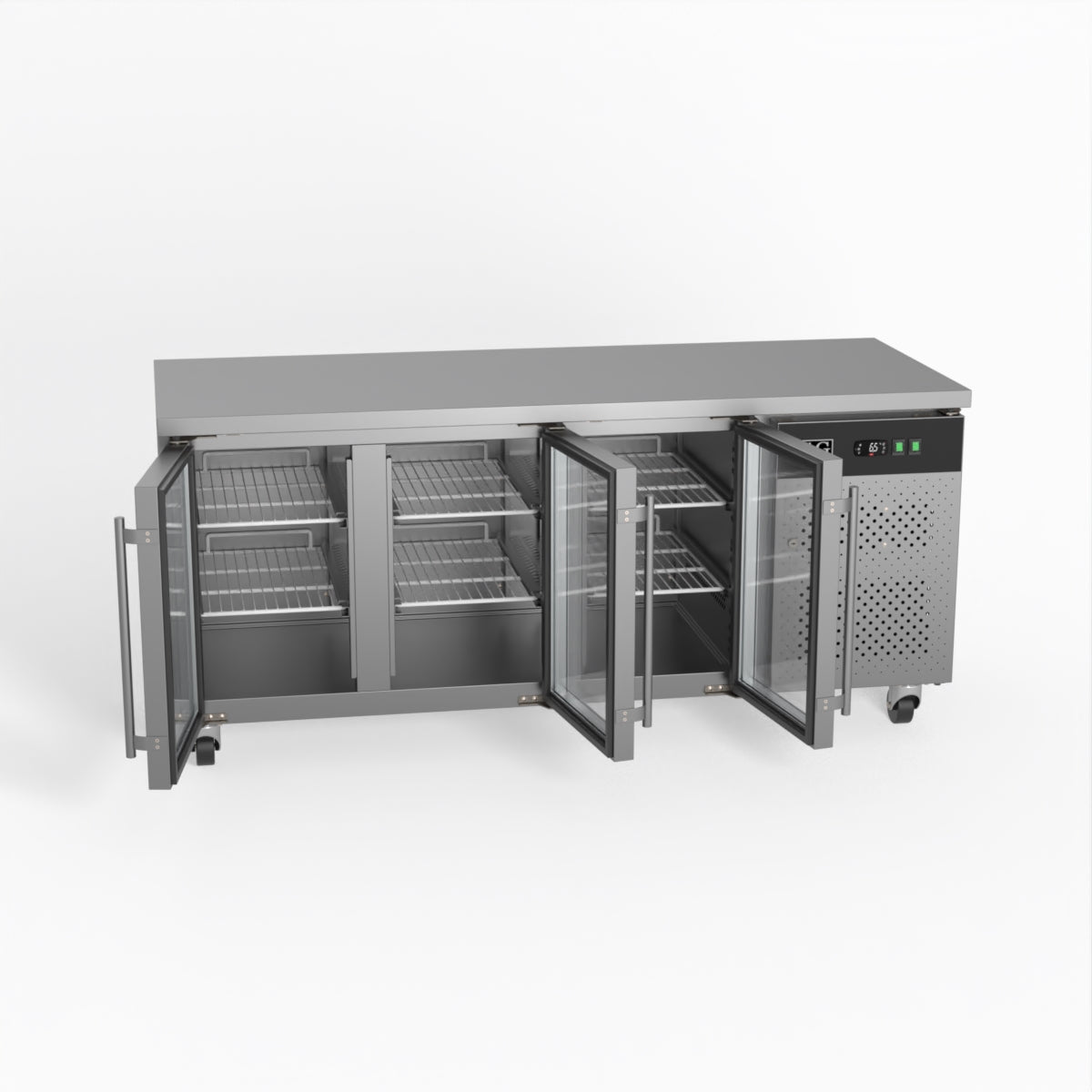

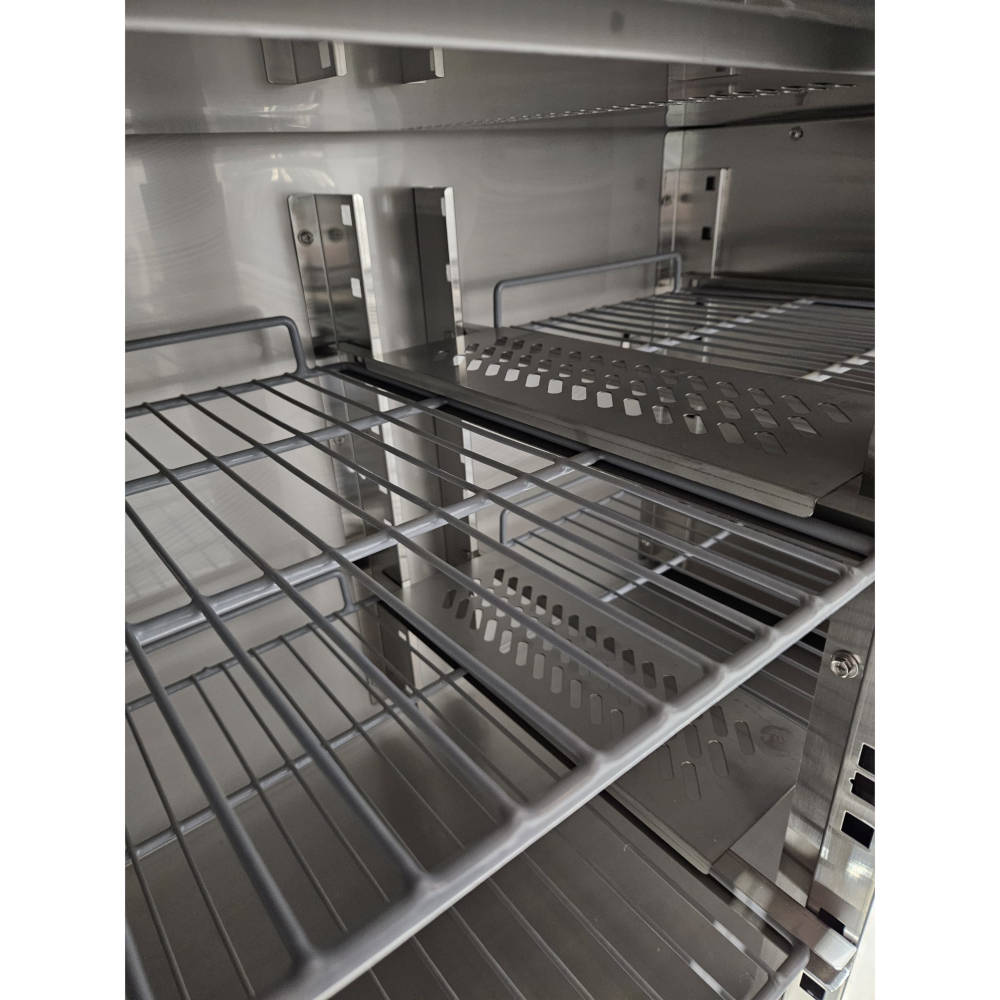

Adjustable shelving with centre-shelf connectors — two wire shelves per door hold a full 1/1 GN tray or pan across the width.
Specifications
| Brand |
AG Equipment |
| Model / MPN |
GNX3100TNG |
| Type |
Undercounter Glass Door Fridge |
| Doors |
3 (double-glazed glass) |
| Capacity |
417 Litres |
| Shelves |
2 adjustable wire shelves per door |
| Temperature Range |
+2°C to +8°C |
| Ambient Rating |
43°C / 65% humidity (tropical rated) |
| Cooling |
Fan-forced ventilated |
| Refrigerant |
R290 / 85g |
| Power |
220–240V, 50Hz, 320W, 2.3A |

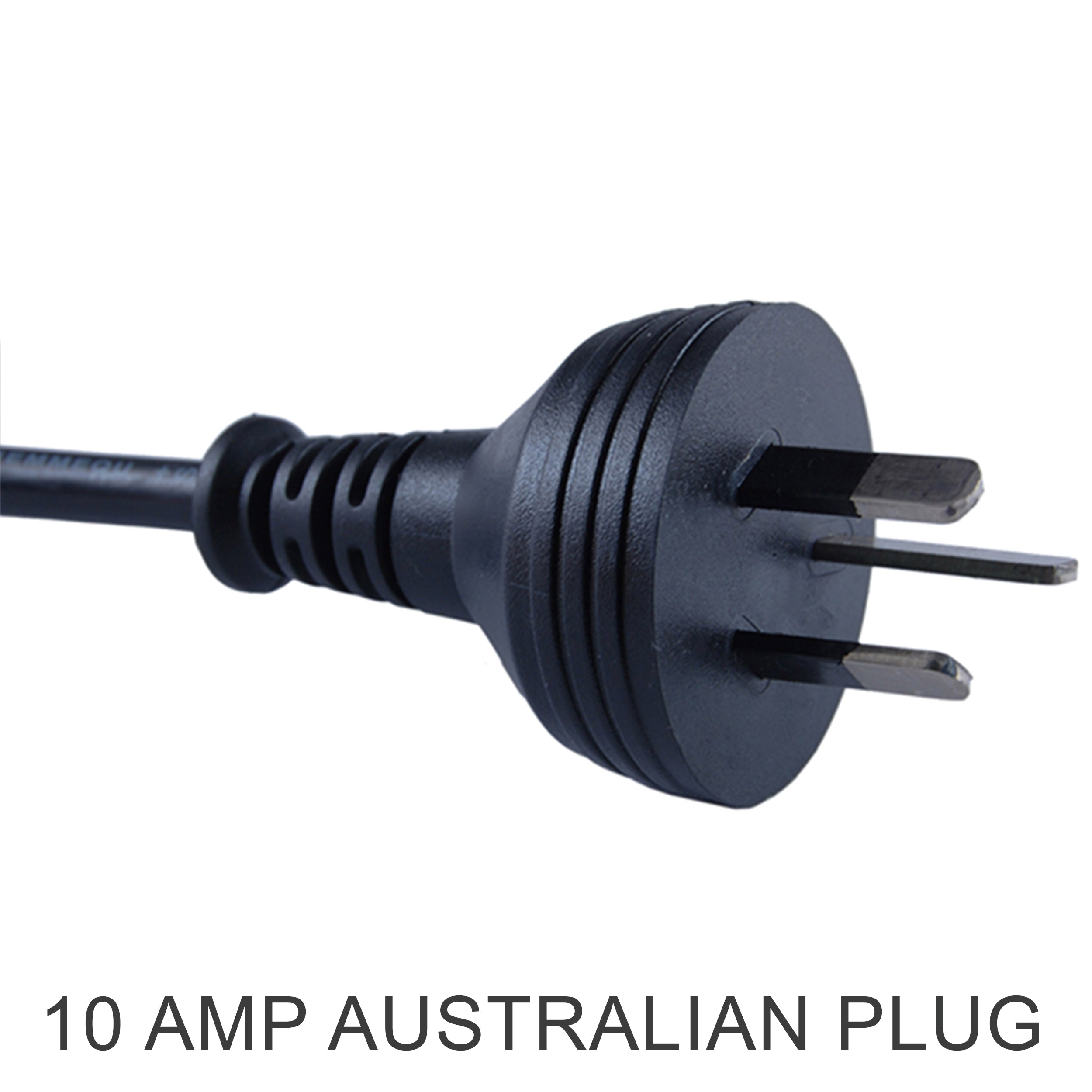

| Plug |
1 Phase — 10A |
| External Dimensions |
1795(W) x 700(D) x 860(H)mm |
| Internal Dimensions |
1235 x 580 x 560mm |
| Net Weight |
113 kg |
| Material |
Stainless Steel |
| Warranty |
24 Months Parts & Labour |
Venue suitability: The worktop format suits cafes, bars, bistros and front-of-house service counters that need chilled glass-door display plus a stainless prep surface without adding a separate bench. For taller stock or a larger floor-standing alternative, browse our Upright Display Fridges, and see the full range from this maker on the AG Equipment collection.

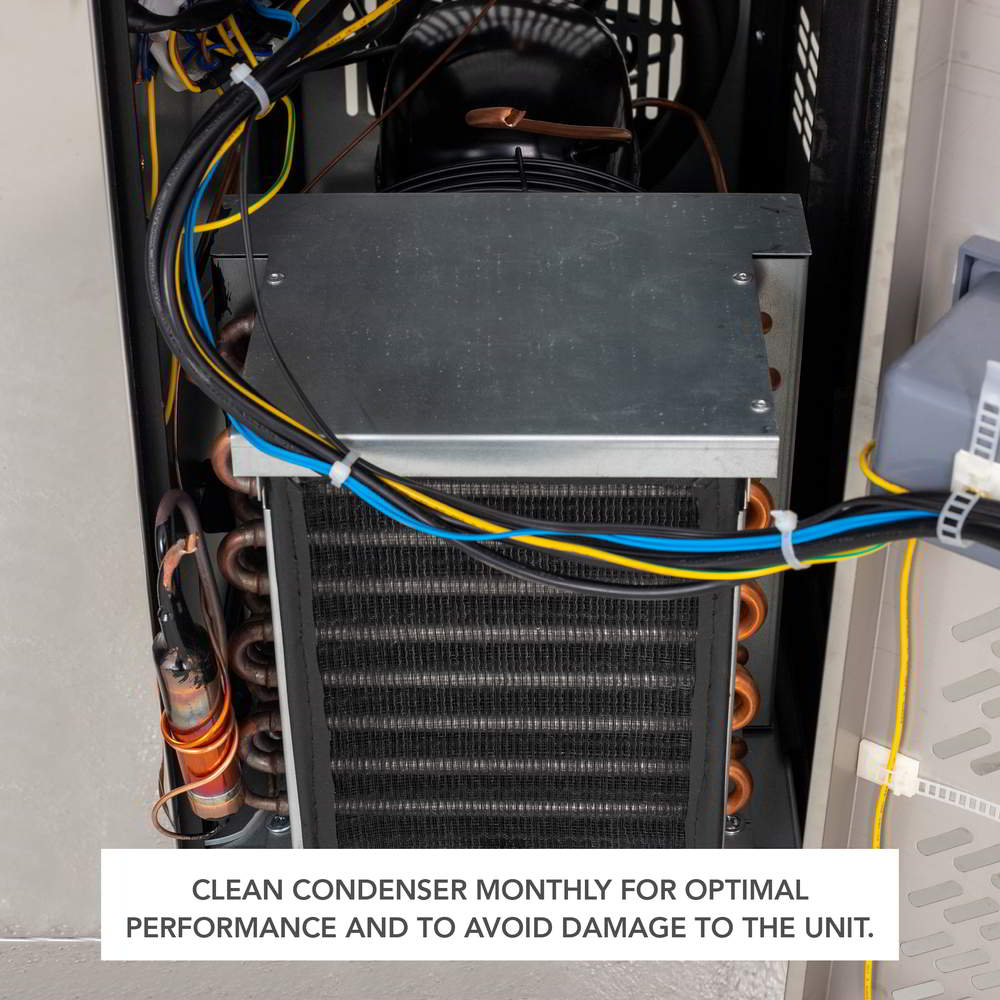

Installation & delivery: Allow 150mm clearance at the side and front for ventilation; the rear can sit flush to the wall. Clean the condenser filter monthly for best performance. Dispatched Australia-wide.
Frequently asked questions
How many doors and shelves does the GNX3100TNG have? It has three double-glazed glass doors with two adjustable wire shelves per door, plus centre-shelf connectors so each shelf holds a full 1/1 GN tray.
What temperature range does this fridge hold? It operates between +2°C and +8°C, suitable for chilled food and drink display.
What refrigerant does it use? It uses R290, a natural hydrocarbon refrigerant that is non-toxic, ozone-friendly and energy efficient.
Can it run in a hot kitchen? Yes — it is tropical rated to operate in ambient conditions up to 43°C at 65% humidity.
How big is the unit? External dimensions are 1795(W) x 700(D) x 860(H)mm, with internal dimensions of 1235 x 580 x 560mm and a 417-litre capacity.
SKU: AG-GNX3100TNG
In Stock
