Description

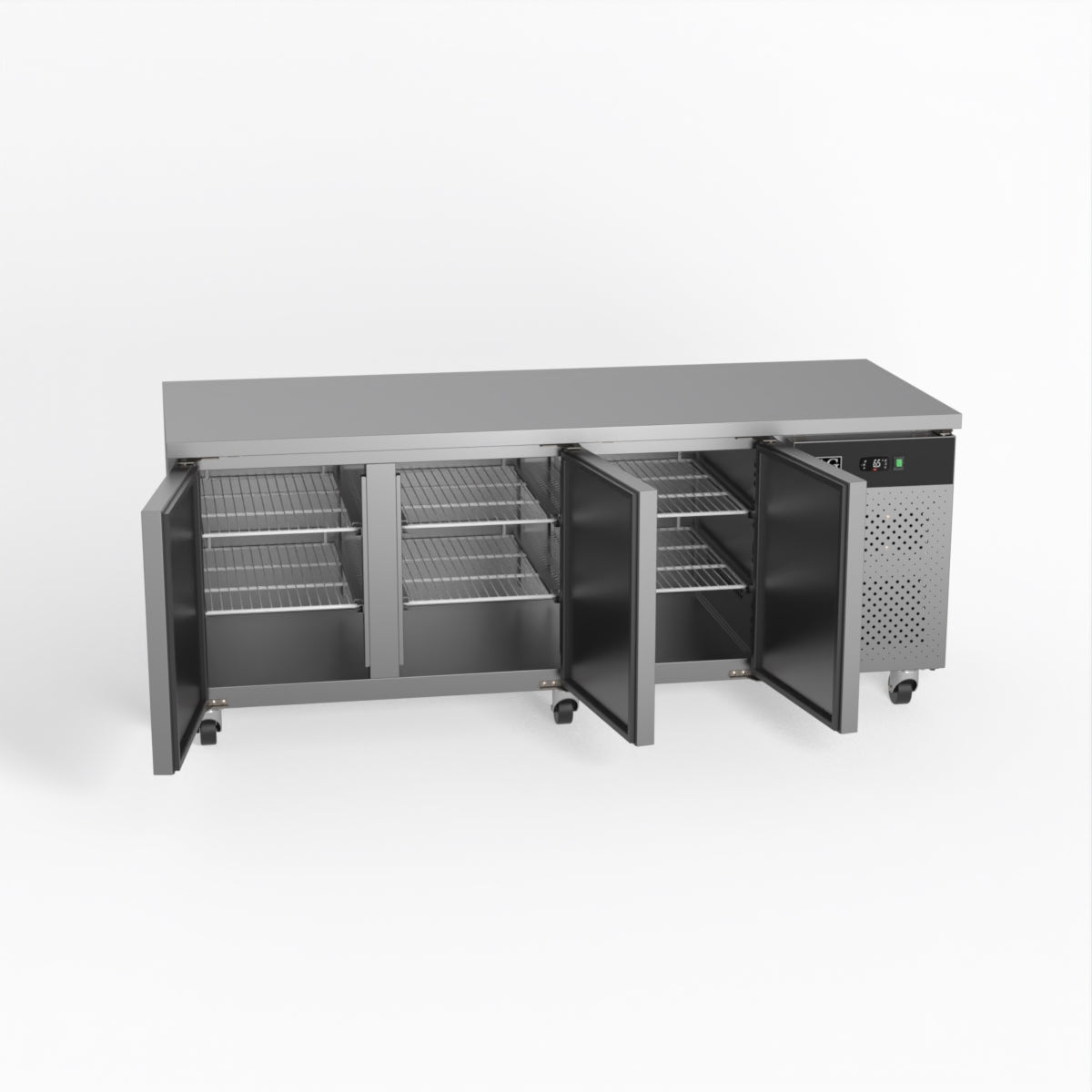

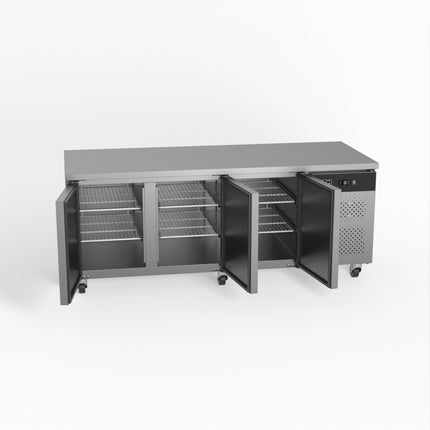

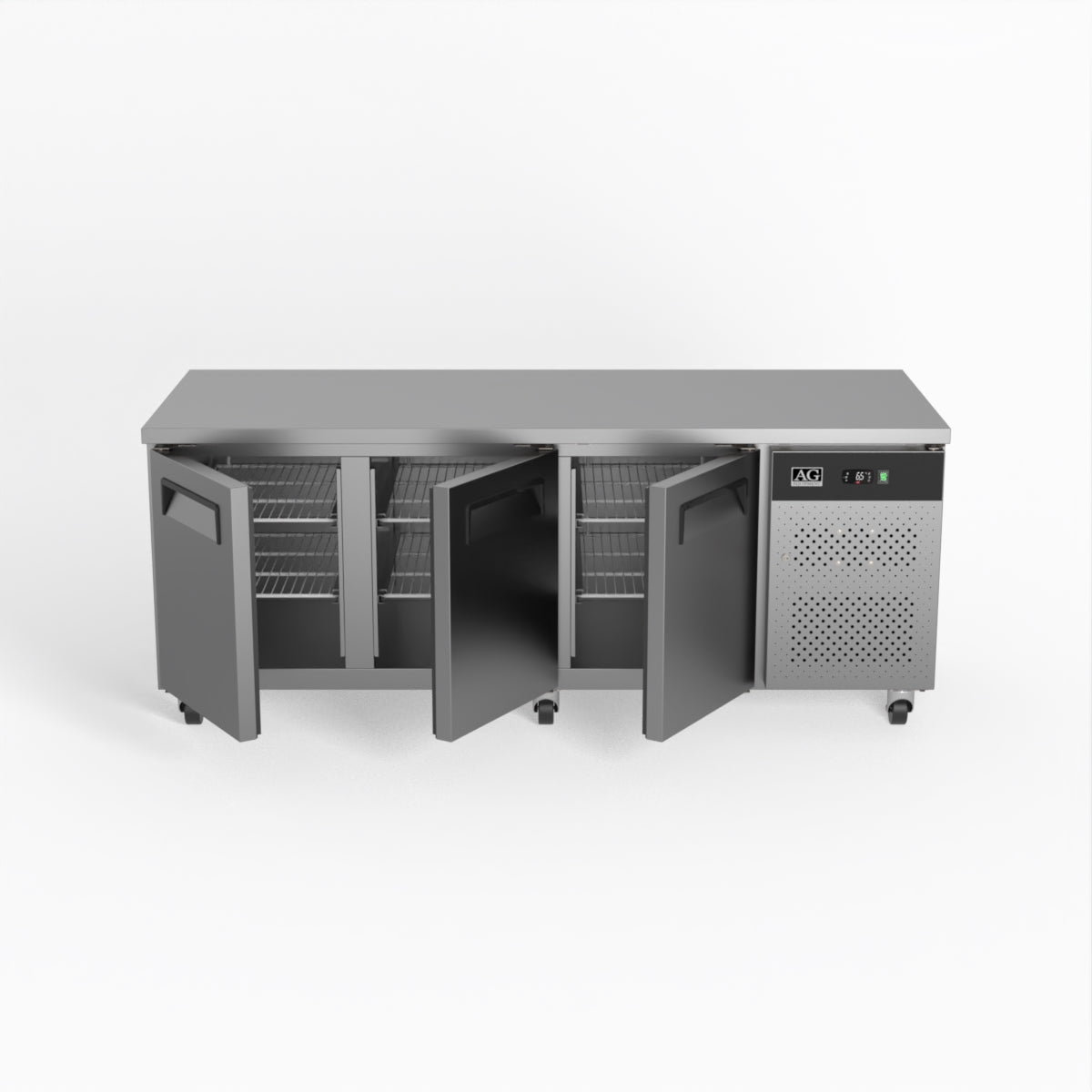

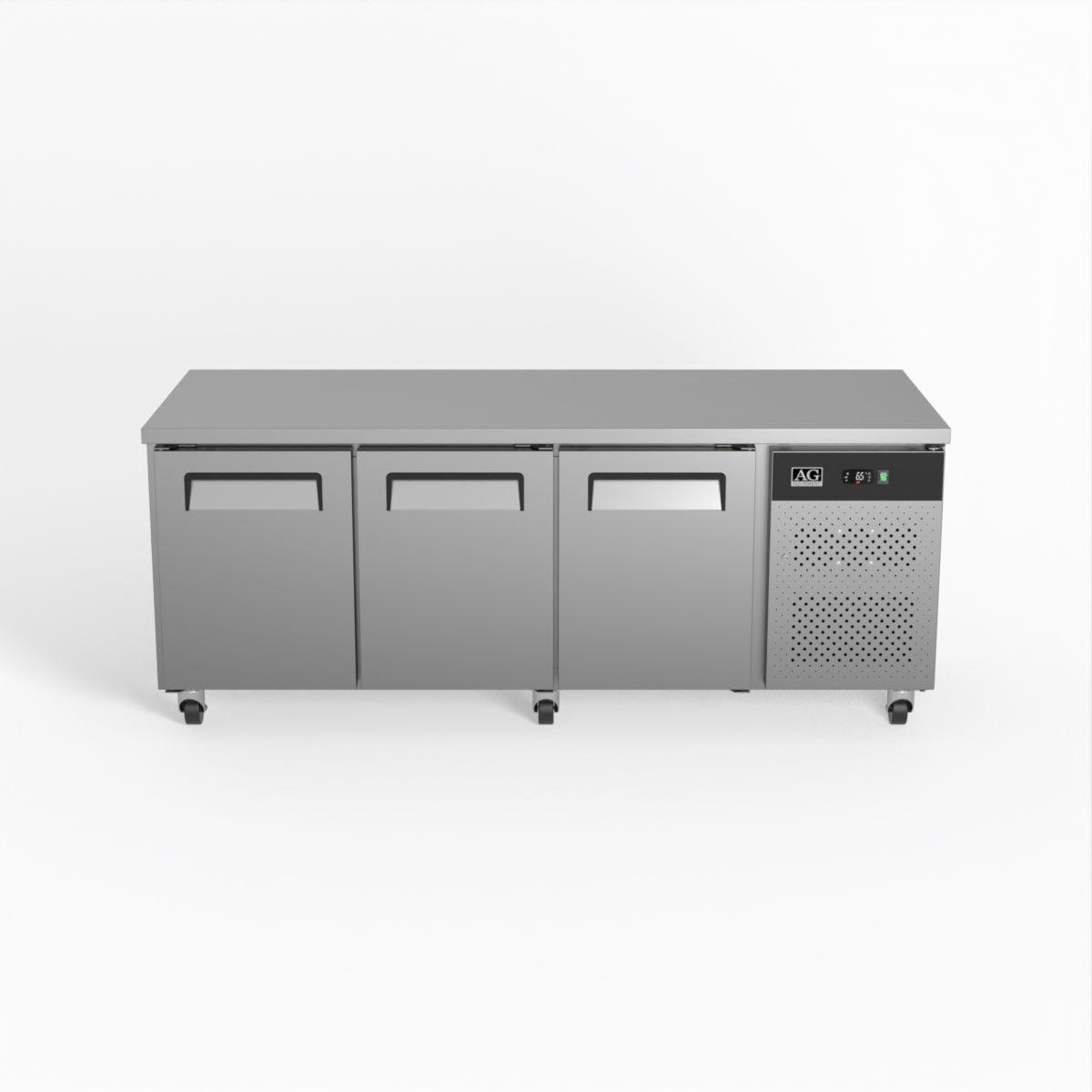

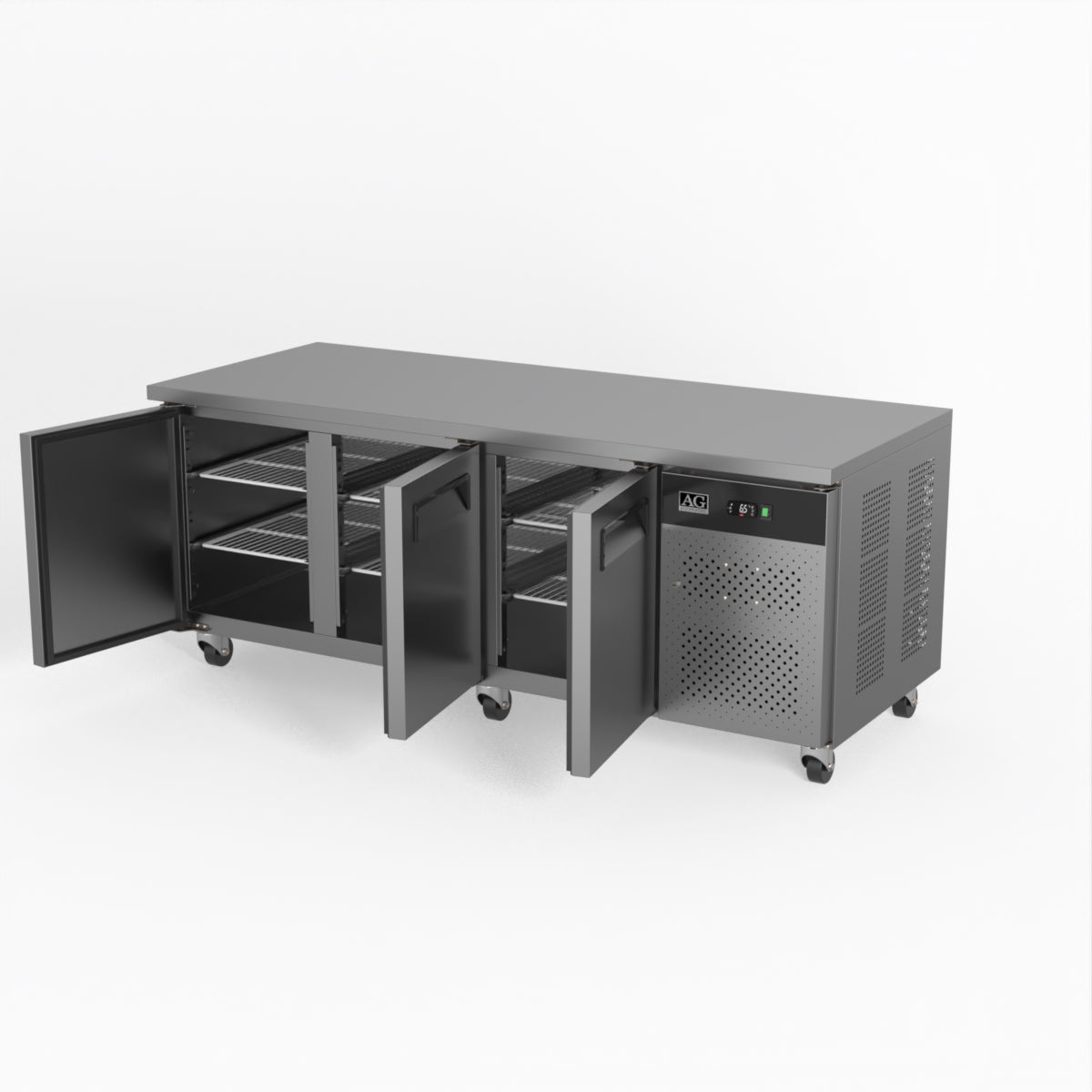

The AG Equipment PAX3100TN is an under bench fridge that puts 580 litres of refrigerated storage beneath a stainless worktop, with three solid self-closing doors for high-turnover prep lines in restaurants, cafes and pubs.
Why operators choose the PAX3100TN
-

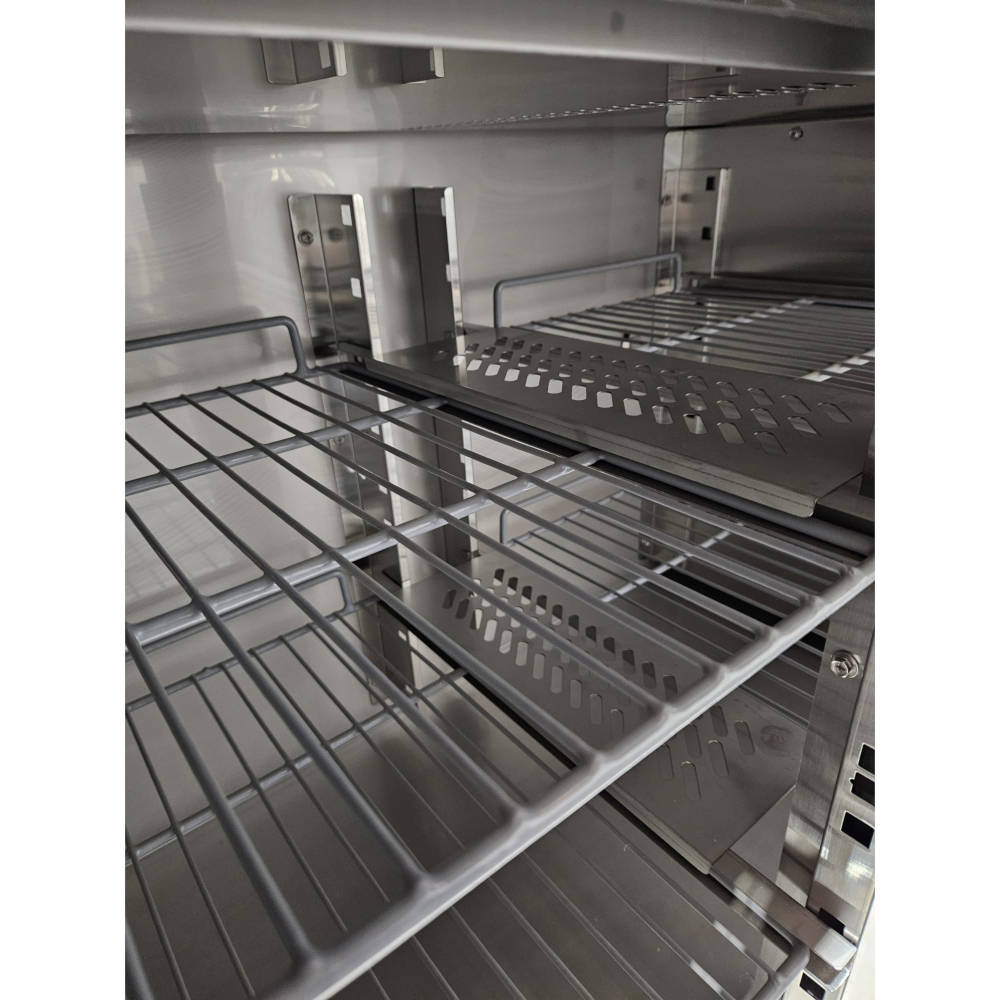

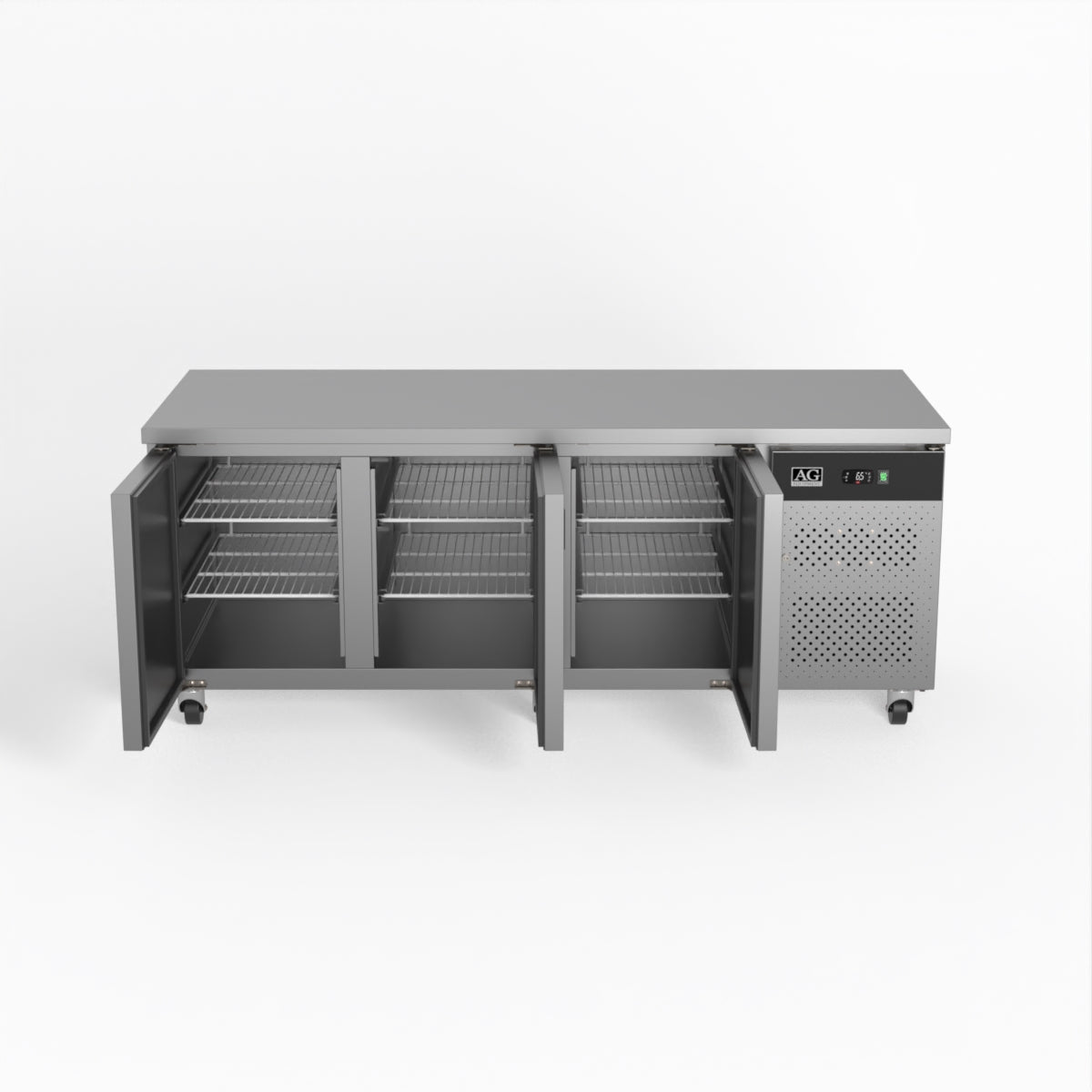

580 L across three doors — two adjustable wire shelves per door plus centre-shelf connectors use the full cabinet, so nothing is wasted between sections.
-
Tropical-rated to 43°C — holds +2°C to +8°C in ambient up to 43°C / 65% humidity, suited to hot Australian kitchens.
-
R290 natural refrigerant — non-toxic, ozone-friendly and efficient, helping lower running costs.
-

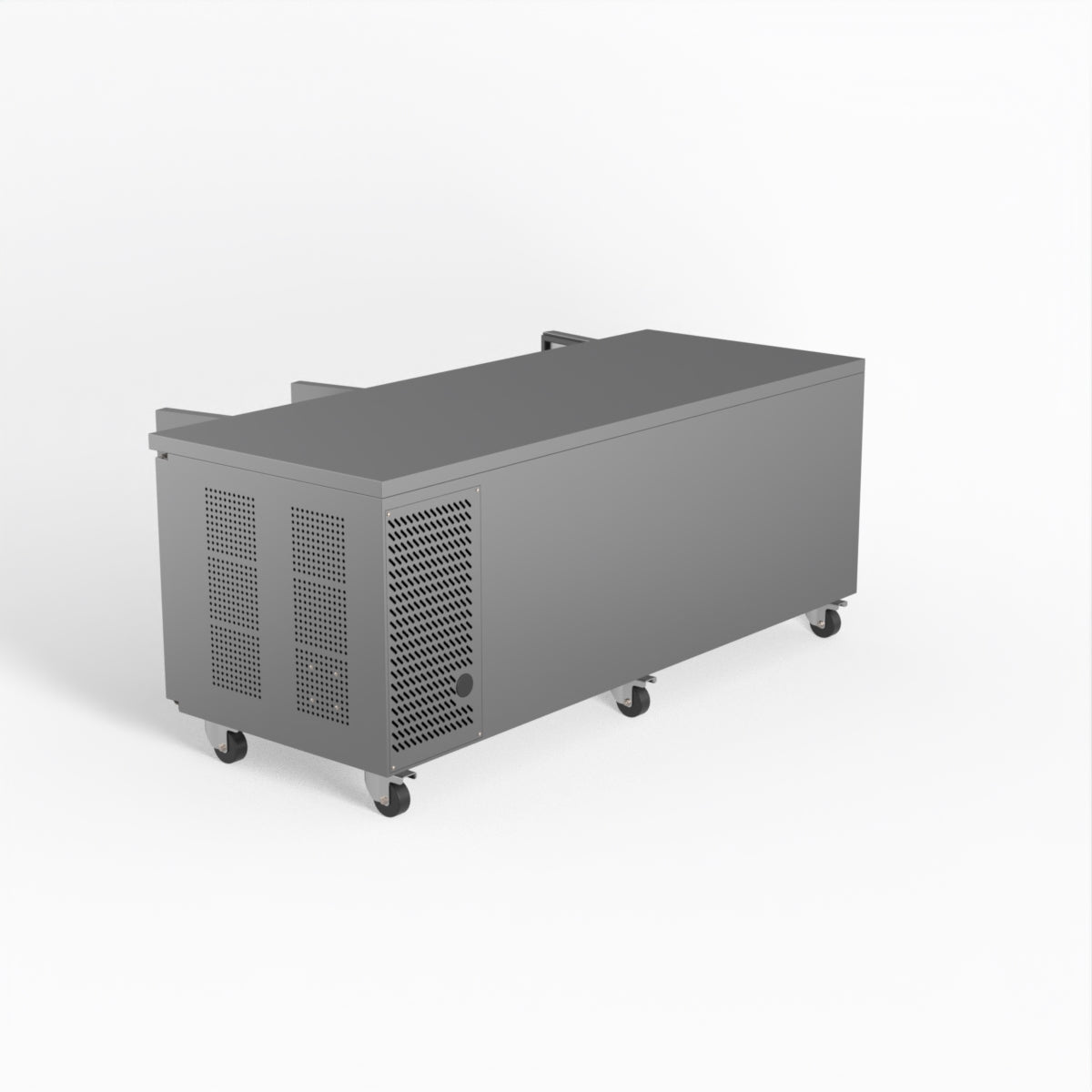

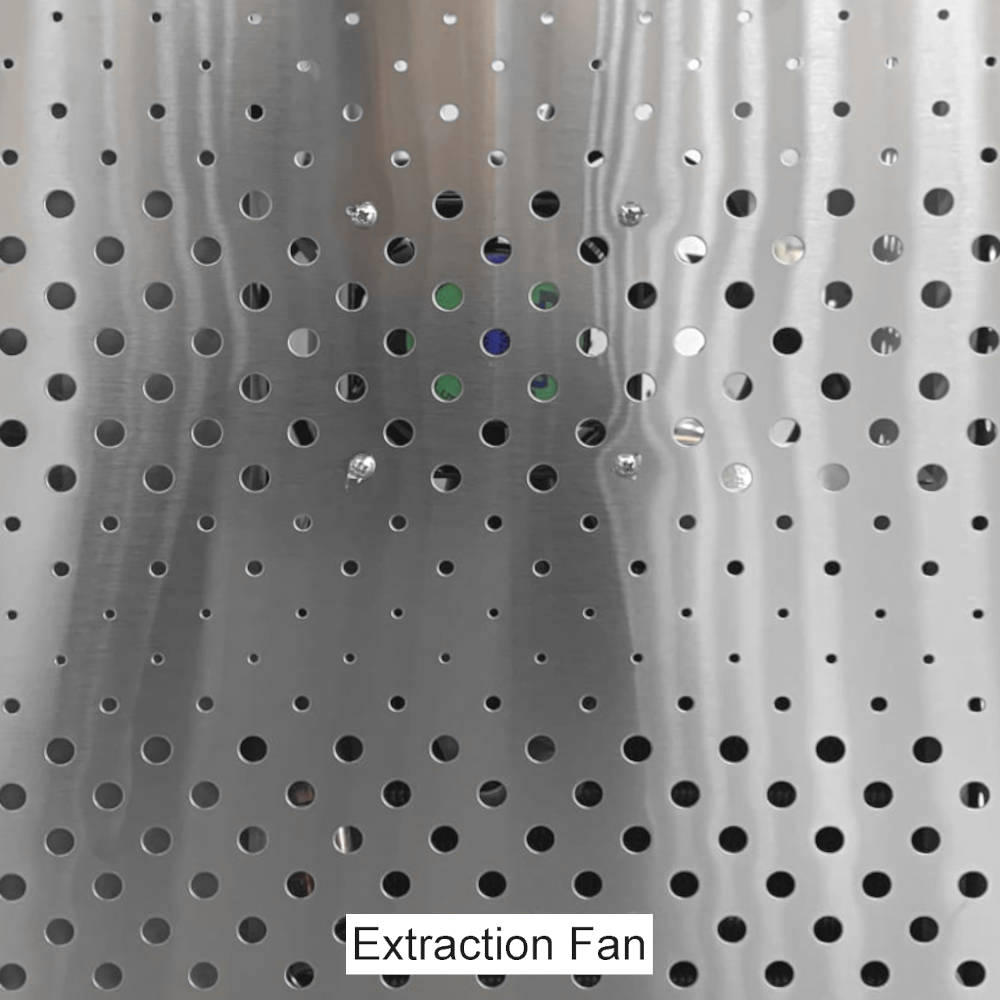

Fan-forced ventilated cooling — even temperature across all three sections with a front/side dual-fan layout that lets the unit sit flush to the wall.
-

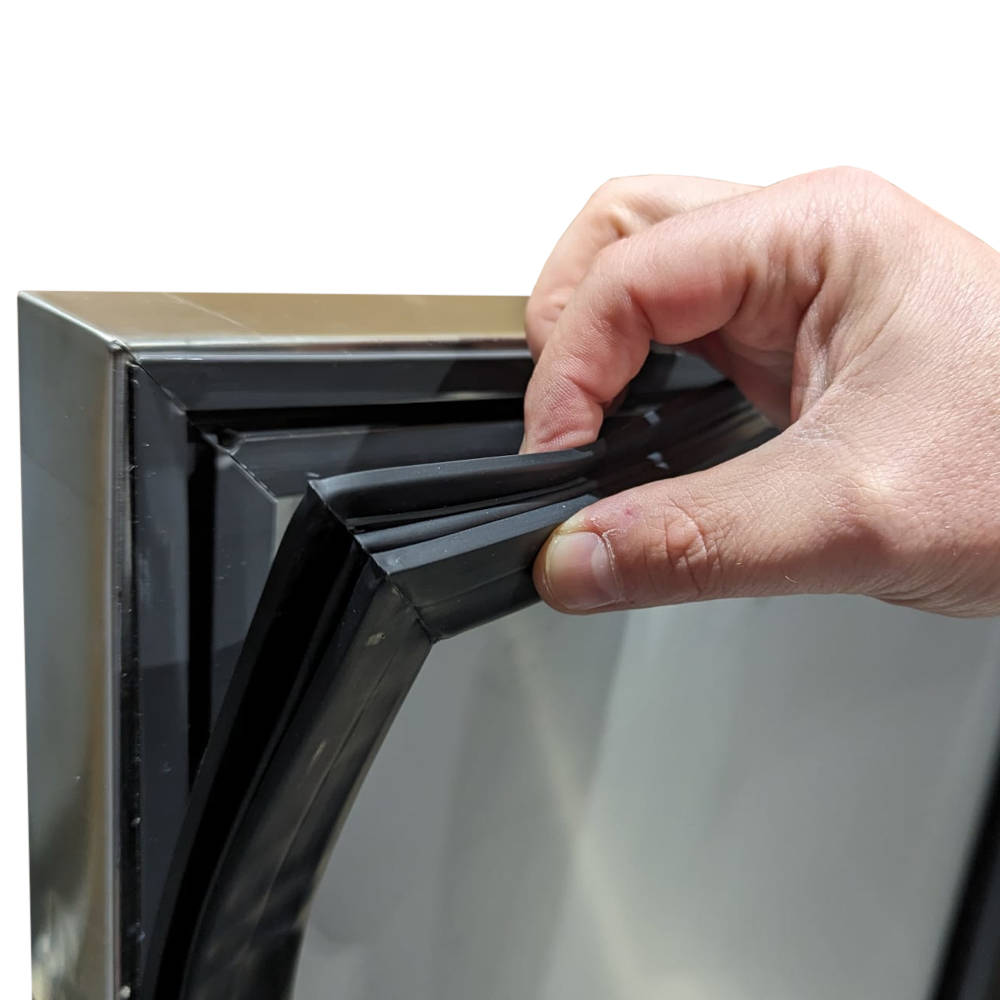

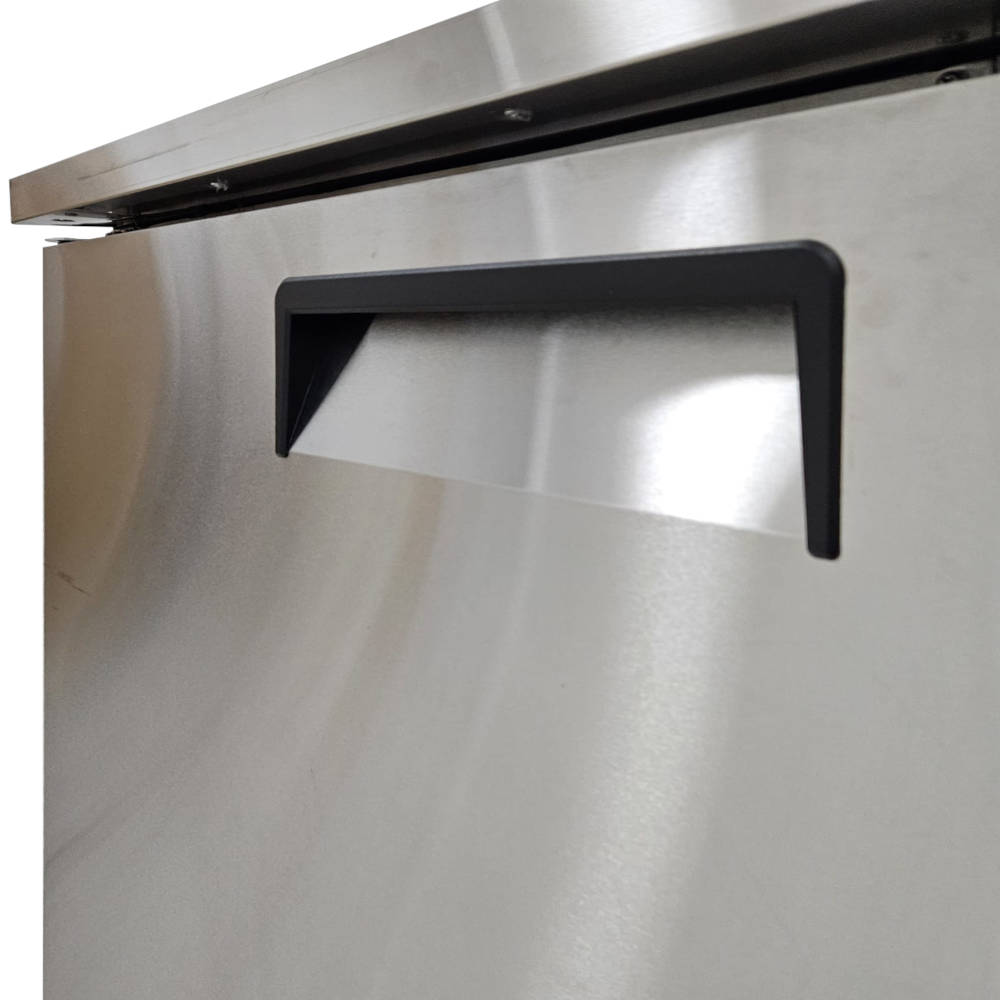

Worktop-height stainless build — heavy-duty stainless steel with self-closing doors and pre-fitted castors for easy positioning.
Specifications
| Brand |
AG Equipment |
| Model / MPN |
PAX3100TN |
| Type |
Under Bench Fridge |
| Capacity |
580 L |
| Doors |
3 solid doors |
| Shelves |
2 adjustable wire shelves per door + centre-shelf connectors |
| Temperature range |
+2°C to +8°C |
| Ambient rating |
43°C / 65% humidity |
| Refrigerant |
R290 / 85 g |
| Cooling |
Fan-forced ventilated |
| Power |
220–240V, 50Hz, 400W, 2.8A |
| Energy consumption |
5.1 kWh/24hr |

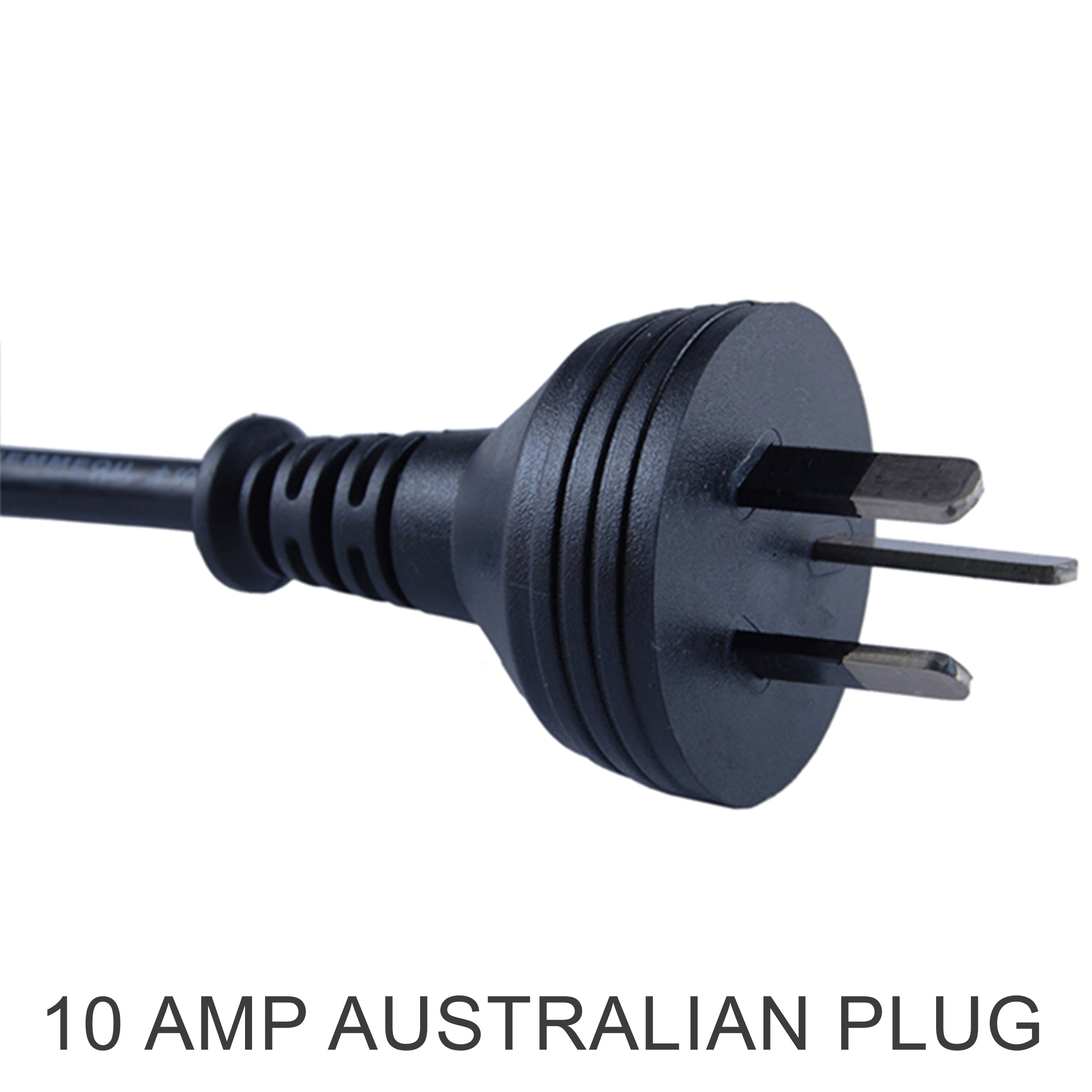

| Plug |
1 Phase — 10A |
| Material |
Stainless Steel |
| Product dimensions |
2020(W) x 800(D) x 850(H)mm |
| Internal dimensions |
1445 x 680 x 560mm |
| Package dimensions |
2050(W) x 830(D) x 910(H)mm |
| Net weight |
185 kg |
| Shipping weight |
225 kg |
| Warranty |
24 months parts & labour |
Venue suitability: Built for busy commercial kitchens — restaurants, cafes, pubs, function venues and catering prep areas that need refrigerated storage at bench height under the work line. Browse the full range of Under Bench Storage Fridges or see more refrigeration and prep gear from AG Equipment.

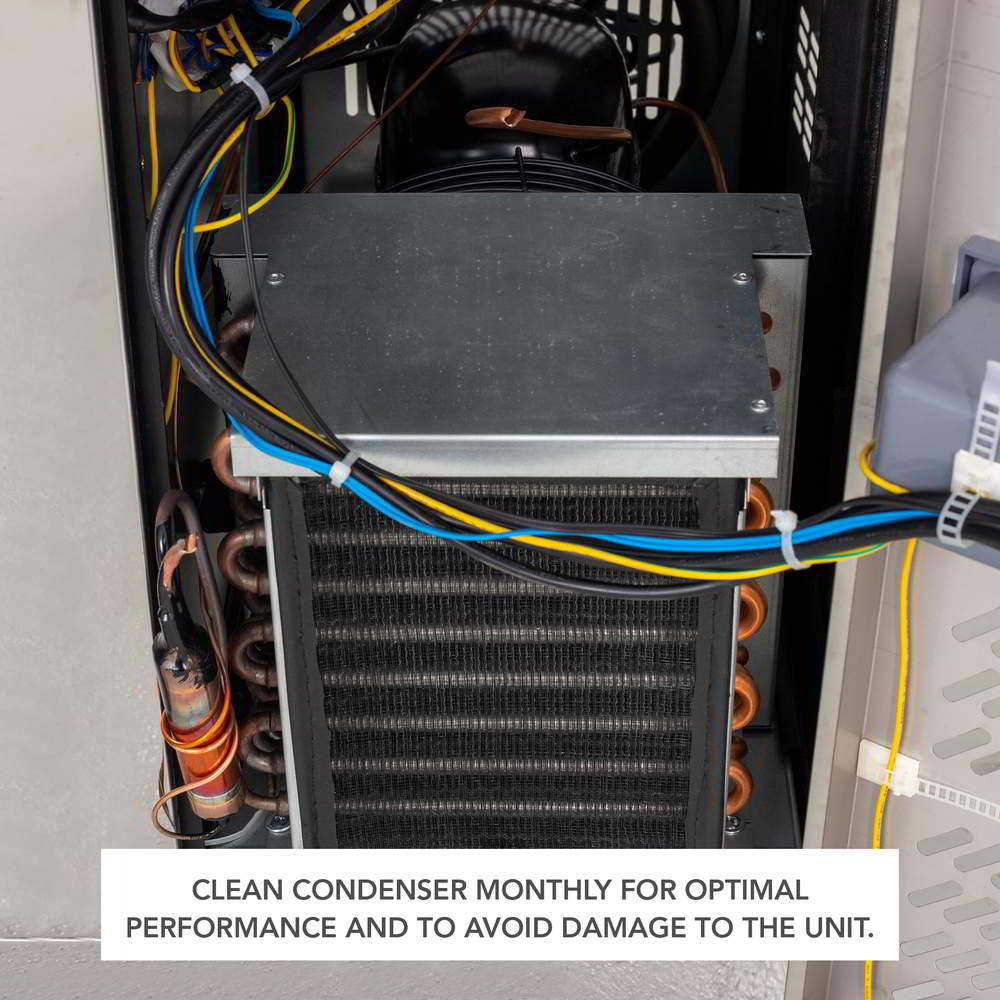

Installation & delivery: Allow 150mm clearance at the compressor side and front for ventilation; the dual-fan X-series design lets the cabinet sit flush to the back wall. Clean the condenser filter monthly for best performance. Dispatched Australia-wide.
Frequently asked questions
How much can the PAX3100TN hold? It offers 580 litres of refrigerated storage across three door sections, each with two adjustable wire shelves and centre-shelf connectors.
What temperature range does it run? It holds +2°C to +8°C, suited to general refrigerated storage of fresh produce, dairy and prepped ingredients.
Can it cope with a hot kitchen? Yes — it is tropical-rated to operate in ambient temperatures up to 43°C at 65% humidity.
What refrigerant does it use? It runs on R290, a natural, non-toxic, ozone-friendly hydrocarbon refrigerant chosen for efficiency and low environmental impact.
What warranty is included? It comes with a 24-month parts and labour warranty from AG Equipment, a trusted Australian supplier.
