Description

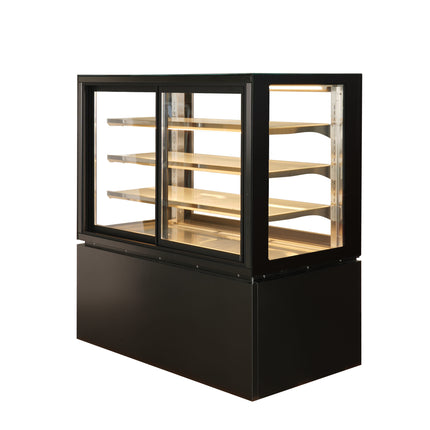

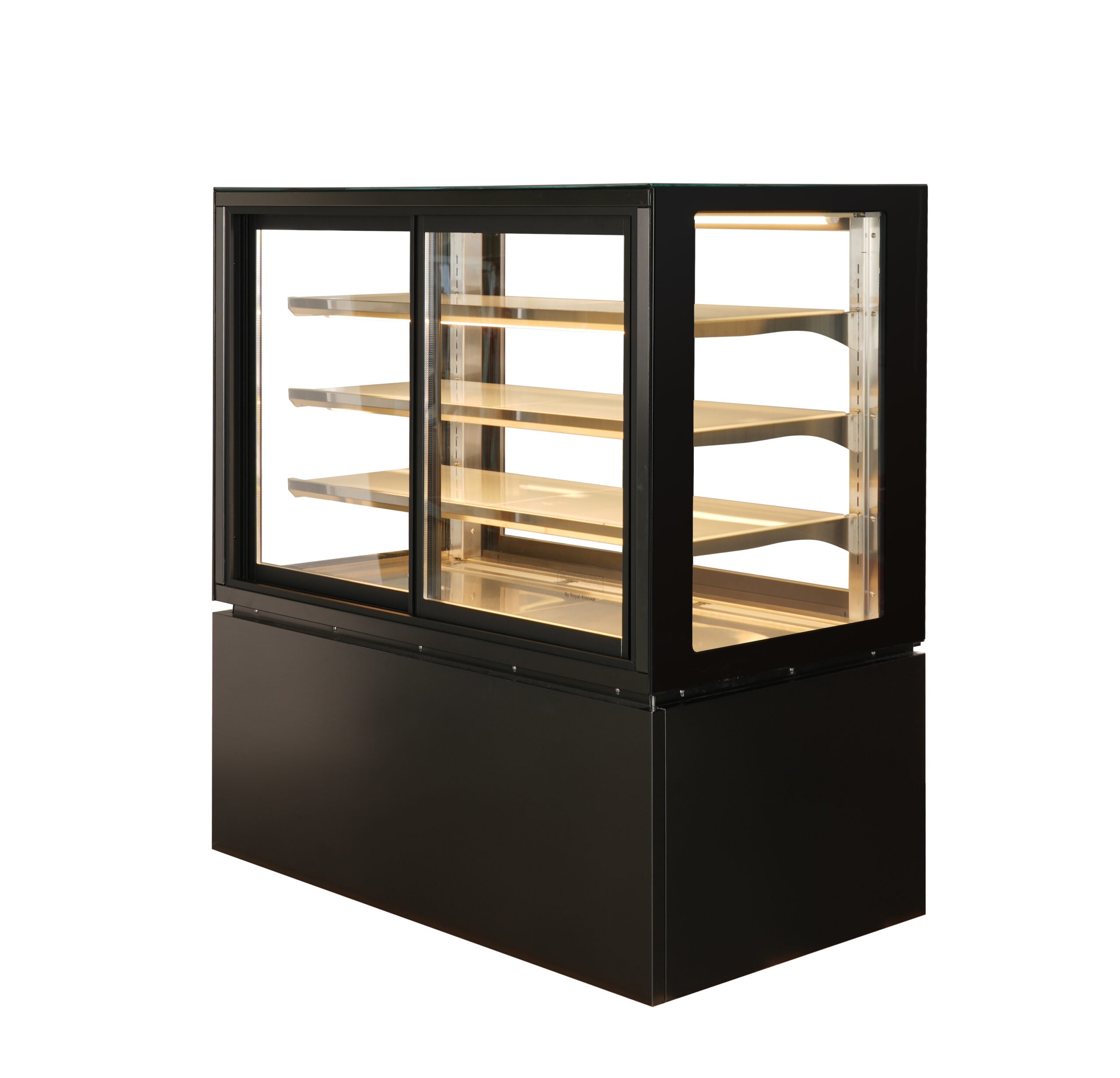

The Anvil NDSV4740SS is a 1200mm wide, 4 tier self service cake display that holds chilled product between 2°C and 8°C behind sliding doors front and rear — three levels of frosted glass shelves plus a stainless steel base shelf, wrapped in ITO heated tempered glass on a black brushed #304 stainless steel body.
Why operators choose the NDSV4740SS
- Sliding doors front and rear make it genuinely self service — customers help themselves while staff restock from behind
- Warm (3000K) / Cool (6500K) LED lighting modes, and the unit can run as an ambient display by turning on the lights only
- Ventilated cooling holds 2°C to 8°C in ambients up to 32°C at 82% RH, with auto defrost and eco-friendly R290 refrigerant
- ITO heated tempered glass front, top and sides keeps the 480 L display clear
- Easily accessible controller and cooling system, including a removable condenser filter for simple cleaning and maintenance
Specifications
| Brand |
Anvil |
| Model / MPN |
NDSV4740SS |
| Type |
Cake Display Fridge |
| Capacity |
480 L |
| Display levels |
3 x frosted glass shelves + stainless steel base shelf (4 tiers, adjustable shelving) |
| Doors |
Sliding doors front and rear (self service) |
| Temperature range |
2°C to 8°C |
| Ambient rating |
32°C at 82% RH |
| Cooling |
Ventilated cooling system |
| Defrost |
Auto defrost |
| Refrigerant |
R290 |
| Lighting |
Warm (3000K) / Cool (6500K) LED modes; ambient-display mode (lights only) |
| Glass |
ITO heated tempered glass front, top and sides |
| Power |
240V; single phase |
| External construction |
Black brushed #304 stainless steel body |
| External dimensions |
1200(W) x 680(D) x 1350(H)mm |
| Net weight |
280 kg |
| Warranty |
Double Gold Star Warranty 2 Years Parts & Labour |
| Country of manufacture |
China |
| Manufacture code |
NSR740VBF |
Venue suitability: Suited to cafes, bakeries, patisseries and delis that sell cakes, desserts and chilled grab-and-go items straight off the shop floor — the self-service sliding doors keep service moving without staff at the cabinet.
Compare the rest of our cake display fridges range, or see every unit in the Anvil collection at Commercial Kitchen Store.
Installation & delivery: Runs from a standard 240V single phase outlet; allow ventilation clearance for the ventilated cooling system and keep the removable condenser filter accessible for cleaning. Dispatched Australia-wide.
Frequently asked questions
What makes the Anvil NDSV4740SS self service?
It has sliding doors on both the front and the rear, so customers serve themselves from the front while staff restock from behind the counter.
What temperature does the NDSV4740SS hold, and in what conditions?
It holds 2°C to 8°C and is rated for ambient running temperatures up to 32°C at 82% relative humidity.
Can it be used as an ambient (non-refrigerated) display?
Yes — the unit can run as an ambient display by turning on the lights only, with a choice of warm (3000K) or cool (6500K) LED modes.
What refrigeration system does it use?
A ventilated cooling system on eco-friendly R290 refrigerant with auto defrost, plus a removable condenser filter for easy maintenance.
What warranty comes with the NDSV4740SS?
Anvil's Double Gold Star Warranty — 2 years parts and labour.
