Description

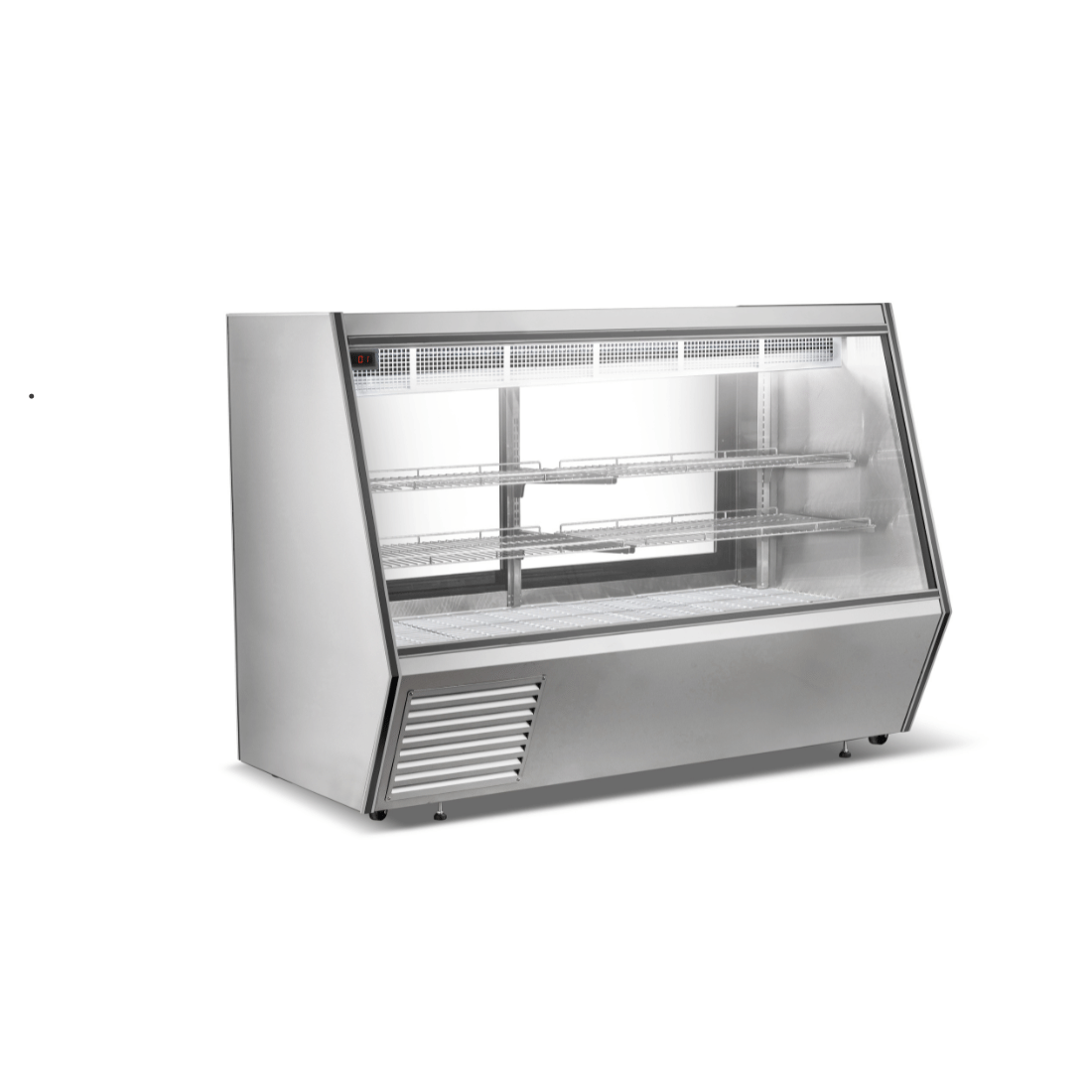

The Bonvue AMS-21 is a large-format refrigerated deli, meat and seafood display case designed for high-volume commercial operations. Spanning 2123mm wide, it combines a slanted double-pane tempered glass front with LED shelf lighting and double gravity coil cooling to keep perishables at consistent temperature while maximising visual appeal for customers.
Why operators choose the AMS-21
-
Double gravity coil cooling — delivers even, consistent refrigeration across the full display length, ideal for meat, deli, and seafood
-
Slanted double-pane tempered glass front — clear, unobstructed product visibility while maintaining cold integrity
-
Individually wired LED shelf lights — illuminates product at shelf level for maximum visual impact without generating excess heat
-

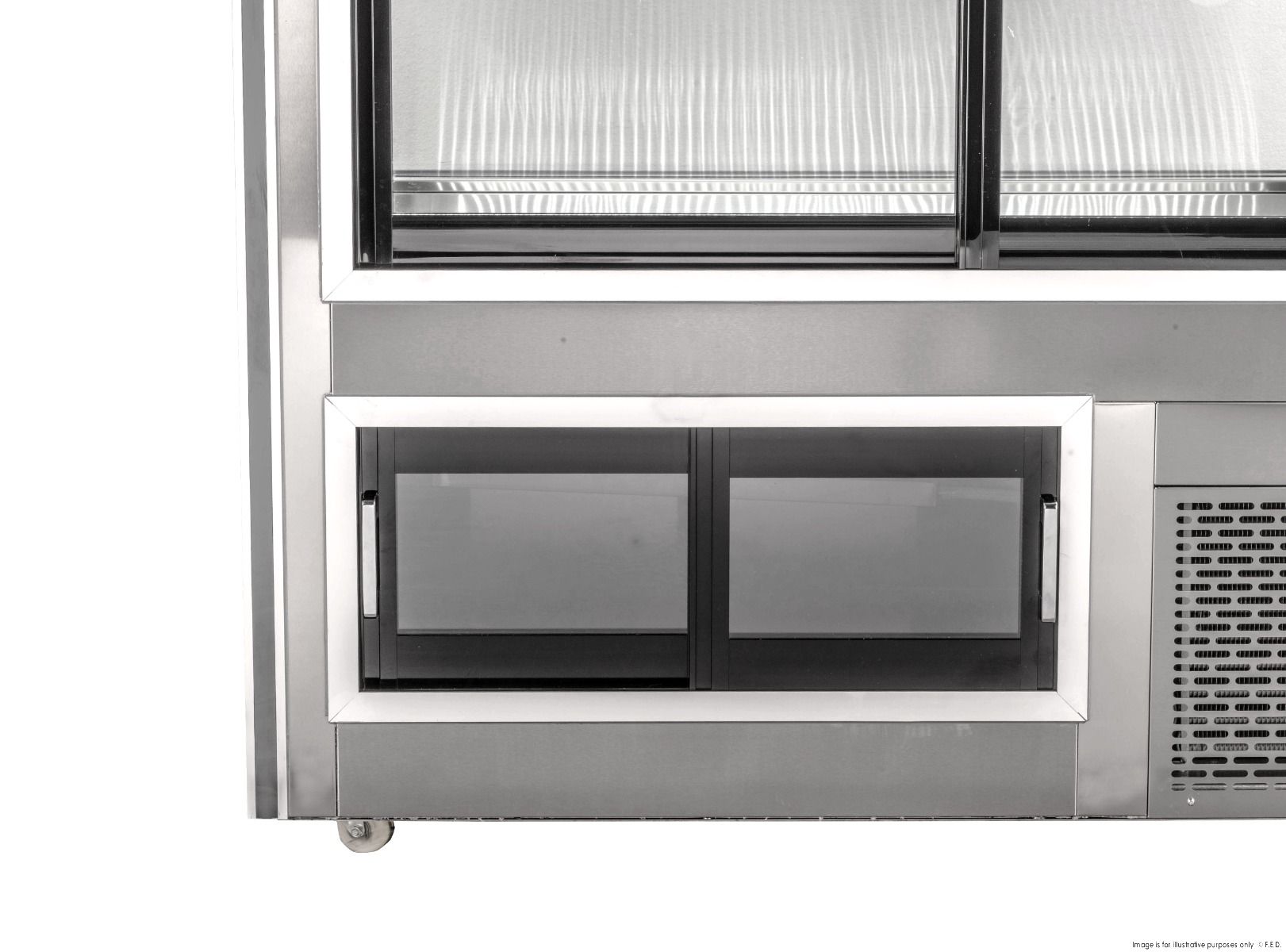

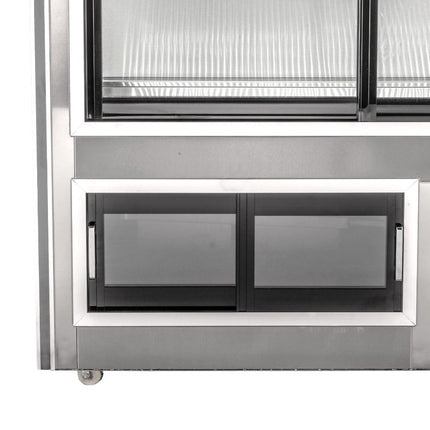

Insulated sliding rear doors — fast staff access to the display area while retaining cold air
-
Auto defrost timer — prevents ice build-up automatically, reducing maintenance intervention
-
Self-contained unit — no plumbing required; plug-in installation minimises setup cost and downtime
Specifications
| Brand |
Bonvue |
| Model / MPN |
AMS-21 |
| Type |
Refrigerated Deli Display Case |
| Gross Volume |
1443 L |
| Width |
2123 mm |
| Depth |
855 mm |
| Height |
1406 mm |
| Packed Dimensions |
915(W) x 2285(D) x 1560(H) mm |
| Net Weight |
230 kg |
| Power |
240V, 450W / 10A |
| Power Type |
Electric |
| Glass |
Double pane tempered (slanted front) |
| Lighting |
LED (individually wired shelf lights) |
| Cooling System |
Double gravity coil |
| Rear Access |
Insulated sliding rear doors |

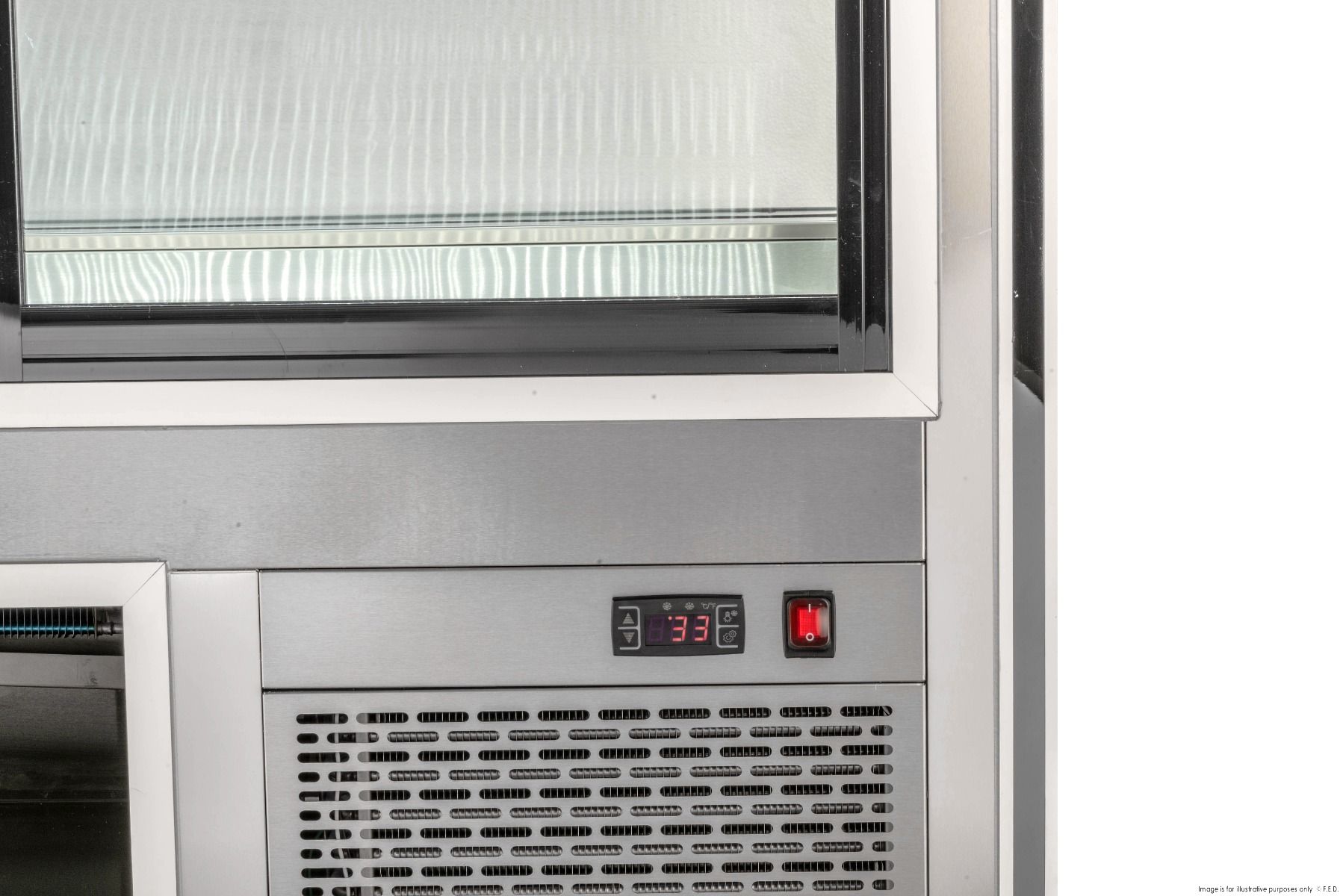

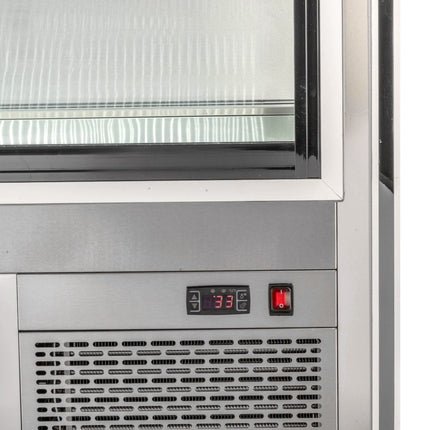

| Defrost |
Auto timer |
| Construction |
Stainless steel body, stainless steel interior floor and grille |
| Plumbing Required |
No (self-contained) |
| Warranty |
1 Year Parts & Labour + 1 Year Parts Only (register within 14 days of invoice) |
Venue suitability: The AMS-21 suits butcher shops, seafood retailers, delicatessens, supermarkets, and hospitality venues requiring a large, high-visibility refrigerated display for meats, prepared foods, and seafood. Its 2123mm footprint and 1443 L gross volume make it ideal for busy service environments where presentation and product volume both matter. Explore our full range of Deli Display Fridges or browse all Bonvue refrigeration equipment.
Installation & delivery: The AMS-21 is a plug-in unit requiring no plumbing — simply position, connect to a standard 240V outlet, and it is ready for use. Recommend a dedicated circuit given the 10A draw. Dispatched Australia-wide.
Frequently asked questions
Does the AMS-21 require plumbing or drainage?
No. The AMS-21 is a fully self-contained unit. It requires only a standard 240V/10A power connection — no water supply or drain line is needed.
What is the gross display volume of the AMS-21?
The AMS-21 has a gross volume of 1443 L, making it one of Bonvue's largest deli display cases and suited to high-throughput retail and hospitality settings.
What type of glass does the AMS-21 use?
The front panel features double-pane tempered glass set at a slanted angle for maximum product visibility and safe, clear display.
How does the lighting work?
The AMS-21 uses LED lighting with individually wired shelf lights, which illuminate product at each shelf level while minimising heat contribution to the display cabinet.
What warranty does the AMS-21 carry?
The AMS-21 comes with 1 Year Parts & Labour plus a further 1 Year Parts Only warranty — a total of 24 months of coverage — when the product is registered within 14 days of invoice date.
