Description

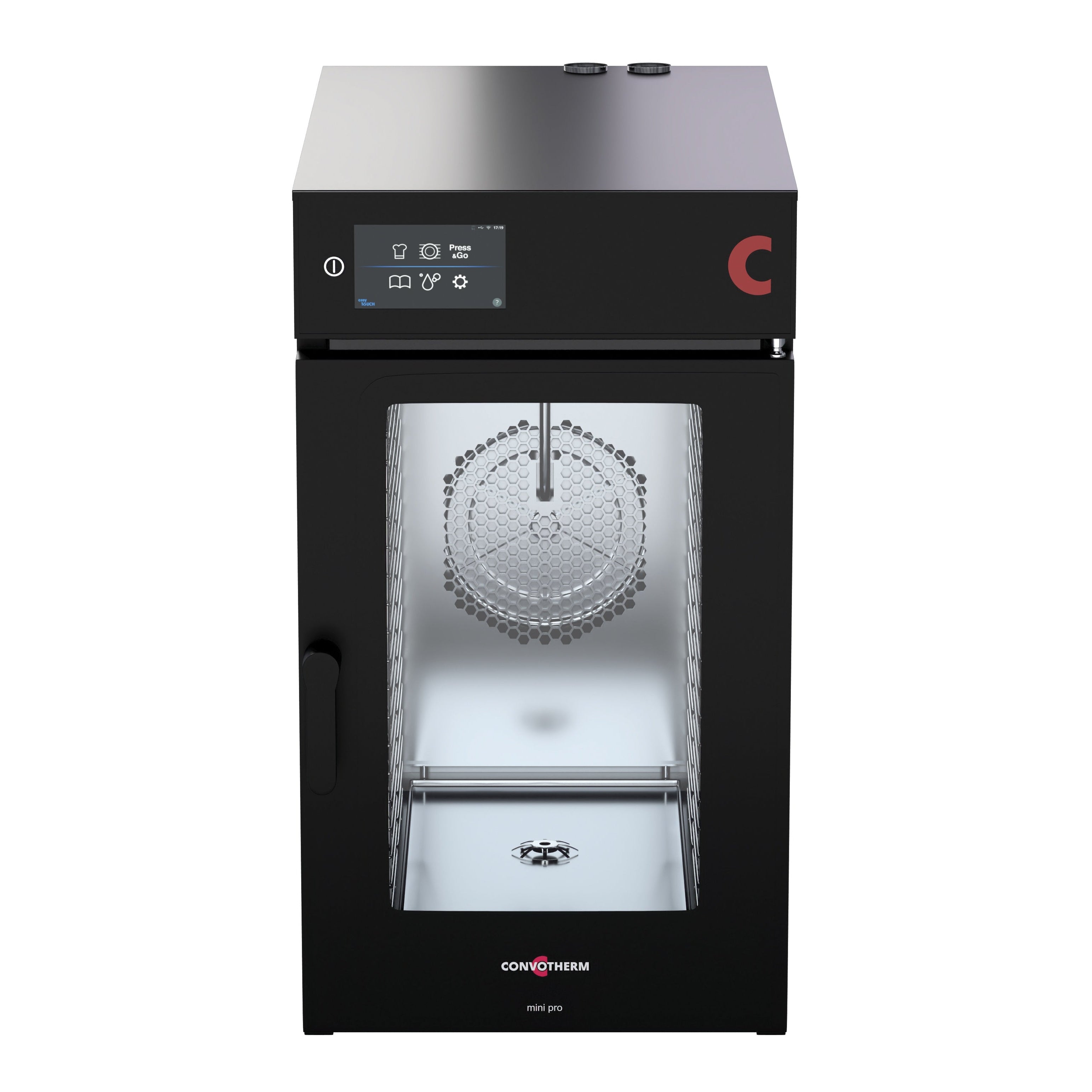

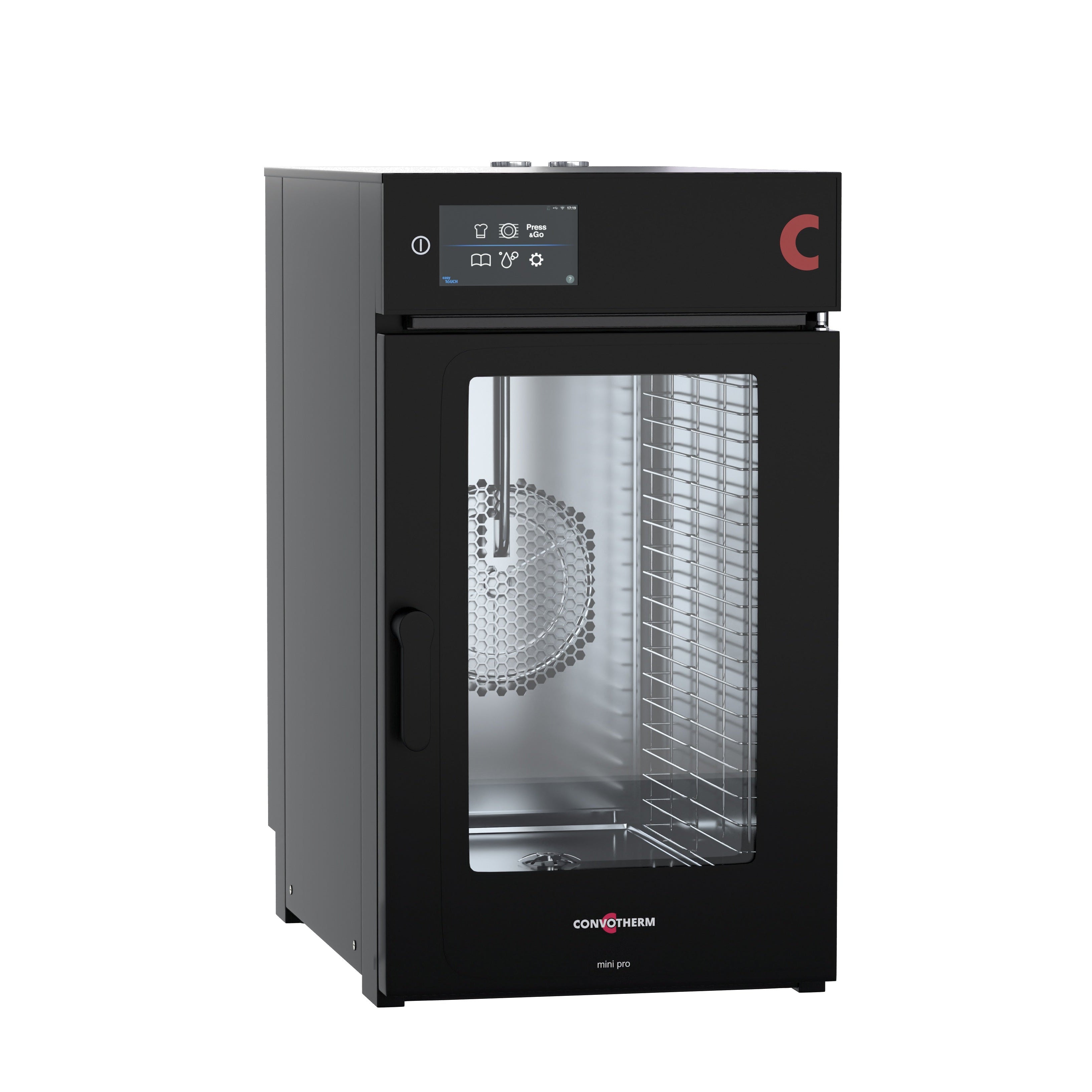

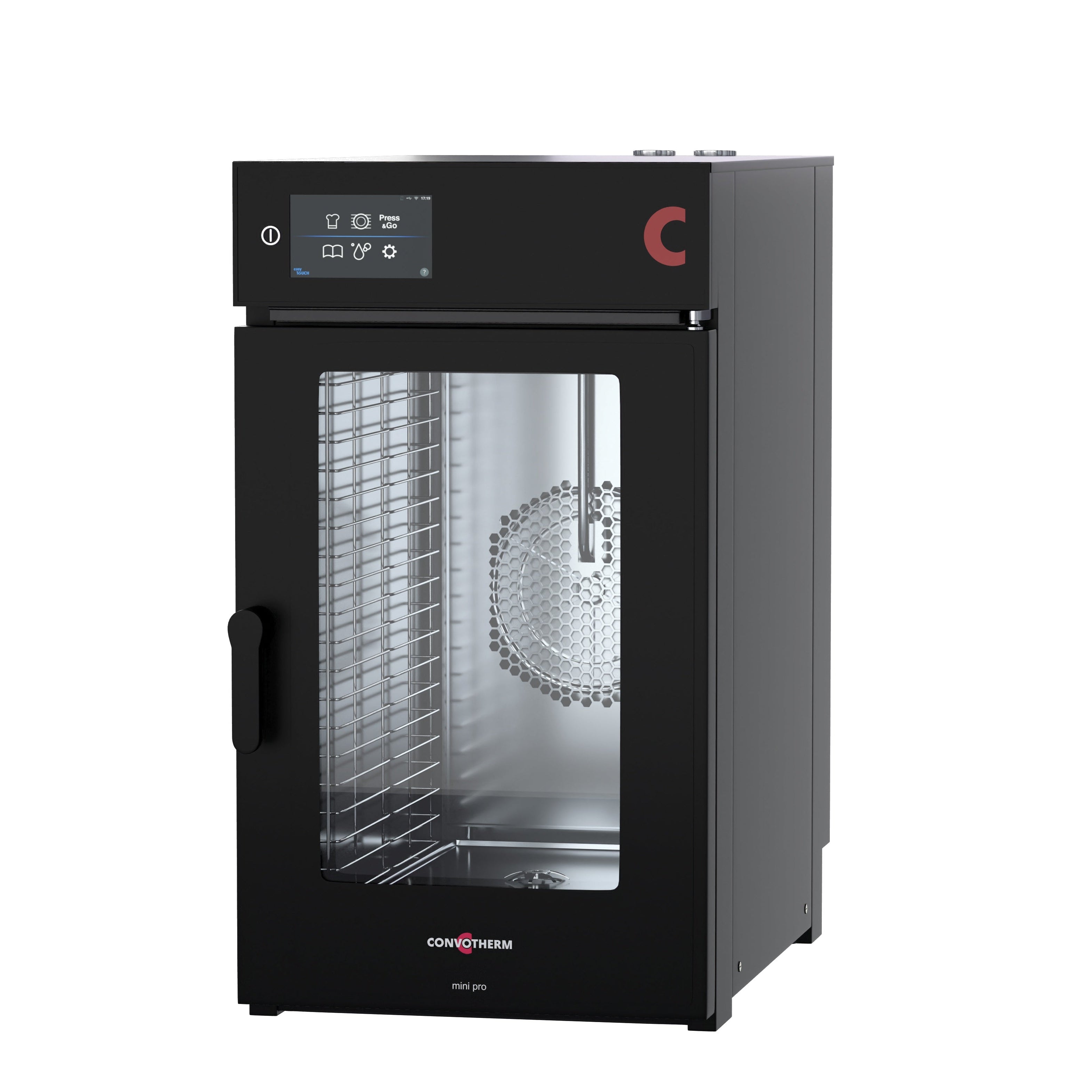

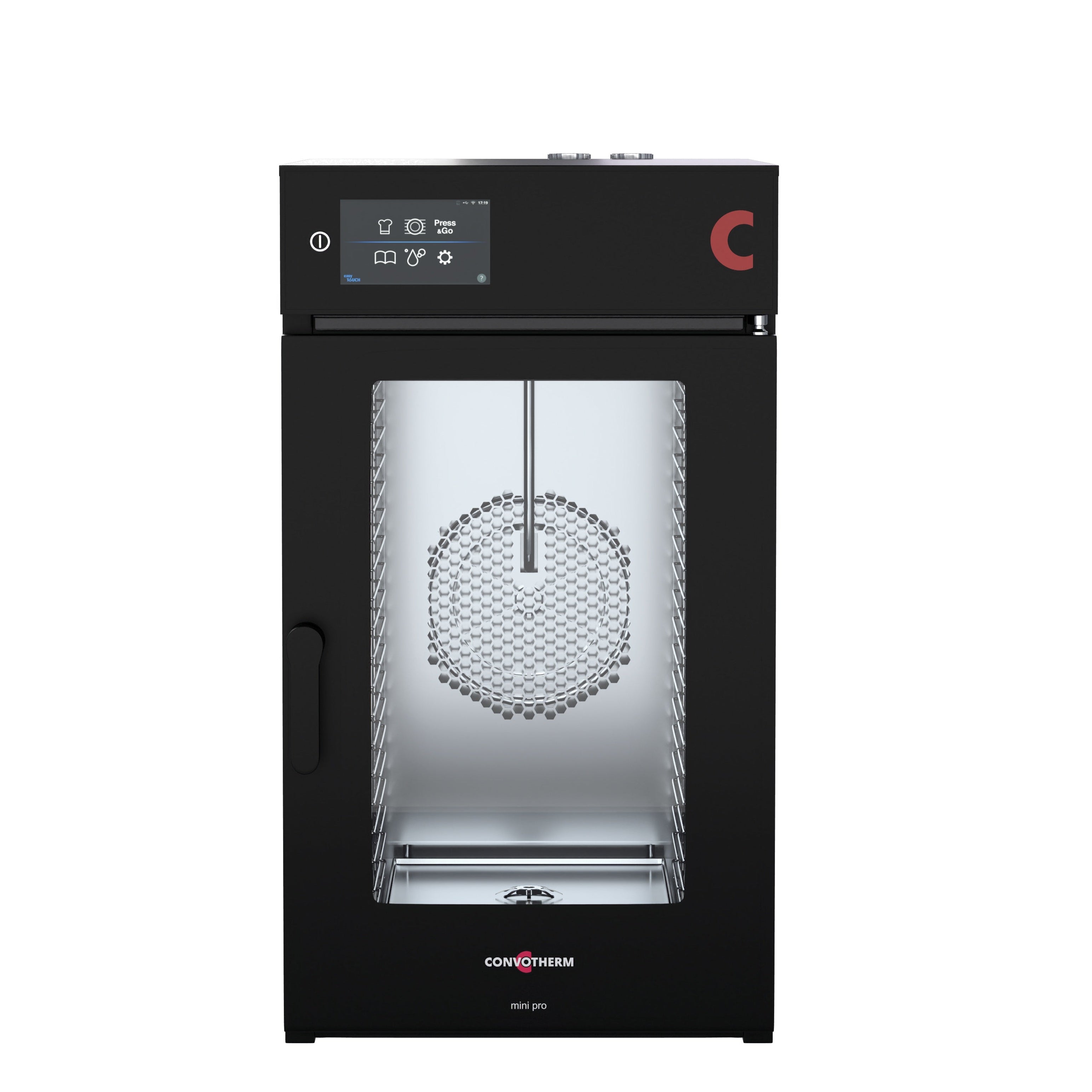

Convotherm mini pro easyTouch Combi Steamer CMINIPRO10.10-B ELECTRIC DIRECT STEAM 10 X 1/1 GN
· Direct steam system
· Cooking methods: Steam, Combi-steam, Convection
· Extra functions:
– Crisp&Tasty - 5 moisture removal settings
– HumidiftyPro - 5 humidity settings
– BakePro - 5 levels of traditional baking
– Controllable fan - 5 speed settings
– AirFry mode

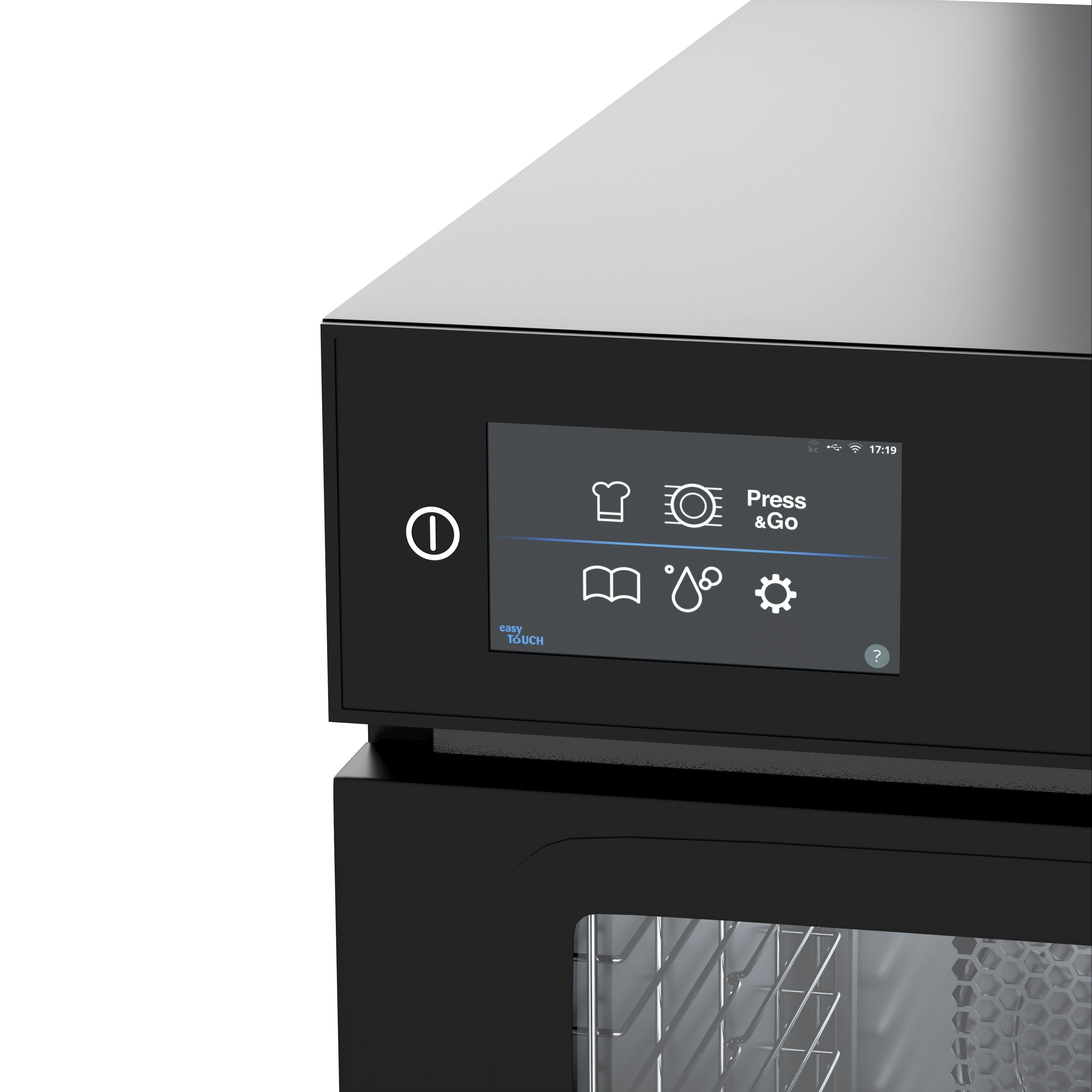

· easyTouch 7” TFT HiRes glass touch display (capacitive)
· ConvoClean S2L integrated cleaning system
· HygieniCare
· EasyStack - seamless stacking of two appliances
· MaxiCavity - best ratio for cooking chamber volume toappliance size
· Ethernet interface (LAN) and WiFi module (accessory)
· Multipoint core temperature probe
· LED lighting in oven cavity
· Triple glass appliance door and safety catch
· Integrated recoil hand shower
· Right-hinged appliance door
Standard Features
· Cooking methods:
– Steam (30-130°C) with guaranteed steam saturation
– Combi-steam (30-250 °C) with automatic moisture control
– Convection (30-250 °C) with optimised heat transfer
– Regenerating function
· Operation of easyTouch user interface:
– 7” TFT HiRes glass touch display (capacitive)
– Intuitive, image-based user guidance
– TriColor indicator ring - indicates the current operating status
– Smooth-action, quick reacting scrolling function
· Climate Management
– Intelligent Steam Management, HumidityPro, Crisp&Tasty, AirFlowPro
· Quality Management
– BakePro, AirFry Mode
– Preheat and cool down function
· Production Management
– Automatic cooking with Press&Go with up to 399 cooking profiles
– Integrated cookbook with 7 different categories
– TrayTimer – load management for different products at the same time
– TrayView – load management for automatic cooking of different products using Press&Go
– Favourites management
– HACCP data storage
– ecoCooking – energy-save function
– LT cooking (low temperature cooking) / Delta-T cooking
– Cook&Hold – cook and hold in one process
– Autostart – start time preselection
– Add steam
– Regenerate - flexible multi-mode rethermalisation function with preselect
– Manager and crew mode with password protection
– Energy and water consumption display
· Cleaning Management:
– ConvoClean S2L unique integrated space saving Solid2Liquid cleaning system with cleaning cartridges - contactless, compact, biodegradable, space saving
– 3 intensity levels - express, QuickRinse, DryingStep, CareStep & Eco cleaning
– Safe Cool Down function before cleaning (when door is closed)
– Cleaning profiles can be set individually as favourites
– Cleaning calendar with option for activating forced cleaning
• HygieniCare:
– Hygienic handles (door and hand-shower handles)
– Hygienic Steam function
· Appliance rests flush on the installation surface for improved hygiene
· Side panels and rear panel completely removable for easy service access
· EasyRack - rack for loading US and GN baking trays
· IPX5 rated
DIMENSIONS
Width 498 mm
Depth 793mm
Height 894 mm
Weight 87 kg
PACKED DIMENSIONS
Width 580 mm
Depth 910 mm
Height 1060 mm
Weight 102 kg
Safety clearances*
Right 50 mm
Left 50 mm
Top (for ventilation)** 500 mm
*Heat sources must lie at a minimum distance of 500mm from the appliance.
**Depends on type of air ventilation system and nature of ceiling.
INSTALLATION REQUIREMENTS
For precise installation instructions please refer to the units installation manual
LOADING CAPACITY
Shelf distance 67mm
GN 1/1 flat 10
GN 1/1 (40-65mm deep) 8 Plates max.Ø26cm 16
Max. loading weight
Per combi steamer 32 kg
Per shelf 5 kg
ELECTRICAL SUPPLY
3N~400-415V~50/60Hz (3P+N+E)
Connected load 10.9kW
Rated current 15.2A
Fuse 16A
RCD (GFCI), frequency converter Type A.
Special voltage options available on request. Connection to an energy optimisation system as standard.
WATER CONNECTION
Water supply
G 3/4’’ permenent connection.
Flow pressure 150 - 600 kPa (1.5 - 6 bar)
Appliance drain
Drain version Permanent connection (recommended) or funnel waste trap
Type DN40 (Ø40mm)
Slope for waste-water pipe min. 5% (3°)
Water consumption
Ø Consumption for cooking 0-20l/h
Max. water flow rate 10 l/min
WATER QUALITY
Drinking water
(install water treatment system if necessary). Treated tap water for water
injection. Untreated tap water for cleaning, recoil hand shower
EMISSIONS
Heat output
Latent heat 1400 KJ/h
Sensible heat 2100 KJ/h
Noise during operation max. 70 dBA
SKU: CMINIPRO10.10-B
