Description

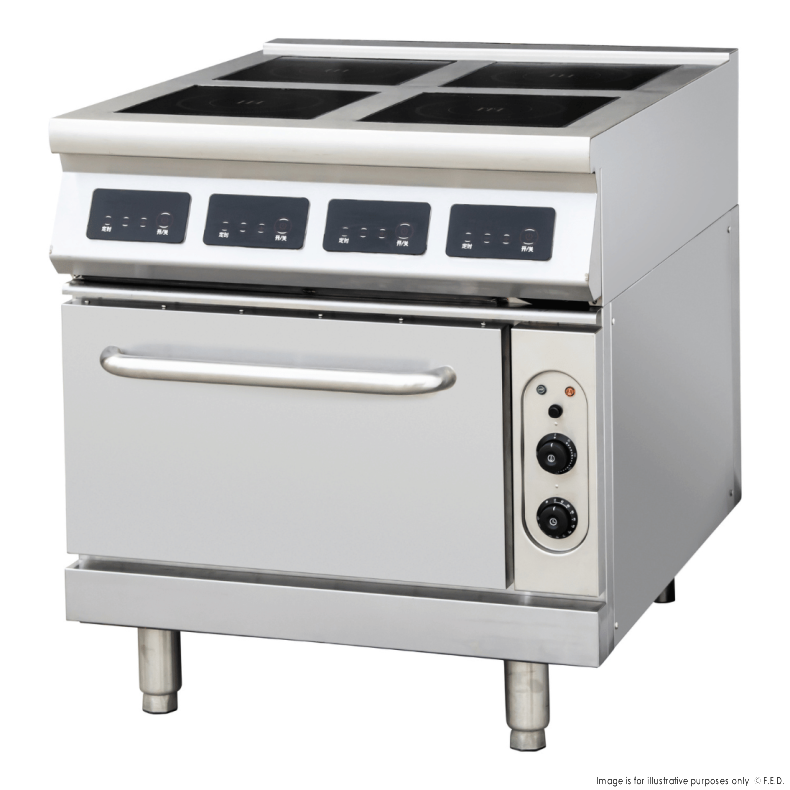

The ElectMAX IC9-4B is a commercial induction range that pairs four independently controlled induction cooking zones with an integrated electric convection oven, giving a busy kitchen a complete cook-and-bake station in a single 800mm-wide footprint.
Why operators choose the IC9-4B
- Four induction zones, each delivering 3.5–5 kW, for fast, energy-efficient and responsive heat
- Integrated electric convection oven (50–300°C) with shelf and tray, 120-minute timer and 360°C high-limit thermostat
- Touch-screen control with adjustable time and power settings on each zone
- Durable all-stainless construction with a 2.0mm-thick top and heavy-duty adjustable legs
- Takes cast iron, A3 iron and stainless pots from 120mm diameter and above
Specifications
| Brand |
ElectMAX |
| Model / MPN |
IC9-4B |
| Type |
Induction range with convection oven |
| Cooking zones |
4 induction zones |
| Power per zone |
3.5–5 kW |
| Induction power |
18.5 kW |
| Oven power |
4.5 kW |
| Voltage / phase |
415V, 3 phase + neutral (18.5/3~N) |
| Oven temperature range |
50–300°C |
| Oven dimensions |
570 x 700 x 300 mm |
| Ceramic glass (per zone) |
298 x 298 x 4 mm |
| Construction |
Stainless steel, 2.0mm top |

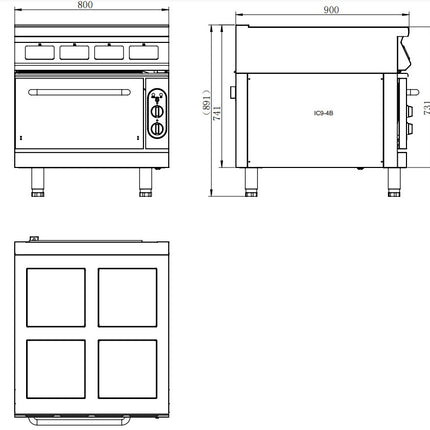

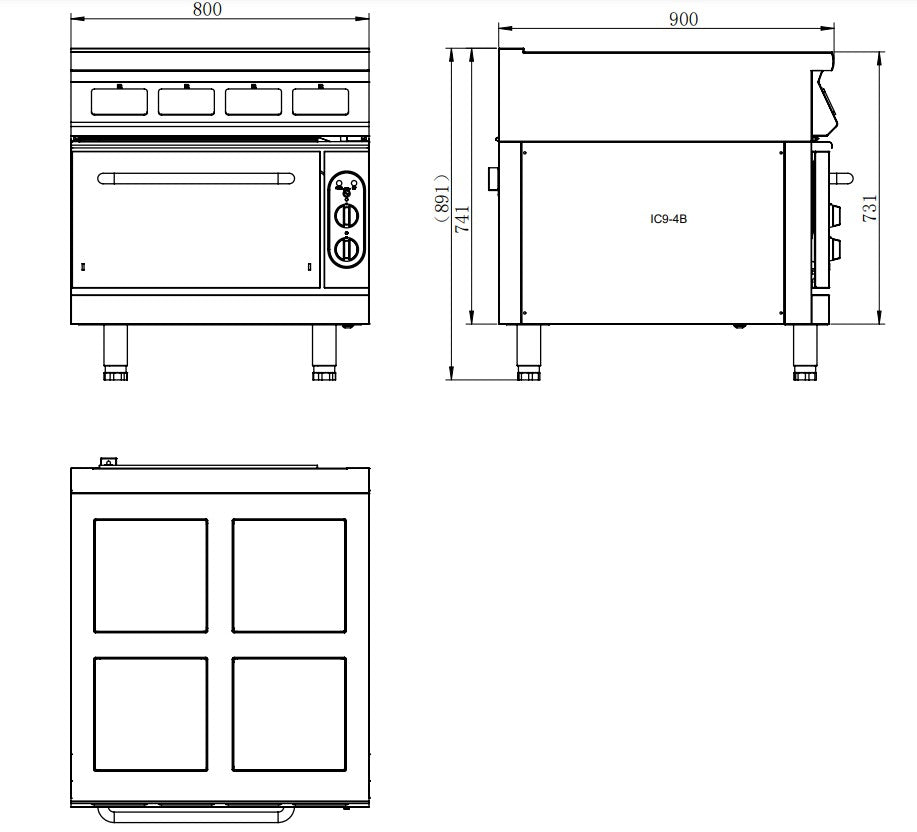

| Product dimensions |
800(W) x 900(D) x 891(H) mm |
| Packed dimensions |
920(W) x 1050(D) x 1110(H) mm |
| Net weight |
132 kg |
| Country of manufacture |
China |
| Warranty |
2 years parts & labour plus 2 years parts only (registered within 14 days) |
Venue suitability: Ideal for high-output restaurant, hotel, club and institutional kitchens that want induction speed and energy efficiency on the cooktop with the flexibility of an on-board convection oven. Browse the full induction cooking range or see every model in the ElectMAX collection to compare configurations.
Installation & delivery: Requires a 415V three-phase supply and professional connection. Dispatched Australia-wide.
Frequently asked questions
How many cooking zones does the IC9-4B have? It has four independent induction zones, each rated 3.5–5 kW, for a total induction power of 18.5 kW.
What oven is built into the IC9-4B? An integrated electric convection oven with a 50–300°C range, oven shelf and tray, a 120-minute timer with bell and a 360°C high-limit safety thermostat.
What power supply does it need? A 415V three-phase plus neutral supply (18.5/3~N); the oven adds 4.5 kW.
What cookware works on the induction zones? Cast iron, A3 iron and stainless steel pots 120mm in diameter and above.
What warranty is included? 2 years parts and labour plus 2 years parts only when the product is registered within 14 days of invoice.
SKU: IC9-4B
In Stock
