Description

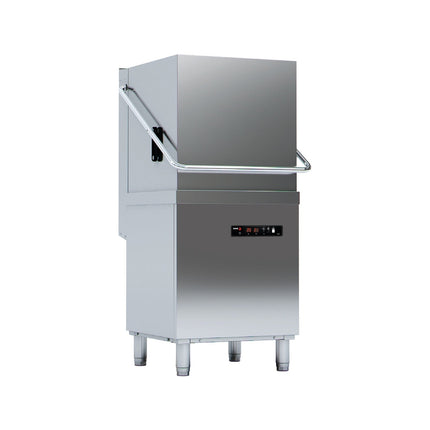

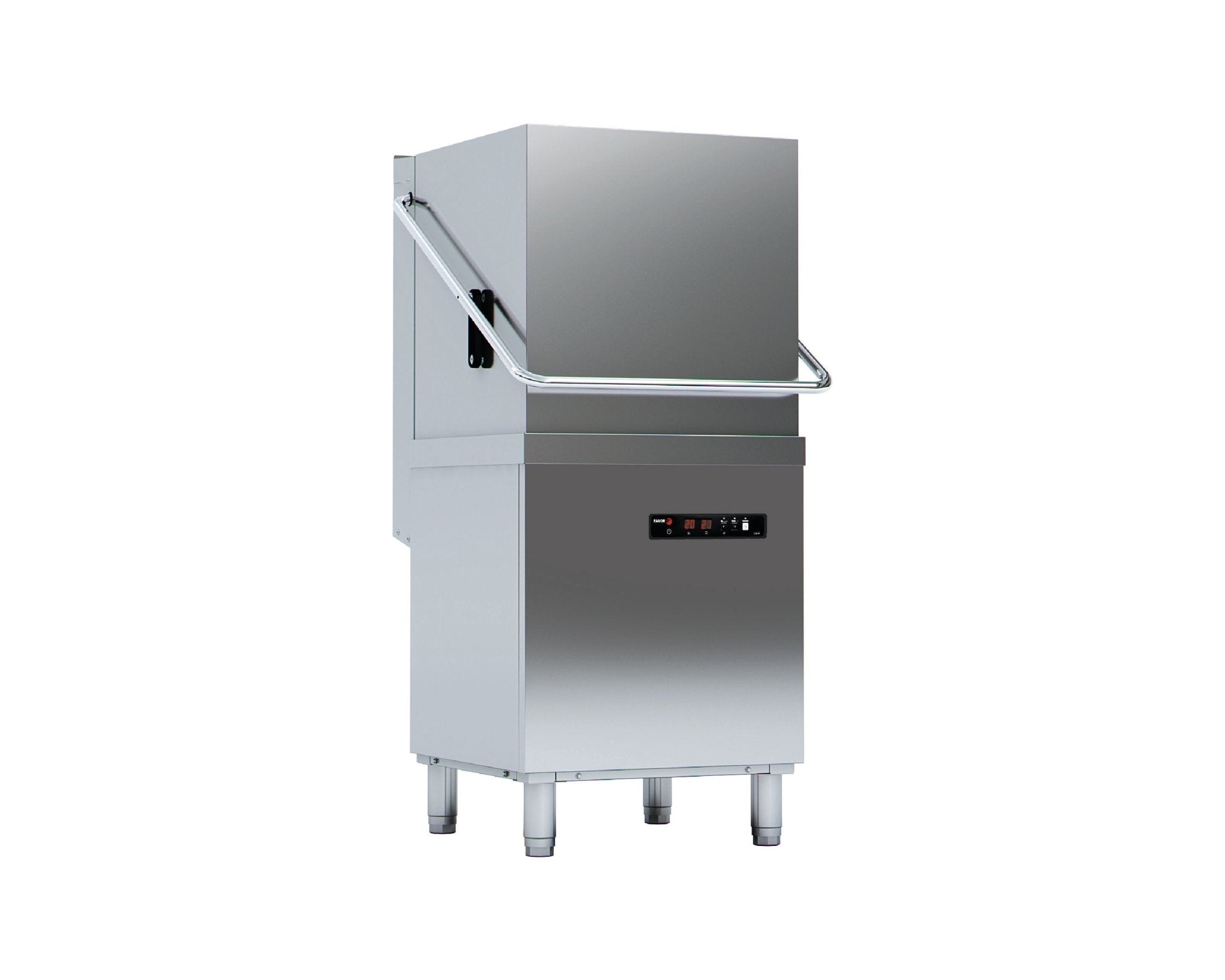

The Fagor CO-142BDD is a passthrough (hood-type) commercial dishwasher from the EVO-Concept range, built for high-volume warewashing in restaurants, pubs and catering kitchens. The counterbalanced hood lifts to load a basket, lowers to wash, and lifts again to unload — a fast, ergonomic cycle at a comfortable working height.
Why operators choose the CO-142BDD
-
65 baskets per hour — up to 1170 dishes/hour to clear peak service without a backlog.
-
Three selectable wash cycles (55 / 75 / 120 seconds) — match cycle time to soil level and throughput.
-
Low water use at 2.4 litres per rinse — the EFFI-RINSE system rinses cleanly even on low-pressure mains.
-
Double rotating AISI-304 wash and rinse arms — full coverage and corrosion resistance for intensive daily use.
-

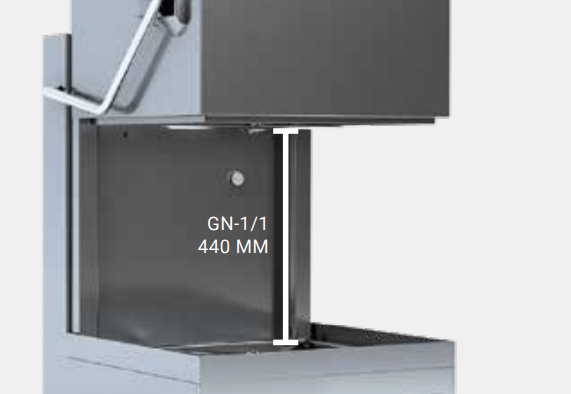

440mm clearance and 33L wash tank — handles trays, large plates and tall glassware.
-
WaterMark approved and convertible to single-phase — compliant and flexible for varied site supply.
Specifications
| Brand |
Fagor |
| Model / MPN |
CO-142BDD |
| Type |
Passthrough (Hood-Type) Dishwasher |
| Throughput |
65 baskets/hour — 1170 dishes/hour |
| Wash Cycles |
55 / 75 / 120 seconds |
| Max Ware Height (Clearance) |
440 mm |
| Wash Tank Capacity |
33 litres |
| Boiler Heating Power |
6 kW |
| Boiler Capacity |
9 litres |
| Water Consumption |
2.4 litres/rinse |
| Wash / Rinse Temperature |
60°C wash / 90°C rinse |
| Wash & Rinse System |
Double rotating arms, AISI-304 stainless steel |
| Power |
11.1 kW, 415V, 3 phase + Neutral, 50Hz (convertible to single-phase) |
| Material |
Stainless Steel |
| Dimensions (W x D x H) |
630 x 750 x 1465 mm |
| Certification |
WaterMark approved |
| Country of Manufacture |
Spain |
| Warranty |
2 Years Parts and Labour |
Venue suitability: Suited to busy restaurants, hotels, pubs, clubs and catering operations that need consistent high-throughput warewashing at a comfortable standing height. The low 2.4L/rinse water use and EFFI-RINSE design make it a strong fit for sites with low mains water pressure. Browse more options in our Passthrough Dishwashers range or see the full Fagor line-up.
Installation & delivery: Requires a 415V three-phase supply (convertible to single-phase) and a WaterMark-compliant water connection. Dispatched Australia-wide.
Frequently asked questions
How many baskets can the Fagor CO-142BDD wash per hour? The CO-142BDD washes up to 65 baskets per hour, equivalent to around 1170 dishes per hour.
What wash cycles does the CO-142BDD offer? It offers three selectable cycles of 55, 75 and 120 seconds so you can match cycle time to soil level and service speed.
How much water does the CO-142BDD use per rinse? It uses 2.4 litres per rinse, and the EFFI-RINSE system rinses effectively even on low-pressure mains water.
What power supply does the CO-142BDD need? It runs on 11.1 kW, 415V three-phase plus neutral at 50Hz, and can be converted to single-phase.
Is the Fagor CO-142BDD covered by warranty? Yes — it comes with 2 years parts and labour warranty.
