Description

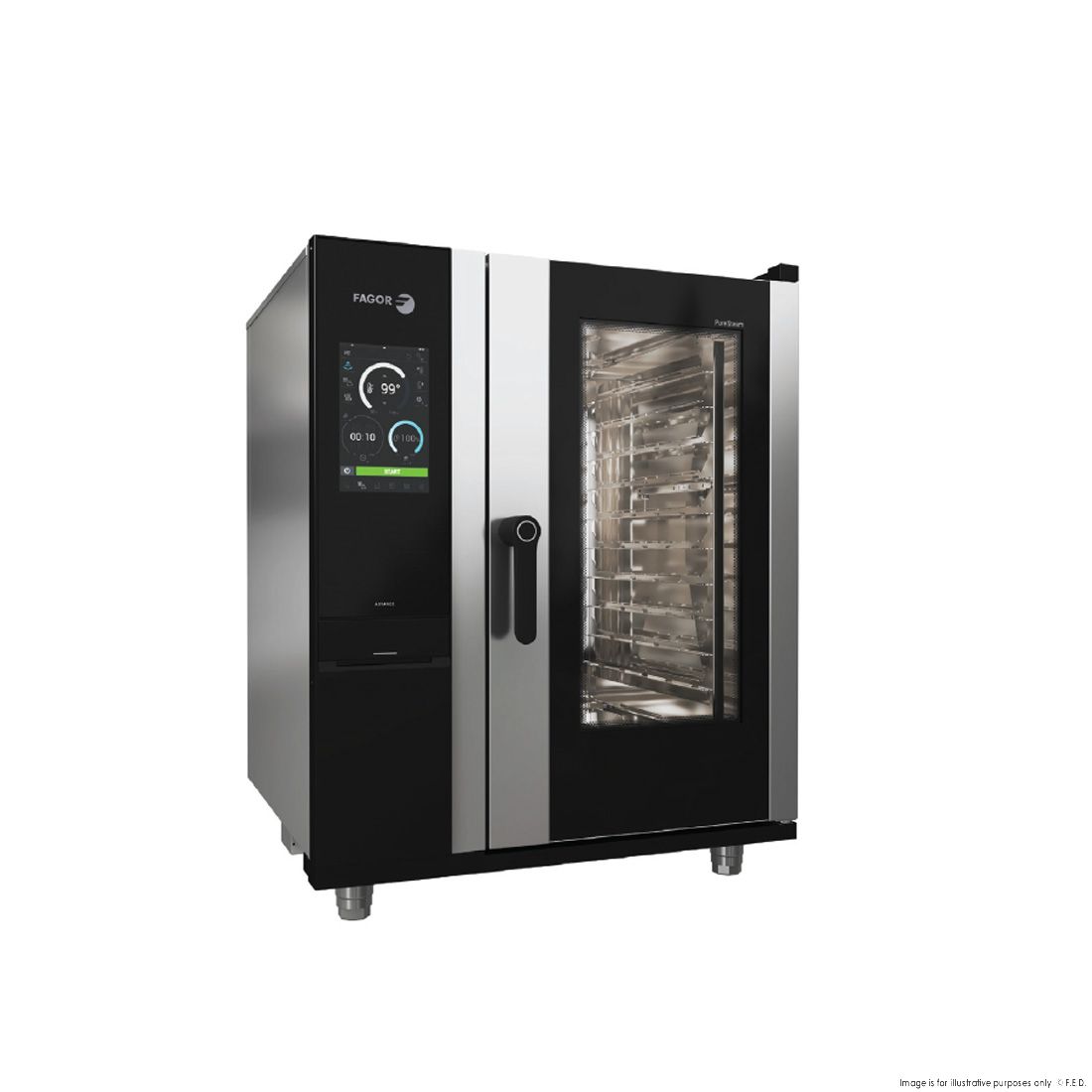

The Fagor Ikore APW-101GRLWS is a gas combi steam oven that cooks across steam, convection and combined modes for medium-to-large kitchens. It holds 10 x 1/1 GN trays, draws 64.8 MJ/h of gas on Natural Gas or LPG, and is driven by a 10.1″ touchscreen with iCooking automatic adjustment. A dedicated steam boiler delivers consistent humidity for high-volume baking, roasting and regeneration.
Why operators choose the APW-101GRLWS
-
10 x 1/1 GN capacity — matches mid-to-large service volumes without committing floor space to a roll-in unit (trays not included).
-
Boiler-driven steam — stable humidity across the chamber for even baking, delicate proteins and bulk regeneration.
-
10.1″ touchscreen with iCooking — the smart cooking process auto-adjusts parameters, cutting reliance on a single experienced operator.
-
Five cooking modes — Low-Temperature Steam (30–98°C), Steam (99°C), Super Steam (100–130°C), Mixed and Convection (both 30–300°C) cover most production from sous vide to high-heat roasting.
-
iClima humidity control — a humidity sensor measures and regulates chamber climate directly, with 1% regulation and DeltaT cooking for delicate items.
-
iWashing automatic clean — a built-in detergent tank runs unattended wash cycles, freeing staff at close.
-
200 preset recipes — the Fagor Cooking Center ships with culinary-tested programs plus unlimited 9-stage recipe storage you can edit mid-cook.
-
HACCP data output — exports cooking records for food-safety compliance, and chamber dehumidification delivers crisp roasts.
Specifications
| Brand |
Fagor |
| Model / MPN |
Ikore APW-101GRLWS |
| SKU |
APW-101GRLWS |
| Type |
Gas combi steam oven (with boiler) |
| Capacity |
10 x 1/1 GN (trays not included) |
| Gas type |
Natural Gas or LPG |
| Gas consumption |
64.8 MJ/h |
| Gas regulator size |
3/4″ |
| Electrical supply |
0.83 kW; 10 A |
| Cooking modes |
Low-Temp Steam 30–98°C, Steam 99°C, Super Steam 100–130°C, Mixed 30–300°C, Convection 30–300°C |
| Controls |
10.1″ touchscreen, iCooking, iClima, iWashing, 200 preset recipes |
| Dimensions (W x D x H) |
898 x 817 x 1117 mm |
| Packed dimensions (W x D x H) |
1055 x 980 x 1340 mm |
| Weight |
178 kg |
| Packed weight |
205 kg |
| Warranty |
2 years parts and labour |
Venue suitability
The 10-tray capacity and boiler steam suit medium-to-large restaurants, hotels, function and catering kitchens, and aged-care or healthcare sites running structured production with HACCP records. iCooking and the 200 preset recipes help kitchens with rotating or less-experienced staff hold consistency. It is oversized for a small café or a tight takeaway, where a 6-tray or bench-top unit fits better.
Browse the full range of combi steam ovens or see every Fagor unit we stock to compare capacities.
Installation & delivery
This is a gas appliance (Natural Gas or LPG, 64.8 MJ/h, 3/4″ regulator) and also needs a 0.83 kW / 10 A electrical supply, so connection must be completed by a licensed gas fitter and a qualified electrician. Dispatched Australia-wide from our Sydney HQ and partner warehouses in Melbourne, Brisbane, Adelaide and Perth. Backed by a 2-year parts and labour warranty.
Frequently asked questions
What can the Fagor APW-101GRLWS cook?
It runs five modes — Low-Temp Steam (30–98°C), Steam (99°C), Super Steam (100–130°C), Mixed and Convection (both 30–300°C) — covering sous vide, baking, roasting, steaming and regeneration. See our guide to combi oven modes.
How many trays does it hold?
It holds 10 x 1/1 GN trays, suited to medium-to-large kitchens. Pans and trays are not included and are ordered separately.
Does it run on natural gas or LPG?
Both. The oven is configured for Natural Gas or LPG, consumes 64.8 MJ/h and uses a 3/4″ gas regulator. It also requires a 0.83 kW, 10 A electrical connection.
Does it have an automatic cleaning system?
Yes. iWashing is a fully automatic wash system with a built-in detergent tank, so cleaning runs unattended. Our combi oven cleaning guide covers routine care between cycles.
Who should install it?
Because it is a gas appliance with an electrical supply, installation must be done by a licensed gas fitter and a qualified electrician to meet Australian standards and protect the warranty.
What warranty does it come with?
The APW-101GRLWS is covered by a 2-year parts and labour warranty.
What are its dimensions and weight?
It measures 898 (W) x 817 (D) x 1117 (H) mm and weighs 178 kg. Packed for transport it is 1055 x 980 x 1340 mm at 205 kg.
