Description

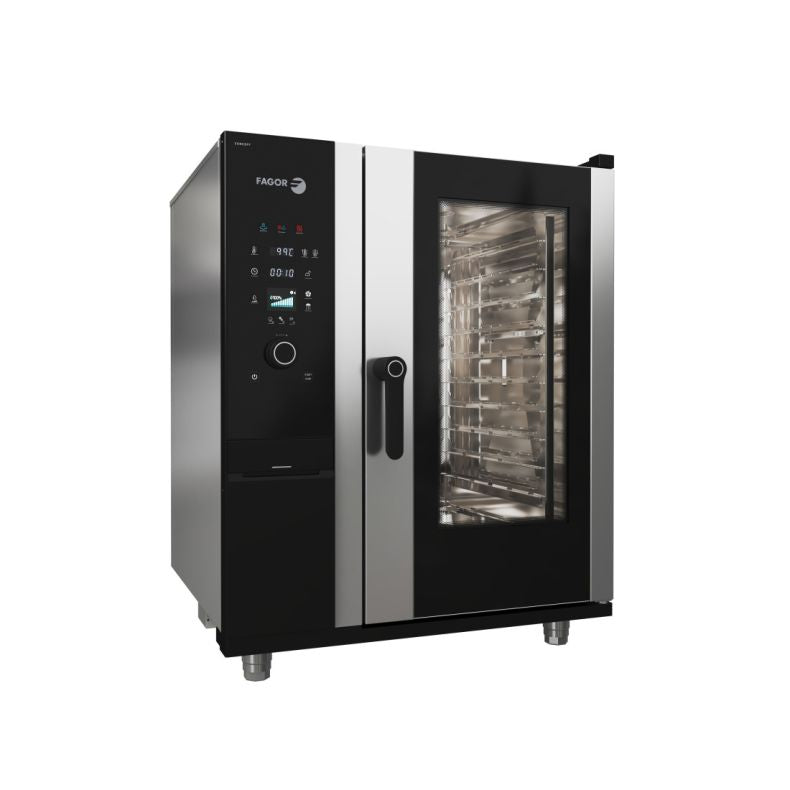

The Fagor iKore Concept CW-101ERSWS is an electric 10-tray combi oven that cooks with convection, steam and combined modes for high-output professional kitchens. It runs on a 415V/50Hz three-phase 18.6kW supply, holds 10 GN trays, and pairs a direct-humidity Clima climate system with steam saturation for even, repeatable results across roasting, baking, steaming and regeneration. Onboard intelligent recipe programming and an automatic wash cycle keep service consistent and turnaround fast.
Why operators choose the CW-101ERSWS
-
10-tray GN capacity — batch-cooks proteins, vegetables and bakery items together to cover service peaks in one chamber.
-
415V/50Hz 18.6kW three-phase power — delivers rapid recovery and full output for back-to-back loads in a busy line.
-
Clima direct-humidity control — measures and regulates moisture in 10% steps so crackling, crusts and delicate steaming all land right.
-
Five cooking modes — low-temperature steam, steam, super-steam, combined and convection cover almost every menu task on one unit.
-
100+ programmable recipes — stores over 100 nine-stage recipes (100 pre-set) so any cook reproduces the head chef's results.
-
Automatic wash system — built-in cleaning protects hygiene standards and frees staff from manual chamber scrubbing.
-
Air and water cool-down — rapid cabinet cooling lets you switch from roasting to delicate steaming without waiting.
-
2.8" screen with rotary knob — simple push-and-turn control keeps programming fast even in a high-pressure kitchen.
Specifications
| Brand |
Fagor |
| Range |
iKore Concept |
| Model / MPN |
CW-101ERSWS |
| SKU |
CW-101ERSWS |
| Type |
Electric combi oven |
| Tray capacity |
10 trays |
| Power supply |
415V / 50Hz, three-phase (3N) |
| Power rating |
18.6kW |
| Cooking modes |
Low-temperature steam, steam, super-steam, combined, convection |
| Control |
2.8" screen with rotary knob and push function |
| Recipe storage |
100+ nine-stage recipes (100 pre-set) |
| Cleaning |
Automatic wash system |
| Dimensions (W x D x H) |
898 x 817 x 1117mm |
| Packed dimensions (W x D x H) |
953 x 980 x 1340mm |
| Net weight |
171kg |
| Packed weight |
197kg |
| Warranty |
2 Years Parts and Labour |
Venue suitability
The 10-tray capacity and five cooking modes suit high-volume kitchens that need one workhorse for many tasks — hotels, function centres, aged-care and hospital catering, central production kitchens and busy restaurants. Operators running banquet service or cook-chill regeneration get the most from the Clima humidity control and programmable recipes. It is less suited to small cafes or food trucks where bench-top capacity and a single-phase supply are a better fit.
Browse the full range of combi steam ovens or see every model in the Fagor line-up to compare capacities and configurations.
Installation & delivery
This combi oven requires a 415V/50Hz three-phase supply and must be hardwired and commissioned by a licensed electrician, with water connection and drainage to suit the steam and wash systems. Allow clearance for ventilation and service access. Dispatched Australia-wide from our Sydney HQ and partner warehouses in Melbourne, Brisbane, Adelaide and Perth. The CW-101ERSWS is backed by a 2 Years Parts and Labour warranty.
Frequently asked questions
How many trays does the Fagor CW-101ERSWS hold?
It holds 10 GN trays, giving you enough capacity to batch-cook multiple menu items at once for hotel, catering and high-volume restaurant service.
What power supply does the CW-101ERSWS need?
It runs on a 415V/50Hz three-phase (3N) supply rated at 18.6kW. It must be hardwired by a licensed electrician, so confirm three-phase power is available at the installation point.
What cooking modes does this combi oven offer?
Five modes: low-temperature steam, steam, super-steam, combined and convection. This range covers roasting, baking, steaming, sous-vide-style cooking and regeneration. Our guide to combi oven modes, probes and auto-clean explains when to use each.
Does the CW-101ERSWS clean itself?
Yes. It has an automatic wash system that cleans the chamber without manual scrubbing, helping maintain hygiene standards. See our walkthrough on how to clean a combi oven for best-practice routines.
How precise is the humidity control?
The Clima system measures humidity directly and regulates it in 10% steps, so you control moisture exactly for crisp crusts, juicy roasts and gentle steaming on the same unit.
What are the dimensions and weight?
The unit measures 898 x 817 x 1117mm (W x D x H) and weighs 171kg net. Packed dimensions are 953 x 980 x 1340mm at 197kg, so plan delivery access and floor support accordingly.
What warranty is included?
The CW-101ERSWS comes with a 2 Years Parts and Labour warranty covering both components and on-site labour for the stated period.
