Description

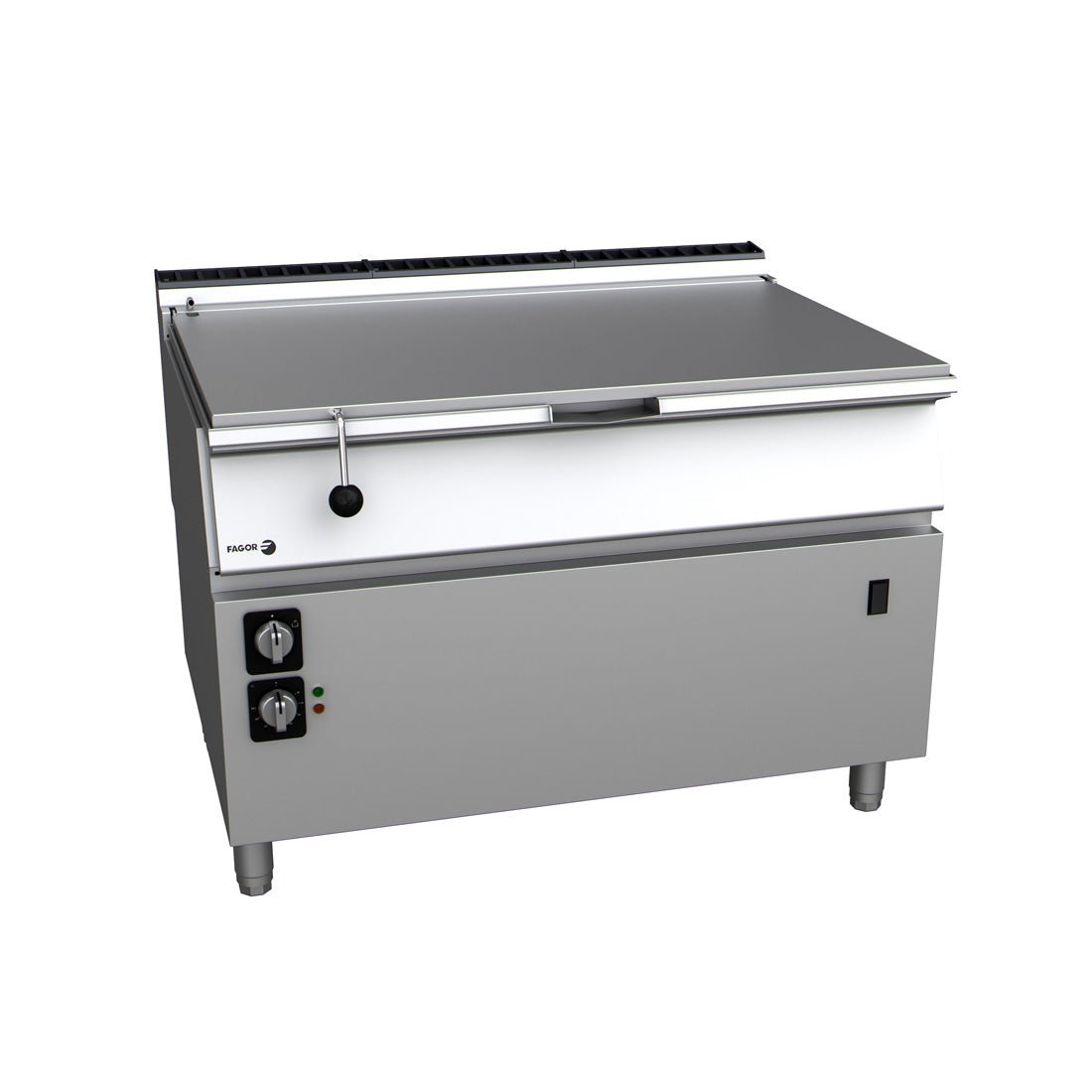

The Fagor SB-E915IM is an electric tilting bratt pan from the Kore 900 Series, built around a 120-litre stainless steel pan that fries, grills, boils and holds in a single floor-standing unit.
Why operators choose this bratt pan
-
One pan, four jobs — fry small goods, grill or dry-heat on the base, boil for wet cooking, or hold at low temperature like a bain-marie.
-
22.5 kW electric heating — shielded stainless steel elements in a 10 mm-thick base spread heat evenly for consistent cooking across the whole surface.
-
100-310 °C thermostatic control — a single dial covers gentle holding through to high-heat searing, with a safety thermostat as backup.
-
Automatic 90° power tilt — empties the pan completely and shuts heating off the moment it tilts, so service stays safe and fast.
-
Hygienic stainless build — 3.5 mm minimum edge radius, wide discharge opening and a double-lined drained lid make cleaning quick and meet EN-202-3 food-contact standards.
-
IPX5 water protection — rated for wash-down environments and compliant with EN-60335 and EN-203.
Specifications
| Brand |
Fagor |
| Model / MPN |
SB-E915IM |
| Type |
Electric tilting bratt pan |
| Series |
Kore 900 Series |
| Pan capacity |
120 L |
| Cooking surface |
1130 x 616 mm |
| Maximum power |
22.5 kW |
| Power type |
Electric |
| Temperature range |
100-310 °C |
| Heating |
Shielded stainless steel elements, 10 mm-thick pan base |
| Tilt |
Automatic 90° power tilt with auto heat cut-off |
| Water protection |
IPX5 |
| Standards |
EN-202-3, EN-60335, EN-203 |
| Material |
Stainless Steel |
| External dimensions |
1200 W x 530 D x 850 H mm |
| Packed dimensions |
1022 W x 1240 D x 1140 H mm |
| Net weight |
233 kg |
| Warranty |
2 years parts & labour + 2 years parts only (registered within 14 days of invoice) |
Venue suitability: The 120-litre pan suits high-volume kitchens — aged-care and hospital catering, central production kitchens, function centres, pubs and large cafeterias that batch-cook stews, sauces, mince, braises and shallow-fried goods. As a versatile piece of other commercial cooking equipment, it consolidates several appliances into one footprint, and it sits within the wider Fagor Kore 900 range for operators building a matched cookline.
Installation & delivery: Supplied as a freestanding 900-series module requiring hard-wired electrical connection and a water feed for the filling tap by a licensed installer. Dispatched Australia-wide.
Frequently asked questions
What can a Fagor SB-E915IM bratt pan be used for? Its tilting stainless steel pan works as a fryer for small goods, a fry-top for grilling and dry-heat cooking, a boiling pan for wet cooking, and a bain-marie for low-temperature holding.
How large is the SB-E915IM bratt pan? The pan holds 120 litres over a 1130 x 616 mm cooking surface, and the unit measures 1200 W x 530 D x 850 H mm.
Is the SB-E915IM gas or electric? It is electric, heated by shielded stainless steel elements at the pan base with a maximum power draw of 22.5 kW.
What temperature range does it reach? The thermostat controls the pan between 100 and 310 °C, with a separate safety thermostat fitted.
Does it tilt for emptying? Yes — the automatic system tilts the pan 90° for complete emptying, and heating shuts off automatically the moment the pan is tilted.
