Description

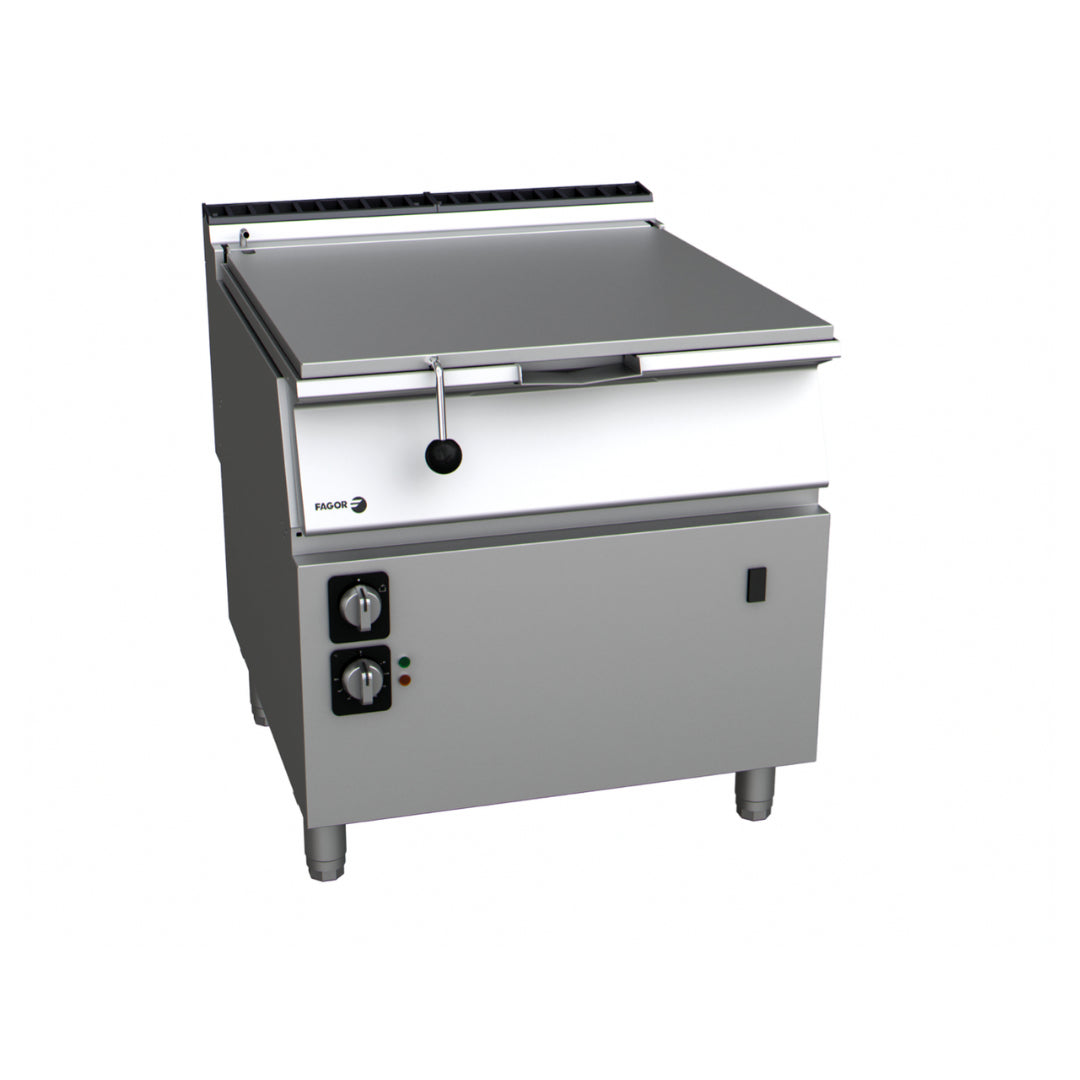

The Fagor Kore 900 Series SB-G910IM is a gas tilting bratt pan built for medium-to-large commercial kitchens that braise, sear, stew and shallow-fry in volume. It pairs a 90 L stainless steel tank with an 18 kW natural-gas burner system and a motorised tilting mechanism that raises the pan to vertical for complete, hands-free emptying. A thermostat holds the 10 mm-thick pan base anywhere from 50 to 310 °C, so one unit covers everything from gentle poaching to hard searing.
Why operators choose the SB-G910IM
-
90 L stainless steel tank — large batch capacity for braising, stewing and shallow frying across service.
-
18 kW natural-gas heating — branched burners under a thick base deliver even, uniform heat distribution for consistent results.
-
Motorised tilting to vertical — raises the pan fully upright to empty completely without lifting or scraping.
-
50–310 °C thermostat control — one pan handles poaching, simmering, braising, roasting and deep frying.
-
10 mm-thick stainless base — high mass holds temperature and spreads heat evenly across the cooking surface.
-
Rounded corners and wide opening — no sharp edges and an open profile make loading, unloading and cleaning faster.
-
Double-walled balanced lid — spring counterbalance and a rear drainer return condensation to the well and prevent heavy falls.
-
Micro safety switch and IPX5 rating — heating cuts out when the pan is raised, and the IPX5 build withstands wash-down environments.
Specifications
| Brand |
Fagor |
| Range |
Kore 900 Series |
| Model / MPN |
SB-G910IM |
| SKU |
SB-G910IM |
| Type |
Gas tilting bratt pan |
| Tank capacity |
90 L |
| Tank material |
Stainless steel, 10 mm base |
| Gas type |
Natural Gas (NG G20/G25/G25.1, 20/25/25 mbar) |
| Gas power |
18.00 kW |
| Gas connection |
R3/4" |
| Electrical supply |
230V - 1N; 0.7A; 50Hz |
| Temperature range |
50–310 °C (thermostat) |
| Tilting |
Motorised, raises to vertical |
| Water inlet |
3/4" |
| Water protection |
IPX5 |
| Dimensions (W×D×H) |
800 × 930 × 850 mm |
| Packed dimensions (W×D×H) |
840 × 1080 × 1125 mm |
| Net weight |
270 kg |
| Packed weight |
271 kg |
| Warranty |
2 Years Parts and Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability
The 90 L tank and 18 kW output make the SB-G910IM a strong fit for medium-to-large restaurants, hotels, function venues, aged-care and contract caterers that cook bulk braises, stews and sauces. The motorised tilt and wide opening suit kitchens turning over multiple batches per service, where fast emptying and cleaning matter. It is less suited to small cafes or sites with low covers, where a benchtop unit or boiling pan would be more economical.
Browse the full range of commercial bratt pans or see the rest of the Fagor cooking range to compare configurations and sizes.
Installation & delivery
This is a natural-gas appliance with a R3/4" gas connection plus a 230V - 1N; 0.7A; 50Hz electrical supply and a 3/4" water inlet, so it must be installed and commissioned by a licensed gas fitter to AS/NZS standards. Dispatched Australia-wide from our Sydney HQ and partner warehouses in Melbourne, Brisbane, Adelaide and Perth. It is covered by 2 years parts and labour plus a further 2 years parts only when you register the product within 14 days of invoice.
Frequently asked questions
What can you cook in the Fagor SB-G910IM bratt pan?
Its 50–310 °C thermostat and 90 L tank let one pan braise, stew, simmer, poach, roast, shallow fry and deep fry, making it a true multipurpose unit for high-volume kitchens.
How big is the cooking tank?
The stainless steel tank holds 90 L, with a 10 mm-thick base for even heat. That capacity suits medium-to-large restaurants, hotels, caterers and institutional kitchens cooking in bulk.
Does the pan tilt automatically?
Yes. The SB-G910IM uses a motorised tilting system that raises the pan to vertical so it empties completely, with no manual lifting. For more on tilting mechanisms and safety, see our volume-cooking guide.
What gas and power supply does it need?
It runs on natural gas via an R3/4" connection at 18 kW, with a 230V single-phase electrical supply (0.7A, 50Hz) and a 3/4" water inlet. A licensed gas fitter must connect and commission it.
How do I keep the pan base clean?
The rounded corners and wide opening make day-to-day cleaning easy. For removing baked-on residue, follow our guide on cleaning burnt grease from a bratt pan base.
What warranty is included?
The SB-G910IM comes with 2 years parts and labour, plus an additional 2 years parts only when you register the product within 14 days of invoice.
Where do you deliver?
We dispatch Australia-wide from our Sydney HQ and partner warehouses in Melbourne, Brisbane, Adelaide and Perth, so most capital-city and regional sites are covered.
