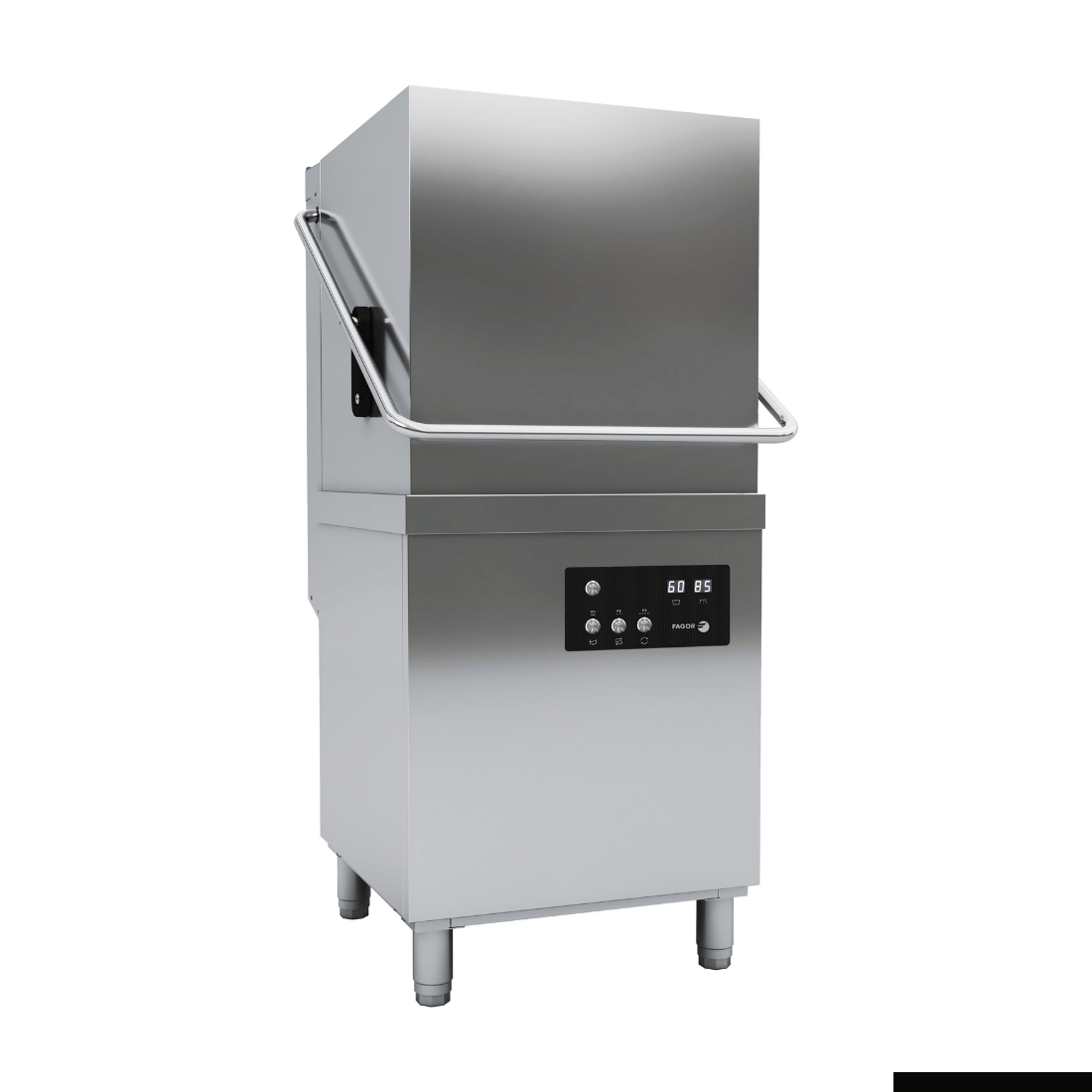

Fagor iNova Concept Pass-Through Dishwasher WHC-502TBD

Description

Fagor iNova Concept Pass-Through Dishwasher - WHC-502TBD

iNova Concept high-performance hood-type pass-through dishwasher designed for fast, efficient commercial kitchens. Suitable for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser.



Key Features

  • Hourly production: 40 baskets/hour
  • Clearance (max ware height): 450mm
  • Electro-Mechanical Controls with Robust Back-Lit Pushbuttons
  • Wash cycles: 55”/75”/120

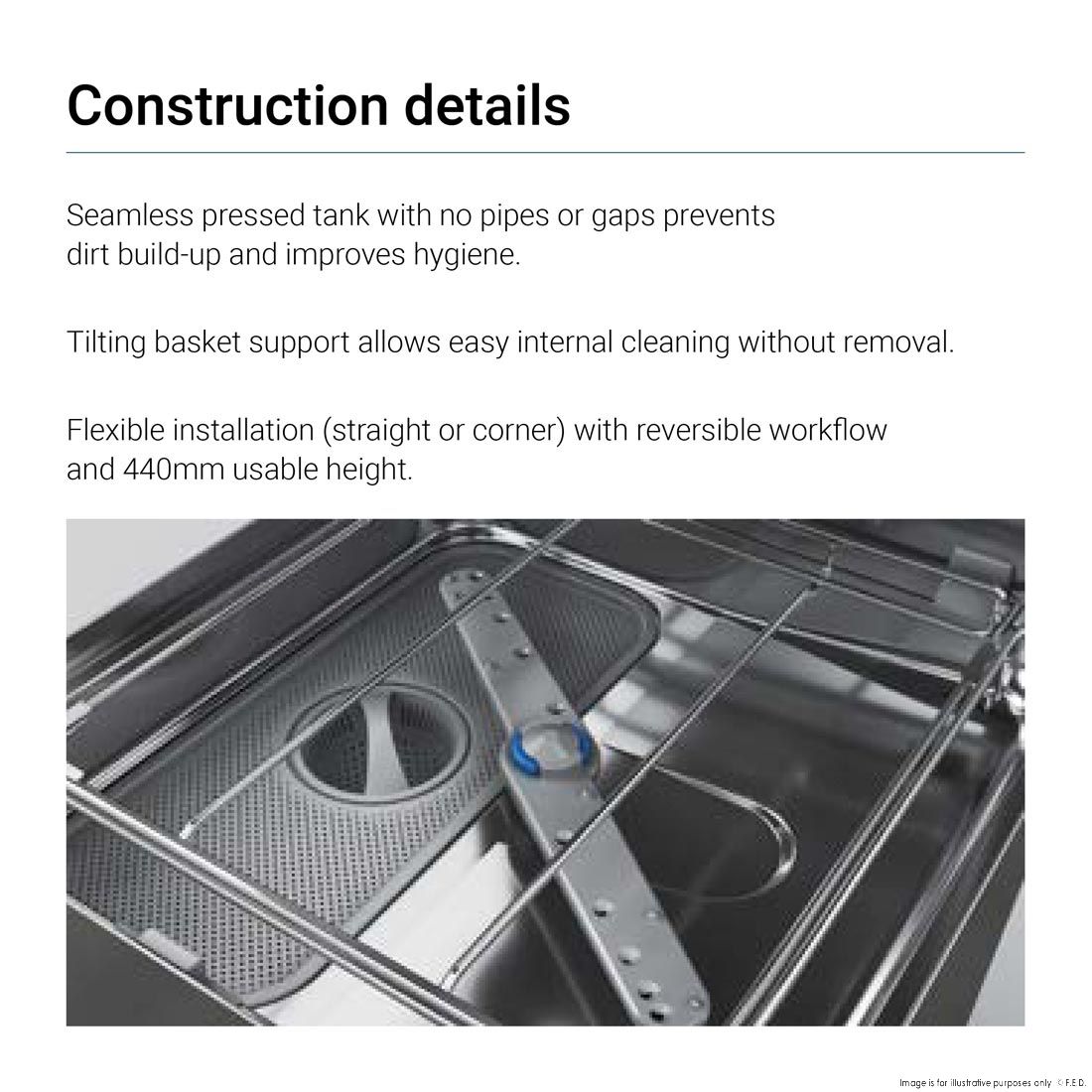

  • Stainless steel construction

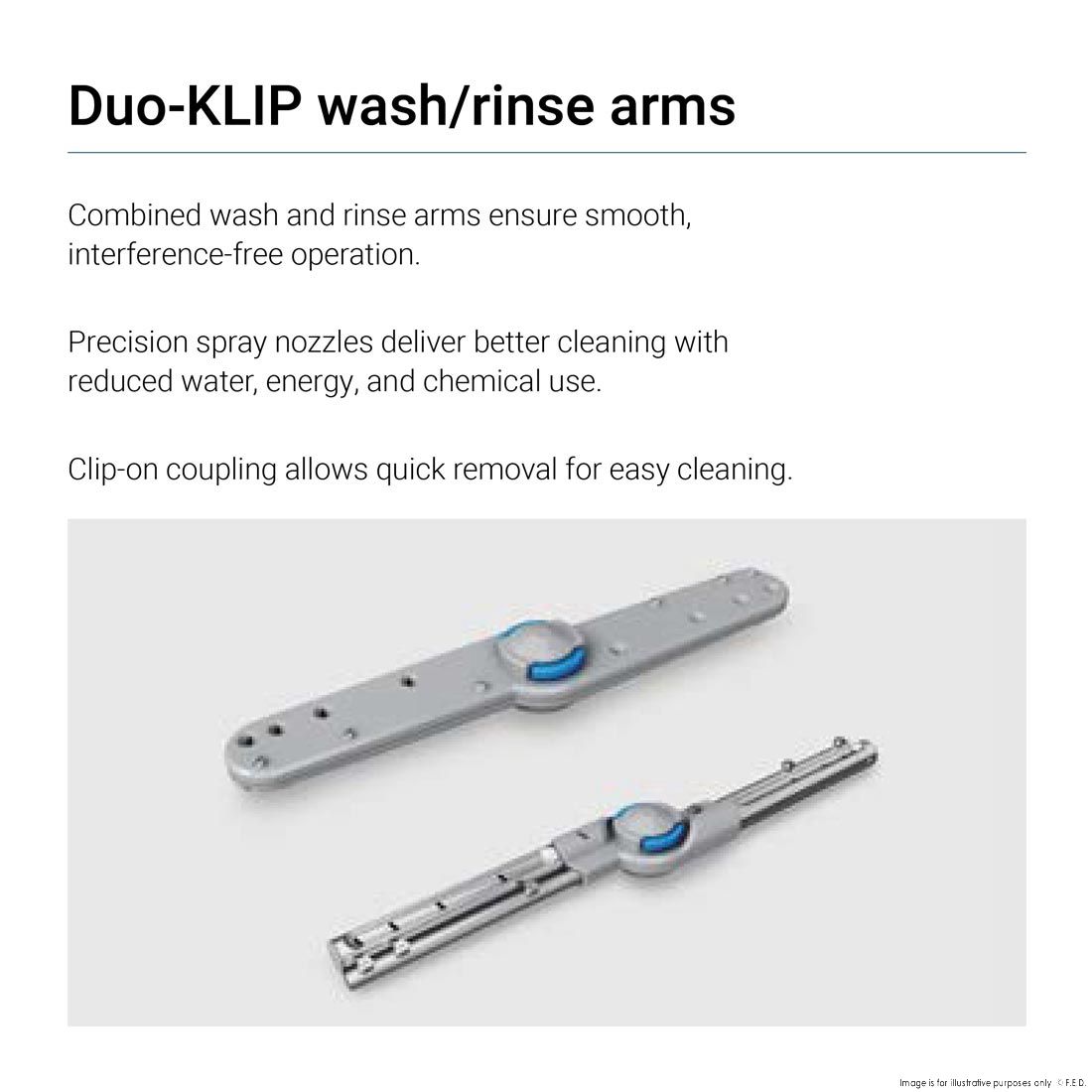

  • Duo-KLIP Wash/rinse arms
  • Wash pump, 750W each
  • Drain pump: 100W drainage cycle
  • Wash Tank with 3 kW heating power
  • Tank capacity: 33 litres
  • Boiler heating power: 6 kW
  • Boiler capacity: 9 litres
  • Water consumption: 2.2 litres/cycle
  • Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
  • Two-digit LED displays
  • Hydraulic rinse aid dispenser

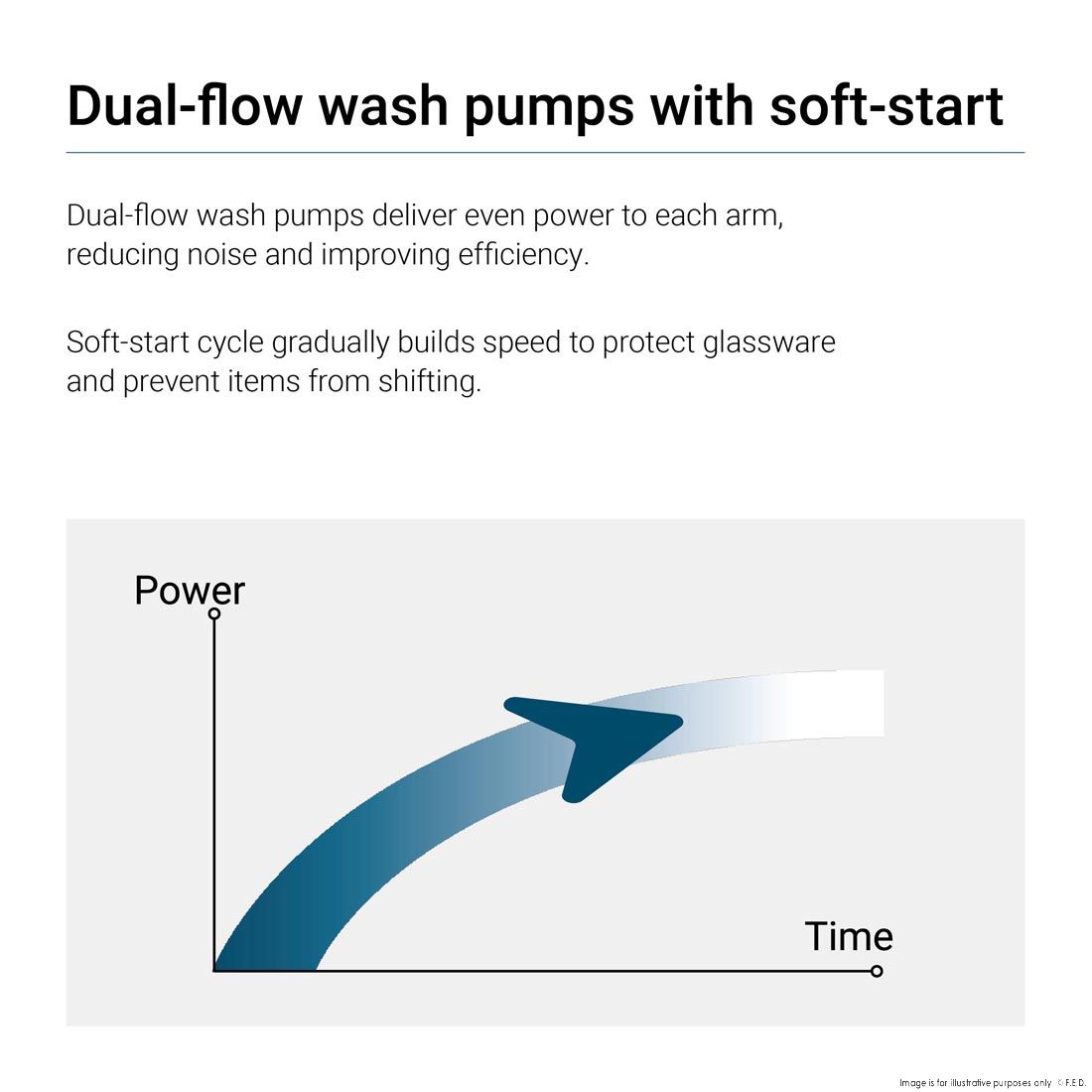

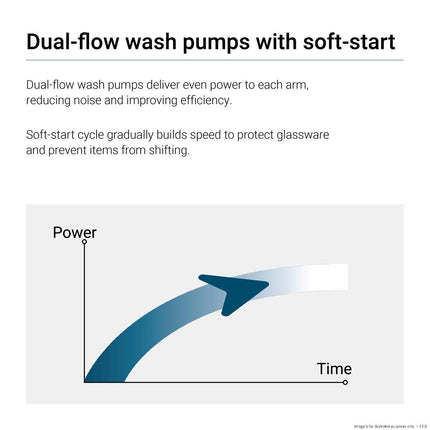

  • Dual-flow wash pump with soft-start

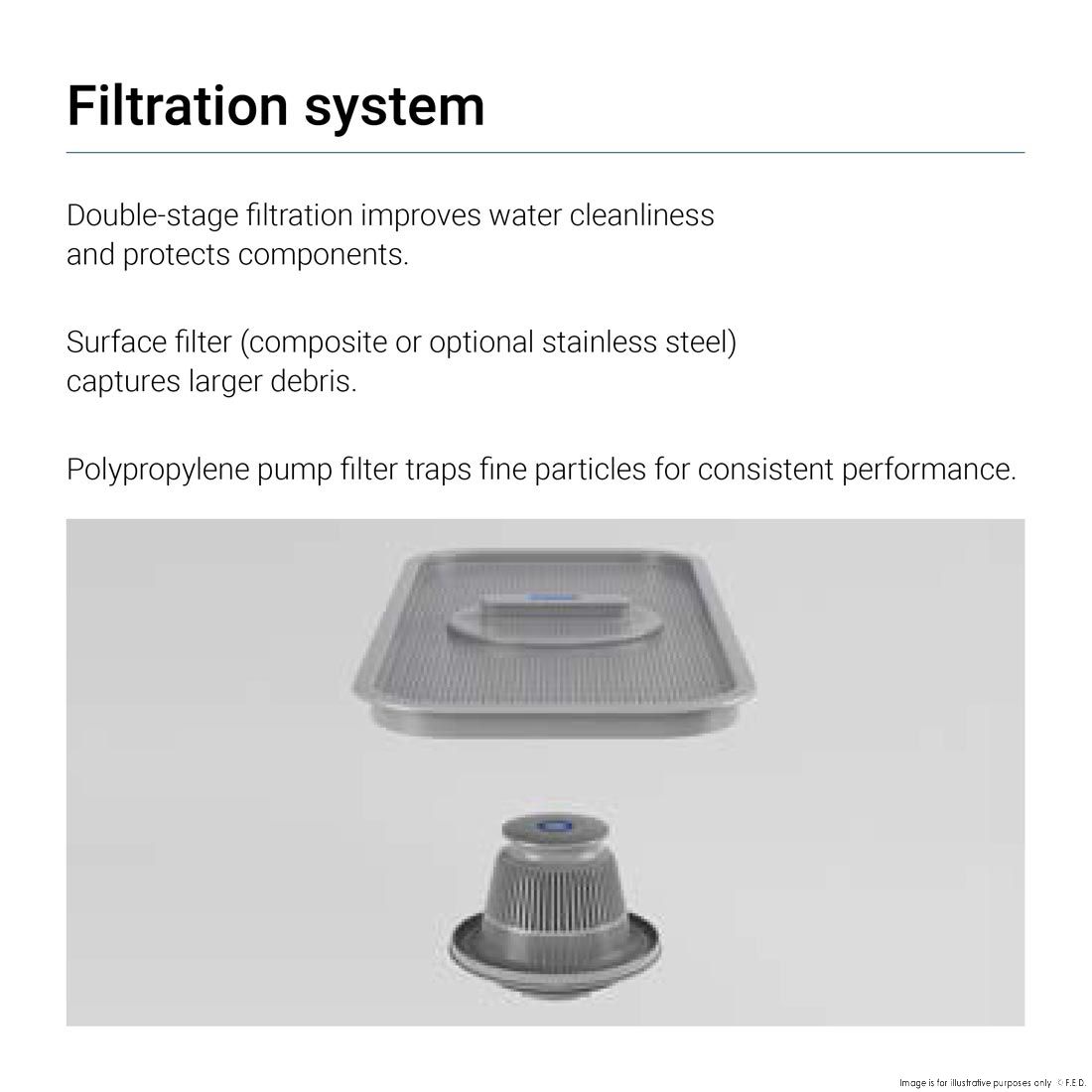

  • Double-stage filtration system
  • Dual-flow wash pumps
  • Volumetric rinse
  • A magnetic micro switch to stop the cycle in case of accidental opening of the hood.
  • Adjustable legs
  • Supplied with 1 glass basket, 1 plate basket, and 1 cutlery container
  • Watermark approved
  • Temperature control by electronic probes
  • i-ERROR DIAGNOSIS: Error identification on screen
  • Drain pump
  • Hydraulic rinse aid dispenser and Peristaltic detergent dispenser



2 Years Parts and Labour Warranty

Product form

FagorSKU: WHC-502TBD In Stock

$7,267.50+GST $9,690.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included
    🔥 Limited Time: Extra 10% OFF on Fagor – Use Code:
    VIPBRAND10

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $13.18/day

    Apply Now

    Specifications
    Brand Fagor
    MPN WHC-502TBD
    Product Dimensions 630(W) x750(D) x1480(H) mm
    Power 215V, 9.75kW/3~N
    Warranty 2 Years Parts and Labour
    Product Specification PDF

    Description

    Fagor iNova Concept Pass-Through Dishwasher - WHC-502TBD

    iNova Concept high-performance hood-type pass-through dishwasher designed for fast, efficient commercial kitchens. Suitable for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser.



    Key Features

    • Hourly production: 40 baskets/hour
    • Clearance (max ware height): 450mm
    • Electro-Mechanical Controls with Robust Back-Lit Pushbuttons
    • Wash cycles: 55”/75”/120
    • Stainless steel construction
    • Duo-KLIP Wash/rinse arms
    • Wash pump, 750W each
    • Drain pump: 100W drainage cycle
    • Wash Tank with 3 kW heating power
    • Tank capacity: 33 litres
    • Boiler heating power: 6 kW
    • Boiler capacity: 9 litres
    • Water consumption: 2.2 litres/cycle
    • Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
    • Two-digit LED displays
    • Hydraulic rinse aid dispenser
    • Dual-flow wash pump with soft-start
    • Double-stage filtration system
    • Dual-flow wash pumps
    • Volumetric rinse
    • A magnetic micro switch to stop the cycle in case of accidental opening of the hood.
    • Adjustable legs
    • Supplied with 1 glass basket, 1 plate basket, and 1 cutlery container
    • Watermark approved
    • Temperature control by electronic probes
    • i-ERROR DIAGNOSIS: Error identification on screen
    • Drain pump
    • Hydraulic rinse aid dispenser and Peristaltic detergent dispenser



    2 Years Parts and Labour Warranty
