Description

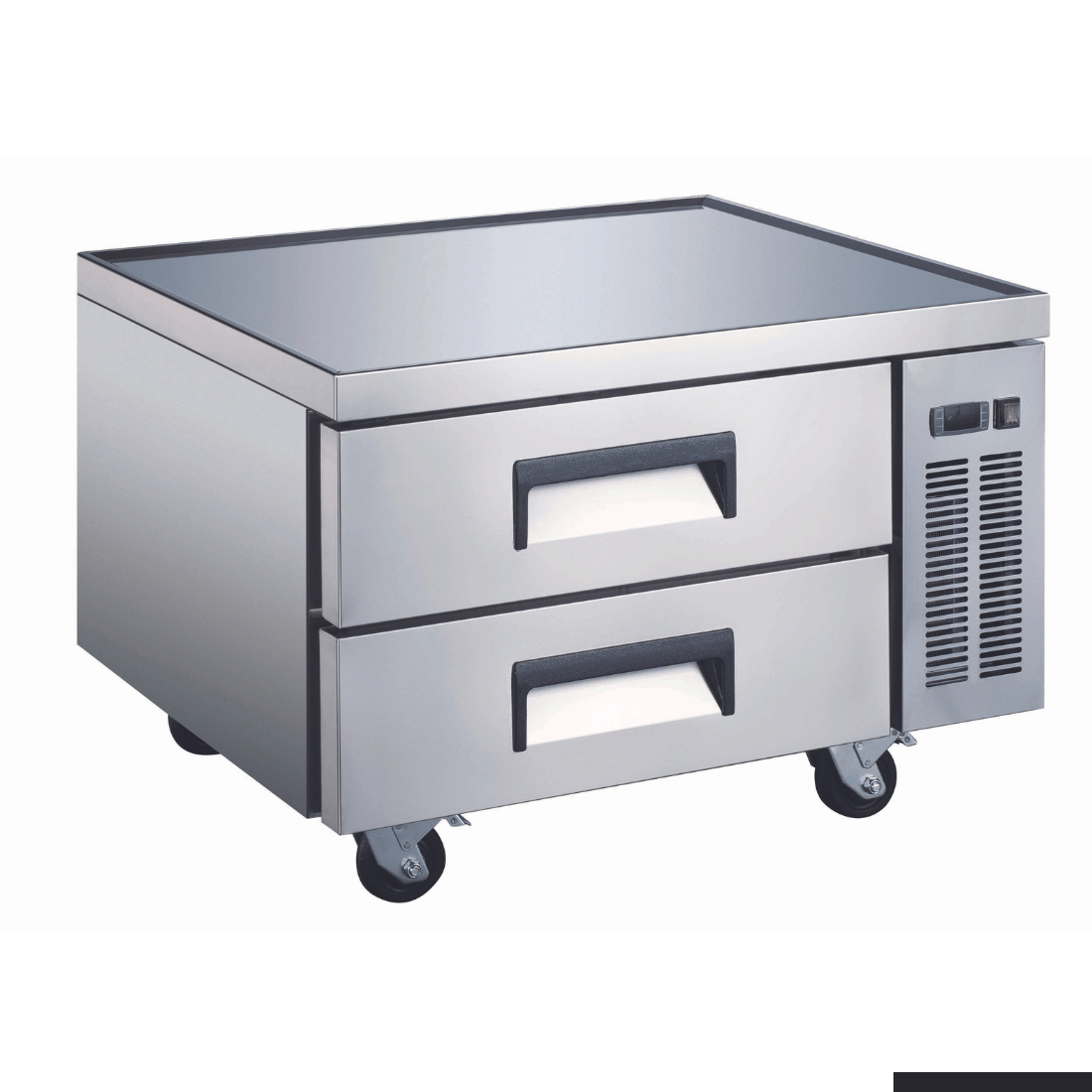

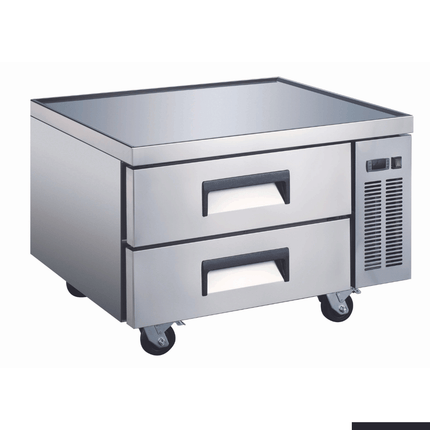

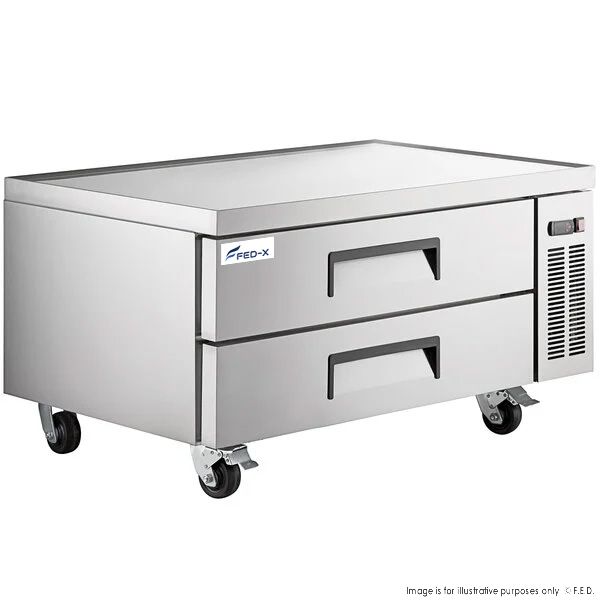

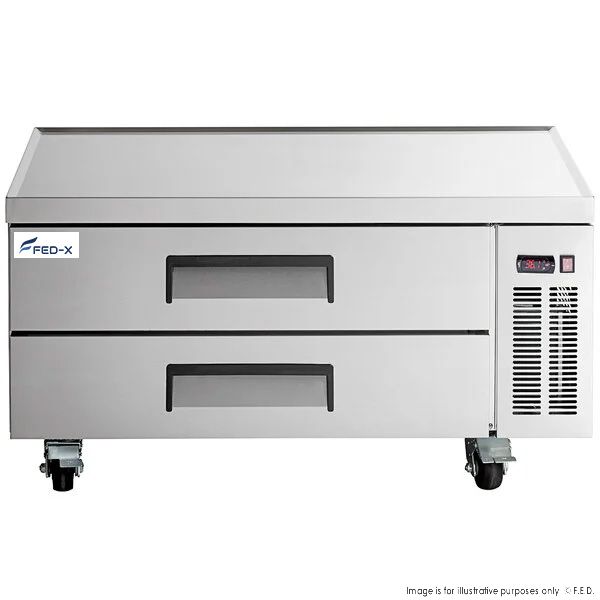

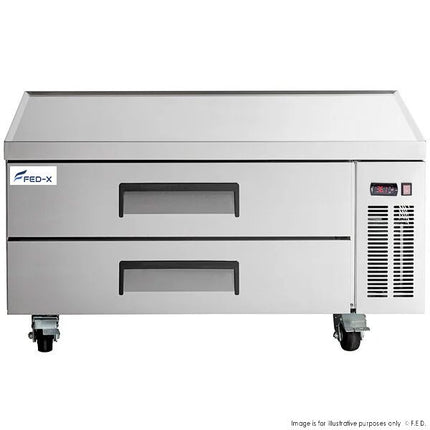

The FED-X XCB-48 is a refrigerated chef base drawer fridge designed to sit beneath commercial cooking equipment and keep cold ingredients at the cook's fingertips. With 263 litres of refrigerated capacity across two full-width drawers, it maintains a consistent -1 to +5°C working temperature and is tropicalised for Australian kitchen conditions.
Why operators choose the XCB-48
-

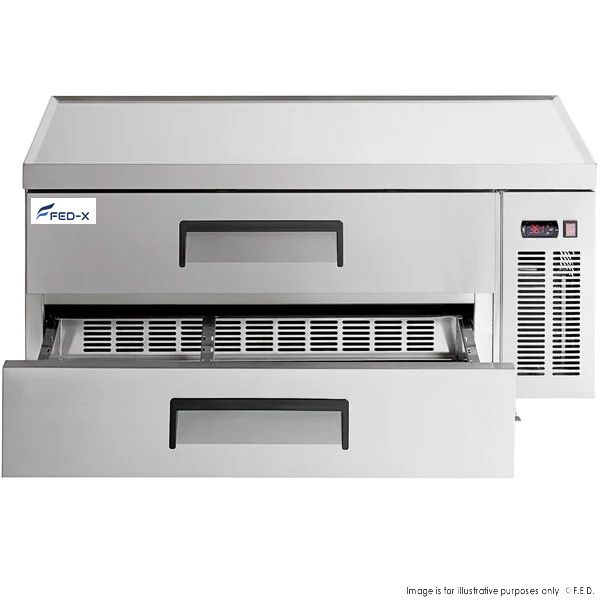

2-drawer cold storage below the cookline — each drawer holds GN pans (sold separately), keeping prep ingredients within arm's reach of the chef without leaving the station.
-
Tropicalised for AU conditions — rated to 32°C ambient at 65% RH, so it performs in hot, high-humidity commercial kitchens without hunting or cycling off.
-
Fan-forced evaporator cooling — rapid recovery rate after door openings keeps product temperature stable during service.
-
Austrian Fulterer drawer runners — heavy-duty, smooth-glide runners built for repeated daily use; removable drawer gaskets simplify cleaning and maintenance.
-
Stainless steel interior & exterior with rounded corners — hygienic, wipe-clean surfaces throughout; 60mm HFC/CFC-free foam insulation in the body.
Specifications
| Brand |
FED-X |
| Model / MPN |
XCB-48 |
| Type |
Refrigerated Chef Base / Drawer Fridge |
| Capacity |
263 L |
| Drawers |
2 |
| Door Type |
Hinged Doors |
| Temperature Range |
-1 to +5°C |
| Max Ambient Temperature |
32°C / 65% RH |
| Refrigerant |
R290 |
| Power |
240V / 396W / 10A |
| Energy Consumption |
3.679 kWh/24h |
| Body Material |
Stainless Steel |
| Insulation |
60mm HFC/CFC-free foam |
| Width |
1228mm |
| Depth |
816mm |
| Height |
655mm |
| Package Dimensions |
1294(W) x 886(D) x 725(H)mm |
| Net Weight |
92 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (48 months total — register within 14 days of invoice) |
Venue suitability: Ideal for high-volume commercial kitchens, hotel cooklines, catering operations, and food service venues where maximising worktop space while keeping cold ingredients immediately accessible is a priority. The low-profile design supports standard and heavy-duty cooking equipment placed on top (worktop-load rating per equipment spec). Browse our full range of Drawer Fridges or explore the complete FED-X range.

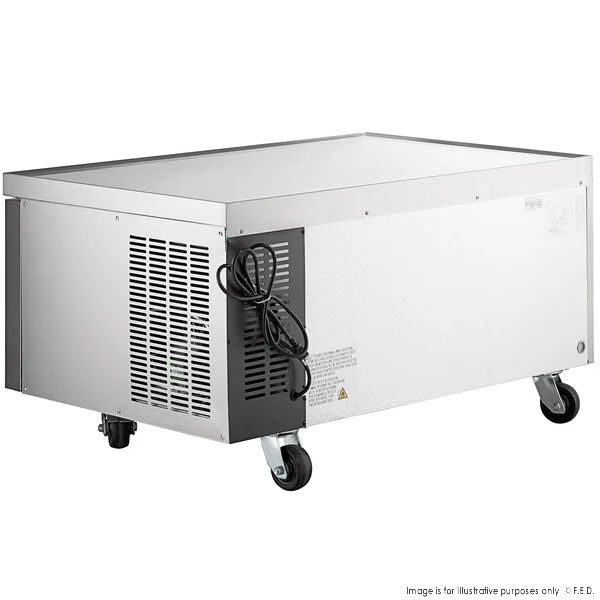

Installation & delivery: Fitted with heavy-duty castors (front-wheel brakes) for easy repositioning. Requires a standard 240V / 10A single-phase power outlet. No gas or plumbing connections required. Dispatched Australia-wide.
Frequently asked questions
What is the capacity of the XCB-48?
The XCB-48 has a gross volume of 263 litres across its two drawers.
What refrigerant does the XCB-48 use?
The XCB-48 uses R290 (propane), a natural refrigerant with low global warming potential, compliant with Australian commercial kitchen requirements.
What temperature range does the XCB-48 maintain?
The unit operates between -1°C and +5°C, suitable for storing perishable ingredients at safe food-service temperatures.
Are GN pans included with the XCB-48?
No — gastronomy pans (GN pans) are sold separately. The drawers are compatible with various GN pan configurations.
What is the warranty on the XCB-48?
The XCB-48 carries a 2-year parts and labour warranty plus an additional 2 years parts-only warranty (48 months total) when the product is registered within 14 days of the invoice date.
