Description

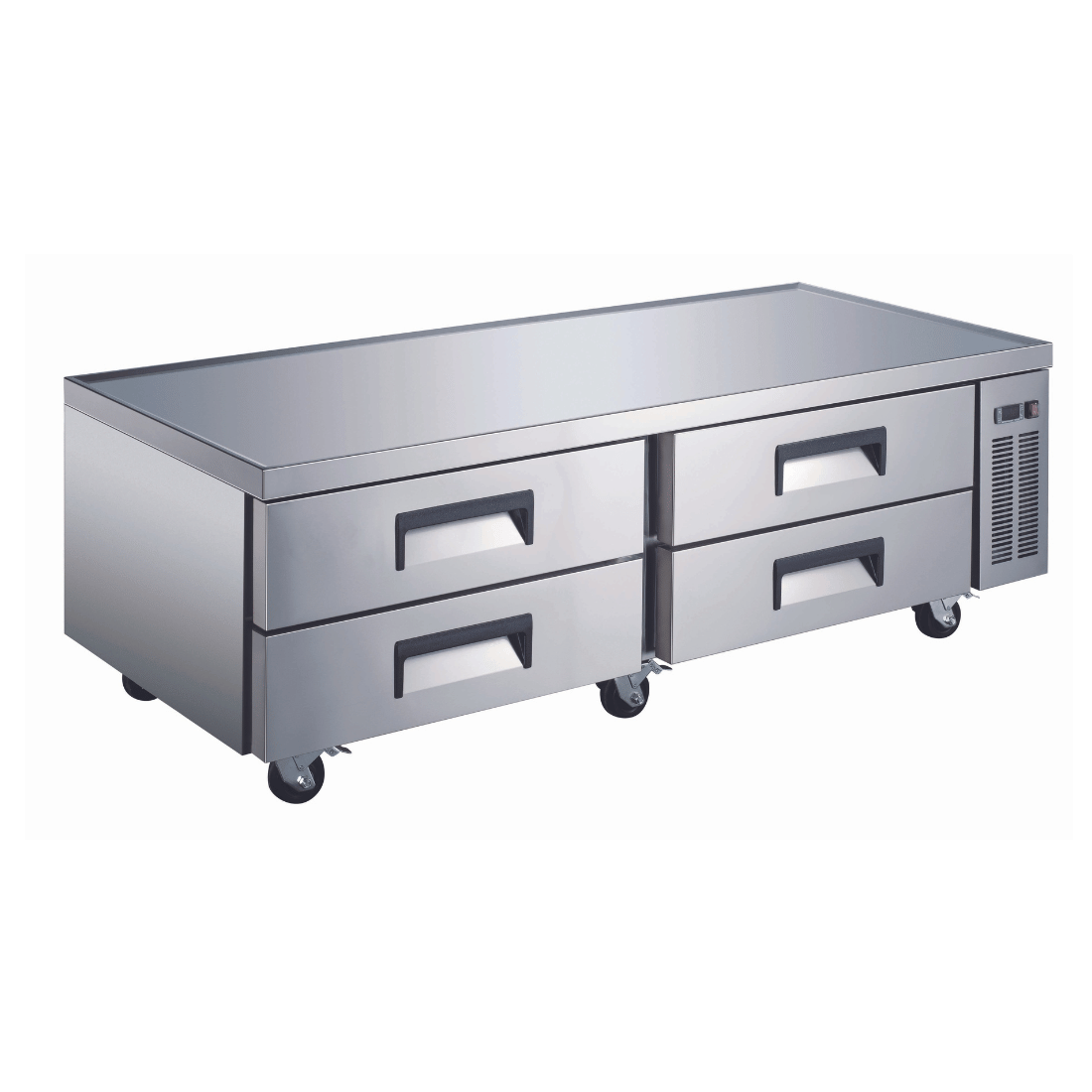

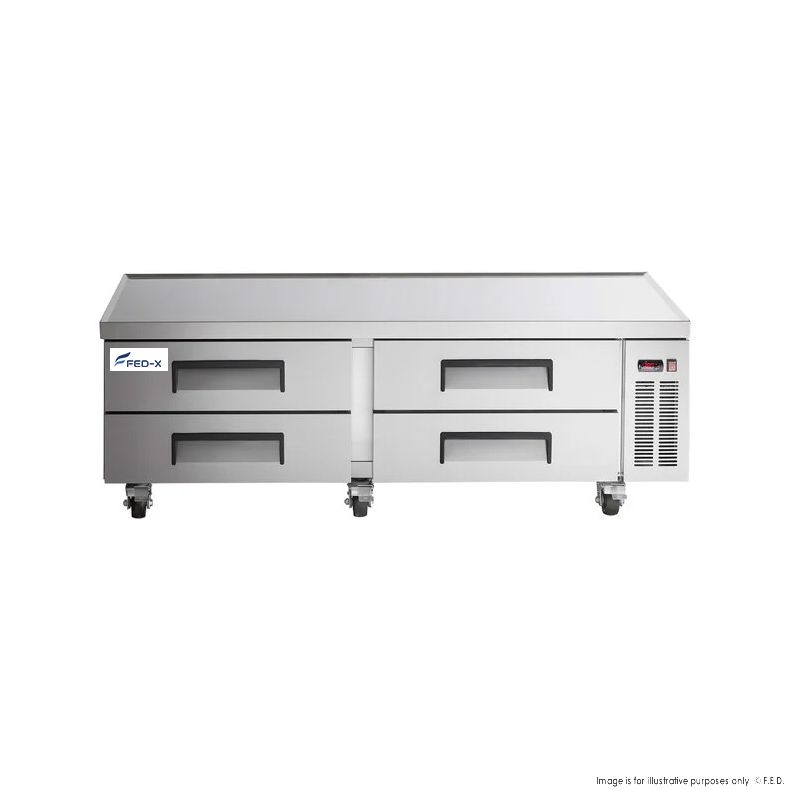

The FED-X XCB-72 is a refrigerated chef base drawer bench that sits beneath cooking equipment to keep cold ingredients within arm's reach of the cook line. The 1838 mm wide, 450 L unit holds four pull-out drawers cooled to -1–+5°C, eliminating walk-in trips during service.
Why operators choose the XCB-72
-
4-drawer access — four full-width pull-out drawers put pans of prepped ingredients directly under cooktop equipment, cutting service steps.
-
Tropicalised for AU conditions — rated to 32°C ambient / 65% RH, engineered for commercial kitchen heat loads common in Australian venues.
-
Fan-forced R290 refrigerant — HFC & CFC-free R290 refrigerant with fan-forced evaporator delivers rapid temperature recovery after drawer opening.
-
Heavy-gauge stainless construction — stainless steel interior and exterior with rounded corners; removable drawer gaskets for easy cleaning.
-
Integrated worktop support — raised-edge stainless top with sufficient load rating to mount Gasmax or equivalent cooking equipment directly above.
Specifications
| Brand |
FED-X |
| Model / MPN |
XCB-72 |
| Type |
Drawer Fridge / Refrigerated Chef Base |
| Capacity (Gross) |
450 L |
| Capacity (Net) |
385 L |
| Drawers |
4 |
| Temperature Range |
-1 to +5°C |
| Refrigerant |
R290 |
| Max Ambient Temperature |
32°C / 65% RH |
| Power |
240V, 660W, 10A |
| Energy Consumption |
5.132 kWh/24h |
| Construction |
Stainless Steel (interior & exterior) |
| Product Dimensions (W×D×H) |
1838 × 816 × 658 mm |
| Packed Dimensions (W×D×H) |
1908 × 886 × 725 mm |
| Net Weight |
125 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: Ideal for high-volume restaurants, hotels, catering operations, and any cook line where drawer-access refrigeration below cooking equipment reduces service steps. The 1838 mm width suits full commercial cook suites.
Browse the full range of Drawer Fridges or explore all FED-X refrigeration products on Commercial Kitchen Store.
Installation & delivery: The XCB-72 arrives on heavy-duty lockable castors — no fixed installation required. Ensure a standard 10A/240V single-phase outlet is within reach. Dispatched Australia-wide.
Frequently asked questions
What is the usable (net) capacity of the XCB-72?
The net internal capacity is 385 L across four drawers. The gross volume is 450 L.
What refrigerant does the XCB-72 use?
The XCB-72 uses R290 (propane), an HFC- and CFC-free natural refrigerant with a low global-warming potential, compliant with Australian environmental standards.
How many drawers does the XCB-72 have?
The XCB-72 has four pull-out drawers, each with removable gaskets for easy cleaning. Gastronomy pans (GN-compatible) are sold separately.
What cooking equipment can sit on top of the XCB-72?
The unit is specifically designed to support Gasmax cooking equipment on its raised-edge stainless top. Always verify equipment weight against the worktop load rating before mounting.
What power supply does the XCB-72 require?
The XCB-72 requires a standard Australian 240V single-phase supply, drawing 660W at 10A. No three-phase supply is needed.
