Description

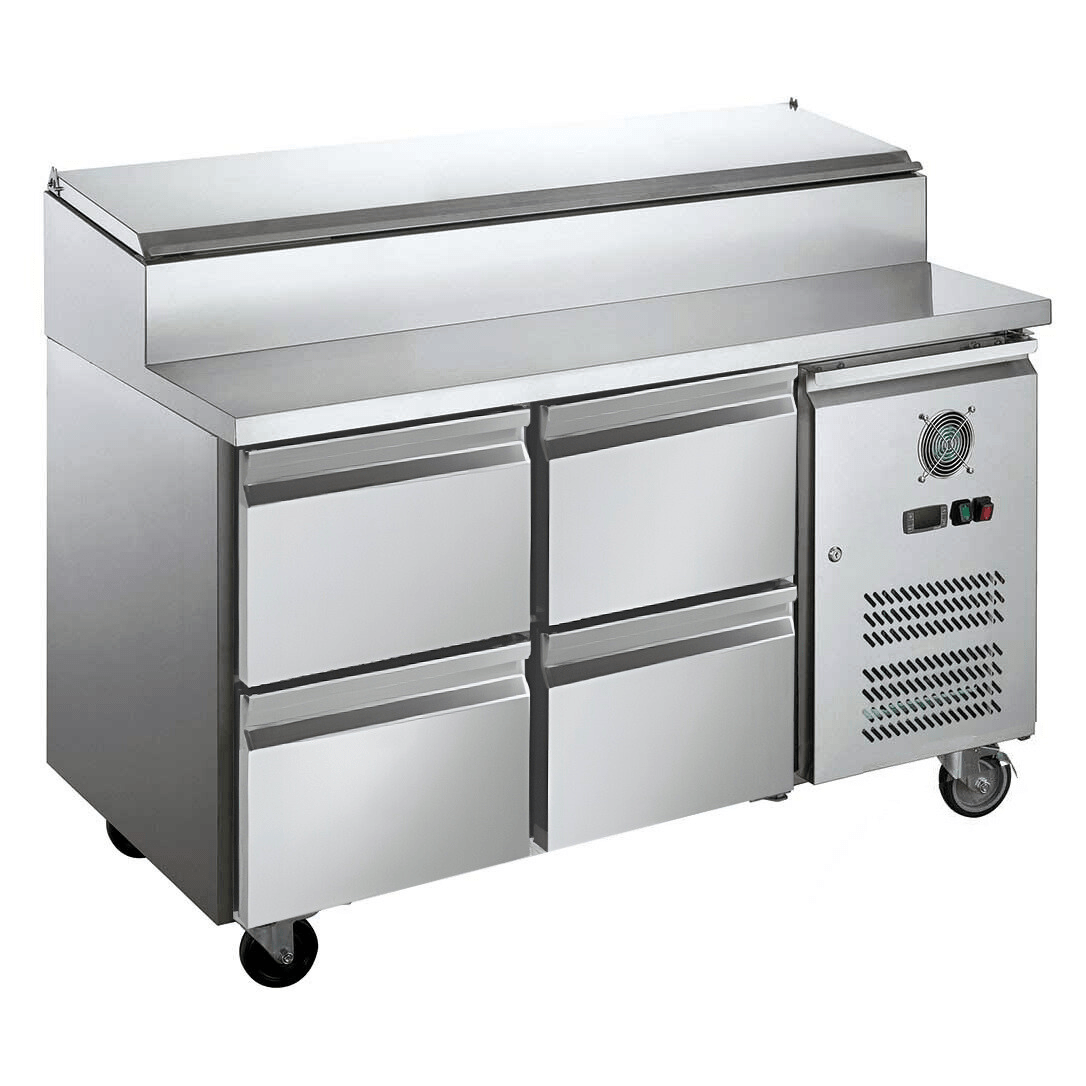

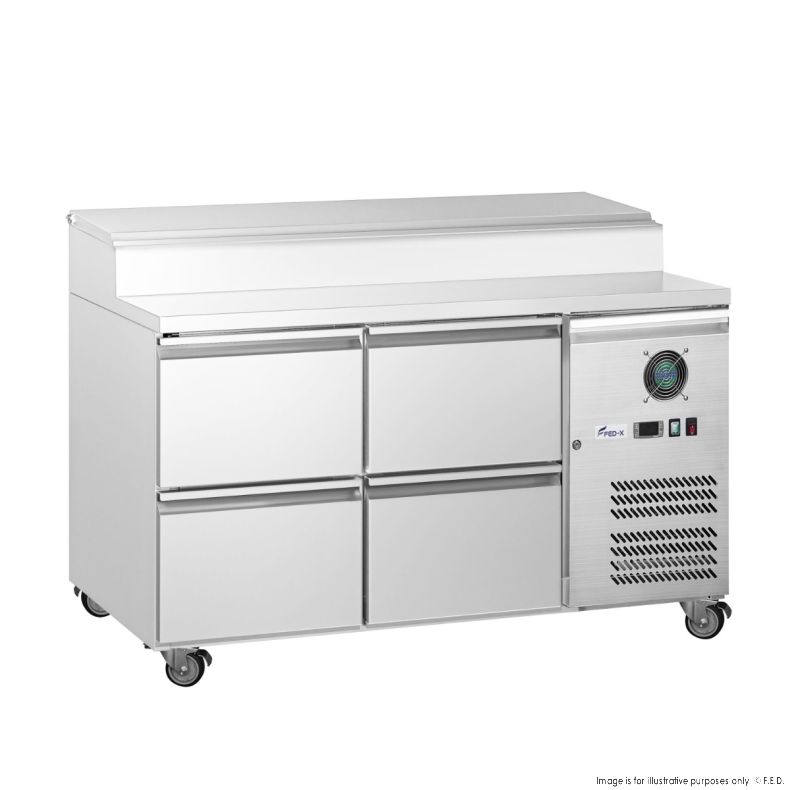

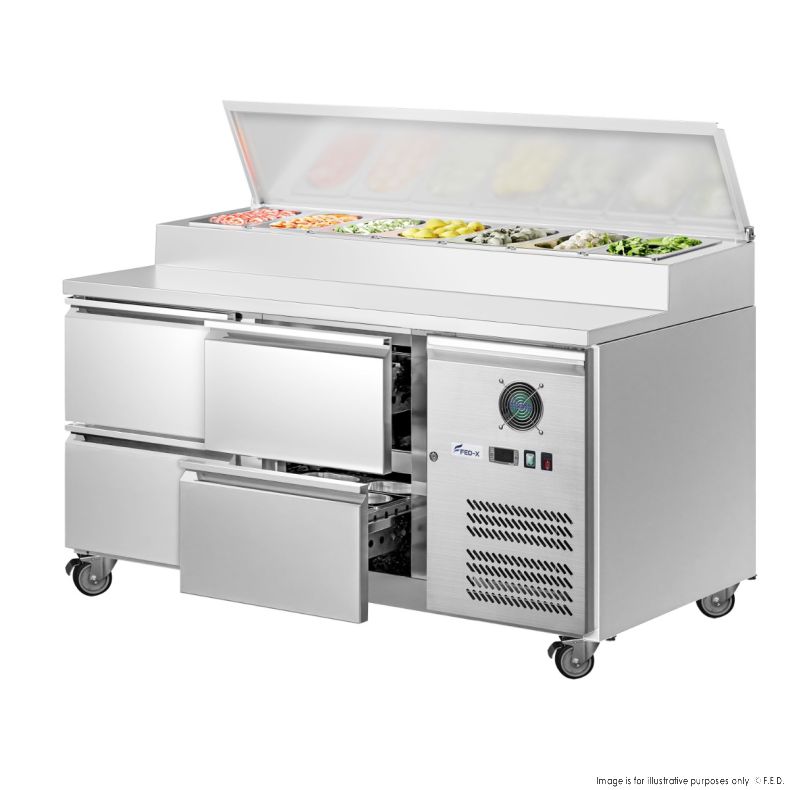

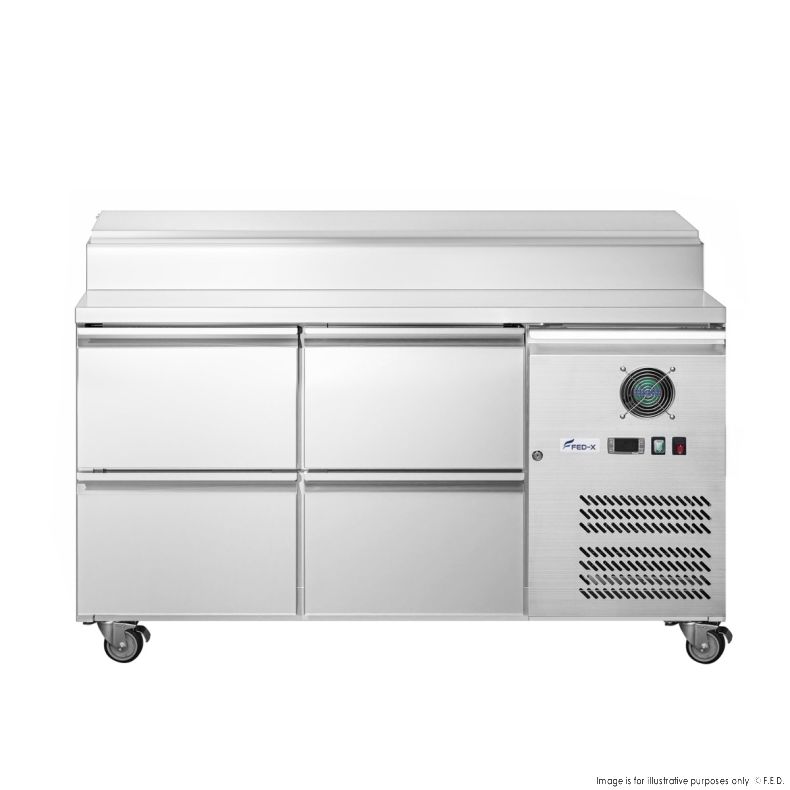

The FED-X XSS7C13S2V-4D is a four-drawer commercial sandwich and salad prep counter refrigerator designed for high-volume prep kitchens. With a 259 L net capacity, raised GN pan rail holding 7×1/3 GN pans, and four heavy-duty pull-out drawers, it keeps ingredients cold and within arm's reach throughout a busy service.
Why operators choose the XSS7C13S2V-4D
-
Four heavy-duty drawers — smooth-action pull-out drawers replace hinged doors for faster access during service, reducing cold-air loss and improving workflow speed.
-
7×1/3 GN pan capacity — raised rear rail holds GN pans up to 150mm deep at countertop level, ready for immediate plating without transfer.
-
Fan-forced Cubigel compressor system — Cubigel compressor with Dixell digital controller maintains +2 to +8°C in ambient conditions up to 43°C — tropicalised for Australian kitchens.
-
R290 natural refrigerant — environmentally responsible hydrocarbon refrigerant with zero ODP and very low GWP; HFC- and CFC-free 60mm foam insulation throughout.
-
Display top holds temp up to 4 hours — pre-chilled GN pan zone retains temperature for up to 4 hours, supporting menu prep shifts without power dependency.
Specifications
| Brand |
FED-X |
| Model / MPN |
XSS7C13S2V-4D |
| Type |
Salad/Sandwich Prep Bar Fridge |
| Drawers |
4 |
| Capacity (Net) |
259 L |
| Capacity (Gross) |
282 L |
| GN Pan Compatibility |
7×1/3 GN Pan up to 150mm deep |
| Temperature Range |
+2 to +8°C |
| Ambient Temperature (Max) |
43°C, 60% RH |
| Cooling System |
Fan forced |
| Compressor |
Cubigel |
| Controller |
Dixell digital |
| Refrigerant |
R290 |
| Insulation |
60mm HFC- and CFC-free foam |
| Fans |
Ebm-papst evaporator & condenser |
| Construction |
Stainless steel interior & exterior, rounded corners |
| Power |
240V; 50Hz; 10A; 320W |
| Product Dimensions (W×D×H) |
1360 × 700 × 1406mm |
| Packed Dimensions (W×D×H) |
1390 × 730 × 1160mm |
| Net Weight |
104 kg |
| Mobility |
Heavy-duty castors with front wheel brakes |
| Weight Loading Per Shelf |
40 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: Ideal for pizza and sandwich restaurants, cafes, delis, hotel kitchens, and any operation where speed of ingredient access during service is critical. The four-drawer configuration suits prep lines where staff work along the counter without breaking stride to open full-height doors.
Browse the full Salad Bar Fridges collection or explore all FED-X commercial refrigeration for companion equipment.
Installation & delivery: Arrive fully assembled on castors — roll into position, level, and connect to a standard 10A GPO. No specialist installation required. Dispatched Australia-wide.
Frequently asked questions
Q: What GN pan sizes fit the display rail?
A: The XSS7C13S2V-4D accommodates 7×1/3 GN pans up to 150mm deep in the raised countertop rail, making it compatible with standard salad, topping, and ingredient pans used across most commercial kitchens.
Q: Can this unit operate in hot Australian kitchens?
A: Yes. The unit is tropicalised for Australian conditions and rated for ambient temperatures up to 43°C at 60% relative humidity, covering the vast majority of Australian commercial kitchen environments.
Q: What refrigerant does the XSS7C13S2V-4D use?
A: It uses R290, a natural hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential — an environmentally responsible choice that also delivers efficient cooling performance.
Q: How long does the display top maintain temperature if power is interrupted?
A: When pre-chilled, the display top section can hold its temperature for up to 4 hours, giving operators a buffer during brief power interruptions or at the end of a service shift.
Q: What electrical supply does this unit need?
A: The XSS7C13S2V-4D requires a standard 240V/50Hz supply drawing 10A at 320W — a standard 10-amp GPO with no additional electrical work required in most commercial premises.
