Description

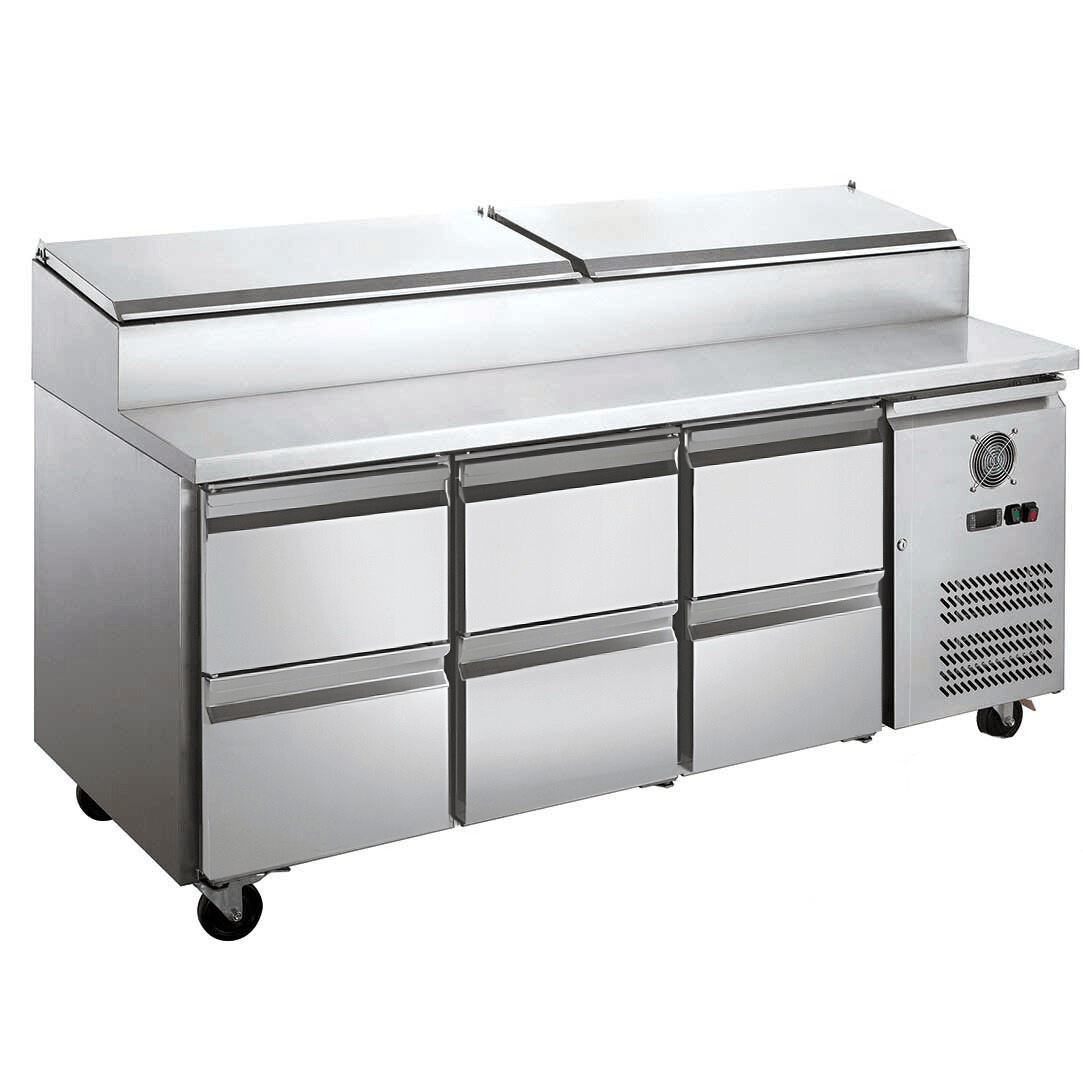

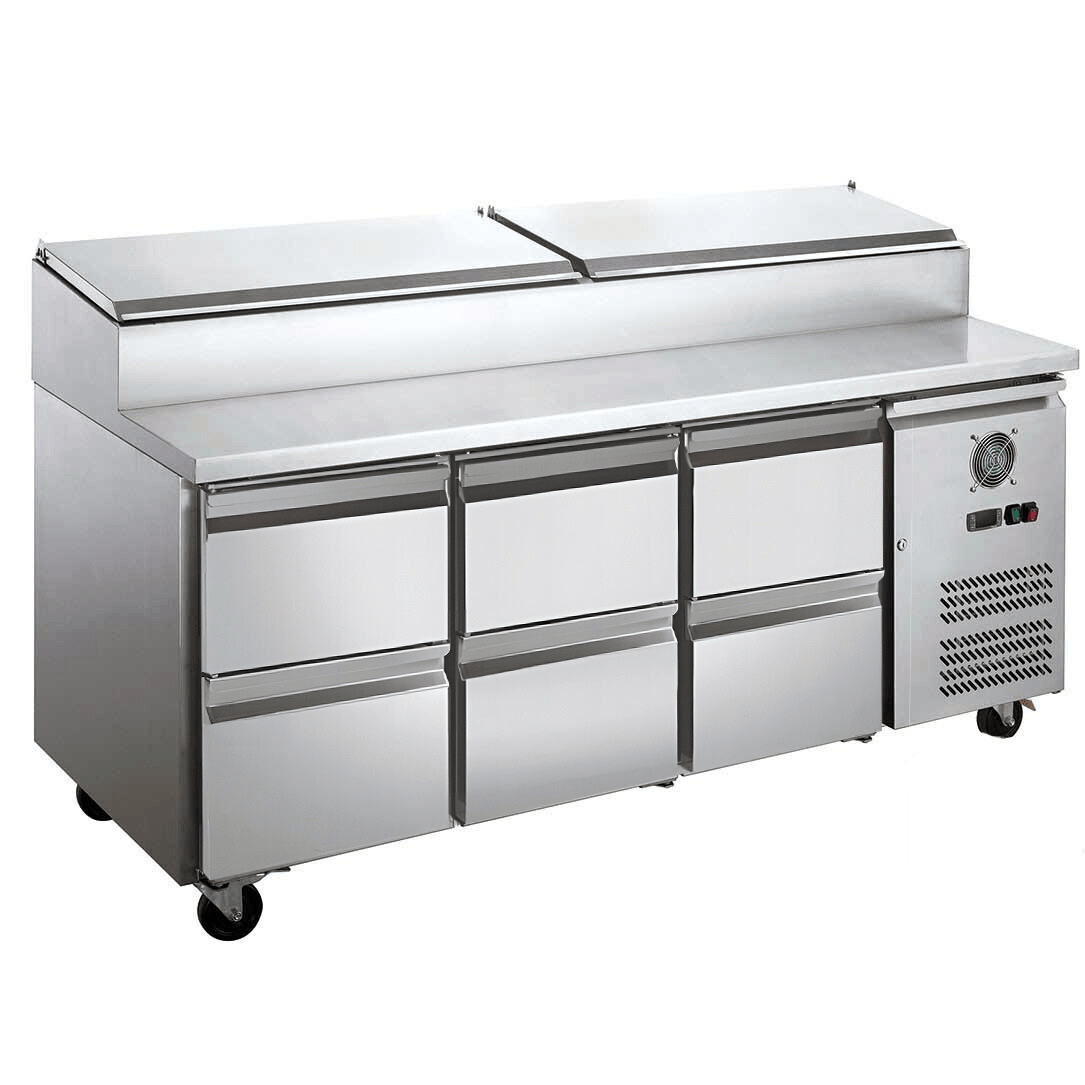

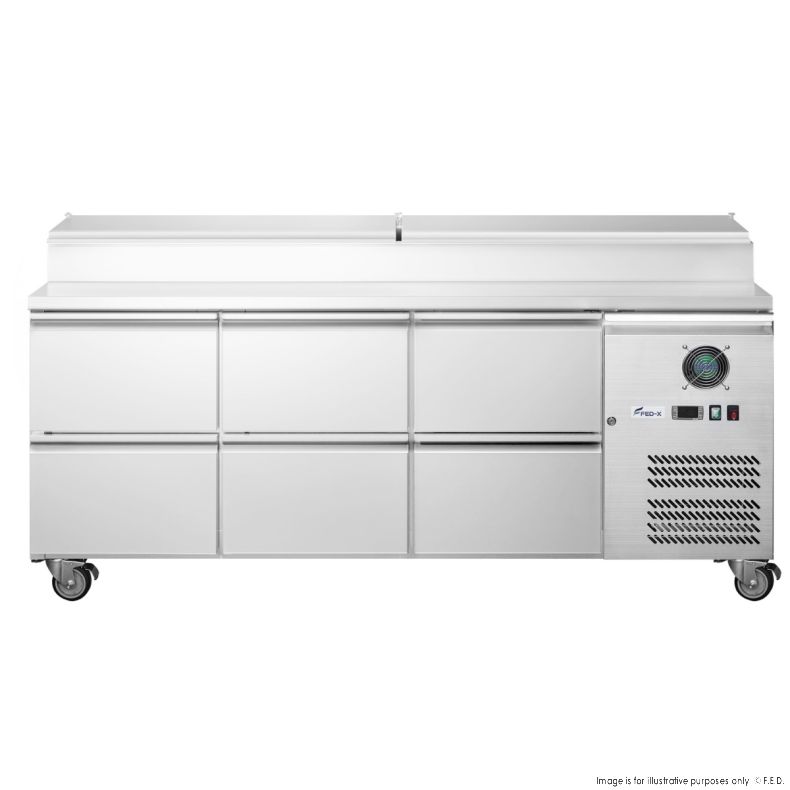

The FED-X XSS7C18S3V-6D is a 400-litre six-drawer refrigerated sandwich and salad prep fridge designed for high-volume commercial kitchens that need fast, organised cold ingredient access at the point of preparation. Six full-depth drawers replace traditional doors, keeping the prep surface clear while allowing rapid retrieval without a wide door swing in tight kitchen layouts.
Why operators choose the XSS7C18S3V-6D
-
Six heavy-duty drawers — organise ingredients by station; no door swing needed in tight kitchen runs.
-
8 × 1/3 GN pan capacity up to 150mm deep — accommodates a full sandwich or salad mise-en-place in the raised display top.
-
+2 to +8°C operating range — holds safe service temperatures in kitchens up to 43°C ambient with 60% RH.
-
R290 natural refrigerant — low GWP refrigerant, HFC and CFC free 60mm foam insulation throughout the body.
-
Fan-forced cooling with Cubigel compressor & Dixell digital controller — consistent cabinet temperature with user-friendly digital display and rapid recovery rate.
-
Stainless steel interior & exterior with rounded corners — easy cleaning, durable finish rated for commercial use.
-
Heavy-duty castors with front wheel brakes — safe repositioning on the floor, locks securely in service position.
Specifications
| Brand |
FED-X |
| Model / MPN |
XSS7C18S3V-6D |
| Type |
Refrigerated Sandwich & Salad Prep Fridge |
| Configuration |
6-Drawer |
| Capacity (Net) |
400 L |
| GN Pan Capacity |
8 × 1/3 GN pans up to 150mm deep |
| Temperature Range |
+2 to +8°C |
| Refrigerant |
R290 |
| Compressor |
Cubigel |
| Controller |
Dixell digital |
| Max Ambient Temperature |
43°C, 60% RH |
| Cooling System |
Fan forced |
| Power |
240V / 50Hz / 10A / 320W |
| Power Type |
Electric |
| Construction |
Stainless Steel interior & exterior |
| Insulation |
60mm HFC/CFC-free foam body |
| Product Dimensions (W × D × H) |
1795 × 700 × 1406mm |
| Packed Dimensions (W × D × H) |
1830 × 730 × 1160mm |
| Net Weight |
130 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (registration within 14 days of invoice) |
Venue suitability: Suited to sandwich bars, cafés, pizza restaurants, burger kitchens, sushi bars, and fast-food prep lines that require high-volume cold ingredient access at the bench. The drawer configuration is ideal for busy stations where the chef needs rapid access to multiple ingredient sections without a full door open. The 1795mm width accommodates a standard commercial prep bench footprint. Browse the full range in our Salad Bar Fridges collection, or see all equipment from FED-X.
Installation & delivery: Plug-in electric connection (240V / 10A standard outlet). Position away from direct heat sources and allow adequate airflow to the condenser. Dispatched Australia-wide.
Frequently asked questions
What is the net storage capacity of the XSS7C18S3V-6D?
The net volume is 400 litres, distributed across six drawers, with the refrigerated display top holding up to 8 × 1/3 GN pans up to 150mm deep.
What refrigerant does this unit use?
It uses R290, a natural hydrocarbon refrigerant with a very low global warming potential. The body uses 60mm HFC and CFC-free foam insulation.
What is the temperature range?
The unit operates at +2 to +8°C and is designed for ambient environments up to 43°C at 60% relative humidity — tropicalised for Australian commercial kitchen conditions.
What electrical connection is required?
The XSS7C18S3V-6D requires a standard 240V / 50Hz / 10A single-phase connection, drawing 320W at full load. No special electrical work is needed for most commercial premises.
What is the warranty on this unit?
FED-X provides 2 Years Parts & Labour plus an additional 2 Years Parts Only coverage when the product is registered within 14 days of invoice date.
