Description

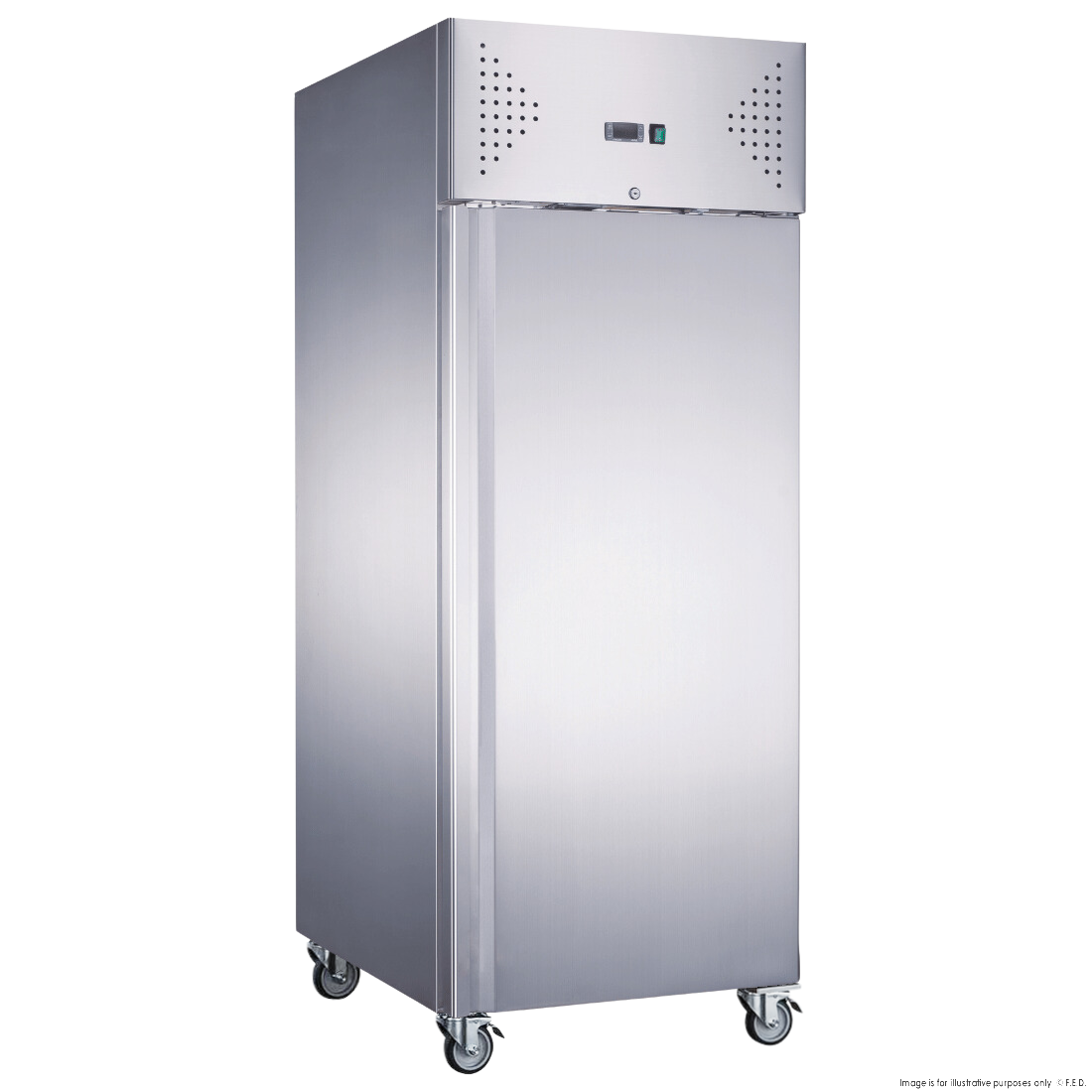

The FED-X XPA800BT is a commercial bakery upright freezer designed to store large-format baking trays in high-volume bakery, pastry, and food-production kitchens. With a 612 L net capacity and compatibility with up to 10 × 600 × 800 mm pans, it keeps baked goods, dough, and frozen product at a consistent -18 to -22°C across all shelf positions.
Why operators choose the XPA800BT
-
Large-format bakery tray compatibility — accommodates up to 10 adjustable 600 × 800 mm pan positions, covering standard baking trays without adapters.
-
Fan-forced cooling with auto defrost — consistent cabinet temperature and hands-free defrost cycles reduce downtime in busy production schedules.
-
Dixell digital controller — precise temperature read-out and control at a glance, with LED cabinet lighting for fast visual stock checks.
-
R290 natural refrigerant — low-GWP, CFC-free with 60 mm insulation for energy efficiency and compliance with modern environmental standards.
-
Reversible self-closing door with lock — replaceable magnetic seal, fan and light switch on the door, and a castor-mounted base for kitchen mobility.
Specifications
| Brand |
FED-X |
| Model / MPN |
XPA800BT |
| Type |
Commercial Bakery Upright Freezer |
| Capacity (Net) |
612 L |
| Gross Volume |
737 L |
| Temperature Range |
-18 to -22°C |
| Max Ambient Temperature |
43°C, 70% RH |
| Tray Compatibility |
Up to 10 × 600 × 800 mm pans (adjustable positions) |
| Refrigerant |
R290 (natural, CFC-free) |
| Insulation |
60 mm CFC-free |
| Cooling |
Fan-forced |
| Defrost |
Automatic |
| Temperature Controller |
Dixell digital |
| Lighting |
Internal LED |
| Door |
Single solid door, reversible, self-closing, lockable |
| Door Seal |
Replaceable magnetic |
| Construction |
Stainless steel interior & exterior, round-corner base |
| Power |
240 V, 520 W / 10 A |
| Total Energy Consumption |
7.32 kWh/24h |
| Product Dimensions (W × D × H) |
740 × 990 × 2000 mm |
| Packed Dimensions (W × D × H) |
1015 × 765 × 2070 mm |
| Net Weight |
183 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: Ideal for commercial bakeries, patisseries, pastry sections in hotels and restaurants, food-production facilities, and any kitchen producing high volumes of baked or frozen goods requiring large-format tray storage. Browse our full range of Commercial Upright Freezers or explore all FED-X refrigeration equipment.
Installation & delivery: This unit arrives flat-packed on a pallet. Position on a level, well-ventilated surface with adequate clearance for door swing and air circulation. Allow 24 hours after installation before loading. Dispatched Australia-wide.
Frequently asked questions
Is the XPA800BT a freezer or a chiller?
It is a freezer. The XPA800BT operates at -18 to -22°C, making it suitable for frozen storage of dough, baked goods, and other perishables requiring sub-zero temperatures. The sibling model XPA800TN is the chiller variant.
What tray sizes does the XPA800BT accept?
The cabinet is designed to hold up to 10 × 600 × 800 mm baking pans on adjustable shelf positions. Trays and shelves are not included and must be sourced separately.
What refrigerant does this unit use?
The XPA800BT uses R290, a natural hydrocarbon refrigerant with a very low global warming potential (GWP). It is CFC-free and complies with modern environmental standards in Australia.
Can the door swing direction be changed?
Yes. The door is reversible, so it can be configured to open from either side to suit your kitchen layout. The self-closing mechanism and magnetic seal function in both configurations.
What is the warranty on the XPA800BT?
FED-X provides 2 years parts & labour plus a further 2 years parts-only coverage, giving a total of 4 years protection — provided the unit is registered within 14 days of invoice. Contact your FED-X authorised service centre for claims.
