Description

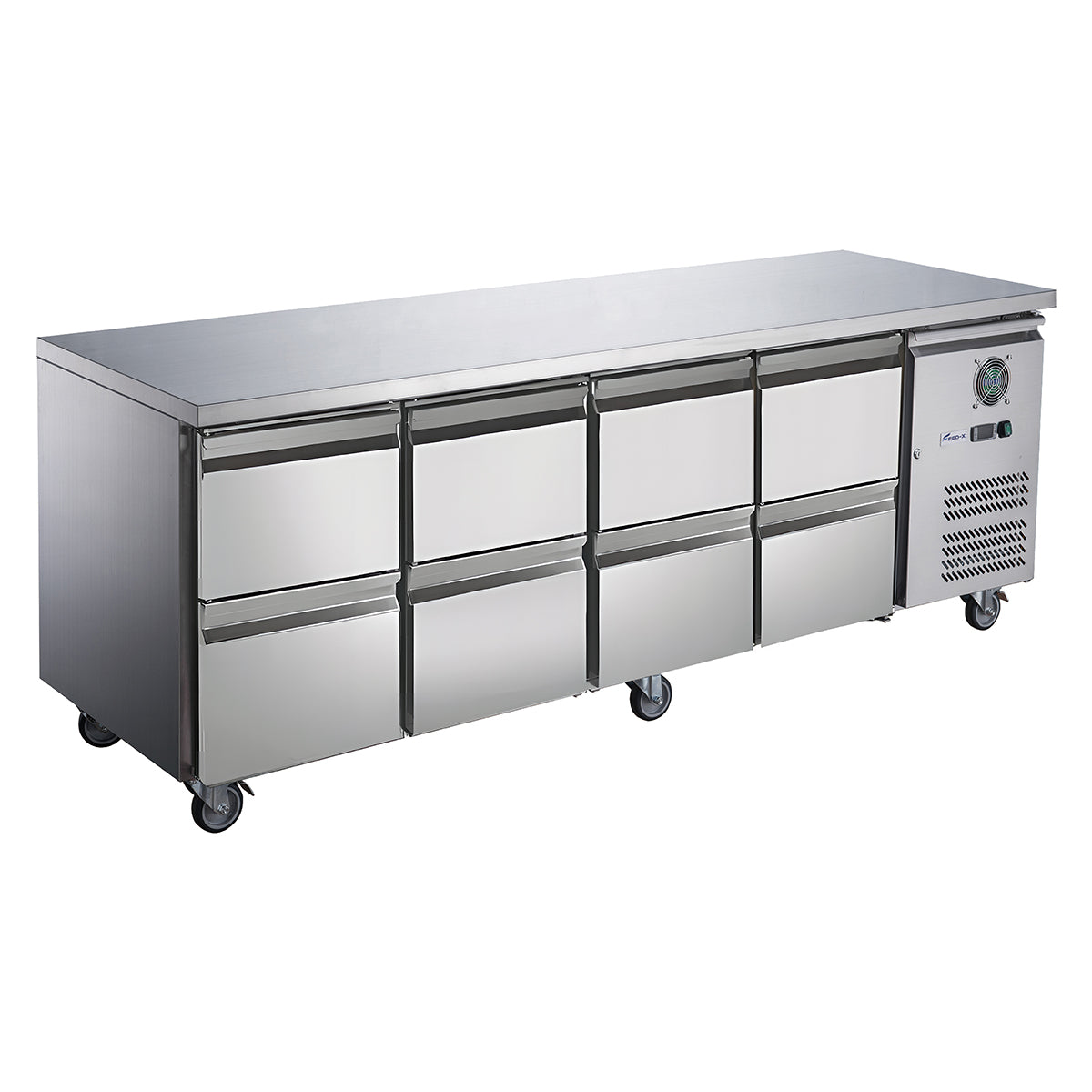

The FED-X XUB7C22S4D is an underbench drawer refrigerator that delivers 553L of gross refrigerated storage across eight GN1/2 drawers, built for high-throughput commercial kitchens where bench space doubles as prep surface and front-access refrigeration keeps mise-en-place within arm's reach.
Why operators choose the XUB7C22S4D
-
8 GN1/2 drawers in 4 columns — two heavy-duty drawers per section organise ingredients by station without opening a full door
-
Fan-forced cooling with Embraco/Secop compressor — rapid temperature recovery after heavy use; holds -2 to +8°C even at 43°C ambient
-
Dixell digital controller — precise temperature management and at-a-glance status on the display panel
-
R290 natural refrigerant — low-GWP, HFC/CFC-free; 60mm foam-insulated body minimises energy draw
-
Stainless steel interior & exterior with rounded corners — easy cleaning, no crevices for food debris
-
Tropicalised for Australian conditions — rated to 43°C ambient with Ebm-papst evaporator and condenser fans for sustained performance in hot kitchens
-
Stainless worktop with heavy-duty castors — prep surface ready to use; front-wheel brake castors can be pushed flush against the wall
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB7C22S4D |
| Type |
Drawer Fridge |
| Gross Volume |
553 L |
| Drawers |
8 (2 per column, 4 columns) |
| Drawer Size |
GN 1/2 |
| Temperature Range |
-2 to +8°C |
| Max Ambient Temperature |
43°C, 60% RH |
| Refrigerant |
R290 |
| Cooling System |
Fan-forced |
| Compressor |
Embraco / Secop |
| Controller |
Dixell |
| Power |
240V; 345W / 2.0A |
| Construction |
Stainless steel interior & exterior, rounded corners; 60mm HFC/CFC-free foam insulation |
| Dimensions (W x D x H) |

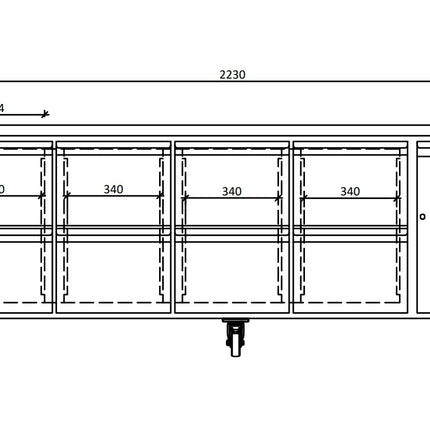

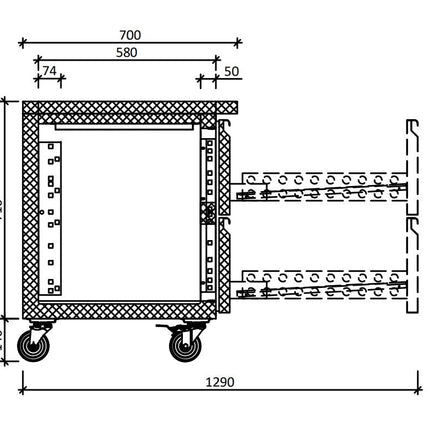

2230 x 700 x 850mm |
| Internal Dimensions (W x D x H) |
1669 x 580 x 564mm |
| Packing Dimensions (W x D x H) |
2260 x 730 x 910mm |
| Net Weight |
150 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: Designed for commercial kitchens requiring high-volume front-access refrigeration under the prep line. Ideal for busy restaurants, hotels, catering operations, and production kitchens where GN1/2 drawer organisation by station speeds service. The 2230mm wide unit suits long cook lines or garde manger sections. Browse the full range of Drawer Fridges or explore all FED-X commercial refrigeration.
Installation & delivery: Unit arrives on heavy-duty castors ready for positioning — no fixed installation required. Allow clearance for the right-side condenser air flow. Connect to a standard 240V / 10A power outlet. Dispatched Australia-wide.
Frequently asked questions
What is the internal capacity of the XUB7C22S4D?
The supplier-stated gross volume is 553L across all eight drawers. The drawers are sized to GN 1/2 gastronorm, suitable for standard prep containers and ingredient pans.
What temperature range does this drawer fridge operate at?
The XUB7C22S4D maintains -2 to +8°C, making it suitable for refrigerating proteins, dairy, and fresh produce under the prep line.
Is this unit suitable for hot kitchen environments?
Yes — it is tropicalised for Australian conditions and rated to operate at up to 43°C ambient temperature with 60% relative humidity, well within a typical commercial kitchen environment.
What refrigerant does the XUB7C22S4D use?
It uses R290 (propane), a natural refrigerant with very low global warming potential (GWP). The foam insulation is also HFC and CFC free.
What warranty is included?
FED-X provides 2 Years Parts & Labour plus a further 2 Years Parts Only, subject to product registration within 14 days of invoice via the FED product registration portal.
SKU: XUB7C22S4D
In Stock
