Description

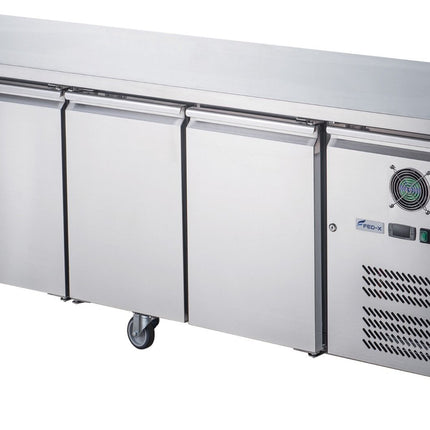

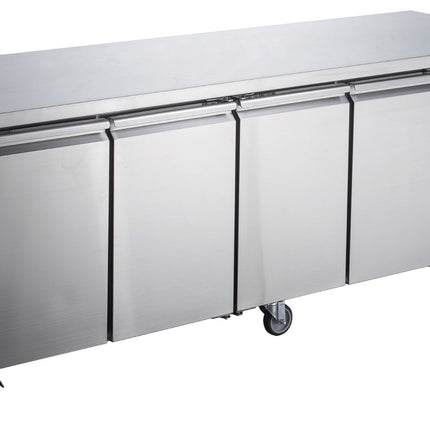

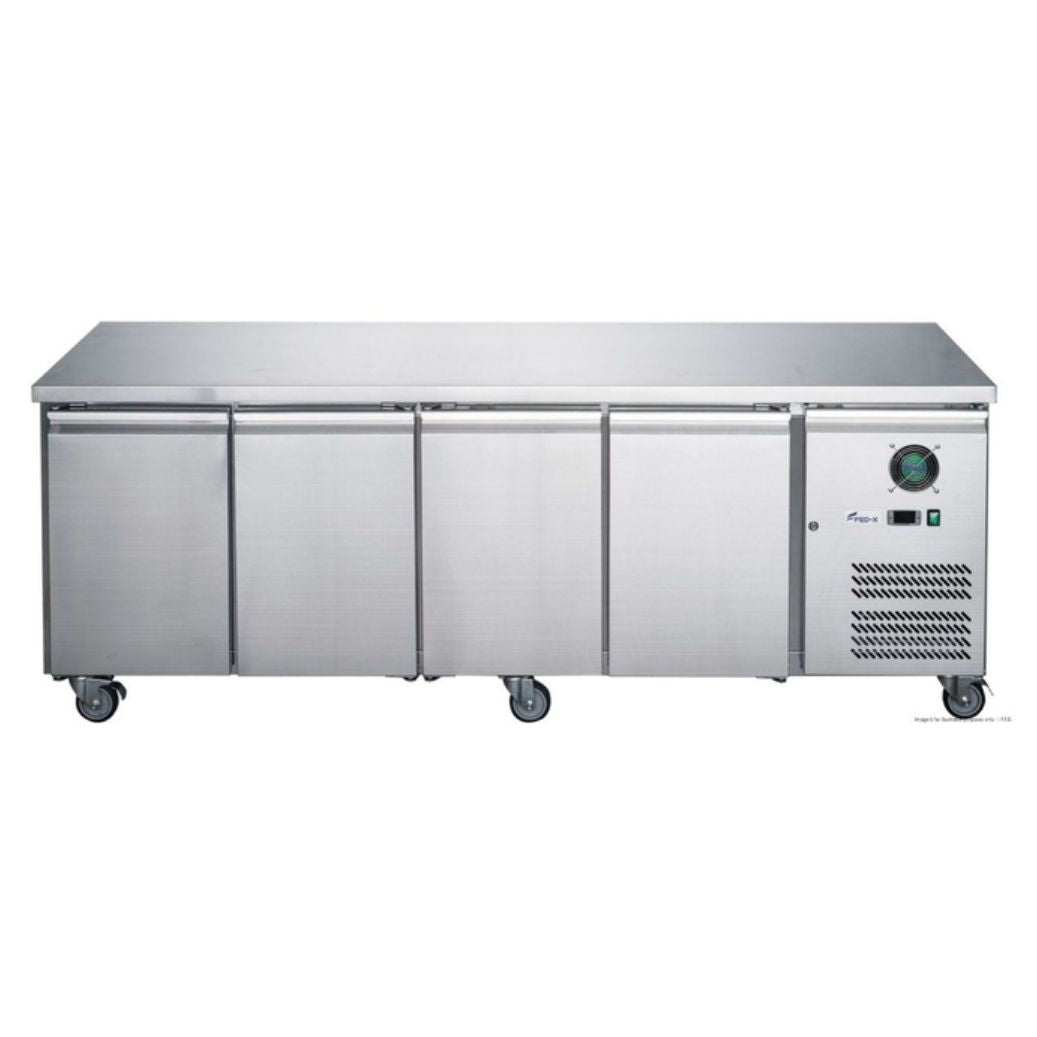

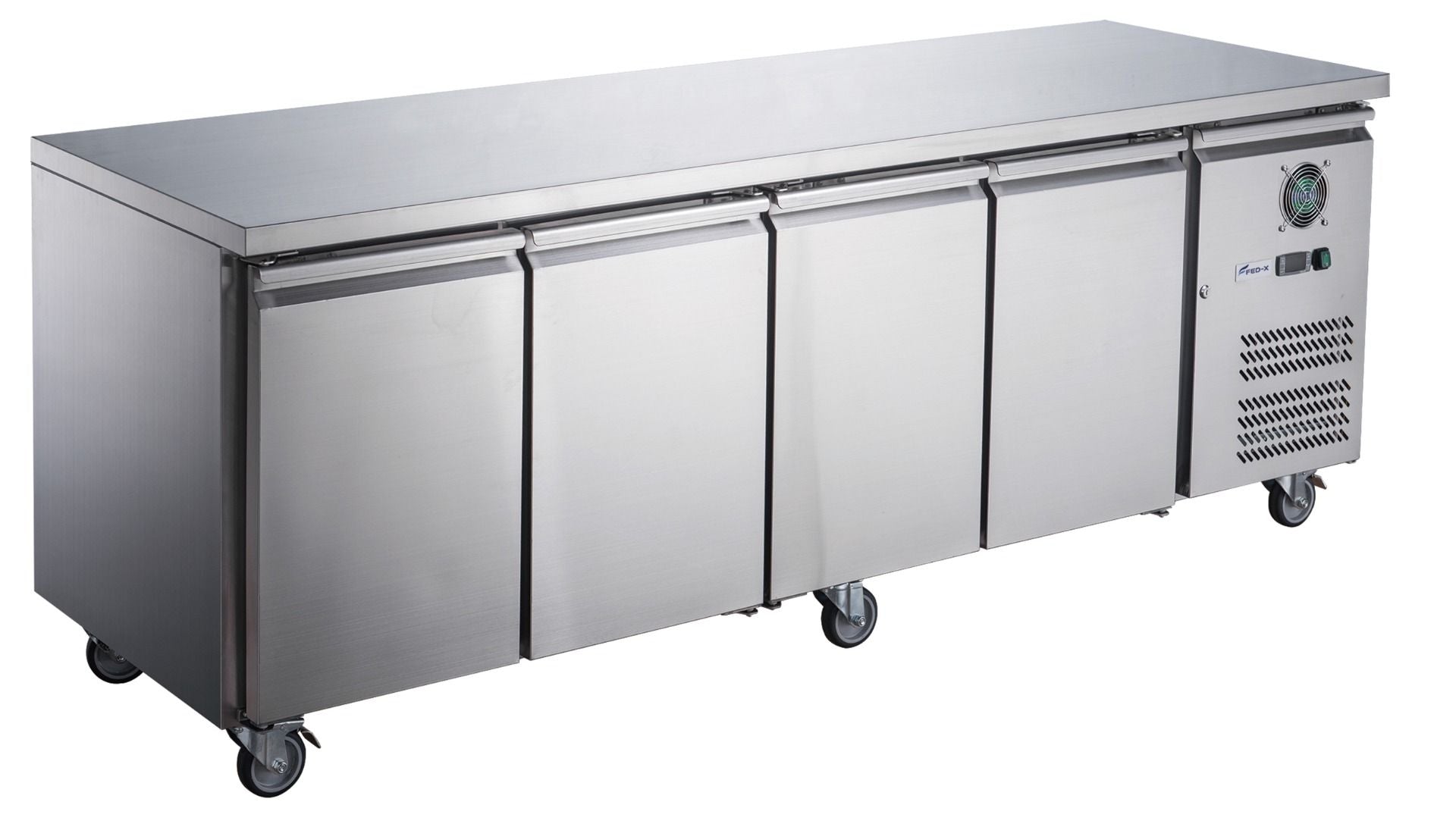

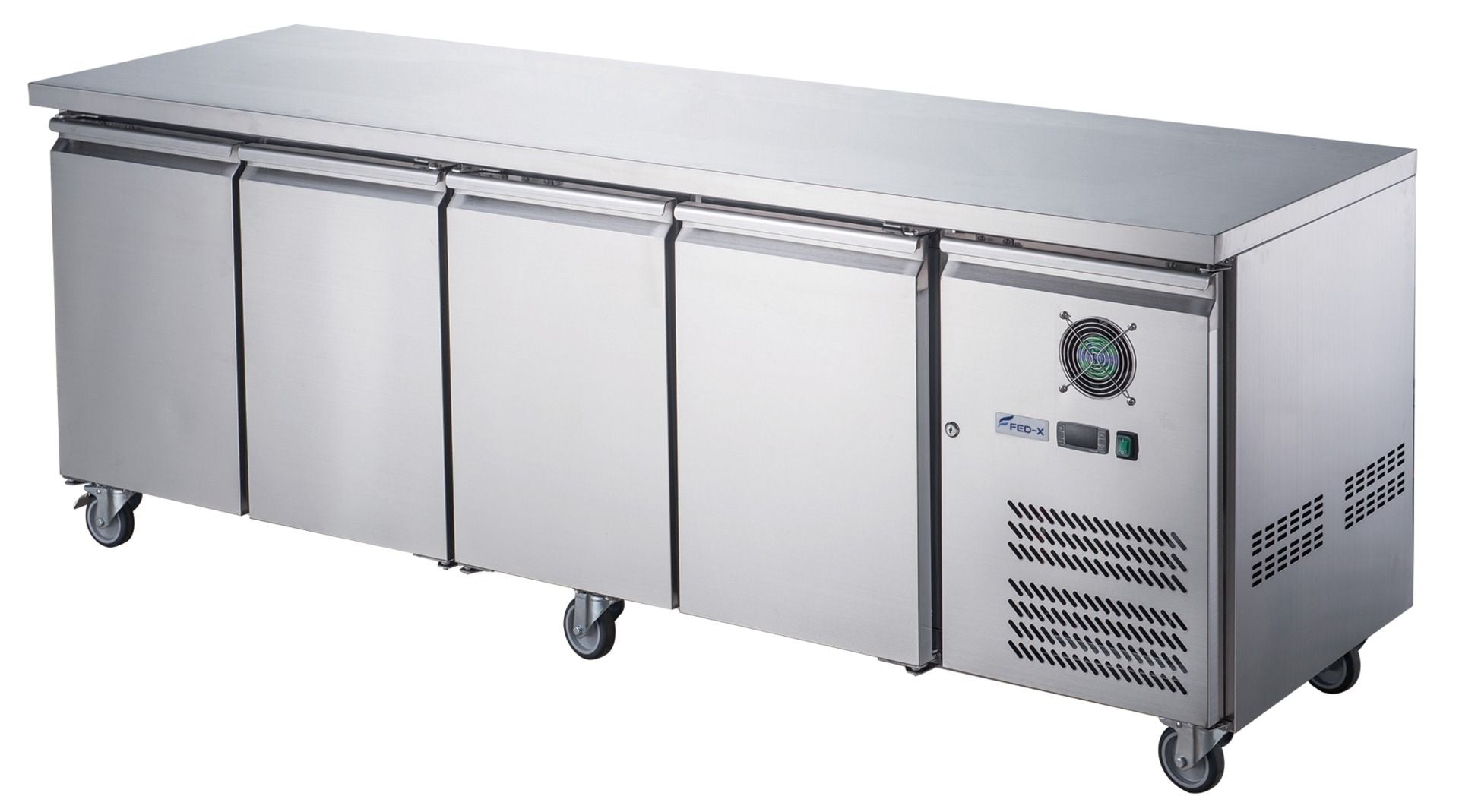

The FED-X XUB6C22S4V is a four-door solid under-bench refrigerator that provides 449 litres of chilled storage capacity beneath a stainless steel worktop, making it ideal for busy commercial kitchens where prep space and accessible cold storage must coexist.
Why operators choose the XUB6C22S4V
-
449 L across four solid doors — generous capacity in a bench-height footprint, accessible from any position along the 2230mm run
-
Fan forced cooling with Cubigel compressor — rapid recovery after door openings keeps contents safely within the -2 to +8°C operating range
-
Tropical rated to 43°C ambient — engineered for Australian kitchen conditions with 60mm HFC/CFC-free foam insulation throughout the body
-
R290 natural refrigerant — low global-warming-potential refrigerant meets current AU environmental requirements
-

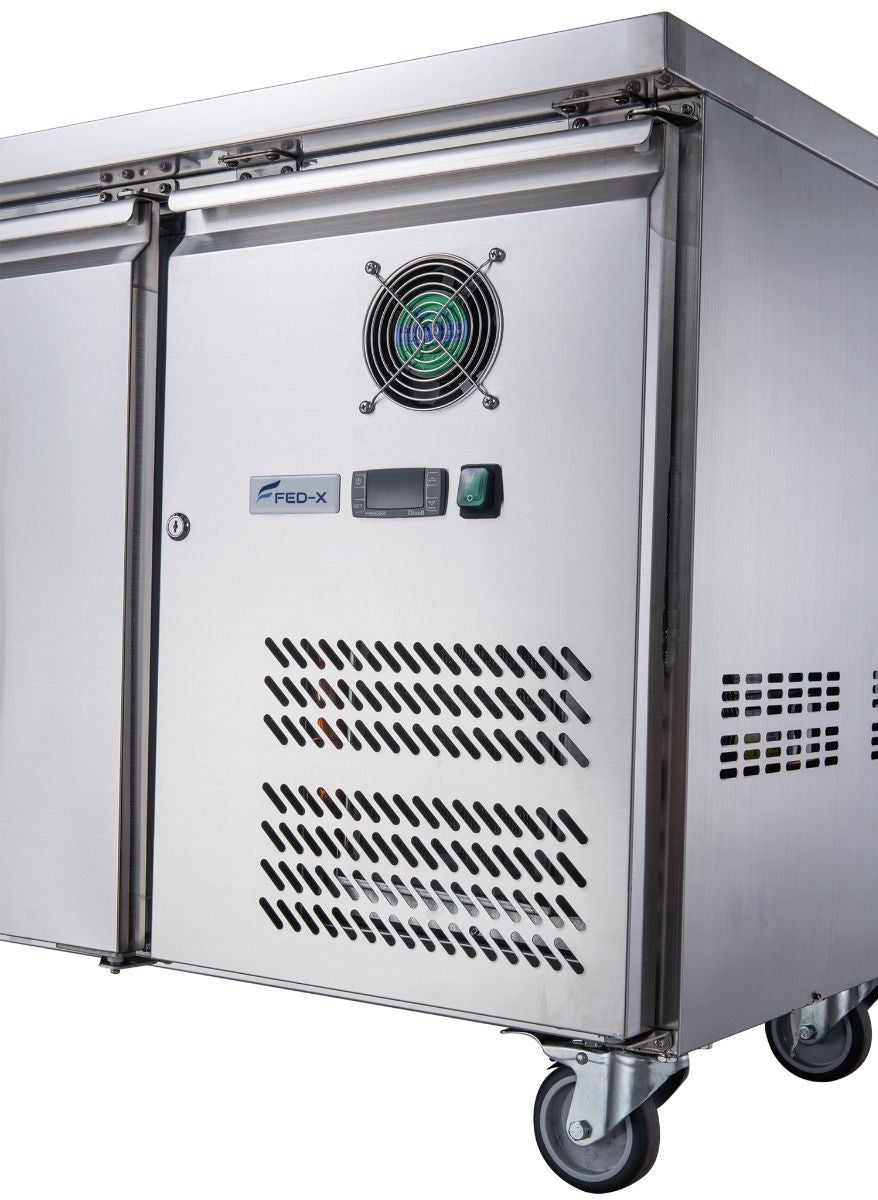

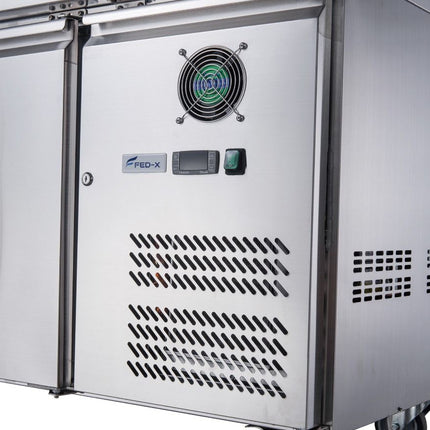

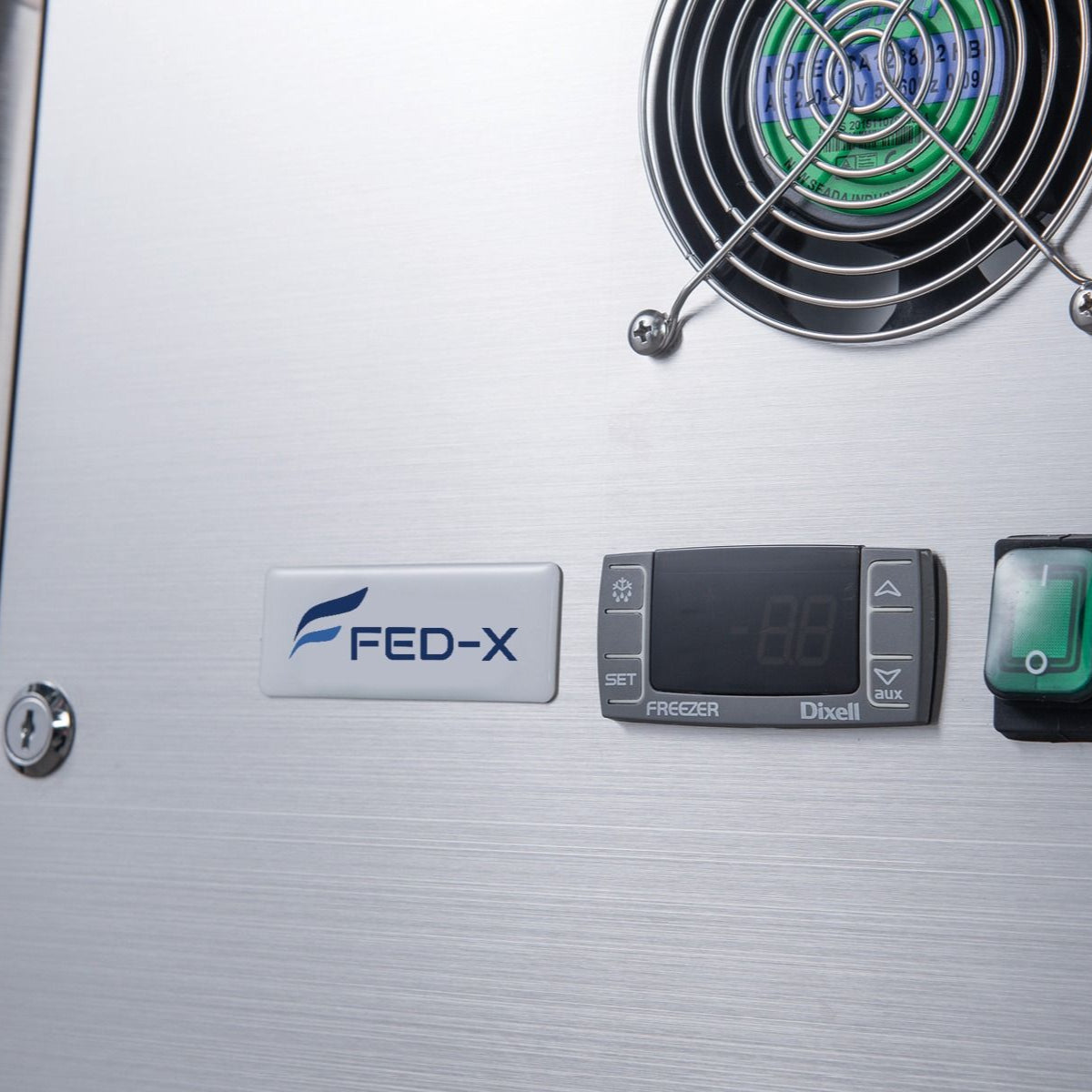

Dixell digital controller with auto defrost — user-friendly temperature management, self-defrosting cycle reduces maintenance workload
-
Stainless steel interior & exterior with rounded corners — hygienic, easy-clean construction; self-closing doors with heavy-duty magnetic seals retain temperature and minimise energy use
-
Heavy-duty castors with front wheel brakes — repositionable for cleaning; unit can be placed flush against a wall
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB6C22S4V |
| Type |
Undercounter Storage Fridge |
| Capacity |
449 L |
| Doors |
4 × Solid |
| Temperature Range |
-2 to +8°C |
| Ambient Temperature Rating |
43°C |
| Refrigerant |
R290 |
| Cooling System |
Fan Forced Cooling |
| Compressor |
Cubigel |
| Controller |
Dixell (digital) |
| Power |
240V / 50Hz / 10A / 345W |
| Material |
Stainless Steel (interior & exterior) |
| External Dimensions (W × D × H) |
2230 × 600 × 850mm |
| Internal Dimensions (W × D × H) |
1669 × 480 × 564mm |
| Shelf Loading |
40 kg per shelf |
| Insulation |
60mm HFC/CFC-free foam |
| Net Weight |
189 kg |
| Packed Dimensions (W × D × H) |
2260 × 630 × 910mm |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (registration within 14 days of invoice) |
Venue suitability: The XUB6C22S4V suits high-volume commercial kitchens — restaurants, hotels, catering operations, and food production facilities — where under-bench cold storage needs to keep pace with a busy prep line. The 2230mm wide worktop doubles as usable prep surface, and the tropical rating ensures reliable performance in hot Australian kitchen environments year-round.
Browse our full range of Under Bench Fridges or explore other FED-X refrigeration products to find the right configuration for your operation.
Installation & delivery: The XUB6C22S4V arrives fully assembled and ready to connect to a standard 240V / 10A power outlet. Position on a level surface with adequate ventilation clearance at the compressor panel. Heavy-duty castors allow repositioning once installed. Dispatched Australia-wide.
Frequently asked questions
What is the net storage capacity of the XUB6C22S4V?
The XUB6C22S4V has a net capacity of 449 litres spread across four compartments, each accessed by an individual solid door.
What refrigerant does this unit use?
It uses R290, a natural hydrocarbon refrigerant with a very low global warming potential (GWP of 3), meeting current Australian environmental guidelines for commercial refrigeration.
Is the XUB6C22S4V suitable for hot kitchens?
Yes — it is tropical rated to a 43°C ambient temperature, making it well-suited to Australian commercial kitchen conditions including summer peaks and poorly ventilated spaces.
How many shelves does each section include?

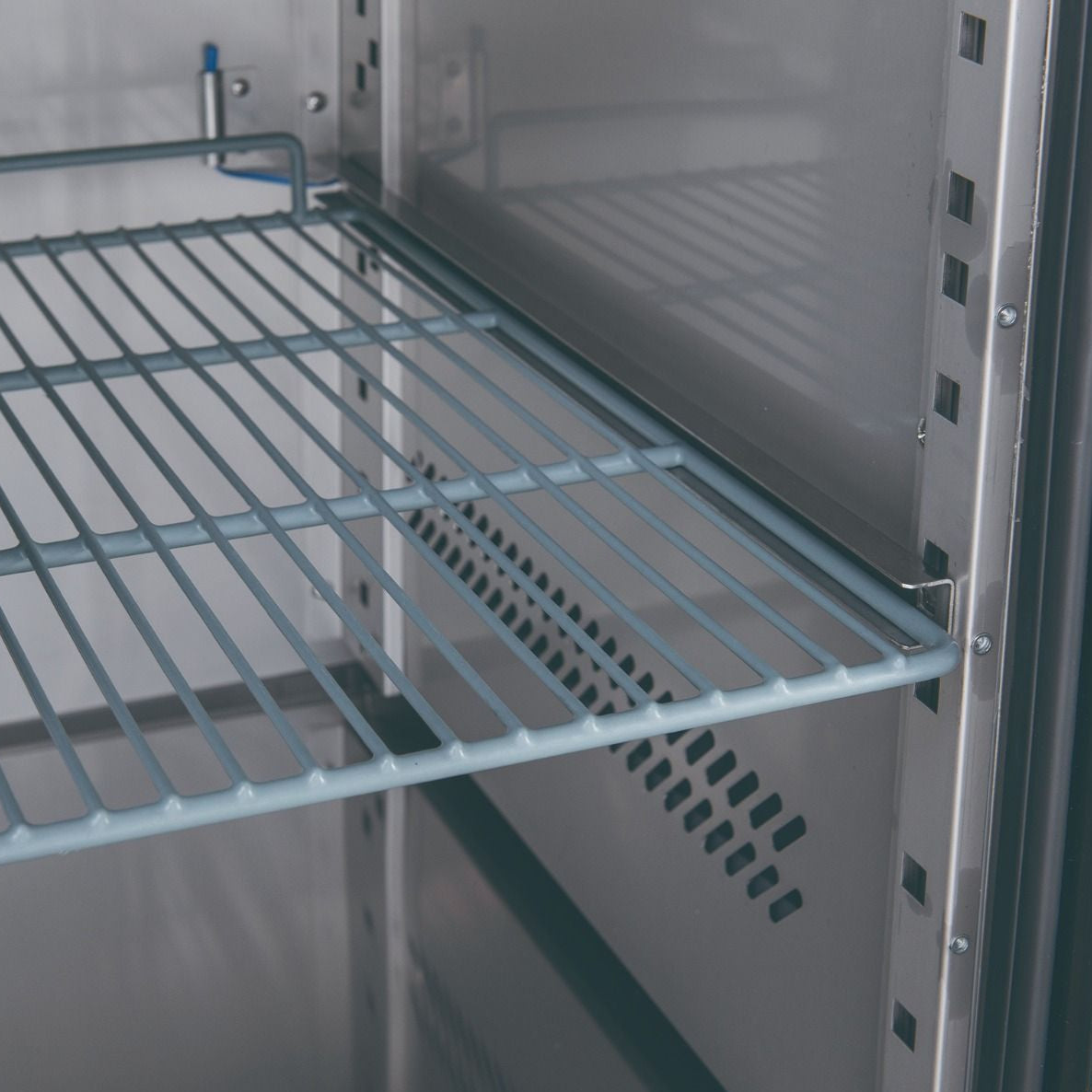

Each door section includes one wire shelf as standard. Additional shelf sets (XUB6-SHELFSET) are available separately from FED for increased storage density.
What power supply does the XUB6C22S4V require?
The unit runs on a standard 240V / 50Hz single-phase supply drawing 10A at 345W. No specialised electrical installation is required — plug into a standard 10A commercial outlet.
