Description

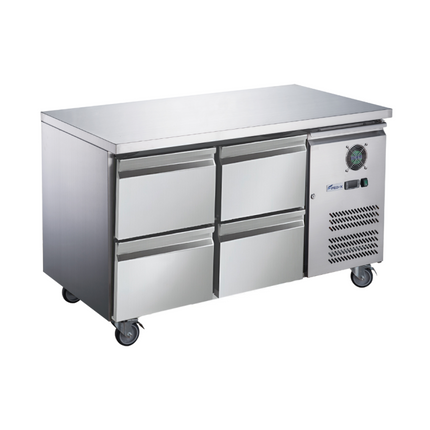

The FED-X XUB7C13S2D is a four-drawer underbench refrigerator designed to maximise cold storage in tight prep-line footprints. Housing four heavy-duty GN1/2 drawer compartments across two columns, it keeps ingredients chilled between -2°C and +8°C with a fan-force evaporator system and Dixell digital controller — all within a 1360mm-wide stainless steel worktop chassis.
Why operators choose the XUB7C13S2D
-
Four GN1/2 drawers — two columns of two drawers provide fast-access ingredient storage without opening a full-size door, reducing cold-air loss during busy service.
-
Worktop-height chassis — 850mm height with a flat stainless top doubles as a prep surface and integrates flush with standard bench runs.
-
Embraco/Secop compressor with Dixell control — proven commercial refrigeration drive train with digital temperature management and rapid recovery after frequent drawer access.
-
R290 natural refrigerant — low global-warming-potential refrigerant suitable for Australian regulatory requirements; CFC & HFC free.
-
Heavy-duty castors with front-wheel brakes — mobile for cleaning; locks in place during service; rear can be positioned flush to the wall.
-
60mm high-density foam insulation — CFC-free body insulation supports consistent -2 to +8°C operation in ambient temperatures up to 43°C.
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB7C13S2D |
| Type |
Underbench Drawer Fridge |
| Capacity (Net) |
186 L |
| Drawer Count |
4 (2 columns × 2 rows, GN1/2) |
| Temperature Range |
-2 to +8°C |
| Refrigerant |
R290 |
| Cooling System |
Fan-force evaporator cooling |
| Compressor |
Embraco/Secop |
| Controller |
Dixell digital |
| Power |
240V; 215W / 1.3A |
| Power Type |
Electric |

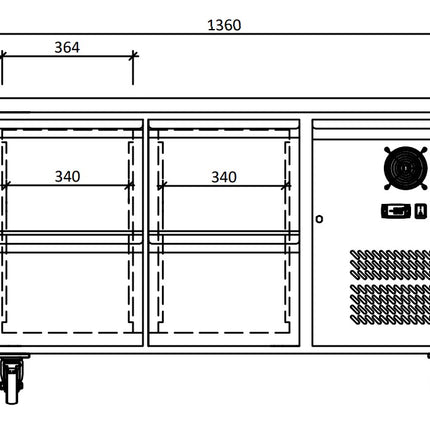

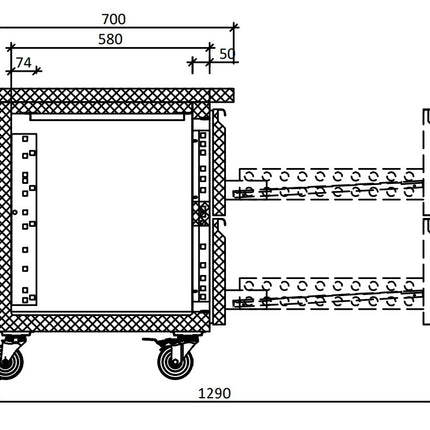

| External Dimensions (W × D × H) |
1360 × 700 × 850mm |
| Internal Dimensions (W × D × H) |
799 × 580 × 564mm |
| Net Weight |
102 kg |
| Insulation |
60mm CFC & HFC-free foam body |
| Max Ambient Temperature |
43°C / 60% RH |
| Construction |
Stainless Steel interior & exterior, rounded corners |
| Castors |
Heavy-duty with front-wheel brakes |
| Country of Manufacture |
China |
| Warranty |
24 months parts & labour + 24 months parts only (register within 14 days) |
Venue suitability: The XUB7C13S2D suits commercial prep kitchens, sandwich bars, pizza stations, hotel kitchens, and any operation needing under-counter refrigeration with rapid-access drawer storage. The 1360mm-wide worktop integrates into standard bench-height cook lines and prep runs.
Explore the full Drawer Fridge range or browse all FED-X commercial refrigeration to find the configuration that suits your kitchen layout.
Installation & delivery: The XUB7C13S2D ships on heavy-duty castors and requires a standard 240V / 10A outlet — no hard-wiring needed. Allow 100mm clearance at the rear and sides for ventilation. Dispatched Australia-wide.
Frequently asked questions
What is the capacity of the XUB7C13S2D?
The net usable capacity is 186 litres across four GN1/2 drawers. The gross volume (including insulation void) is 282 litres.
What refrigerant does the XUB7C13S2D use?
It uses R290 (propane), a natural refrigerant with a very low global-warming potential. R290 is CFC and HFC free and compliant with current Australian refrigeration regulations.
What drawer size do the drawers accept?
Each drawer accepts GN1/2 gastronorm pans. There are two drawer compartments per column, giving four drawers in total across the two-column chassis.
What is the maximum ambient temperature the XUB7C13S2D can operate in?
The unit is rated to operate in ambient conditions up to 43°C at 60% relative humidity, making it suitable for hot commercial kitchen environments.
What warranty does the FED-X XUB7C13S2D carry?
It includes 2 years parts & labour plus an additional 2 years parts-only coverage when you register the product within 14 days of invoice. See our warranty information page for full details.
