Description

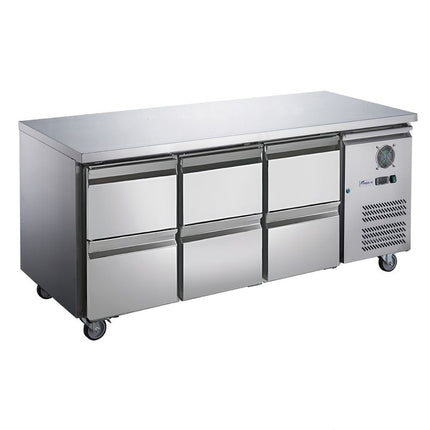

The FED-X XUB7C18S3D is a six-drawer underbench refrigerator designed for high-volume commercial kitchens that need fast, ergonomic access to cold ingredients at the workstation. The stainless steel worktop doubles as a preparation surface, making it a compact, multi-purpose addition to any cookline or prep area.
Why operators choose the XUB7C18S3D
-
Six GN1/2 drawer pairs — two heavy-duty drawers per section let staff grab ingredients without opening a full door, reducing cold-air loss during service.
-
Fan-forced Embraco/Secop compressor — maintains a consistent -2 to +8°C operating range even in ambient temperatures up to 43°C, tropicalised for Australian conditions.
-
R290 natural refrigerant — low global warming potential compliant with current AU environmental standards; HFC- and CFC-free 60 mm foam body insulation.
-
Dixell digital controller — user-friendly display with rapid recovery rate and Ebm-papst evaporator and condenser fans for reliable temperature control.
-
Full stainless interior & exterior with rounded corners — simplifies cleaning and meets commercial kitchen hygiene requirements; heavy-duty castors with front-wheel brakes allow repositioning and wall-flush placement.
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB7C18S3D |
| Type |
Drawer Fridge |
| Capacity |
311 L |
| Drawer Count |
6 (two GN1/2 drawers per section) |
| Temperature Range |
-2 to +8°C |
| Refrigerant |
R290 |
| Cooling System |
Fan-forced |
| Compressor |
Embraco/Secop |
| Controller |
Dixell |
| Ambient Temperature |
43°C |
| Power |
240V; 230W / 1.3A |
| Power Type |
Electric |
| Material |
Stainless Steel |

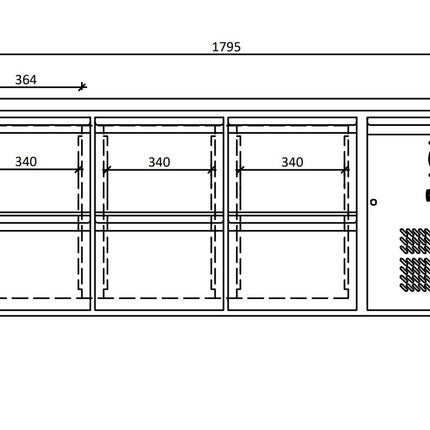

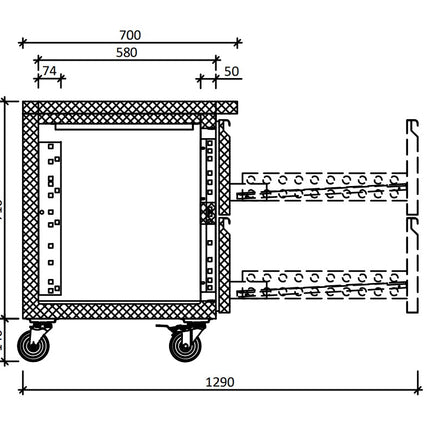

| Product Dimensions |
1795(W) x 700(D) x 850(H) mm |
| Internal Dimensions |
1234 x 580 x 564mm |
| Package Dimensions |
1825(W) x 730(D) x 910(H) mm |
| Net Weight |
121 kg |
| Body Insulation |
60 mm HFC- and CFC-free foam |
| Country of Manufacture |
China |
| Warranty |
24 months parts & labour + 24 months parts only (with product registration within 14 days of invoice) |
Venue suitability: Ideal for commercial kitchens in restaurants, hotels, cafes, catering operations, and food-service venues where underbench refrigerated storage at the cookline or prep bench is needed. The wall-flush design and locking castors suit tight kitchen layouts.
Explore the full Drawer Fridge range or browse all FED-X refrigeration equipment.
Installation & delivery: The XUB7C18S3D ships on its own heavy-duty castors and requires a standard 240V / 10A power outlet. Allow adequate rear ventilation clearance per the manufacturer specification sheet. Dispatched Australia-wide.
Frequently asked questions
What is the operating temperature range of the XUB7C18S3D?
The unit maintains a temperature range of -2 to +8°C, making it suitable for chilled ingredient storage in busy service environments.
What refrigerant does the XUB7C18S3D use?
It uses R290, a natural refrigerant with a low global warming potential. The unit contains no HFCs or CFCs and uses 60 mm foam body insulation.
How many drawers does the XUB7C18S3D have and what GN size do they accept?
The unit has six GN1/2 drawers (two per section across three sections), allowing organised storage of standard gastronorm pans directly at the workstation.
Can the unit be placed flush against a wall?
Yes — the XUB7C18S3D is designed so the condenser is positioned to allow wall-flush placement. Heavy-duty front-wheel-brake castors also allow it to be locked in position.
What is the warranty on the XUB7C18S3D?
FED-X provides 2 years parts and labour plus a further 2 years parts only, provided the unit is registered within 14 days of the invoice date.
