Description

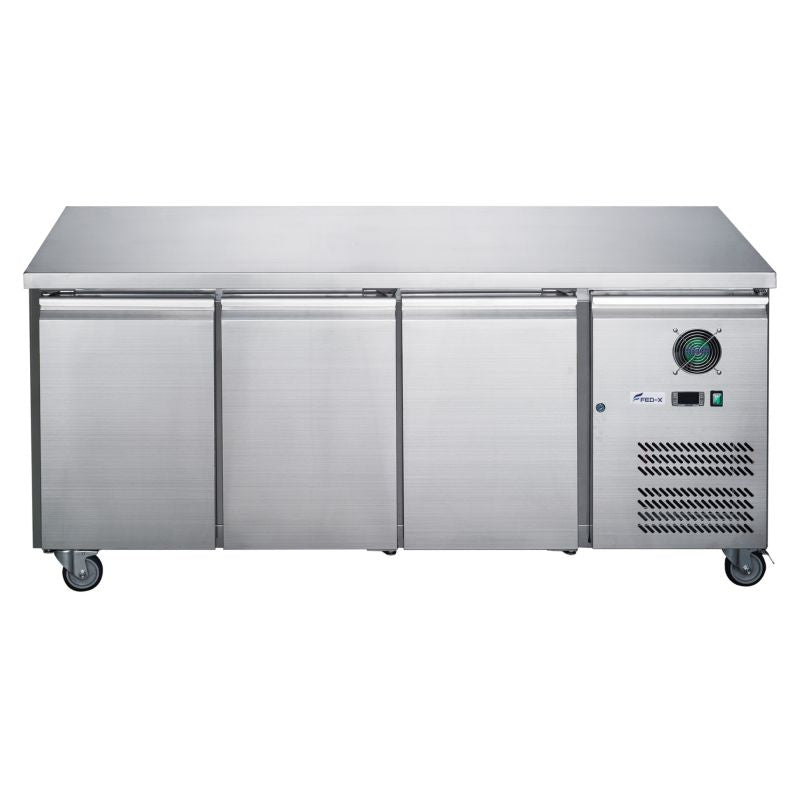

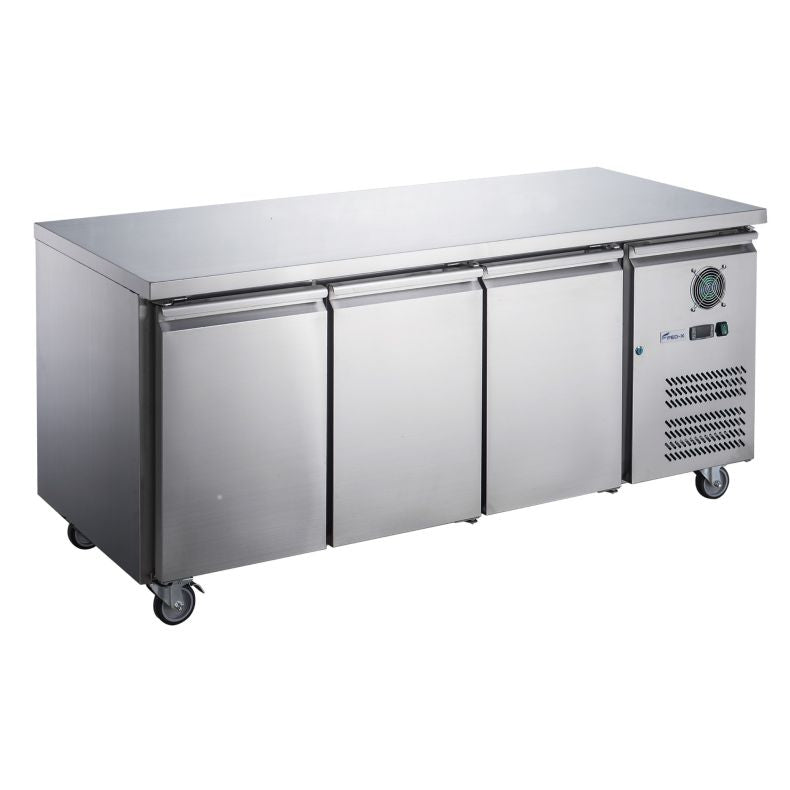

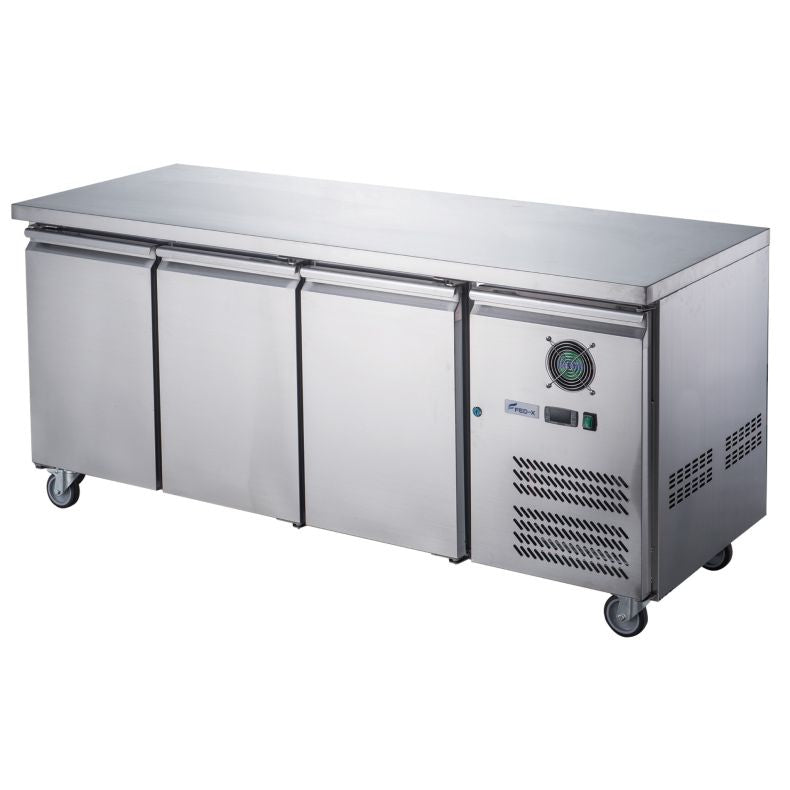

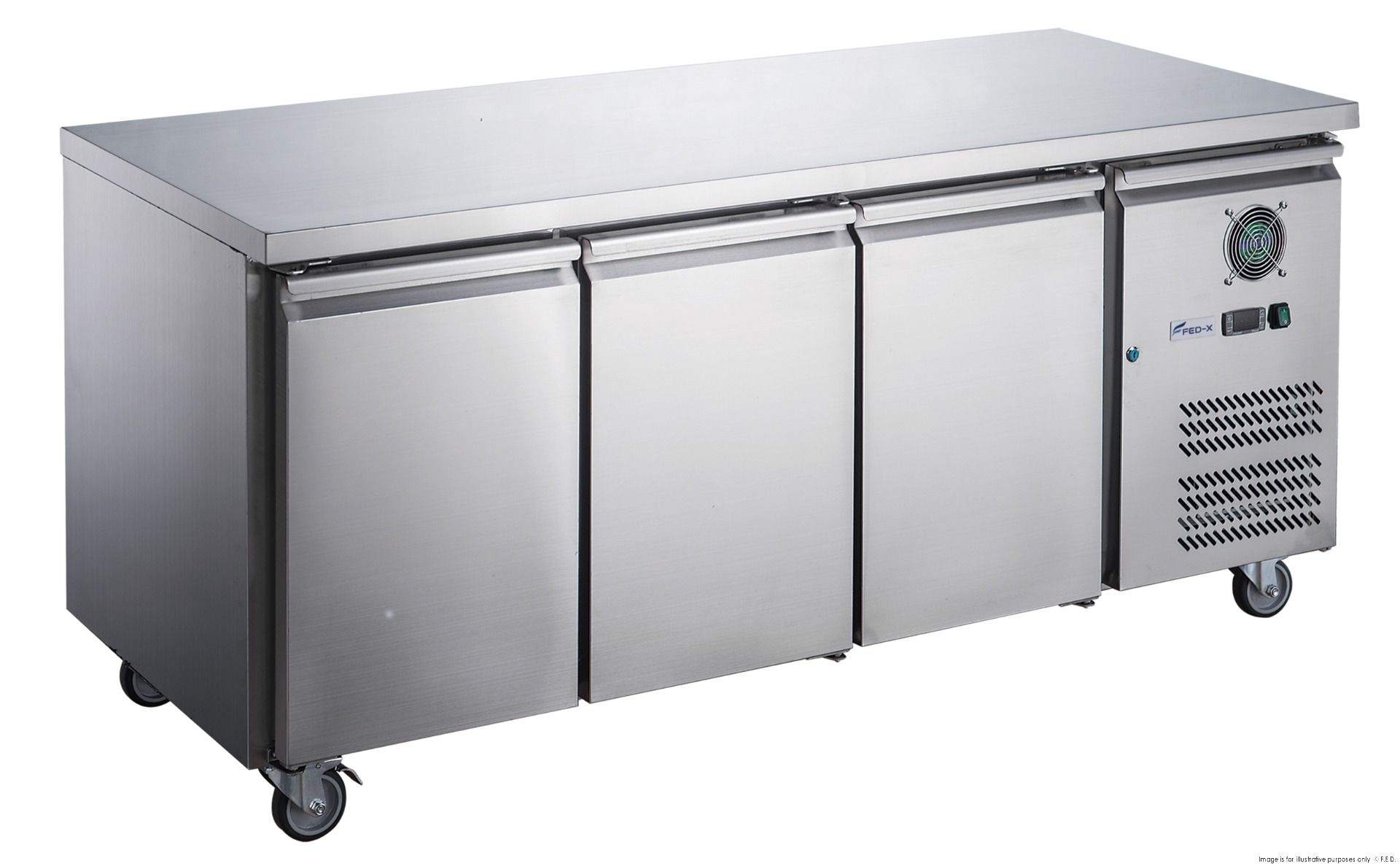

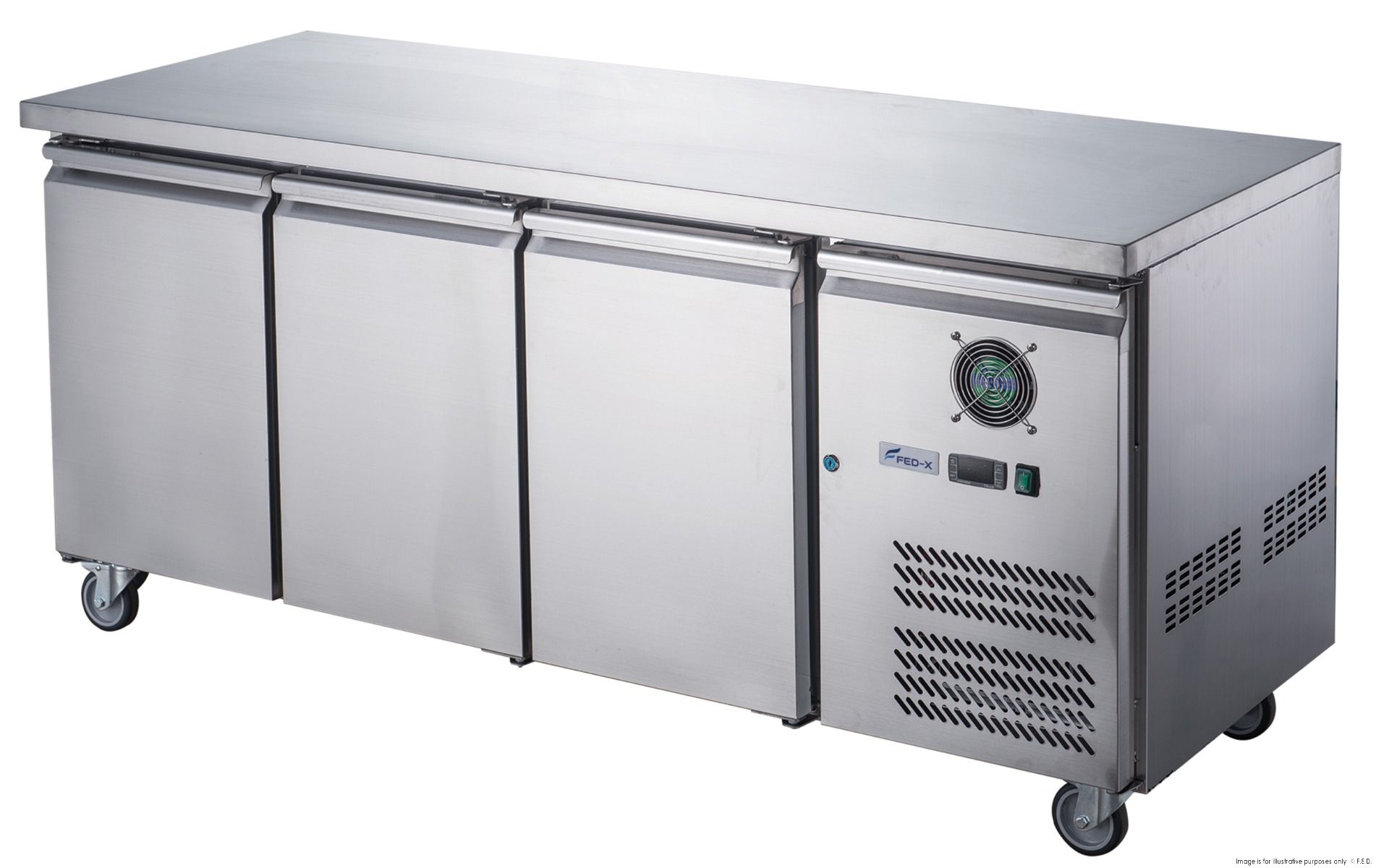

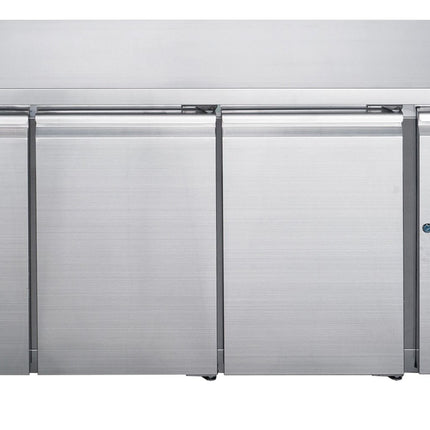

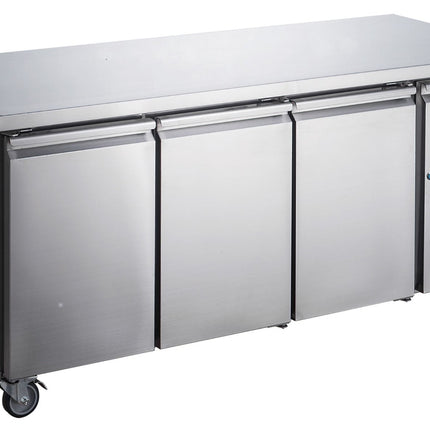

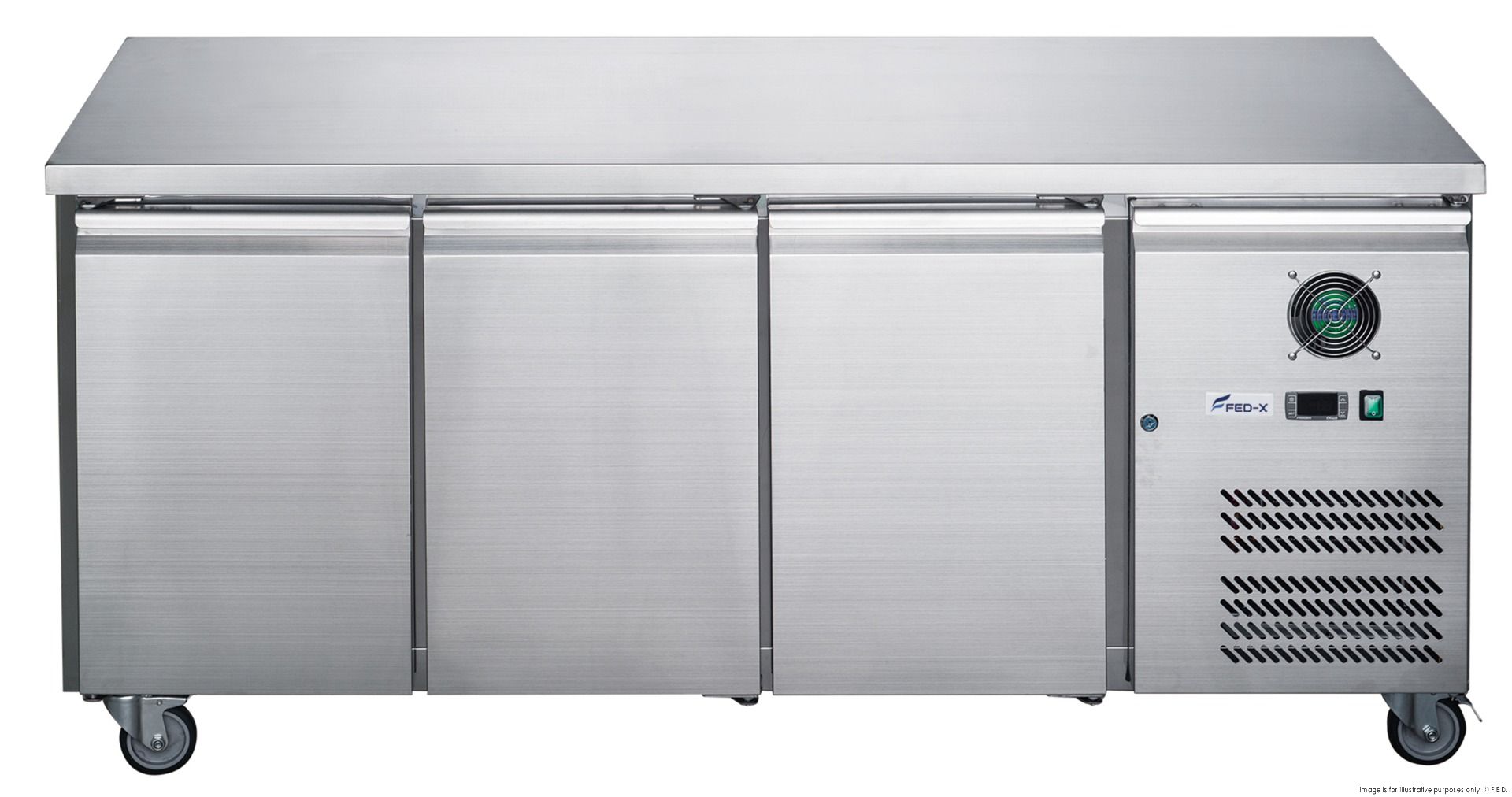

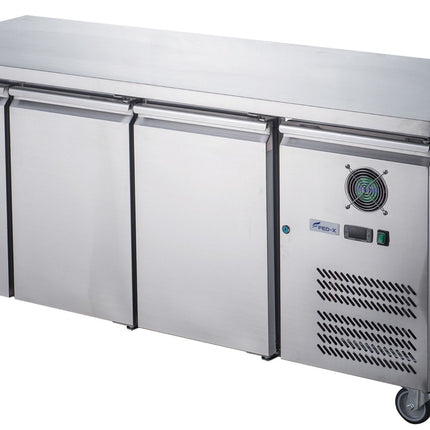

The FED-X XUB6F18S3V is a three-door underbench freezer designed for high-volume commercial kitchens that need reliable below-zero storage at bench height. With 254L of net capacity across three independently sealed compartments, it maintains a consistent -18 to -22°C and is tropicalised for Australian ambient conditions up to 38°C.
Why operators choose the XUB6F18S3V
-
True underbench design — 850mm height fits under standard bench heights, freeing up floor space while keeping frozen product within arm's reach of the prep area.
-

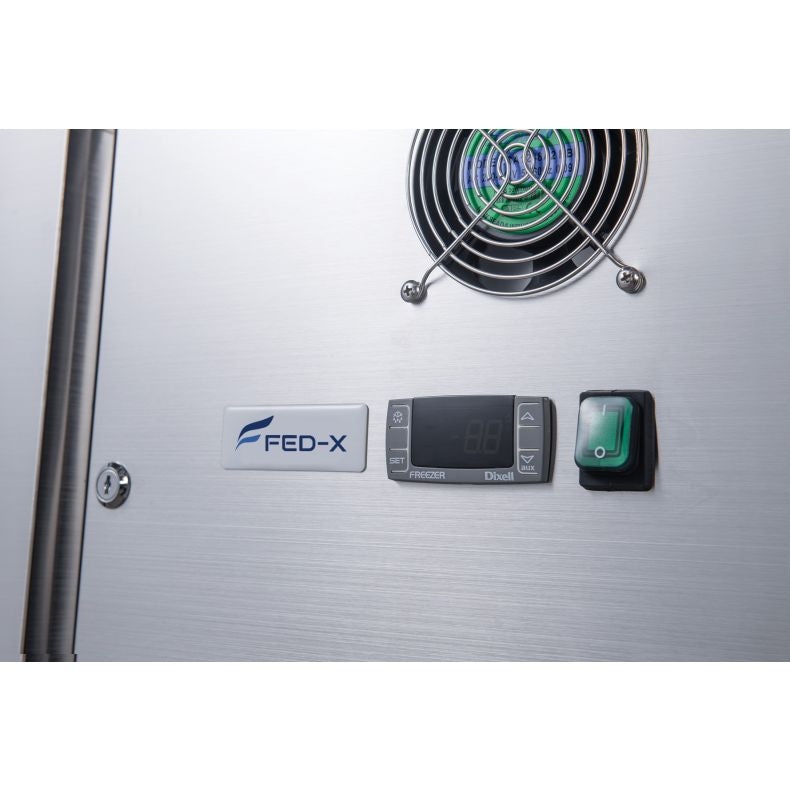

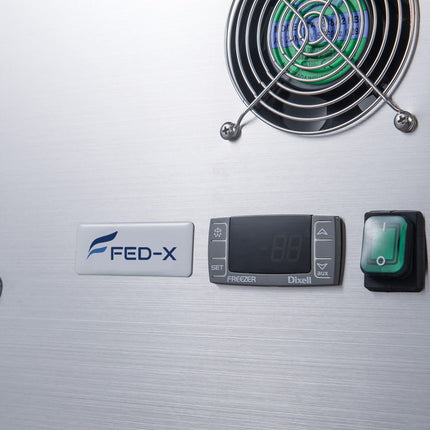

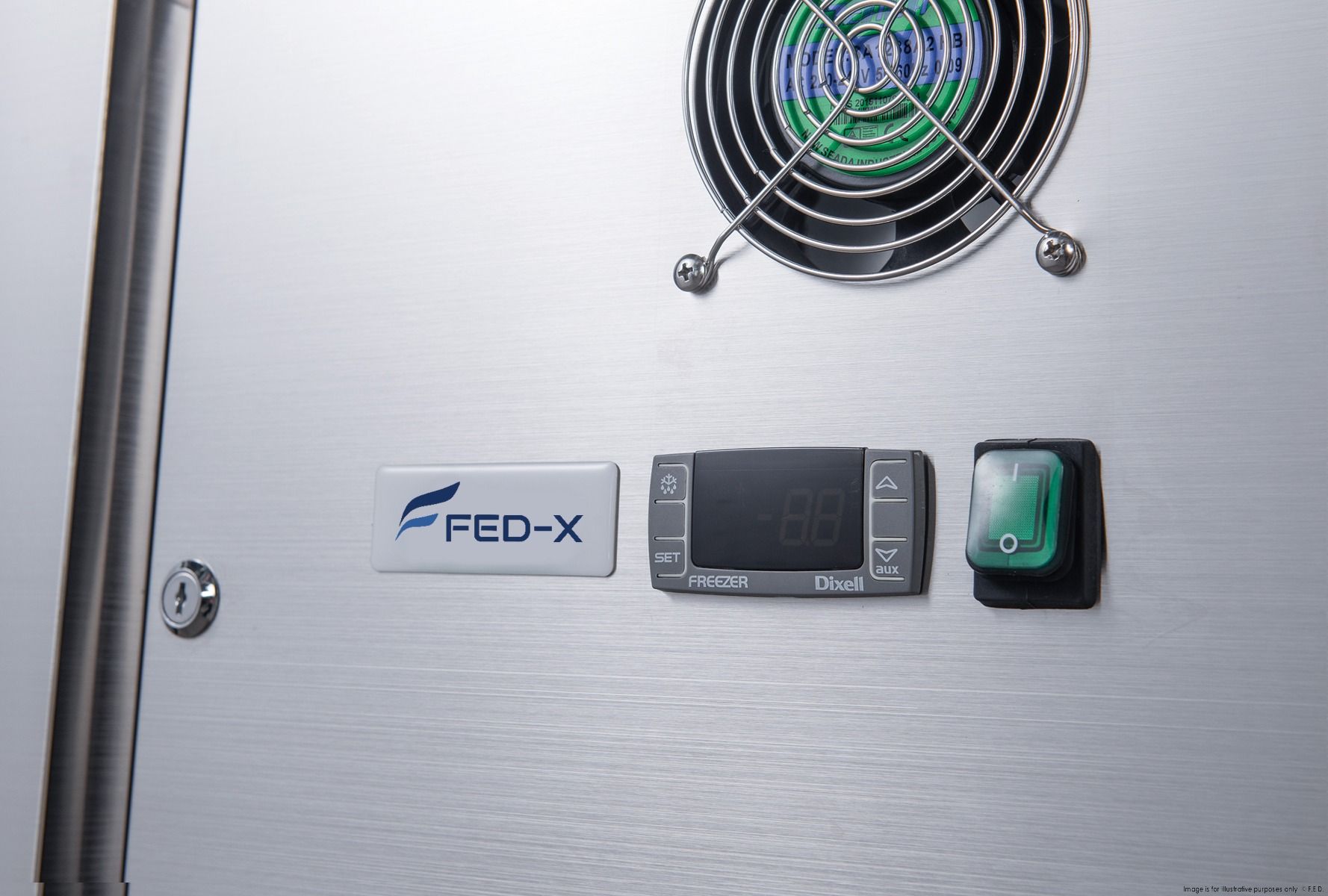

Fan-forced cooling with Dixell controller — digital temperature management and rapid recovery after door openings, reducing temperature fluctuation during service.
-

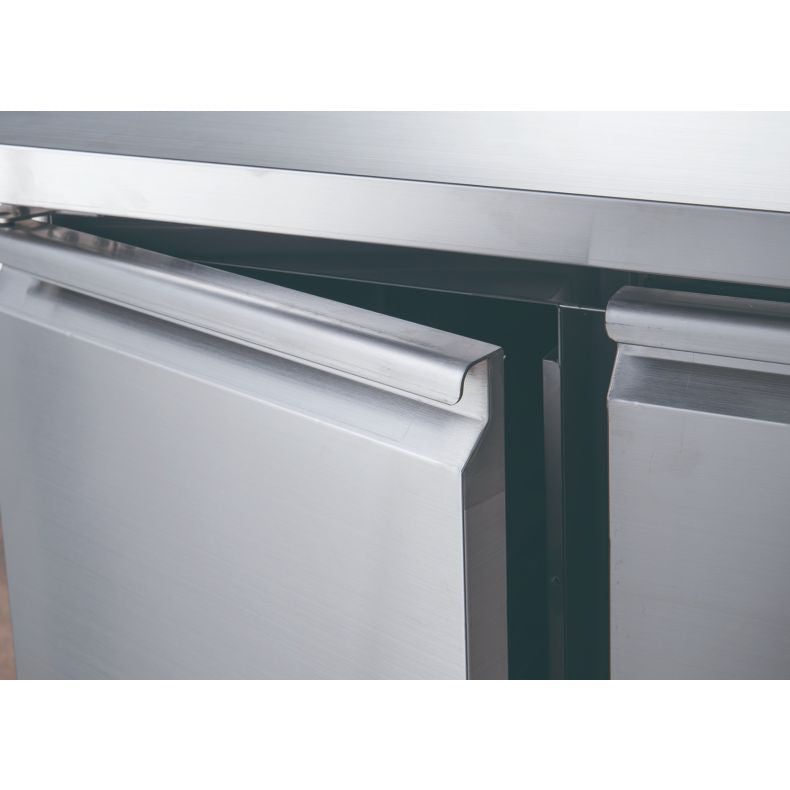

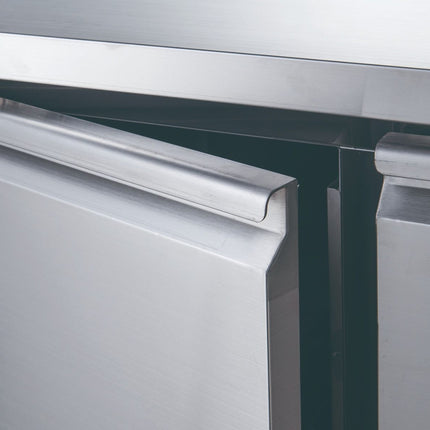

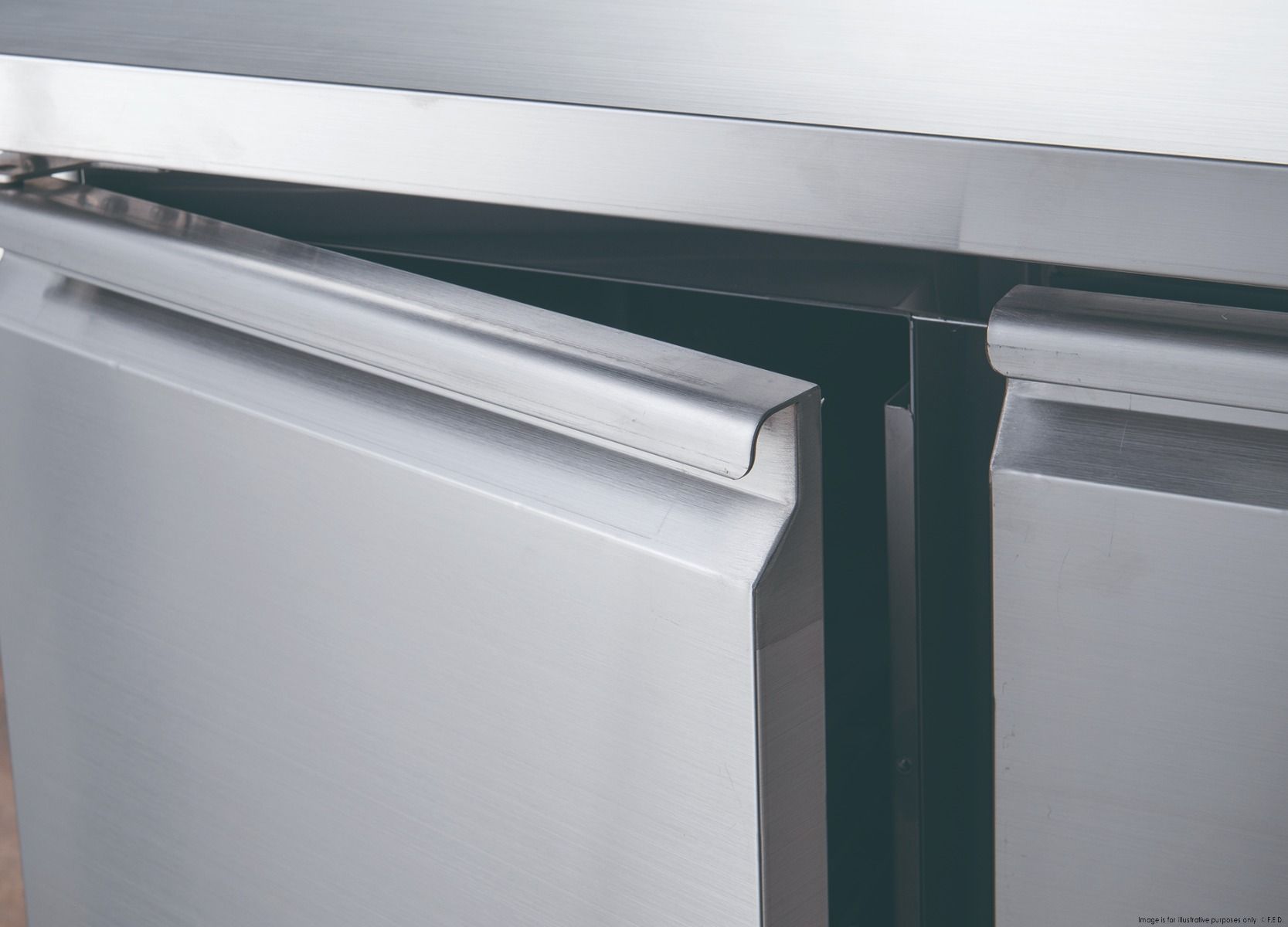

Three independent solid doors — each with heavy-duty magnetic seals and self-closing hinges; one shelf per door included, additional sets available.
-
R290 refrigerant — low global-warming-potential refrigerant in a 60mm HFC/CFC-free foam-insulated body; meets AU environmental standards.
-
Stainless steel interior and exterior — rounded corners throughout for fast, compliant cleaning; Cubigel compressor with auto-defrost and heavy-duty evaporator and condenser fans.
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB6F18S3V |
| Type |
Underbench Freezer |
| Net Capacity |
254 L |
| Gross Capacity |
339 L |
| Doors |
3 × solid hinged |
| Temperature Range |
-18 to -22°C |
| Ambient Temperature |
38°C (60% RH) |
| Refrigerant |
R290 |
| Cooling System |
Fan-forced |
| Compressor |
Cubigel |
| Controller |
Dixell (digital) |
| Power |
240V / 50Hz / 10A / 520W |
| Energy Consumption |
8.515 kWh/24h |
| External Dimensions |
1795(W) × 600(D) × 850(H)mm |
| Internal Dimensions |
1234 × 480 × 564mm |
| Packed Dimensions |
1825(W) × 630(D) × 910(H)mm |
| Net Weight |
107 kg |
| Material |
Stainless Steel |
| Included Accessories |
1 shelf per door (additional shelf sets available) |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
| Country of Manufacture |
China |
Venue suitability: Suited to commercial kitchens, hotel back-of-house, catering operations, restaurant prep lines, and food service businesses that need reliable underbench frozen storage. Browse our full range of Under Bench Freezers or explore the complete FED-X collection.
Installation & delivery: This unit ships on castors and can be positioned against a wall (rear-ventilated). Ensure 240V/10A single-phase supply is available. Dispatched Australia-wide.
Frequently asked questions
What is the difference between the 254L net capacity and 339L gross capacity?
Gross capacity is the total interior volume before accounting for insulation, shelving rails, and compartment dividers. Net capacity (254L) is the usable storage space available for food product — always compare net figures when sizing against your storage needs.
Can this unit be installed flush against a wall?

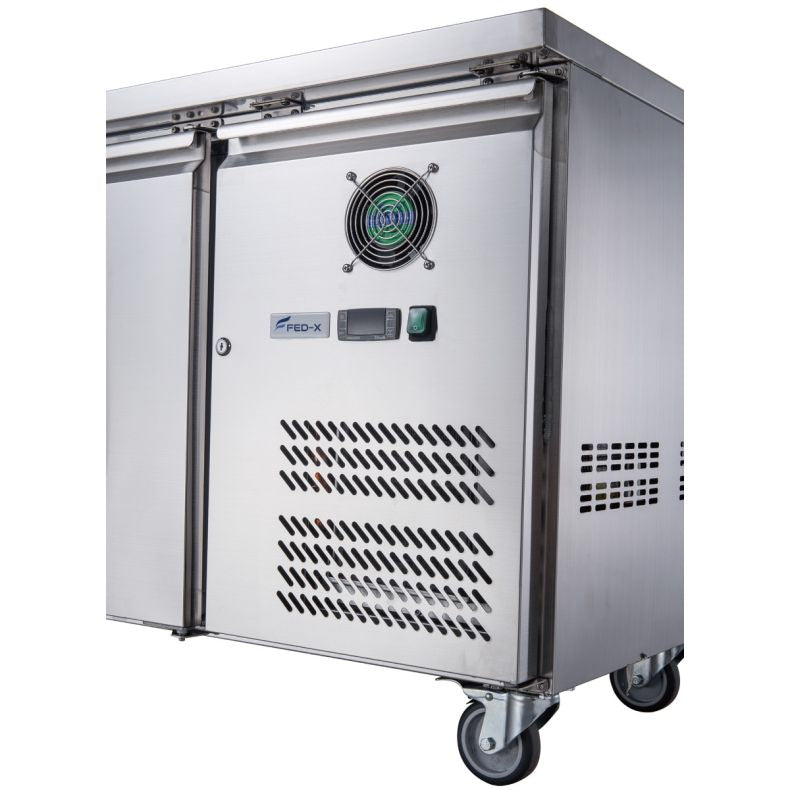

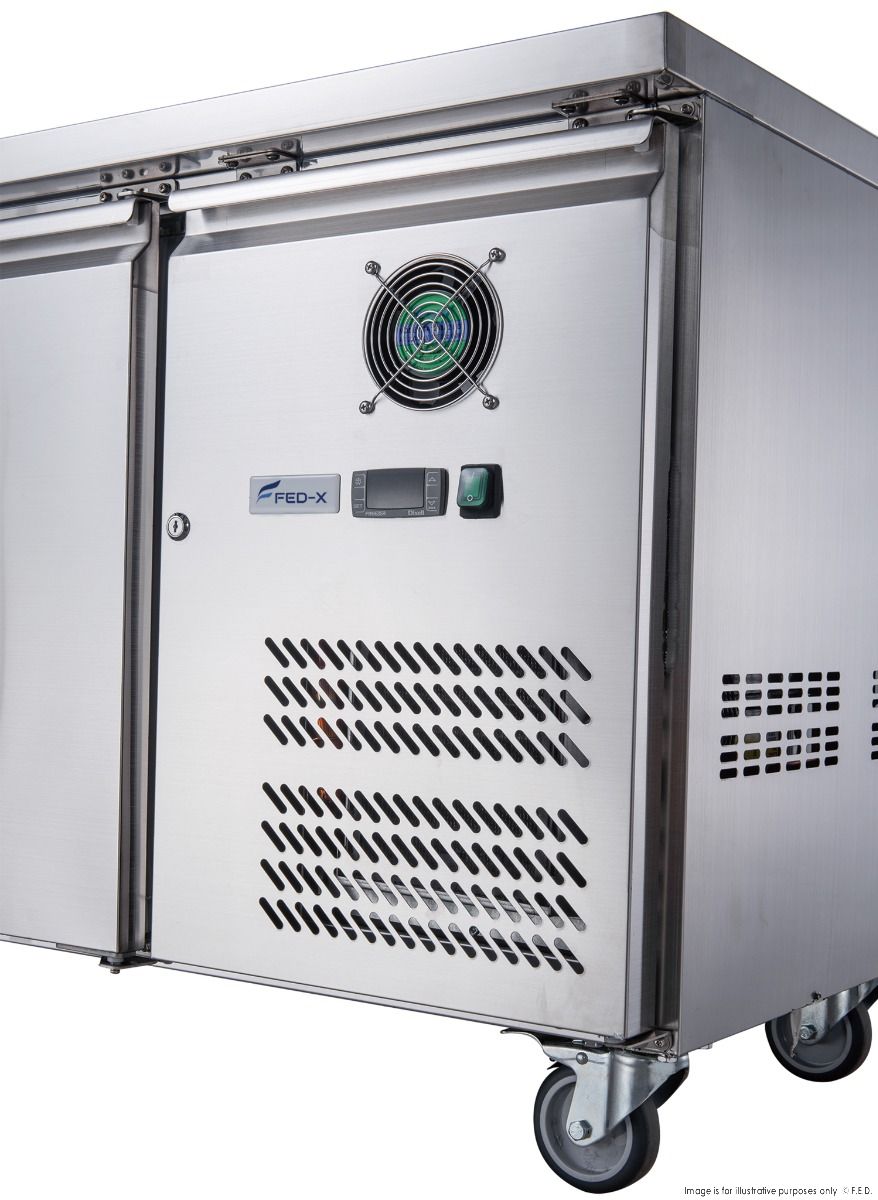

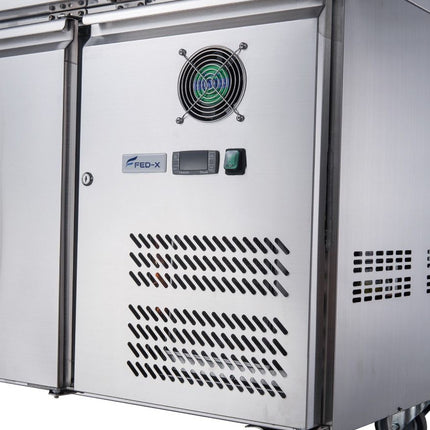

Yes. The XUB6F18S3V is designed to be placed against a wall — the condenser is front-vented via the grille on the right-hand side, not rear-vented, so no rear clearance gap is required.
How many shelves does it include and can I add more?
One shelf per door comes included (three shelves total). Additional shelf sets are available from FED-X; each shelf is rated to 40 kg. Contact our team for compatible part numbers.
What refrigerant does the XUB6F18S3V use, and is it AU-compliant?
It uses R290 (propane-based), a natural refrigerant with a very low global-warming potential. R290 is fully compliant with Australian environmental regulations and the unit is fitted with 60mm HFC/CFC-free foam insulation.
What does the warranty cover and how do I register?
The XUB6F18S3V carries 2 Years Parts & Labour plus an additional 2 Years Parts Only — 48 months total — when the unit is registered within 14 days of invoice. Registration is required to activate the full term.
SKU: XUB6F18S3V
In Stock
