Description

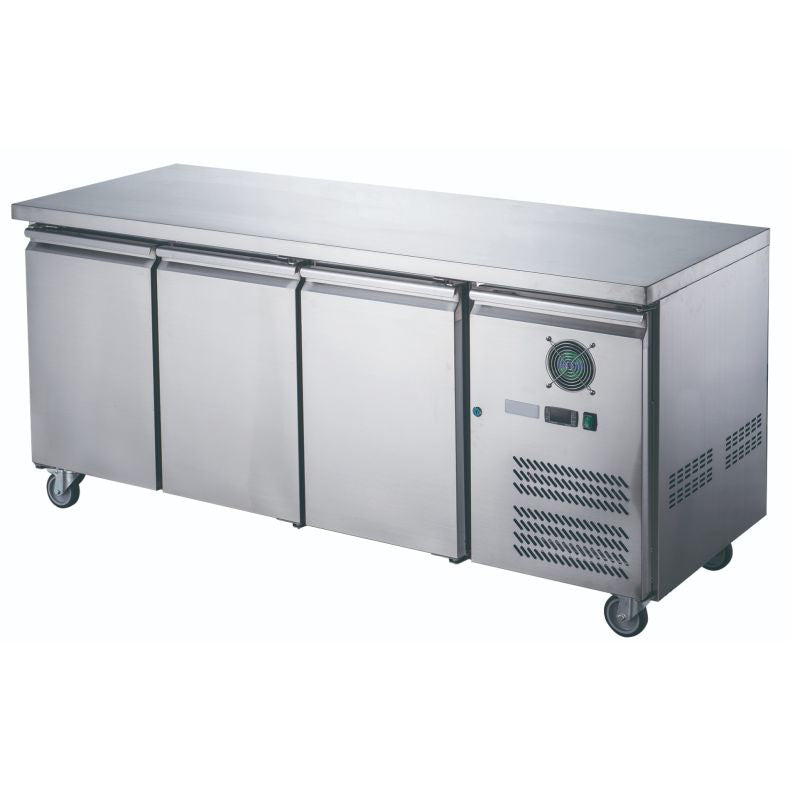

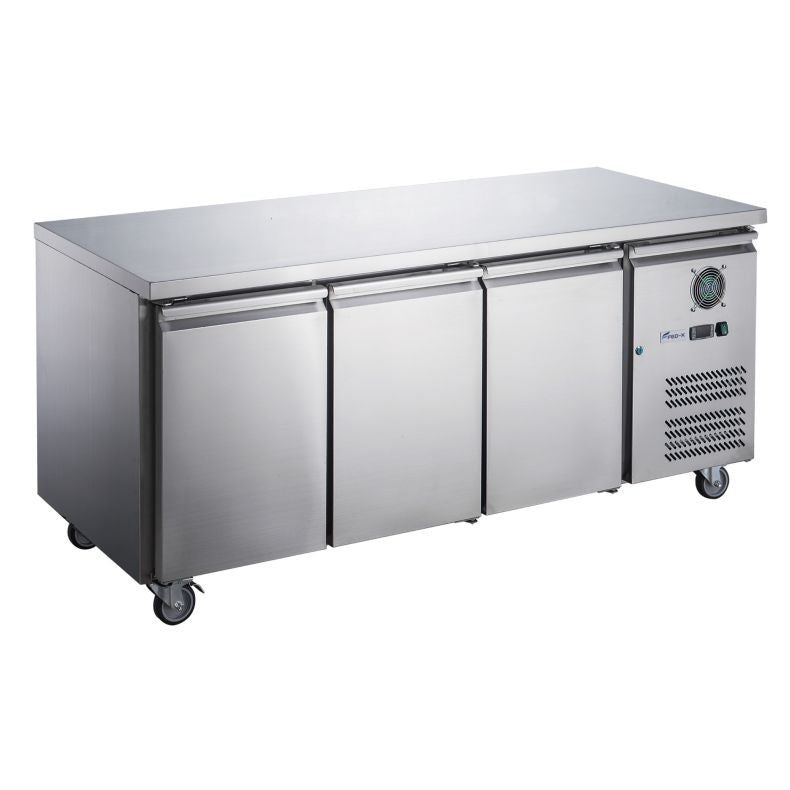

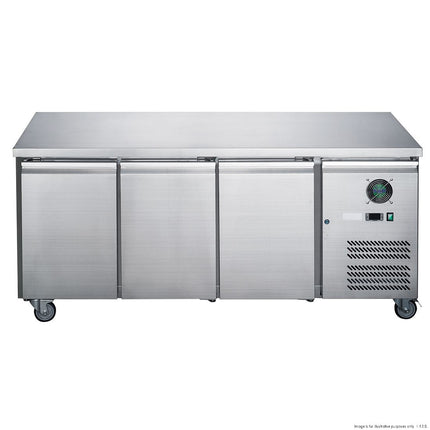

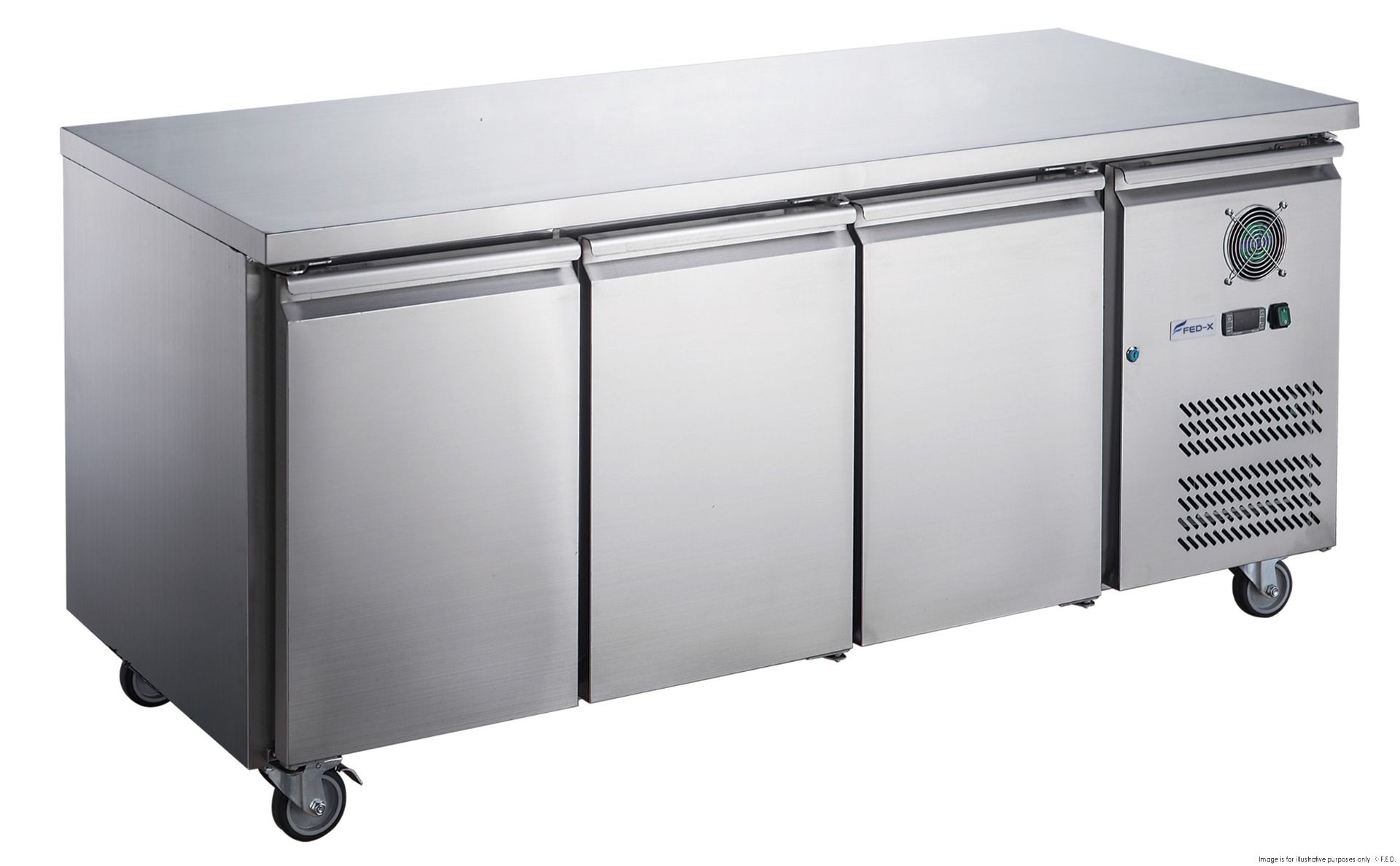

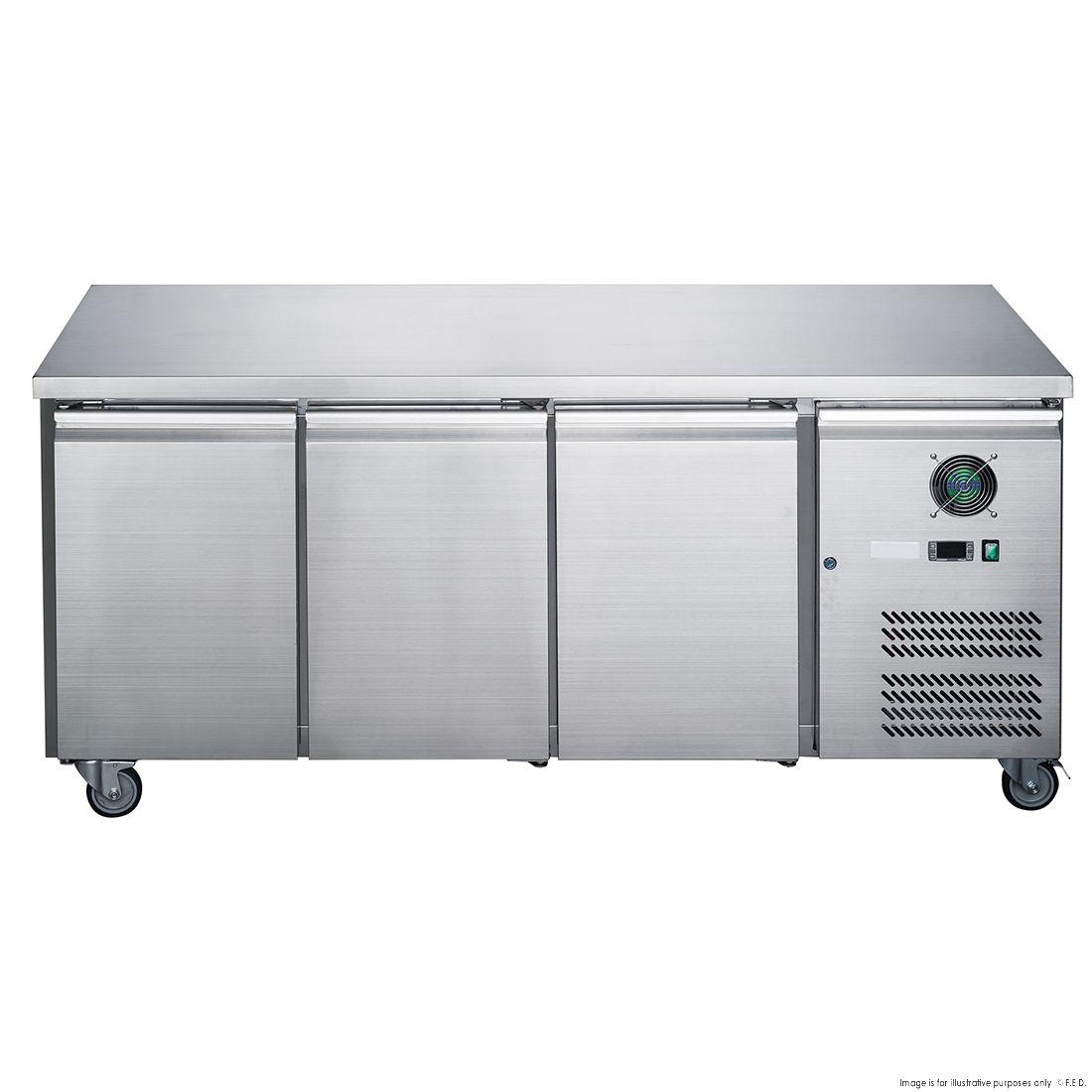

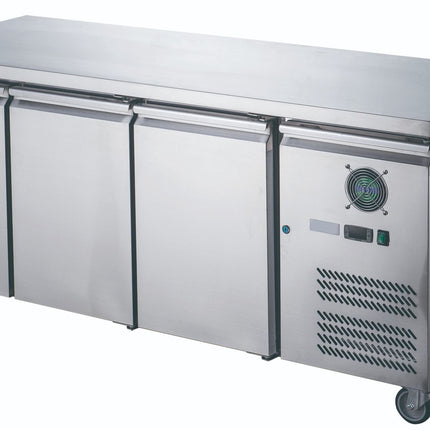

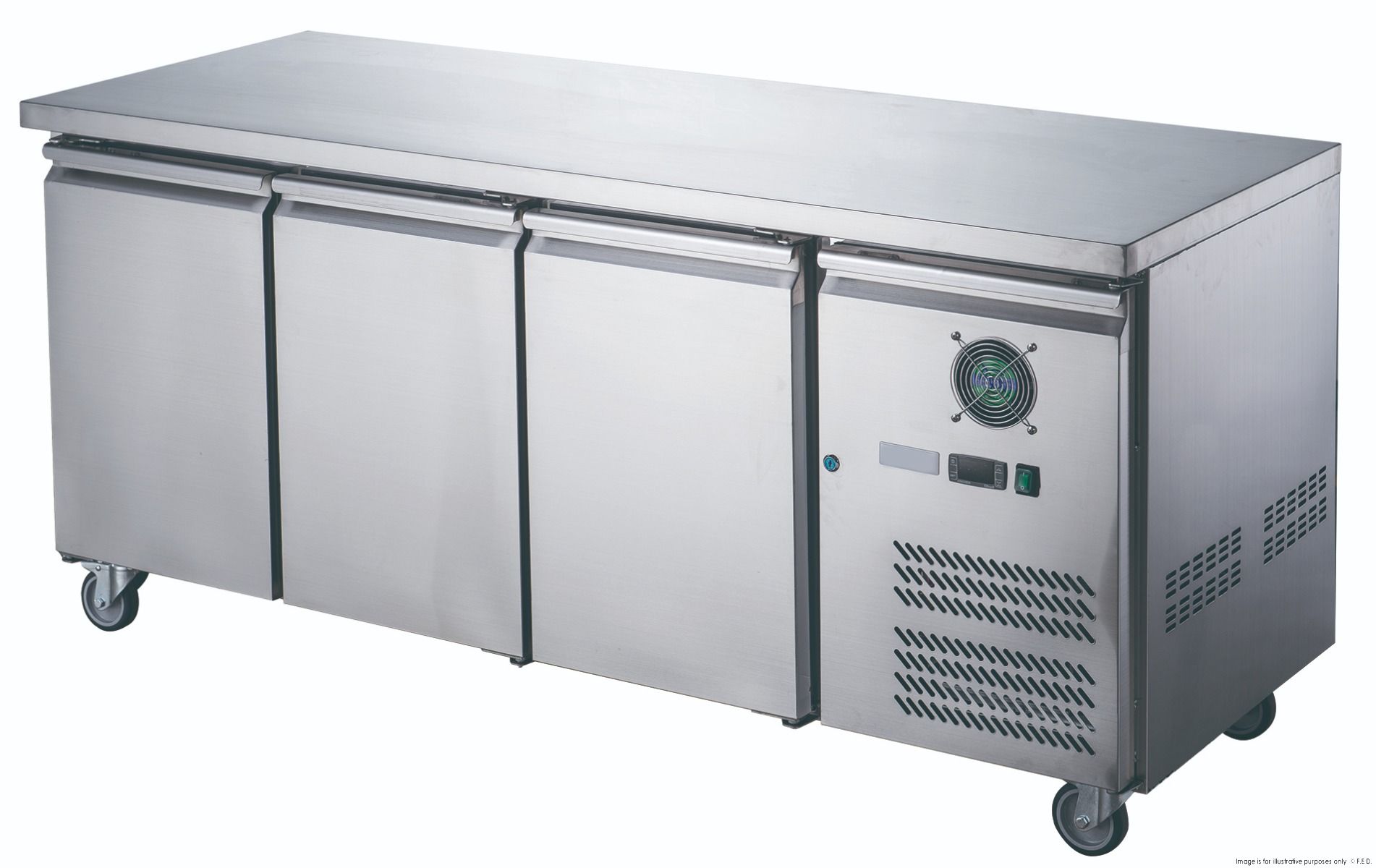

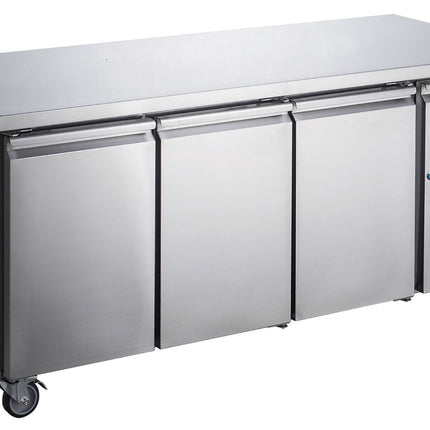

The FED-X XUB7F18S3V is a three-door underbench storage freezer designed for commercial kitchens that need reliable below-zero storage at bench height. With 311 L of net capacity across three independently sealed compartments, it maintains a consistent -18 to -22°C and is tropicalised for Australian ambient conditions up to 43°C.
Why operators choose the XUB7F18S3V
-
True underbench design with integrated worktop — 850mm height fits beneath standard bench counters, adding frozen storage exactly where it is needed on the cookline or prep area without consuming additional floor space.
-

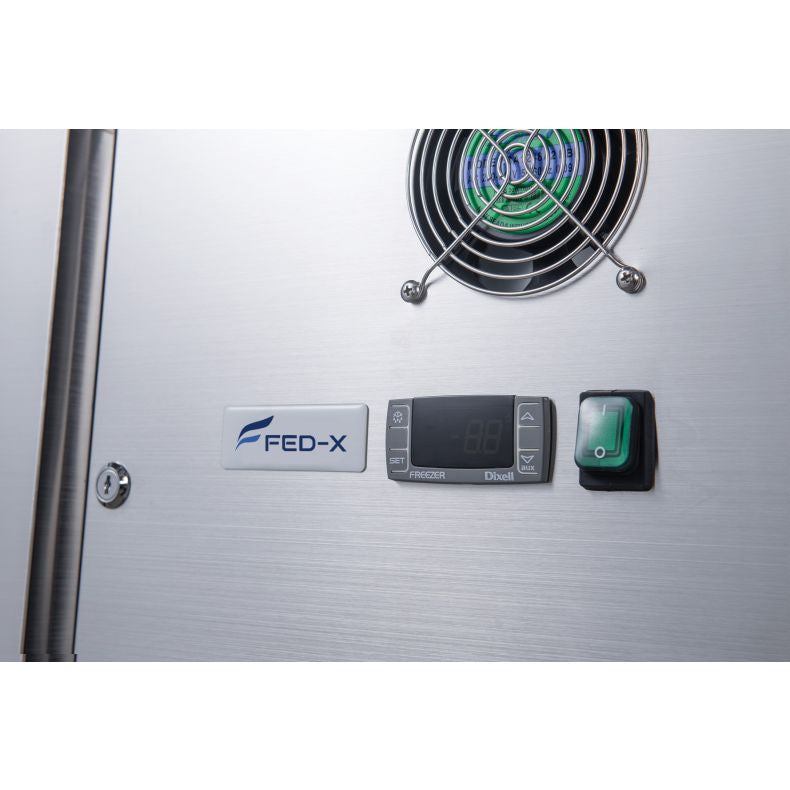

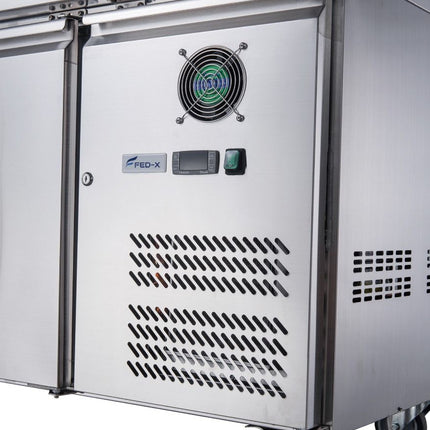

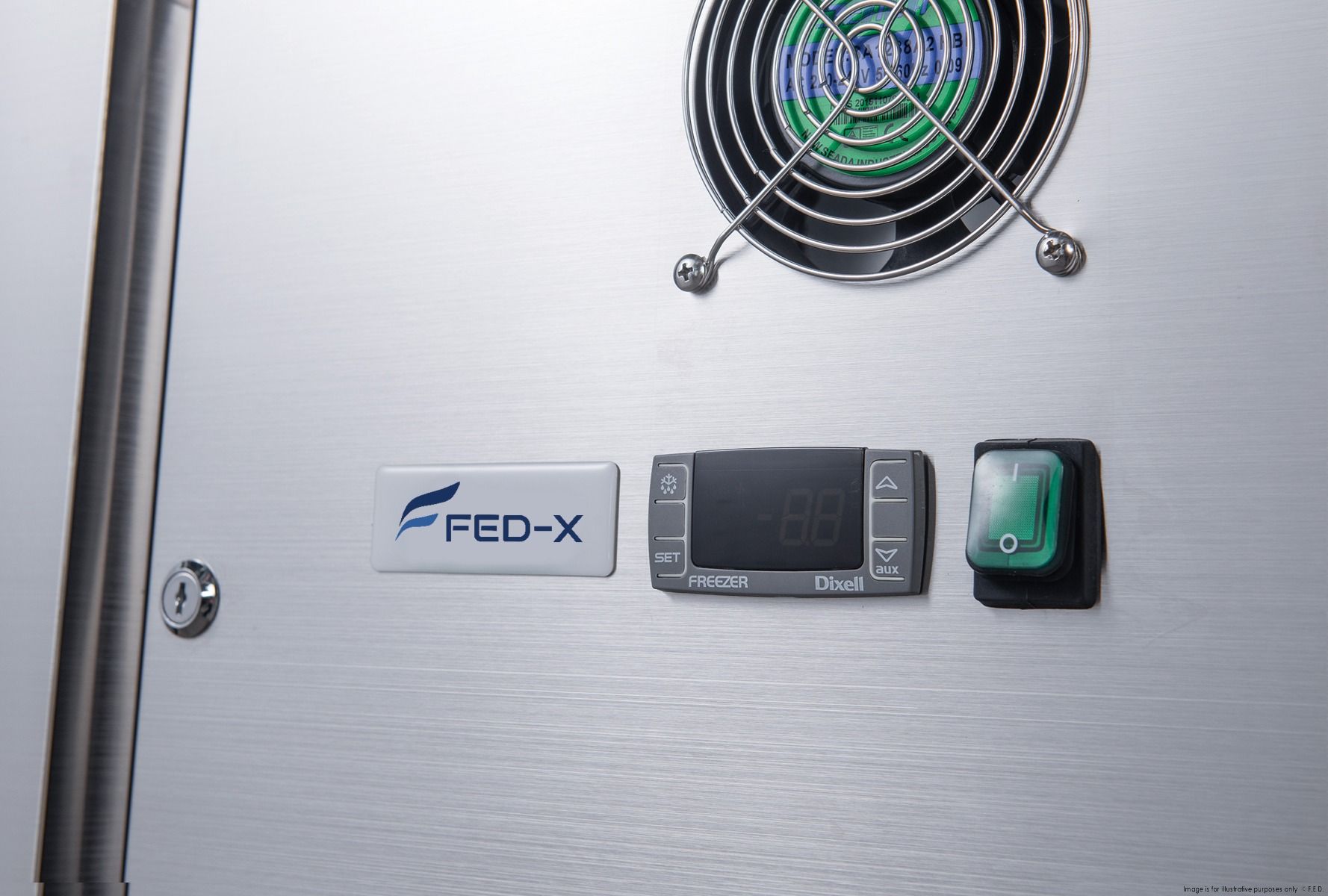

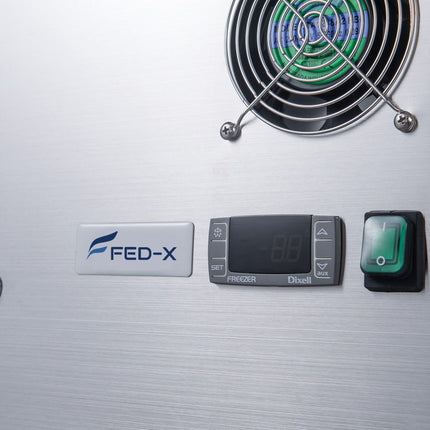

Fan-forced cooling with Dixell digital controller — Embraco/Secop compressor maintains temperature across all three compartments, with rapid recovery after door openings and a user-friendly single-degree adjustment.
-

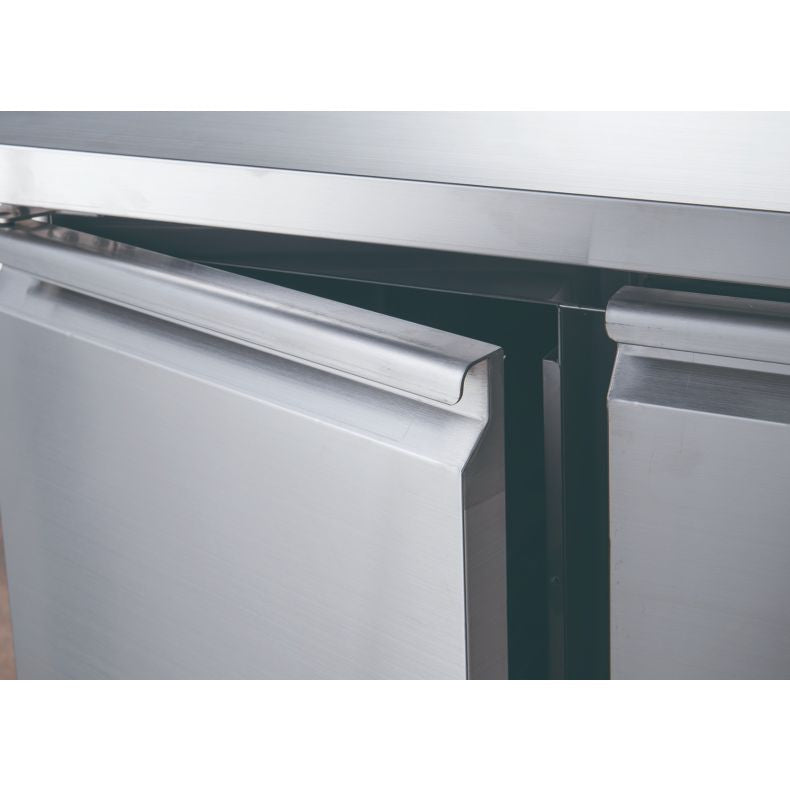

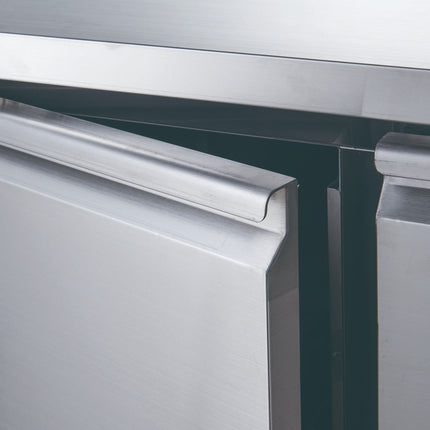

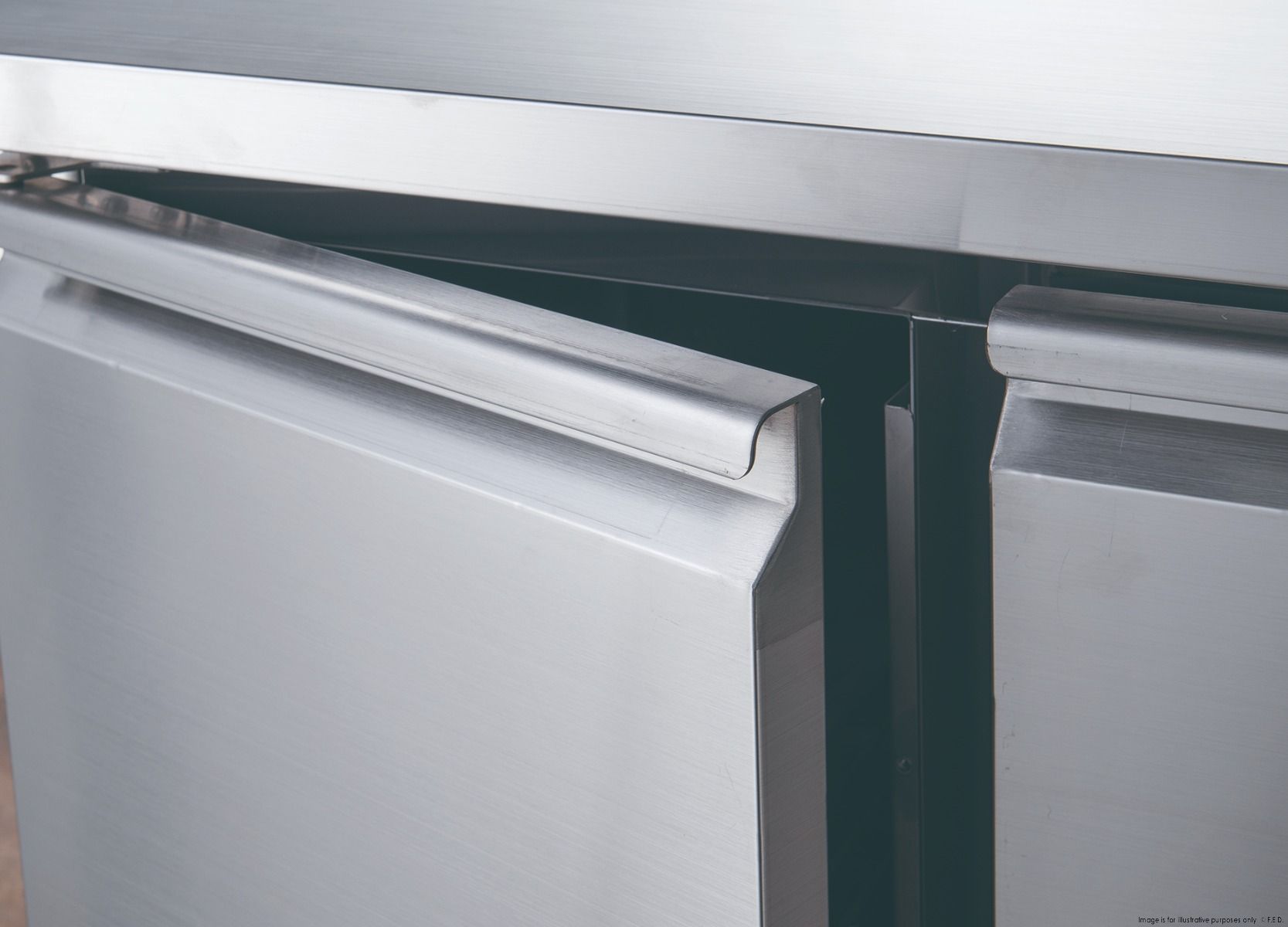

Three independent solid hinged doors — each fitted with heavy-duty magnetic seals and self-closing hinges; one GN1/1-compatible shelf per door included, with additional shelf sets available.
-
R290 refrigerant in 60mm foam-insulated body — low global-warming-potential refrigerant in a HFC- and CFC-free insulated cabinet; meets current AU environmental requirements.
-
Stainless steel interior and exterior with rounded corners — Ebm-papst evaporator and condenser fans; heavy-duty castors with front-wheel brakes; unit can be placed flush against a wall.
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB7F18S3V |
| Type |
Underbench Freezer |
| Net Capacity |
311 L |
| Gross Capacity |
417 L |
| Doors |
3 × solid hinged |
| Temperature Range |
-18 to -22°C |
| Ambient Temperature |
43°C (60% RH) |
| Refrigerant |
R290 |
| Cooling System |
Fan-forced |
| Compressor |
Embraco/Secop |
| Controller |
Dixell (digital) |
| Power |
240V / 560W / 3.4A |
| Energy Consumption |
9.072 kWh/24h |
| External Dimensions |
1795(W) × 700(D) × 850(H)mm |
| Internal Dimensions |
1234 × 580 × 564mm |
| Packed Dimensions |
1825(W) × 730(D) × 910(H)mm |
| Net Weight |
146 kg |
| Weight Loading per Shelf |
40 kg |
| Material |
Stainless Steel |
| Included Accessories |
1 shelf per door (GN1/1 compatible; additional shelf sets available) |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
| Country of Manufacture |
China |
Venue suitability: Suited to commercial kitchens, restaurant prep lines, hotel back-of-house, catering operations, butcheries, fast-food businesses, and convenience stores that need reliable underbench frozen storage. Browse our full range of Under Bench Freezers or explore the complete FED-X collection.
Installation & delivery: Ships on its own heavy-duty castors with front-wheel brakes. Ensure a 240V / 10A single-phase supply is available. The unit can be placed flush against a wall. Dispatched Australia-wide.
Frequently asked questions
What is the difference between 311 L net and 417 L gross capacity?
Gross capacity is the total interior volume before accounting for insulation, shelving rails, and compartment structure. Net capacity (311 L) is the usable storage space available for food product — always compare net figures when sizing against your storage needs.
Can this unit be placed flush against a wall?

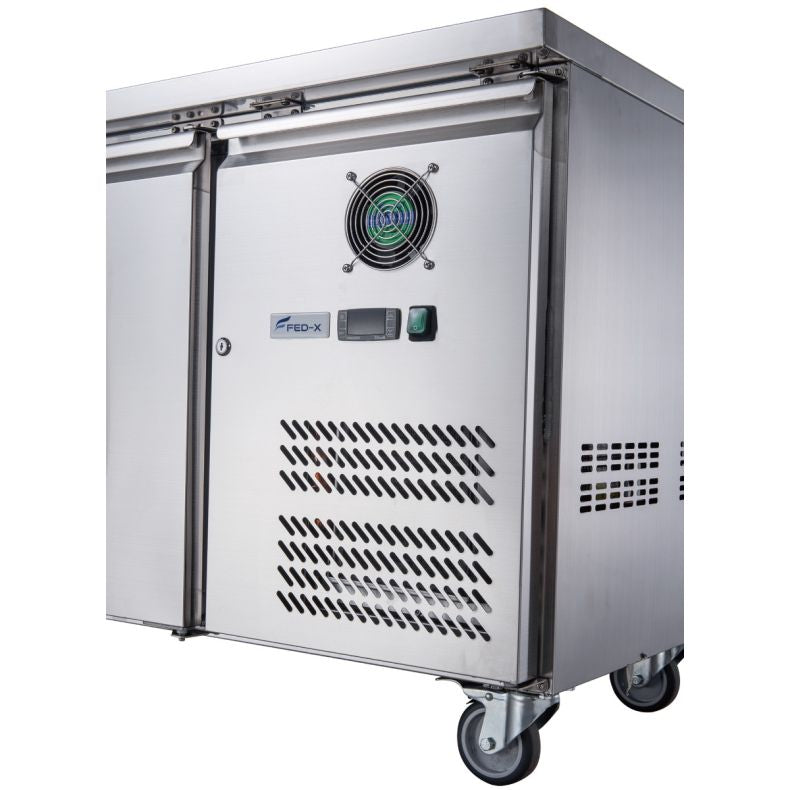

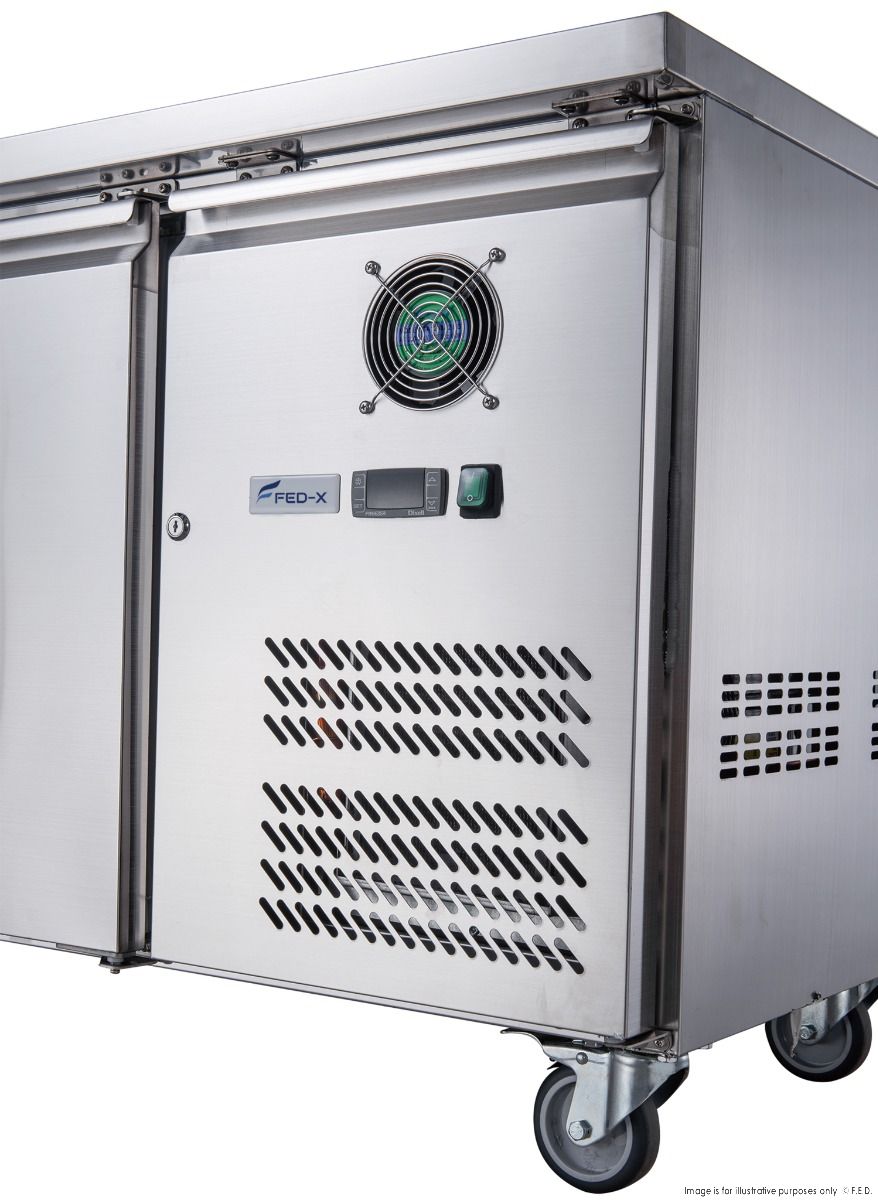

Yes. The XUB7F18S3V is designed for wall-flush placement — the condenser is positioned at the front, so no rear clearance gap is required. Heavy-duty front-wheel-brake castors also allow you to lock it in position.
How many shelves are included and can I add more?
One GN1/1-compatible shelf per door is included (three shelves total), each rated to 40 kg. Additional shelf sets are available; optional 2- and 3-drawer configurations are also available in lieu of solid doors — contact our team for details.
What refrigerant does the XUB7F18S3V use?
It uses R290, a natural refrigerant with a very low global-warming potential. The unit contains no HFCs or CFCs and uses 60mm foam body insulation compliant with current Australian environmental standards.
What does the warranty cover and how do I register?
The XUB7F18S3V carries 2 Years Parts & Labour plus an additional 2 Years Parts Only — 48 months total — when the unit is registered within 14 days of the invoice date.
