Description

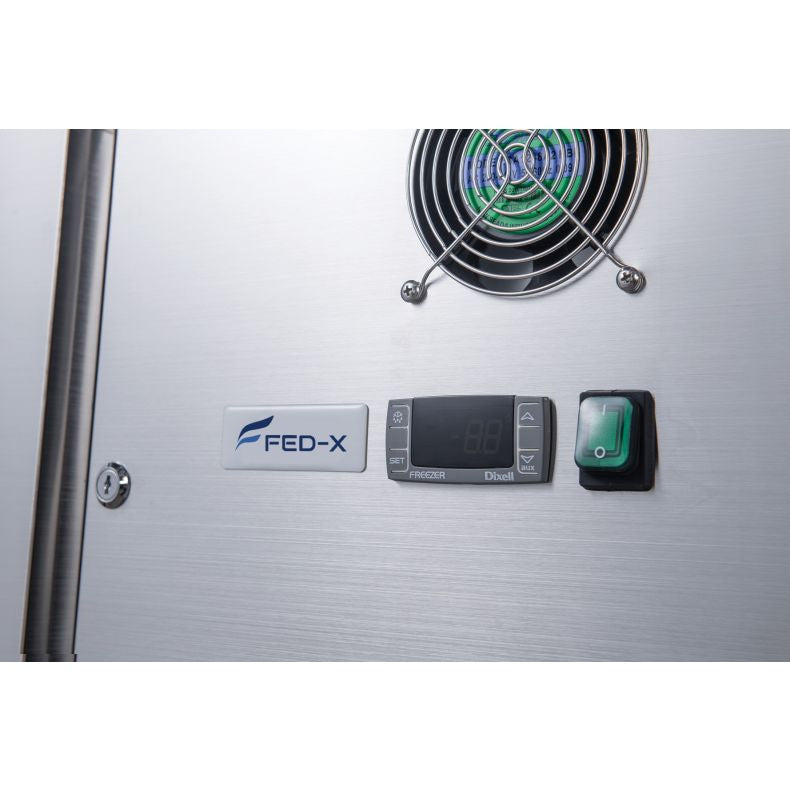

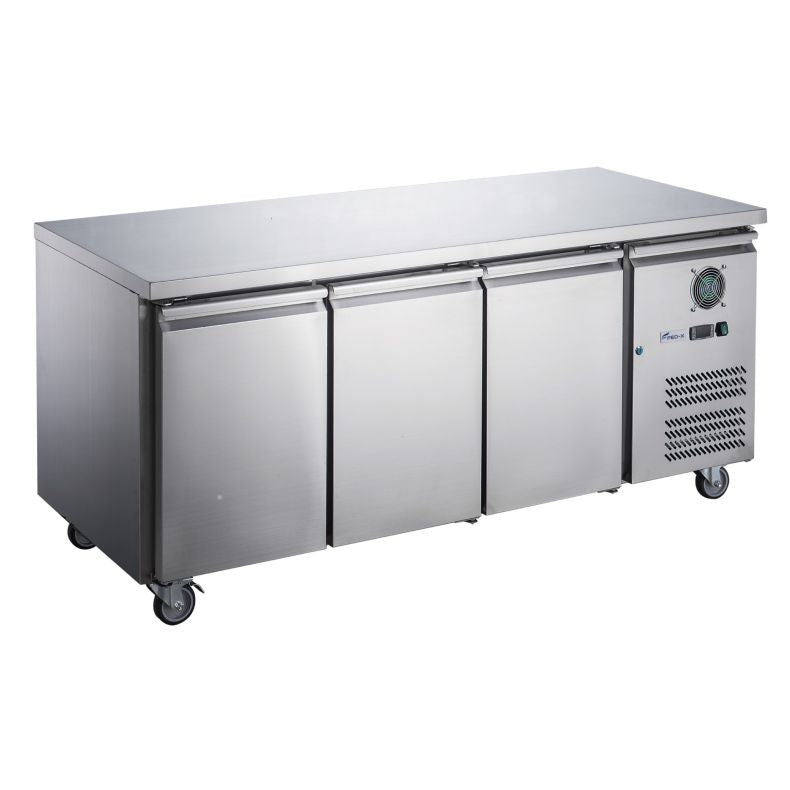

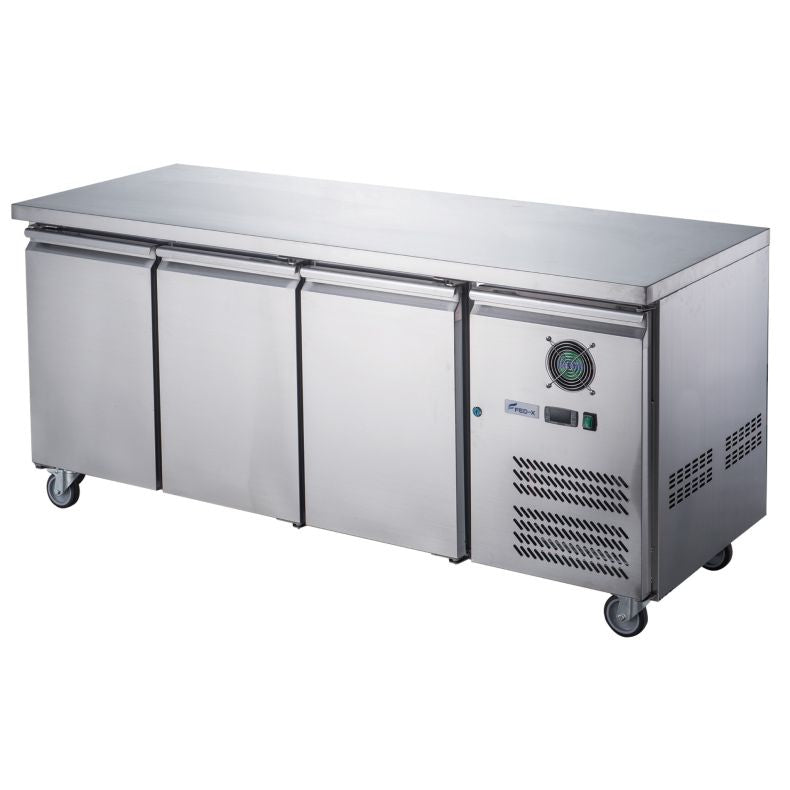

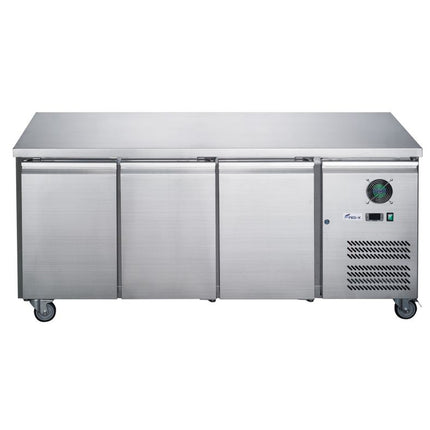

The FED-X XUB6C18S3V is a three-door underbench storage fridge designed for high-volume commercial kitchens that need reliable cold storage at bench height. Built on a fan-forced R290 refrigeration system with Cubigel compressor and Dixell digital controller, it maintains -2 to +8°C across all three sections and is tropicalised for Australian ambient conditions up to 43°C.
Why operators choose the XUB6C18S3V
-
Three independent sections — keep proteins, dairy, and prep items organised and accessible from a single bench-height unit without bending.
-
Fan-forced cooling with rapid recovery — heavy-duty evaporator and condenser fans restore temperature quickly after each door opening during busy service.
-
R290 refrigerant — HFC/CFC-free — 60 mm foam-insulated body with no harmful refrigerants, meeting modern environmental and certification standards.
-

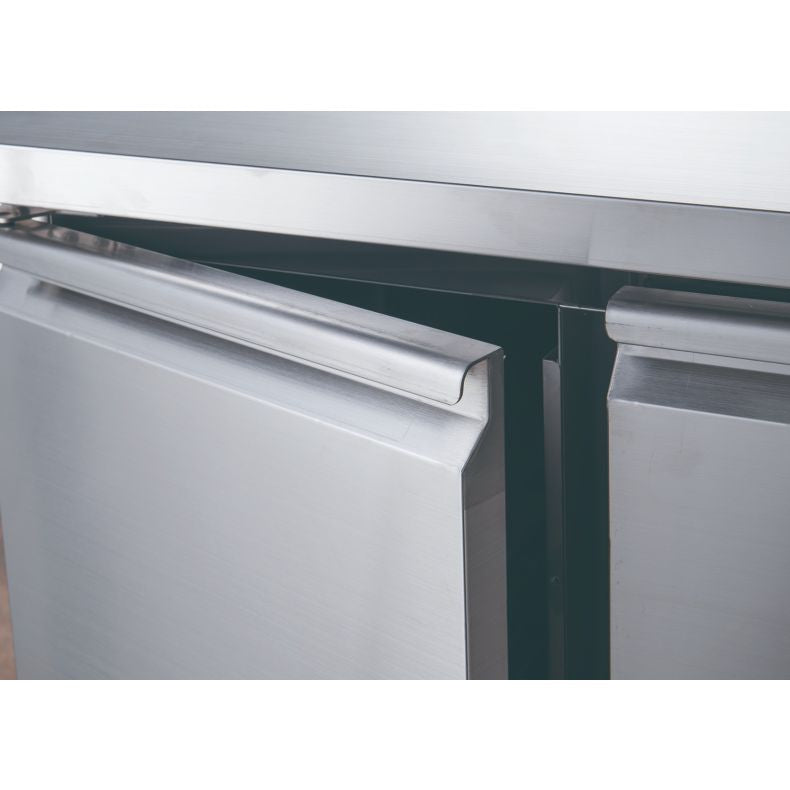

Self-closing magnetic doors with heavy-duty seals — reduces accidental temperature loss; doors can be placed against a wall for back-of-house flexibility.
-
304-grade stainless steel interior and exterior with rounded corners — fast wipe-down between service periods; no exposed edges to harbour bacteria.
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB6C18S3V |
| Type |
Undercounter Storage Fridge |
| Net Capacity |
254 L |
| Gross Volume |
339 L |
| Doors |
3 (solid, hinged, self-closing) |
| Temperature Range |
-2 to +8°C |
| Refrigerant |
R290 (HFC/CFC-free) |
| Cooling System |
Fan-forced cooling |
| Compressor |
Cubigel |
| Controller |
Dixell digital |
| Ambient Temperature Rating |
43°C |
| Power Supply |
240V; 50Hz; 10A; 230W |
| Energy Consumption |
3.327 kWh/24h |
| External Dimensions (W × D × H) |
1795 × 600 × 850mm |
| Internal Dimensions (W × D × H) |
1234 × 480 × 564mm |
| Packed Dimensions (W × D × H) |
1825 × 630 × 910mm |
| Net Weight |
105 kg |
| Shelf Load Capacity |
40 kg per shelf |
| Construction |
Stainless Steel (interior & exterior, rounded corners) |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: Suited to busy commercial kitchens in restaurants, cafes, hotels, aged care facilities, and institutional catering operations. The bench-height worktop doubles as usable prep surface, making this unit ideal for tight galley kitchens where every square metre counts. Browse the full range in Under Bench Fridges or explore all FED-X refrigeration.
Installation & delivery: Single-phase 240V/10A connection — standard Australian GPO. Heavy-duty castors with front-wheel brakes for easy positioning. Unit can be placed directly against a wall. Dispatched Australia-wide.
Frequently asked questions
What is the net capacity of the XUB6C18S3V?
The usable (net) capacity is 254 L across three sections. The gross volume is 339 L; the difference accounts for shelving, insulation, and airflow space.
What refrigerant does the XUB6C18S3V use?
It uses R290 (propane) — a natural refrigerant that is HFC/CFC-free. The 60 mm foam body insulation is also free from hydrofluorocarbons and chlorofluorocarbons.
Is the unit suitable for hot Australian summers?
Yes. The XUB6C18S3V is tropicalised and rated for ambient temperatures up to 43°C, making it reliable in non-air-conditioned kitchens and outdoor-servery environments across Australia.
Does each door section have its own shelf?
Each section comes with 1 shelf. Additional shelf sets are available — contact us for part numbers and pricing.
What power connection does the fridge require?
A standard 240V / 50Hz / 10A single-phase Australian outlet (GPO). Running power draw is 230W.
