Description

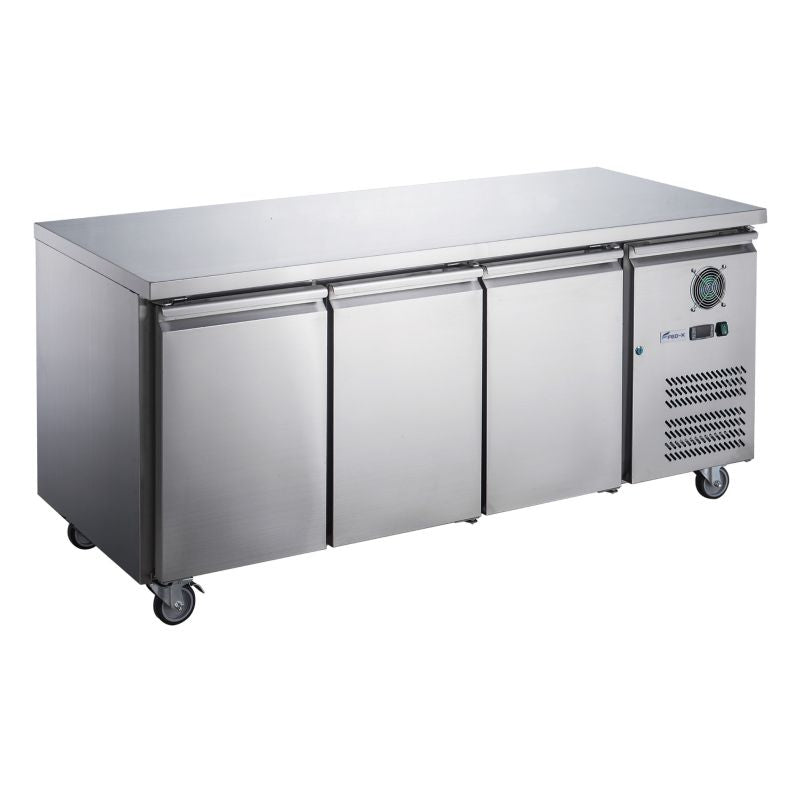

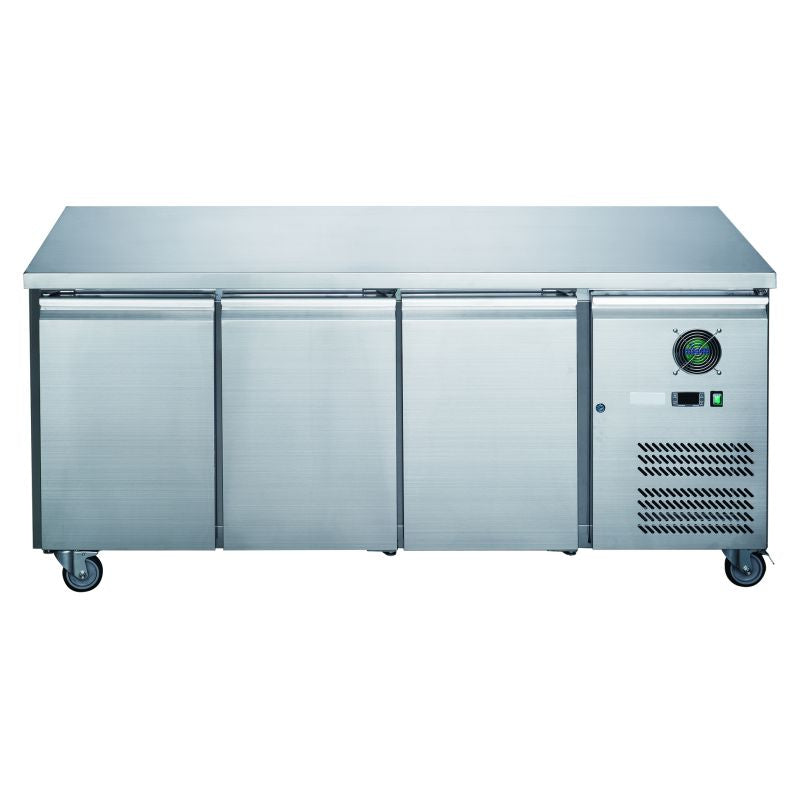

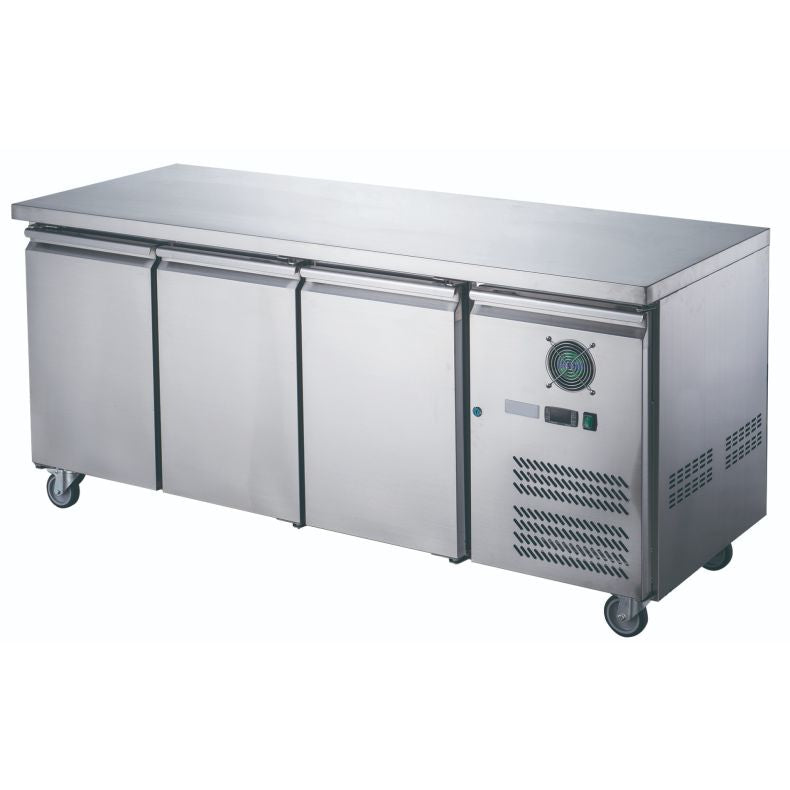

The FED-X XUB7C18S3V is a 3-door solid-door underbench storage fridge built for high-volume commercial kitchens that need reliable low-profile refrigeration with a full 1795mm worktop footprint. Fan-forced cooling, a Dixell digital controller, and tropicalisation for Australian ambient conditions up to 43°C make it a workhorse for prep stations, pass-throughs, and production lines.
Why operators choose the XUB7C18S3V
-
417 L gross capacity across three doors — each section independently accessible, minimising temperature loss during service
-
Fan-forced cooling with Embraco/Secop compressor — rapid recovery rate maintains consistent -2 to +8°C even under heavy door-opening cycles
-
GN1/1 pan-compatible shelves — 1 shelf per section (40 kg capacity each), fits standard gastronorm pans without adapters
-

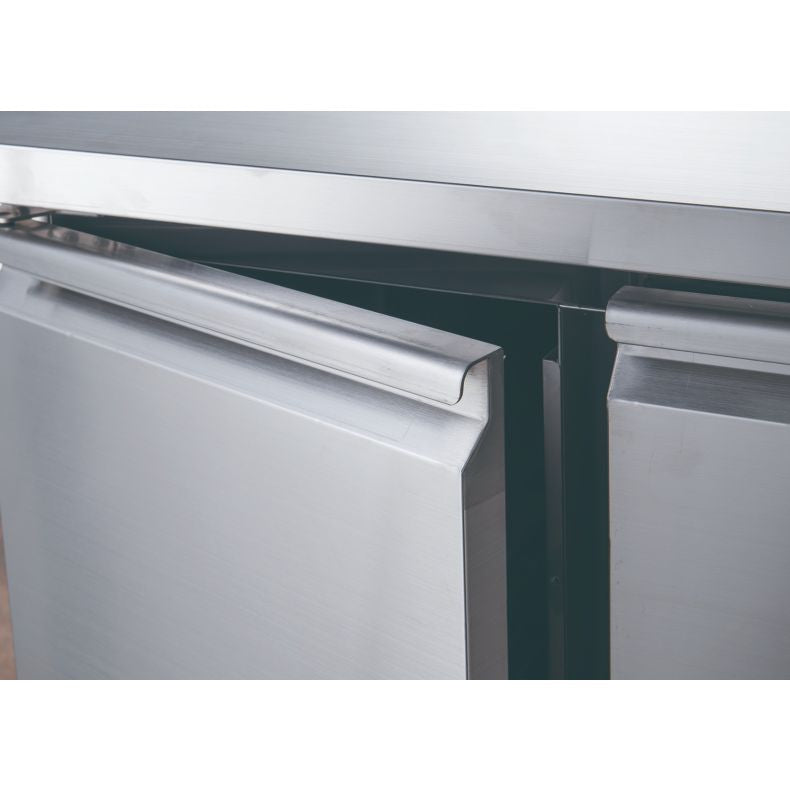

Self-closing doors with heavy-duty magnetic seals — prevents accidental temperature drift; stainless interior and exterior with rounded corners for easy cleaning
-
Tropicalised for Australian conditions — rated to 43°C ambient; 60mm HFC/CFC-free foam insulation and R290 natural refrigerant
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB7C18S3V |
| Type |
Undercounter Storage Fridge |
| Capacity |
417 L (gross) |
| Temperature Range |
-2 to +8°C |
| Refrigerant |
R290 |
| Cooling System |
Fan forced |
| Compressor |
Embraco/Secop |
| Controller |

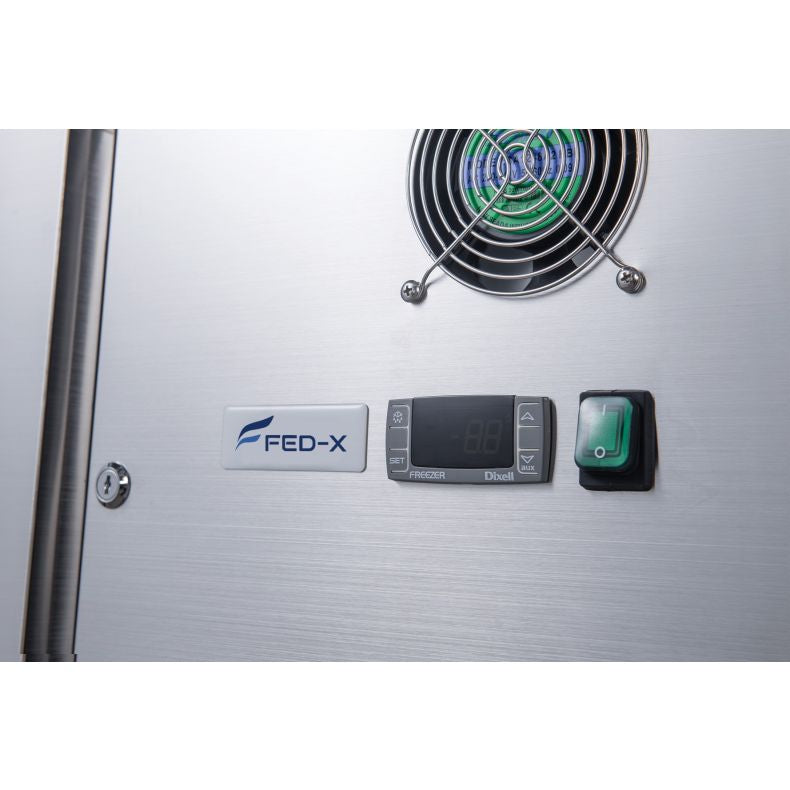

Dixell digital |
| Ambient Temperature Rating |
43°C |
| Doors |
3 solid hinged, self-closing |
| Shelves |
1 per door (GN1/1 compatible, 40 kg capacity each) |
| Internal Dimensions |
1234 x 580 x 564mm |
| External Dimensions |
1795(W) x 700(D) x 850(H)mm |
| Packed Dimensions |
1825(W) x 730(D) x 910(H)mm |
| Net Weight |
121 kg |
| Insulation |
60mm HFC/CFC-free foam |
| Power |
240V; 50Hz; 10A; 235W |
| Construction |
Stainless steel interior & exterior |
| Mobility |
Heavy-duty castors with front wheel brakes |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: Ideal for restaurants, cafes, hotel kitchens, catering operations, and food-production facilities that need high-capacity underbench refrigeration at a prep or pass-through station. The 1795mm worktop doubles as prep surface. Suitable for tropical and high-ambient environments. Browse our full range of Under Bench Fridges or explore more FED-X refrigeration equipment.
Installation & delivery: The XUB7C18S3V ships pre-assembled on castors — position, plug into a standard 10A GPO, and it is operational. Unit can be placed directly against a wall (rear condenser clearance not required). Dispatched Australia-wide.
Frequently asked questions
What is the net usable capacity of the XUB7C18S3V?
The gross volume is 417 L across three sections. The usable (net) capacity is 311 L as measured per Australian convention.
What refrigerant does the XUB7C18S3V use?
It uses R290 (propane), a natural refrigerant with very low global-warming potential and zero ozone-depletion potential — compliant with current and anticipated Australian regulations.
Can I store GN1/1 pans directly on the shelves?
Yes. Each of the three sections includes one GN1/1-compatible shelf rated to 40 kg. Full-size gastronorm pans slide straight in without adapters or additional rack conversions.
Is the unit suitable for a Queensland or Northern Territory kitchen?
Yes. The XUB7C18S3V is tropicalised for Australian conditions with an ambient temperature rating of 43°C, making it suitable for hot and humid kitchens found in tropical climates.
What is the warranty on the XUB7C18S3V?
FED-X provides 2 Years Parts & Labour plus a further 2 Years Parts Only, giving 4 years total coverage — provided the unit is registered within 14 days of invoice date.
