Description

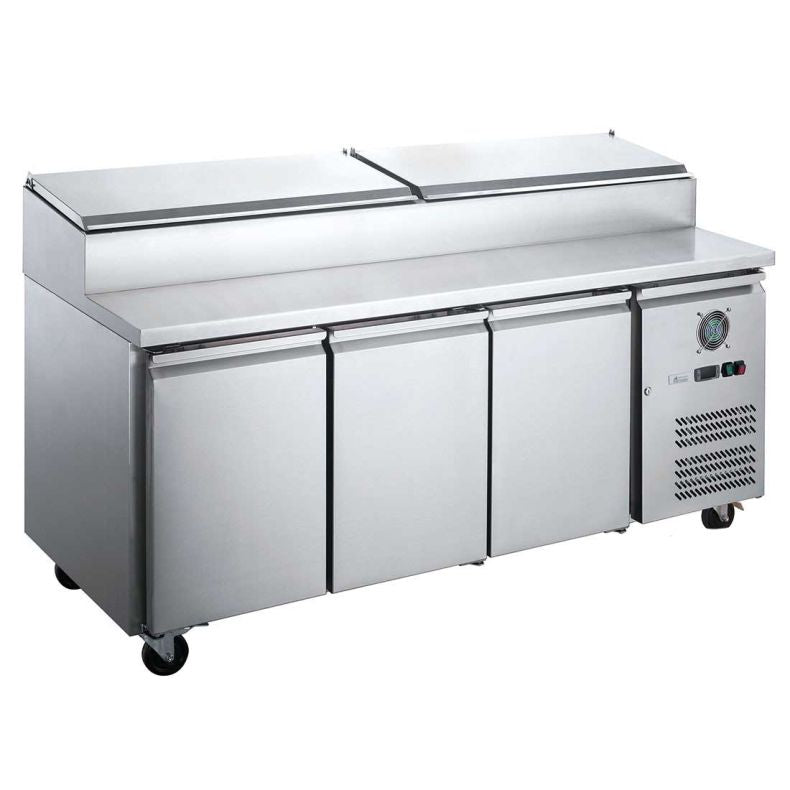

The FED-X XSS8C20S3V is a 580-litre three-door refrigerated sandwich and salad prep counter designed for high-volume commercial kitchens. Featuring a fan-forced cooling system, R290 natural refrigerant, and stainless steel interior and exterior, it maintains a +2 to +8°C operating temperature to keep ingredients fresh through a full service.
Why operators choose the XSS8C20S3V
-
8-pan top rail — accommodates 1/3 GN pans up to 150mm deep for mise en place-ready prep
-

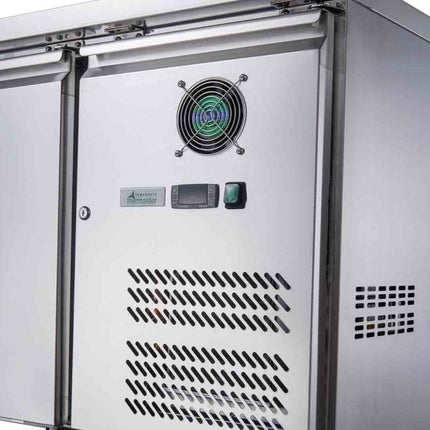

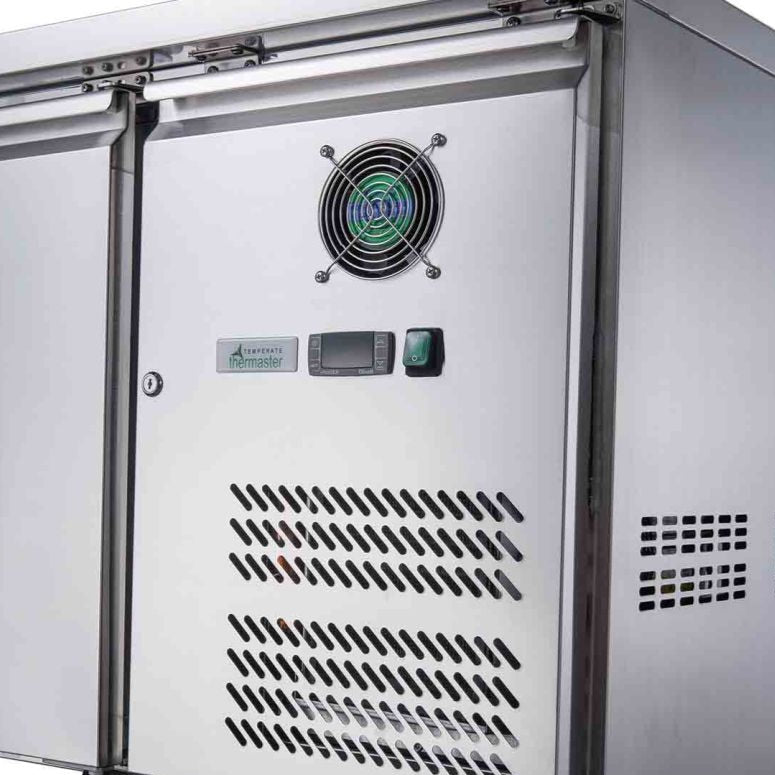

Fan-forced cooling with Ebm-Papst fans — rapid temperature recovery even during heavy door traffic
-
R290 refrigerant — low global-warming-potential hydrocarbon, CFC and HFC free, tropicalised for Australian ambient conditions up to 43°C
-

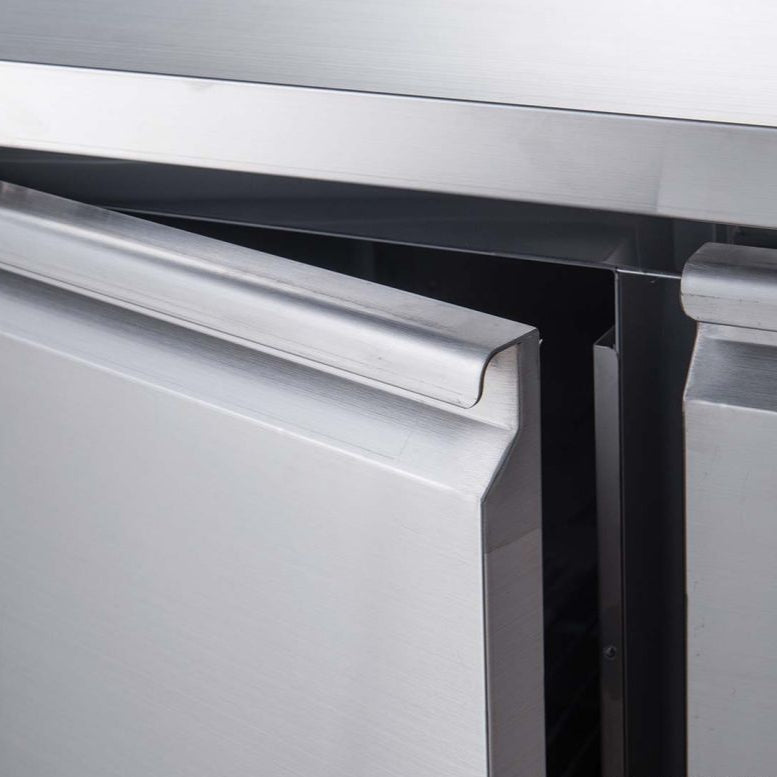

Self-closing doors with heavy-duty magnetic seals — reduce cold air loss and maintain consistent temperature
-
Display top holds temperature for up to 4 hours — from a pre-chilled environment, supporting service continuity
-

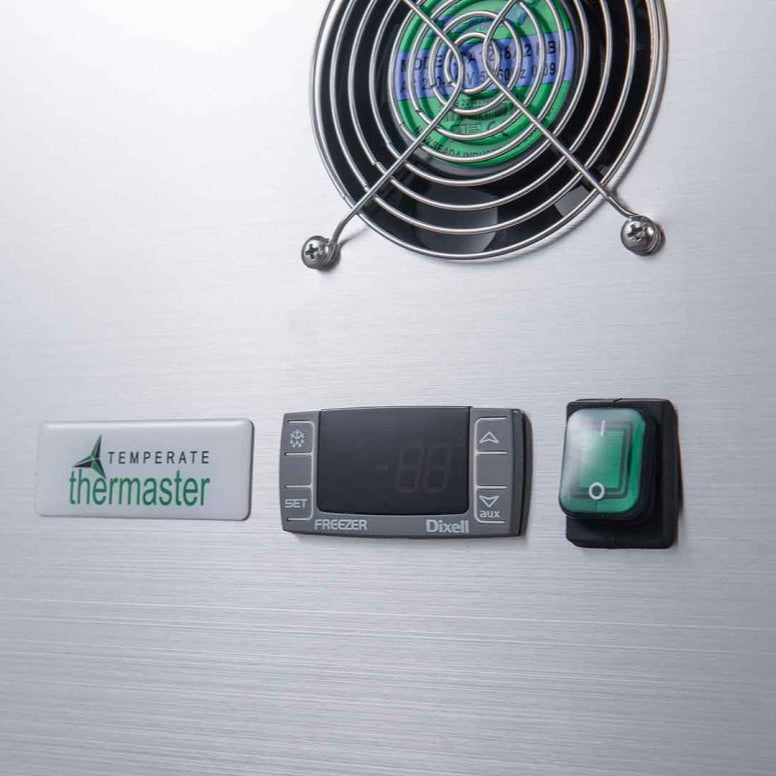

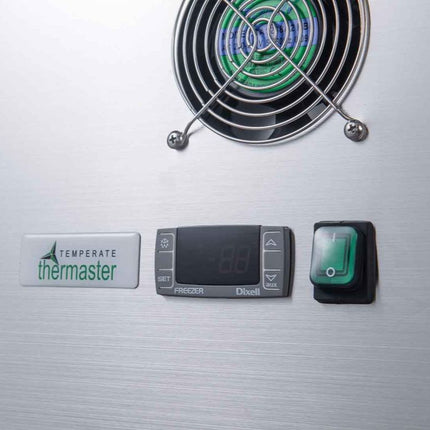

Dixell digital controller — user-friendly, precise temperature management with rapid recovery rate
Specifications
| Brand |
FED-X |
| Model / MPN |
XSS8C20S3V |
| Type |
Salad / Sandwich Prep Bar Fridge |
| Capacity |
580 L |
| Doors |
3 hinged, self-closing |
| GN Pan Compatibility |
1/3 GN pans up to 150mm deep (top rail); GN 1/1 shelf per door |
| Temperature Range |
+2 to +8°C |
| Refrigerant |
R290 |
| Cooling System |
Fan forced |
| Compressor |
Cubigel |
| Controller |
Dixell digital |
| Power |
240V; 50Hz; 10A; 320W |
| Power Type |
Electric |
| Construction |
Stainless steel interior & exterior with rounded corners |
| Insulation |
60mm HFC & CFC-free foam body |
| Shelf Load Capacity |
40 kg per shelf |
| Max Ambient Temperature |
43°C at 60% RH |
| Internal Dimensions |
1459 x 680 x 564mm |
| Product Dimensions |
2020(W) x 800(D) x 1406(H)mm |
| Package Dimensions |
2055(W) x 730(D) x 1160(H)mm |
| Net Weight |
150 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: Suited to sandwich bars, cafes, delis, hotels, and any high-volume kitchen requiring a generous 580-litre refrigerated prep line. The three-door configuration keeps the full prep station within arm's reach. Browse the full range in our Salad Bar Fridges collection, or explore all FED-X commercial refrigeration.

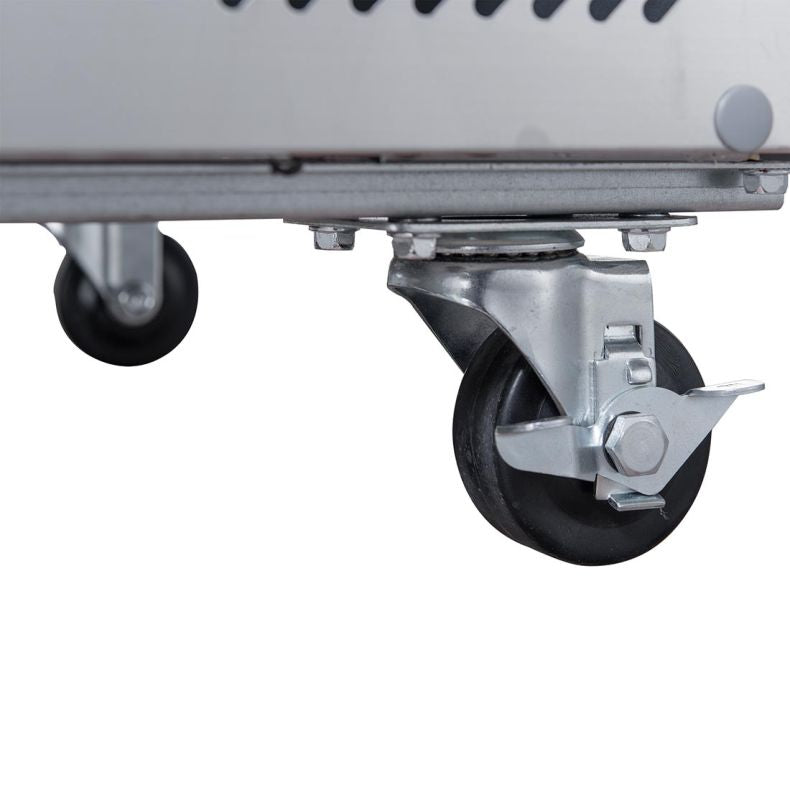

Installation & delivery: The XSS8C20S3V ships on heavy-duty castors with front wheel brakes, ready for immediate placement. Single-phase 240V connection — no special electrical work required. Dispatched Australia-wide.
Frequently asked questions
What size GN pans fit in the top rail?

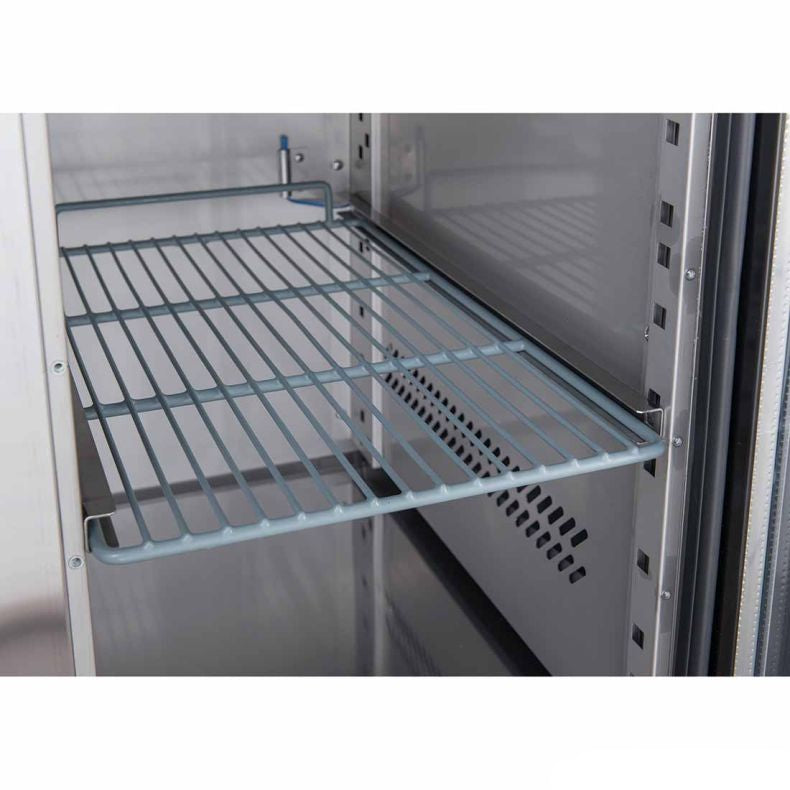

The top rail accommodates 1/3 GN pans up to 150mm deep. Each of the three door compartments also includes one shelf compatible with GN 1/1 pans.
What refrigerant does the XSS8C20S3V use?
It uses R290, a natural hydrocarbon refrigerant that is HFC and CFC free with a very low global warming potential. It is tropicalised and tested for Australian ambient conditions up to 43°C.
Is a special power connection required?
No. The unit runs on standard single-phase 240V / 50Hz / 10A — a standard commercial GPO is sufficient.
What warranty applies?
FED-X provides 2 years parts and labour plus a further 2 years parts-only coverage, provided the unit is registered within 14 days of invoice.
How long does the display top hold temperature?
The display top is designed to hold temperature for up to 4 hours from a pre-chilled environment, supporting continuity of service during busy periods.
SKU: XSS8C20S3V
In Stock
