Description

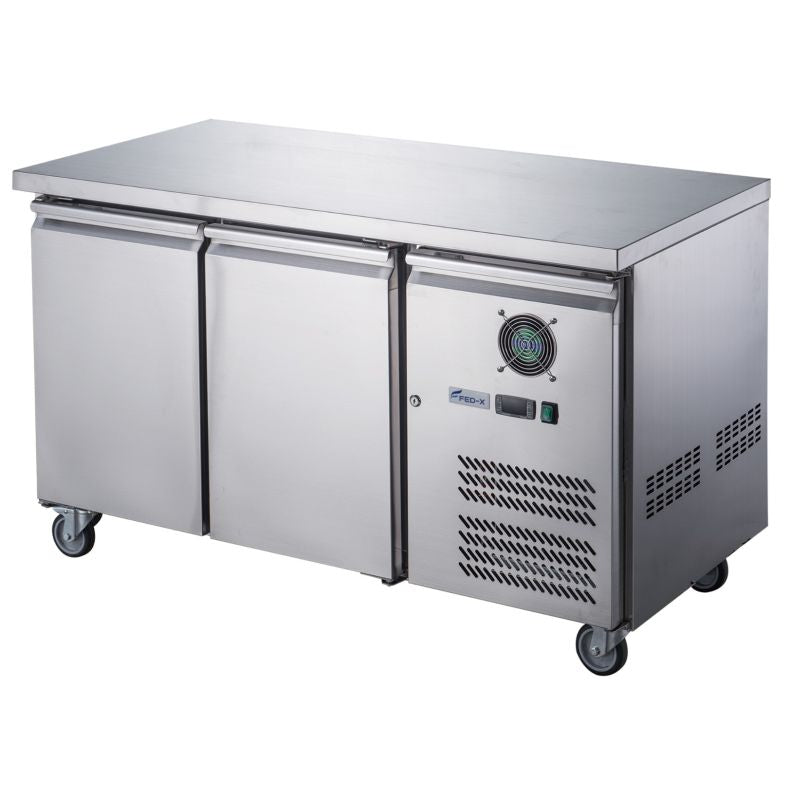

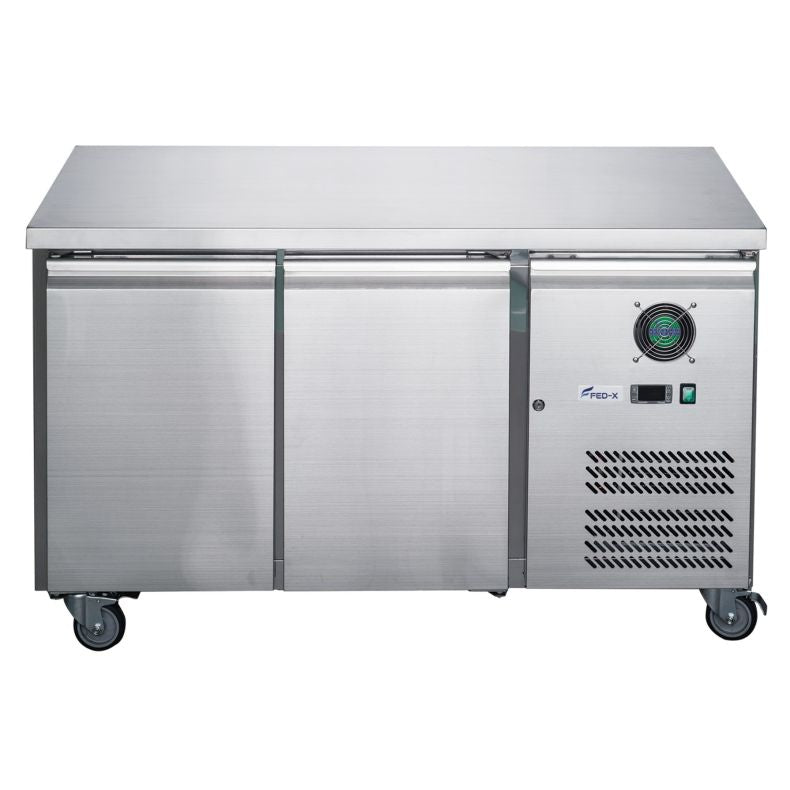

The FED-X XUB6F13S2V is a two-door stainless steel underbench storage freezer built to hold 170 litres of frozen product at a steady -18°C to -22°C beneath a stainless worktop, keeping freezer stock within arm's reach on a busy line.
Why operators choose this freezer
-
Fan-forced cooling with R290 refrigerant — even temperatures and a rapid recovery rate that hold -18°C to -22°C through service.
-
Tropicalised for Australian conditions — rated to run in ambients up to 38°C at 60% RH, so it copes with hot kitchens.
-
Stainless steel inside and out — rounded internal corners and 60mm CFC/HFC-free foam insulation for easy cleaning and low running cost.
-

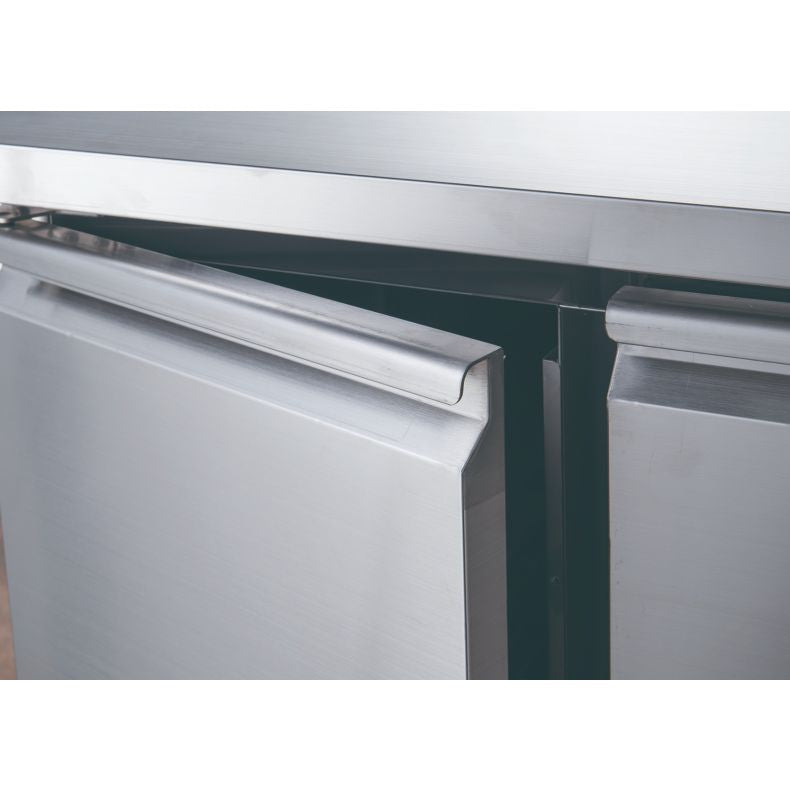

Self-closing solid doors — heavy-duty magnetic seals and a shelf per door keep cold in and stock organised.
-
Mobile and wall-friendly — heavy-duty castors with front-wheel brakes and a design that sits flush against a wall.
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB6F13S2V |
| Type |
Underbench Storage Freezer (2 solid doors) |
| Net Capacity |
170 L |
| Gross Volume |
228 L |
| Temperature Range |
-18°C to -22°C |
| Cooling System |
Fan-forced cooling |
| Refrigerant |
R290 |
| Compressor |
Cubigel |
| Controller |

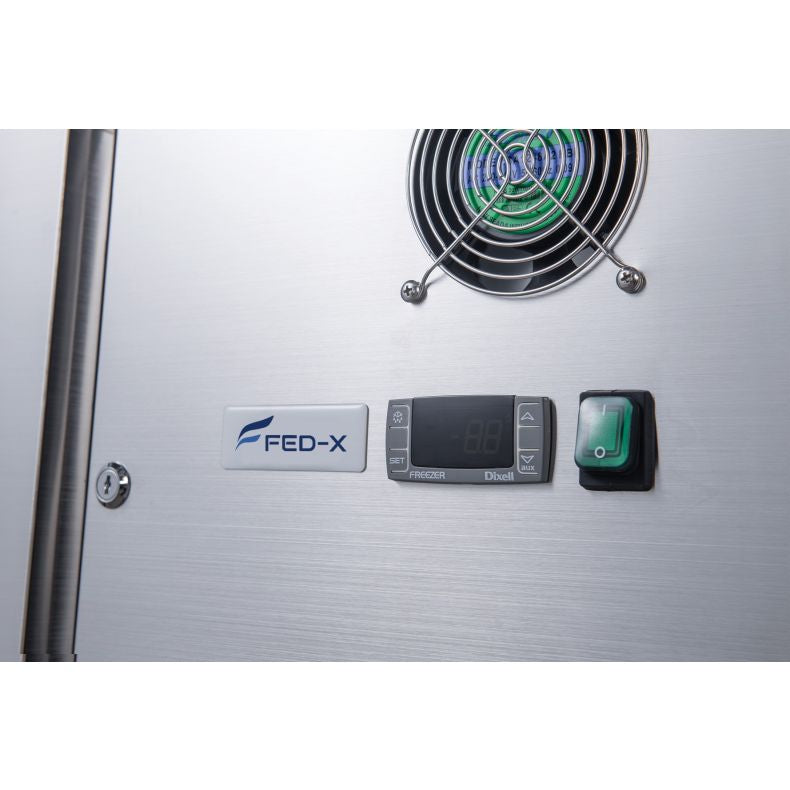

Dixell |
| Max Ambient |
38°C at 60% RH |
| Doors |
2 (self-closing, magnetic seals) |
| Shelves |
1 per door (40kg load per shelf) |
| Insulation |
60mm CFC/HFC-free foam |
| External Dimensions |
1360mm W x 600mm D x 850mm H |
| Internal Dimensions |
799mm W x 480mm D x 564mm H |
| Net Weight |
107 kg |
| Power |
240V / 50Hz / 10A / 520W |
| Material |
Stainless Steel |
| Country of Manufacture |
China |
Venue suitability: The compact 1360mm underbench footprint suits cafes, bars, takeaway shops and restaurant cooklines that need frozen storage at bench height without a dedicated cold room. It slots neatly into a run of Under Bench Freezers, and sits alongside the rest of the FED-X refrigeration range for a matched stainless fit-out.
Installation & delivery: Runs on a standard 240V 10A power point — plug in, allow to reach temperature and load. Heavy-duty braked castors make positioning easy, and the cabinet can sit flush against a wall. Dispatched Australia-wide.
Frequently asked questions
What temperature does the FED-X XUB6F13S2V hold? It operates as a freezer across a -18°C to -22°C range, using fan-forced cooling and R290 refrigerant for even temperatures and fast recovery.
How much can this underbench freezer store? It has a 170-litre net capacity (228-litre gross), with one shelf per door rated to 40kg and additional shelf sets available.
What are the external dimensions? The cabinet measures 1360mm wide x 600mm deep x 850mm high, designed to fit under a standard bench, with an internal storage space of 799mm W x 480mm D x 564mm H.
Is it suitable for hot Australian kitchens? Yes — it is tropicalised and rated to run in ambient temperatures up to 38°C at 60% relative humidity.
What warranty is included? It carries 2 years parts and labour, plus a further 2 years parts only for units registered within 14 days of invoice.
SKU: XUB6F13S2V
In Stock
