Description

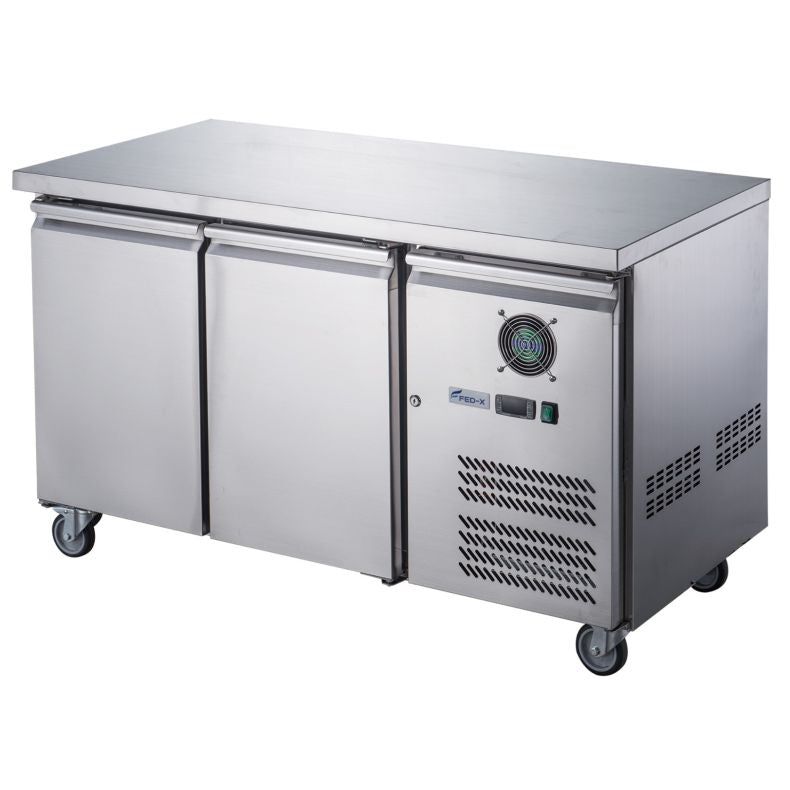

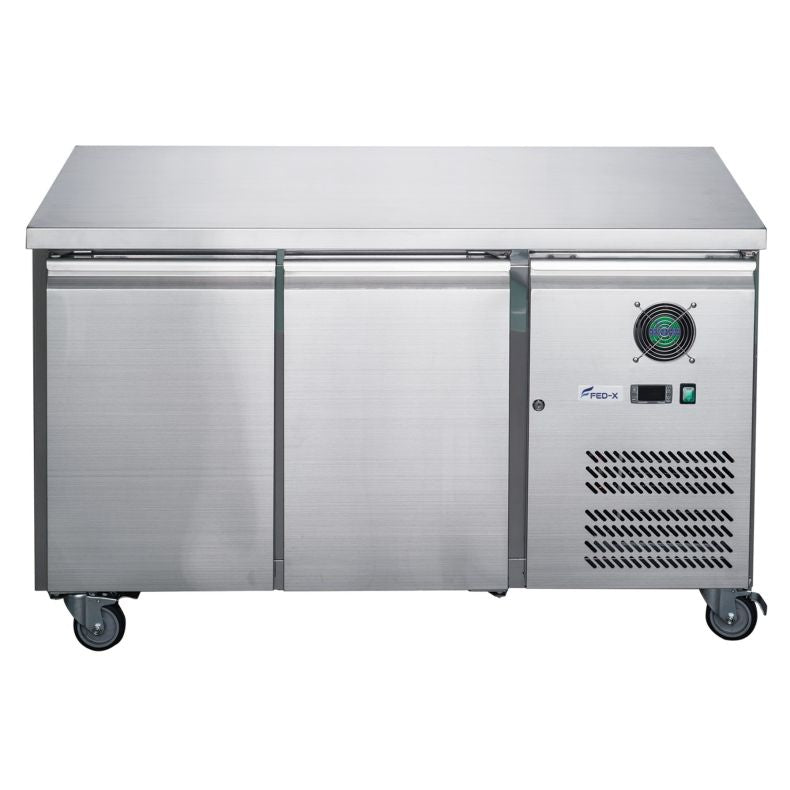

The FED-X XUB7F13S2V is a 2-door solid-door underbench freezer designed for high-output commercial kitchens that need reliable sub-zero storage directly at the prep line. Running on the eco-friendly R290 refrigerant and fan-forced cooling, it holds a net 186 L across two independent compartments and maintains temperatures between -18°C and -22°C even in ambient kitchen conditions up to 38°C.
Why operators choose the XUB7F13S2V
-
Prep-line convenience — underbench form factor positions frozen stock exactly where it is needed, cutting transit time and reducing service disruption.
-

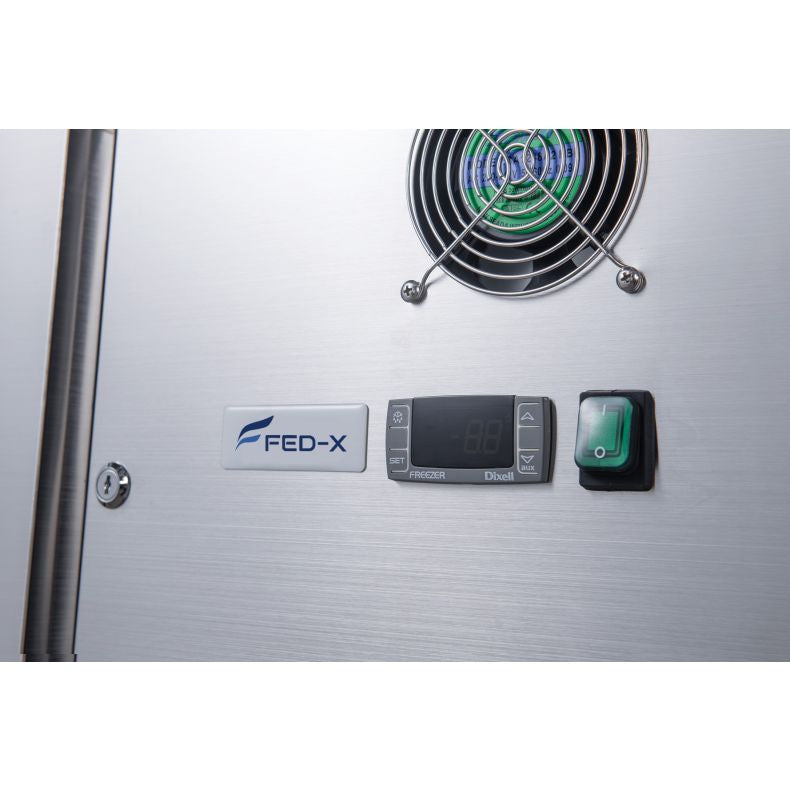

Stable temperature in hot kitchens — tropicalised design rated to 38°C ambient with Dixell digital controller for precise set-and-forget temperature management.
-
GN1/1 pan compatibility — one shelf per door accommodates full-size gastronorm pans with 40 kg load rating per shelf, so no pan adapters or rearranging.
-

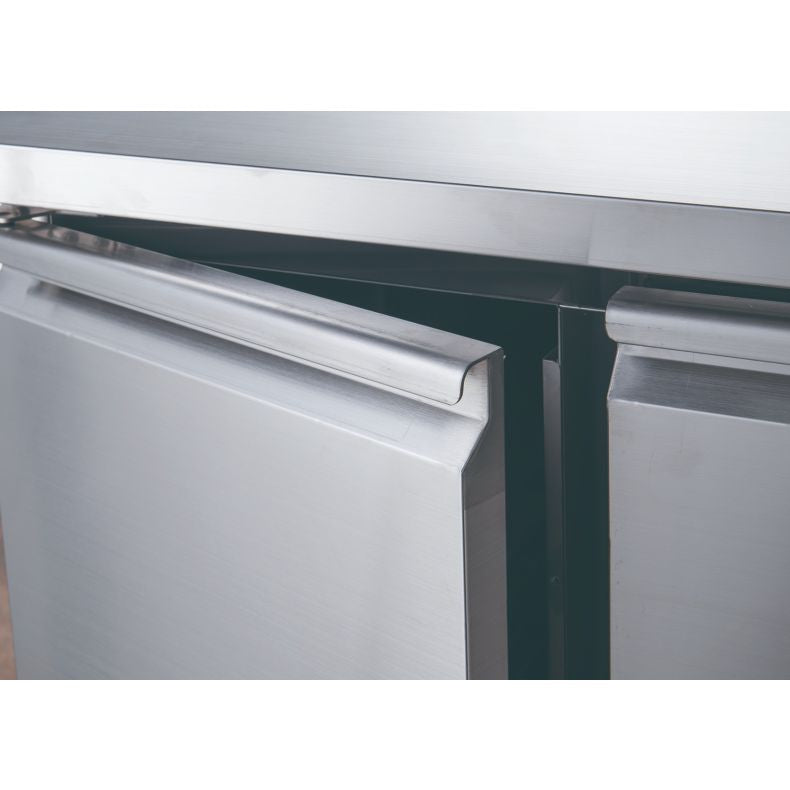

Low-maintenance construction — stainless steel interior and exterior with rounded corners, self-closing doors with heavy-duty magnetic seals, and HFC/CFC-free foam insulation throughout.
-
4-year warranty coverage — 2 years parts and labour plus 2 years parts only when registered within 14 days of invoice, backed by FED nationwide stock in four states.
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB7F13S2V |
| Type |
Underbench Freezer |
| Net Capacity |
186 L |
| Gross Capacity |
282 L |
| Doors |
2 solid hinged |
| Shelves |
1 per door (GN1/1 compatible, 40 kg load per shelf) |
| Temperature Range |
-18°C to -22°C |
| Ambient Temperature Rating |
38°C, 60% RH |
| Refrigerant |
R290 |
| Cooling System |

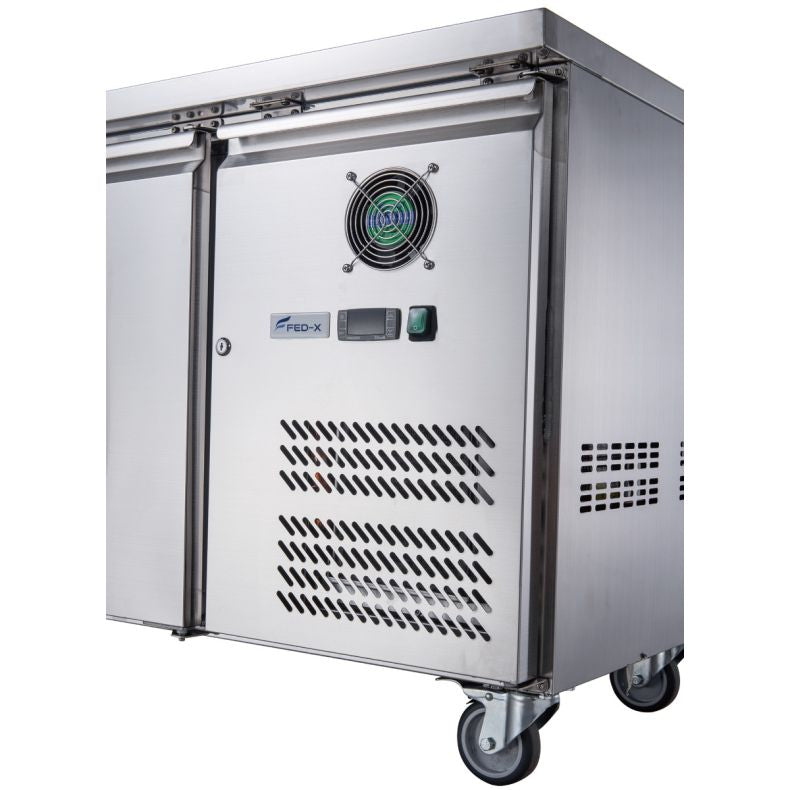

Fan-forced (EBM-PAPST evaporator and condenser fans) |
| Compressor |
Embraco/Secop |
| Controller |
Dixell digital |
| Power |
240V; 520W / 3.2A |
| Energy Consumption |
7.81 kWh/24h |
| Construction |
Stainless steel interior and exterior, rounded corners |
| Insulation |
60mm HFC/CFC-free foam |
| Door Seals |
Self-closing with heavy-duty magnetic seals |
| Mobility |
Heavy-duty castors with front wheel brakes |
| Internal Dimensions |
799 x 580 x 564mm |
| External Dimensions (W x D x H) |
1360 x 700 x 850mm |
| Packing Dimensions (W x D x H) |
1390 x 730 x 910mm |
| Net Weight |
107 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: The XUB7F13S2V suits commercial kitchens where frozen ingredient storage needs to sit directly within the prep zone — ideal for restaurants, cafes, hotels, catering operations, and institutional kitchens running continuous service. The underbench height integrates cleanly under standard work surfaces without interrupting bench space.
Browse the full range of Under Bench Freezers or explore more products from FED-X available at Commercial Kitchen Store.
Installation & delivery: This unit arrives fully assembled on castors and requires only a standard 10A 240V power point. Allow adequate clearance at the rear and sides for ventilation. Dispatched Australia-wide.
Frequently asked questions
What is the difference between net capacity (186 L) and gross capacity (282 L)?
Gross capacity is the total interior volume before insulation walls and shelving. Net (usable) capacity — 186 L — is the space actually available to store product. Always compare net figures across units.
Is the XUB7F13S2V suitable for a kitchen that gets hot in summer?
Yes. The unit is tropicalised and rated to operate in ambient temperatures up to 38°C at 60% relative humidity, which covers most Australian commercial kitchen environments.
What refrigerant does this freezer use?
R290 (propane) — a natural, low-GWP refrigerant with no ozone depletion potential and lower environmental impact than synthetic HFC refrigerants.
Can I use full-size GN1/1 pans directly in this unit?
Yes. Each door includes one shelf rated to 40 kg and dimensioned for GN1/1 pans without adapters.
What does the warranty cover and how do I activate it?
The warranty provides 2 years parts and labour plus a further 2 years parts only, totalling 4 years coverage. To activate the full 4-year term, the unit must be registered within 14 days of the invoice date.
